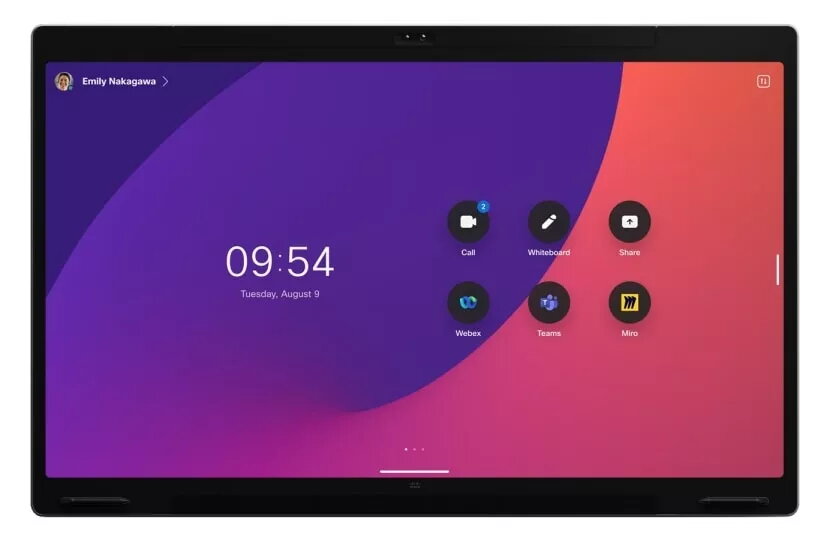

Grupas videokonferenču sistēma Cisco CS-BRDP75-K9 12 MP 4K Ultra HD

Kontrasta attiecība (tipiskā): The difference in light intensity between the brightest white and the darkest black.

1000:1

Skata leņķis, horizontāli: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

89 °

Skata leņķis, vertikāli: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

89 °

Digitālā tālummaiņa: Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.

3 x

Megapikseļi: The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card.

12 MP

Wi-Fi standartu: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Drošības algoritma atbalstīts: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

HTTPS, TLS

Maksimālais datu pārraides ātrums: The maximum speed with which data can be transmitted from one device to another.

20 Mbit/s

Line-out:

Jā

Ethernet/LAN savienojums: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Jā

Ekrāna spilgtums: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

350 cd/m²

Krāsu dziļums:

10 bit

Sensora tips: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.

CMOS

Ekrāna izšķirtspēja: Ekrāna izšķirtspēja izteikta pikseļos (punktos). Ekrāna izšķirtspēja tiek norādīta ar horizontālu un vertikālu rindiņu punktu skaitu. Jo lielāka ekrāna izšķirtspēja, jo detalizētāks ir redzams attēls.

3840 x 2160

Pie sienas piestiprināms: The product can be mounted on (attached to ) a wall.

Jā

Balss kodeksi:

AAC, G.711, G.722, G.722.1, G.729, OPUS

Mikrofons, līnijas izeja: The socket where a microphone is connected to the device.

Jā

Iebūvēti skaļruņi: The device contains speaker(s) to produce sound.

Jā

Wi-Fi: WiFi ir bezvadu ierīce savienojumam ar tīklu. Mūsdienās jaunākais ir 802.11 B/G/N/AC pieslēgums, kuram ir augstākā ātrdarbība (150 - 900Mb/s) un drošība. Ar 802.11 B/G arī var pieslēgties praktiski visiem tīkliem, tikai maksimālā ātrdarbība pieslēdzoties N vai AC tipa tīklam būs 54 Mb/s.

Jā

Quality of Service (QoS) atbalsts:

Jā

Ethernet LAN datu pārsūtīšanas ātrums: The different speed levels of the Ethernet LAN connection.

100, 1000

Atbalstītie video režīmi: The video modes that can be displayed by the device.

1080p

Skārienjūtīgais ekrāns: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Jā

HDMI versija: HDMI ir ciparu savienotājs, ar kura palīdzību var pieslēgt televizoru, projektoru un citas ierīces, kas nodod attēlu portatīvajam datoram. Atšķirībā no VGA, HDMI nodod skaņu un attēlu bez traucējumiem un augstā izšķirtspējā ( HD, Full HD – ja ir pieejams).

2.0

Atbalstītie video formāti: The type of video formats that can be used by this device.

H.264, H.265

Mikrofona diapazons:

4 m

Maksimālais kadru ātrums: This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).

30 fps

Kopējais megapikseļu skaits: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).

12 MP

Kameras tips: There are a number of common types of digital cameras: compact cameras, bridge cameras, mirrorless interchangeable-lens cameras (MILC) and single lens reflex (SLR) cameras. Bridge cameras 'bridge the gap' between the low-end compact and high-end professional (SLR) cameras. Also MILCs populate this mid-segment by combining the larger sensors and interchangeable lenses of DSLRs with the live-preview viewing system of compact cameras.

Duālā kamera

Skārienjutīga ekrāna veids: There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.

Capacitive

Otrās kameras izšķirtspēja:

12 MP

Maiņstrāvas ievades frekvence:

59/60

Maiņstrāvas ievades spriegums: The voltage of the AC electricity that is inputted into the product.

100 - 240

Skaļruņu skaits: The quantity of speakers included in/with the product.

2

Power over Ethernet (PoE) pieslēgvietu skaits:

1

HD veids: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD

Attēla sensora izmērs: The total dimensions of the sensor within the camera, given in inches ('').

1/1.7

USB 3.2 Gen 1 (3.1 Gen 1) A tipa pieslēgvietu skaits: Ar jauno USB 3.0 specifikāciju saderīgās ierīces sasniedz 5 Gbit/s (640 MB/s) ātrdarbību. Tas ir 10 reižu vairāk, nekā USB 2.0, kura datu pārsūtīšanas ātrums – 480Mbit/s (42MB/s). USB 3.0 savienojums tiek atzīmēts zilā krāsā.

2

USB 3.2 Gen 1 (3.1 Gen 1) C tipa pieslēgvietu skaits: Ar jauno USB 3.0 specifikāciju saderīgās ierīces sasniedz 5 Gbit/s (640 MB/s) ātrdarbību. Tas ir 10 reižu vairāk, nekā USB 2.0, kura datu pārsūtīšanas ātrums – 480Mbit/s (42MB/s). USB 3.0 savienojums tiek atzīmēts zilā krāsā.

2

Joslas platuma diapazons (IP):

768 - 2560

HDMI ievades pieslēgvietu daudzums:

1

Svars&dimensijas

Augstums: The measurement of the product from head to foot or from base to top.

1102 mm

Dziļums: The distance from the front to the back of something.

86 mm

Platums: The measurement or extent of something from side to side.

1719 mm

Ārējās vides apstākļi

Uzglabāšanas relatīvā mitruma amplitūda:

10 - 90

Darbības relatīvā mitruma amplitūda:

20 - 90

Uzglabāšanas temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 35

Savienojamība

Ethernet LAN (RJ-45) pieslēgvietu skaits: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Enerģijas pārvaldība

Strāva:

4.5 A

Barošanas avota veids: What the power source is.

AC

Displejs

Displeja diagonāle: Skatāmā laukuma diagonāle collās.

75 "

Iebūvēta displeja: A display which is part of the product, so you do not need to attach another display.

Jā

Ekrāns: The description of display that can includes display type, resolution, size etc.

LED

Mikrofons

Mikrofonu skaits:

12

Īpašības

Audi sistēmas pilns duplekss:

Jā

Audio staru formēšana:

Jā

Automātiska pastiprinājuma kontrole:

Jā

Skaņas samazināšana:

Jā

Produkta veids: The sub-category of the product.

Grupas videokonferenču sistēma

Produkta krāsa: The colour e.g. red, blue, green, black, white.

Melns
