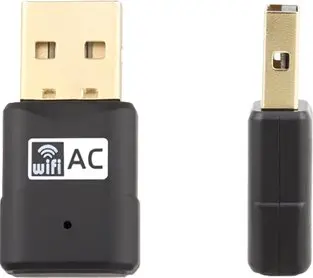

Tīkla karte Fanvil WF20 WLAN 150 Mbit/s

Wi-Fi standartu: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b

Komponente: What this product is used as a part of (component for).

PC (dators)

Savienojamība

Savienojamības tehnoloģija: The technology that enables connectivity of the device, e.g. wired or wireless.

Bezvadu

Interfeiss: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN

Saimnieka interfeiss: Interface that enables a host controller to communicate with a driver.

USB

Iekšējs: The product is built in.

Nē

USB versija: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

2.0

Joslas platums

Maksimālais datu pārraides ātrums: The maximum speed with which data can be transmitted from one device to another.

150 Mbit/s

Tīklošana

Tīkla standarts: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Bezvadu LAN īpašības

Wi-Fi: WiFi ir bezvadu ierīce savienojumam ar tīklu. Mūsdienās jaunākais ir 802.11 B/G/N/AC pieslēgums, kuram ir augstākā ātrdarbība (150 - 900Mb/s) un drošība. Ar 802.11 B/G arī var pieslēgties praktiski visiem tīkliem, tikai maksimālā ātrdarbība pieslēdzoties N vai AC tipa tīklam būs 54 Mb/s.

Jā

Wi-Fi josla: The frequency bands the product features.

Divkāršā frekvenču josla (2.4 GHz / 5 GHz)

Wi-Fi standarts: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 5 (802.11ac)

Antena

Frekvences diapazons:

2,4 - 5,8

Darbības rādītāji

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Jā

Savienojamie produkti: Other products that can be used with this product.

Compatible with Fanvil X5S/X6/X7/X7C/X210/X210i (Only support 2.4GHz/150Mbps) - For X5S/X6/X210/X210i, upgrade to the version of V1.10.10 or higher - For X7/X7C, upgrade to the version of V1.0.10 or higher

Dizains

Produkta krāsa: The colour e.g. red, blue, green, black, white.

Melns

Svars&dimensijas

Augstums: The measurement of the product from head to foot or from base to top.

7 mm

Platums: The measurement or extent of something from side to side.

16 mm

Dziļums: The distance from the front to the back of something.

33 mm

Enerģijas pārvaldība

USB barošana: The device can be powered via a USB connection.

Jā

Ārējās vides apstākļi

Darbības relatīvā mitruma amplitūda:

20 - 85

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 45
