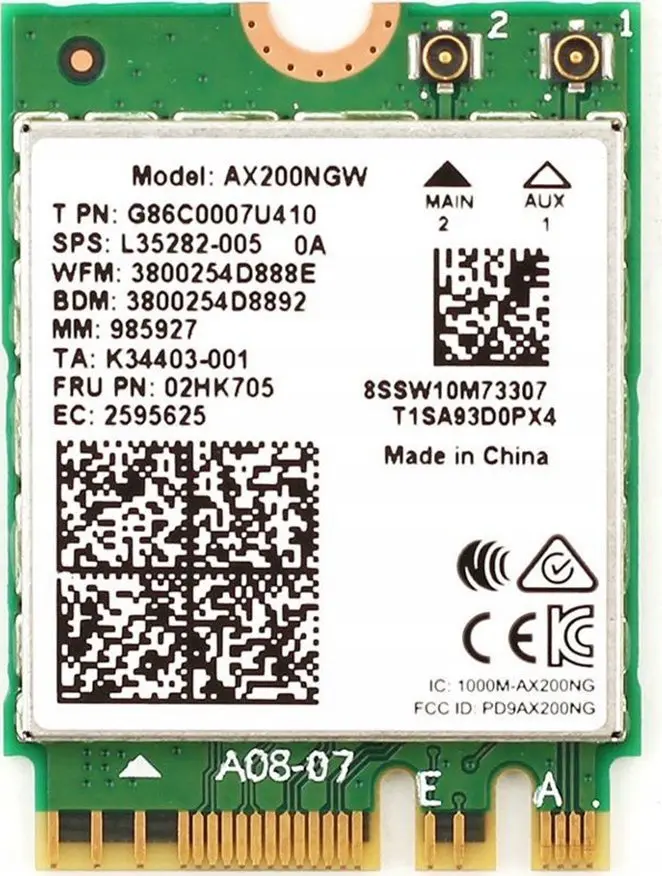

Intel Dual Band Wireless AX200NGW — WiFi 6 AX200 WiFi adapteris — 2,4 GHz 574 Mbps/5 GHz 2,4 Gb/s — 802.11AX tīkla karte — Bluetooth 5.0 bezvadu tīkla adapteris

Wi-Fi standartu: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6 (802.11ax)

Bluetooth: Bluetooth ir bezvadu tīkls datu pārraidei starp mobilajām ierīcēm un to piederumiem (telefoniem, bezvadu austiņām u.c.), kā arī tas ļauj nosūtīt datus no mobilās ierīces uz datoru un otrādi.

Jā

Maksimālā darbības temperatūra:

80 °C

Komponente: What this product is used as a part of (component for).

PC / portatīvais dators

Atbilstība:

FIPS, FISMA

Iepakojuma izmērs:

22 x 30 x 2.4

Harmonizētās sistēmas (HS) kods:

85176990

Eksporta kontroles klasifikācijas numurs (ECCN):

5A992CN3

Commodity Classification Automated Tracking System (CCATS):

G165483

MU-MIMO:

Jā

Savienojamība

Savienojamības tehnoloģija: The technology that enables connectivity of the device, e.g. wired or wireless.

Bezvadu

Interfeiss: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN

Saimnieka interfeiss: Interface that enables a host controller to communicate with a driver.

M.2

Iekšējs: The product is built in.

Jā

Joslas platums

Maksimālais datu pārraides ātrums: The maximum speed with which data can be transmitted from one device to another.

2400 Mbit/s

Tīklošana

Tīkla standarts: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11k, IEEE 802.11w, IEEE 802.11v, IEEE 802.11u, IEEE 802.11r, IEEE 802.11n, IEEE 802.11i, IEEE 802.11e, IEEE 802.11h, IEEE 802.11g, IEEE 802.11d, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a

Bezvadu LAN īpašības

Wi-Fi: WiFi ir bezvadu ierīce savienojumam ar tīklu. Mūsdienās jaunākais ir 802.11 B/G/N/AC pieslēgums, kuram ir augstākā ātrdarbība (150 - 900Mb/s) un drošība. Ar 802.11 B/G arī var pieslēgties praktiski visiem tīkliem, tikai maksimālā ātrdarbība pieslēdzoties N vai AC tipa tīklam būs 54 Mb/s.

Jā

Wi-Fi josla: The frequency bands the product features.

Divkāršā frekvenču josla (2.4 GHz / 5 GHz)

Wi-Fi standarts: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6 (802.11ax)

Antena

Antenas tips: Type of antenna, also known an aerial, e.g. external, internal.

2x2

Darbības rādītāji

Drošības algoritma atbalstīts: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

128-bit AES, MSCHAPv2, 256-bit AES, AES-CCMP, EAP-AKA, AES-GCMP, EAP-TLS, EAP-SIM, PEAP, EAP-TTLS, 64-bit WEP, WPS, WPA3, WPA2, TKIP, 128-bit WEP

Atbalstītās Windows operētājsistēmas: Windows vesions wich can be used with the device.

Windows 10 x64

Linux operētājsistēma atbalstīta: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Jā

Citas atbalstītās operētājsistēmas:

ChromeOS

Atbalsta zem vPro:

Jā

Tehniskā informācija

Produkta veids: The sub-category of the product.

Bezvadu

Statuss:

Launched

Izlaides datums:

Q2'19

Izstrādājumu īsais vienotais resursu vietrādis (URL):

https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf

Dizains

Izstrādājuma koda nosaukums:

Cyclone Peak

Izstrādājumu sērija:

Intel® Wireless Products

Svars&dimensijas

Svars: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.0028 kg

Augstums: The measurement of the product from head to foot or from base to top.

2.4 mm

Platums: The measurement or extent of something from side to side.

22 mm

Dziļums: The distance from the front to the back of something.

30 mm

Ārējās vides apstākļi

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 80

Papildus informācija

Saderīgās operētājsistēmas: List of desktop operating systems tested as compatible with this product.

Windows 10, 64-bit*|Linux*
