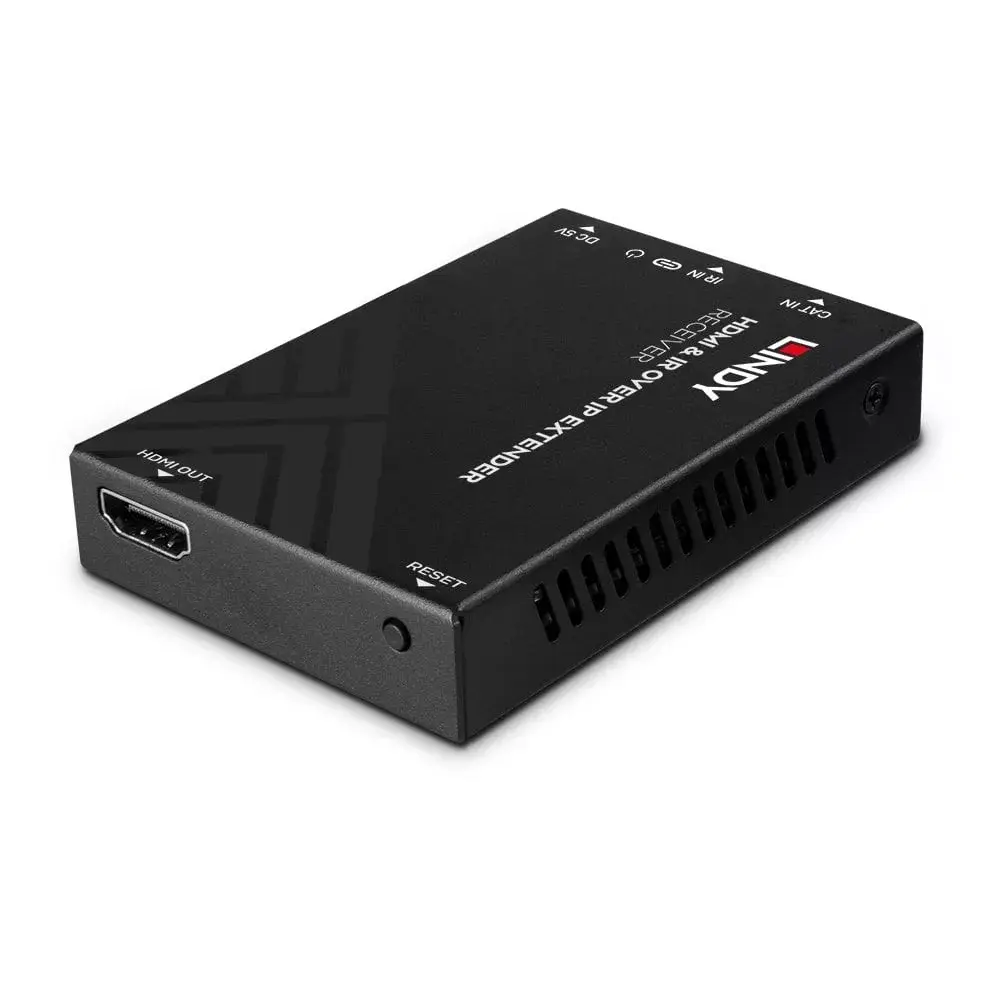

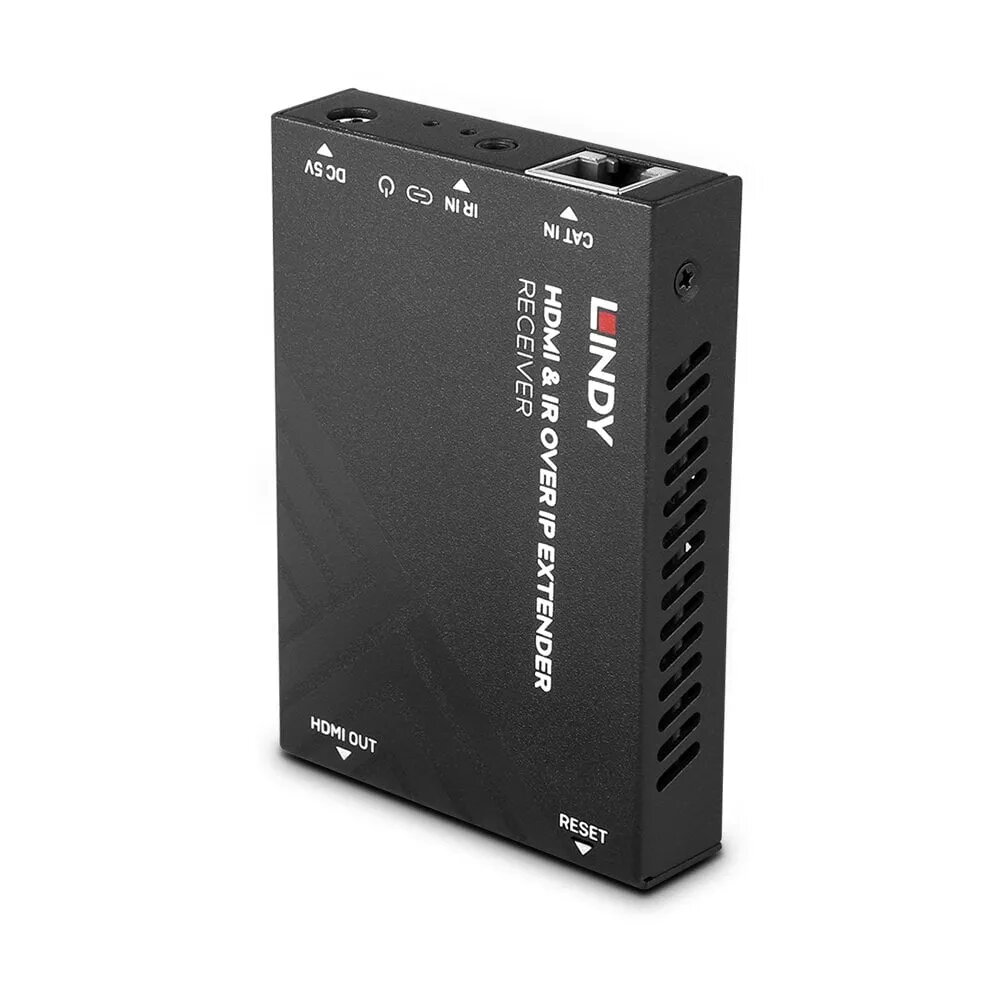

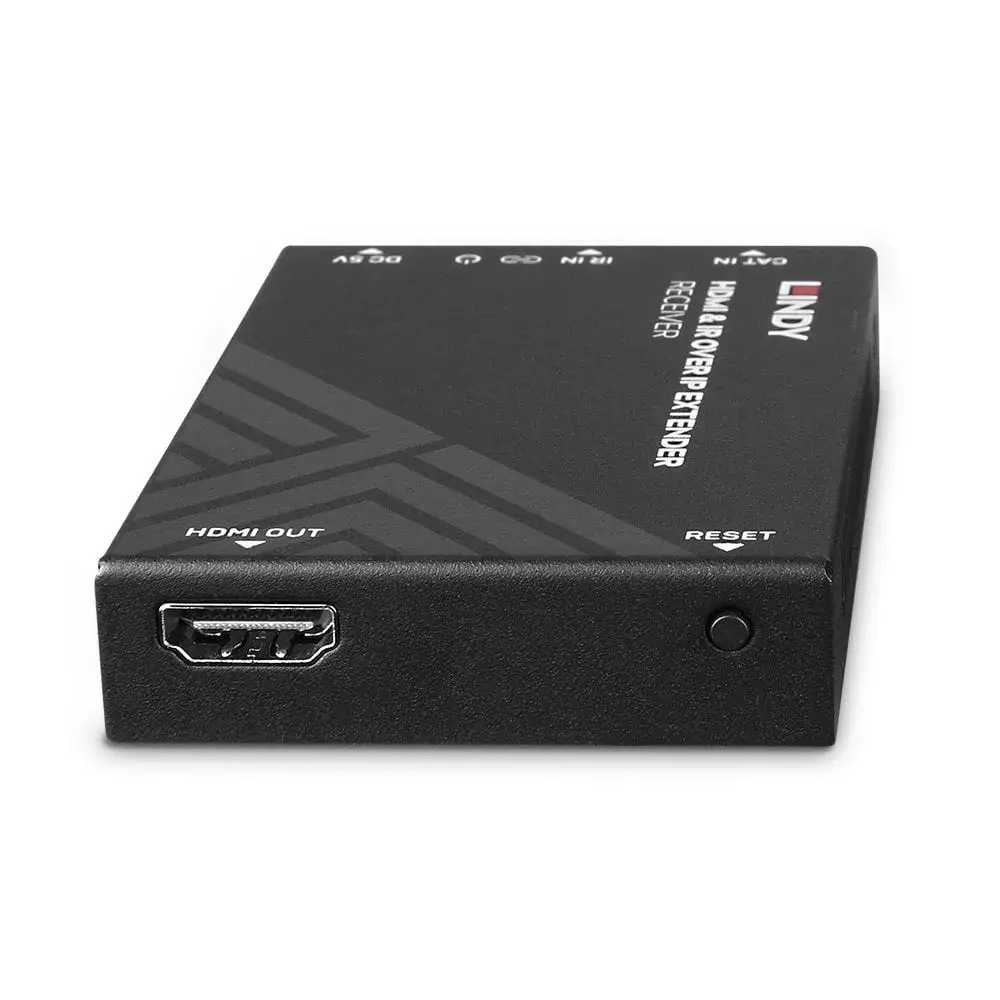

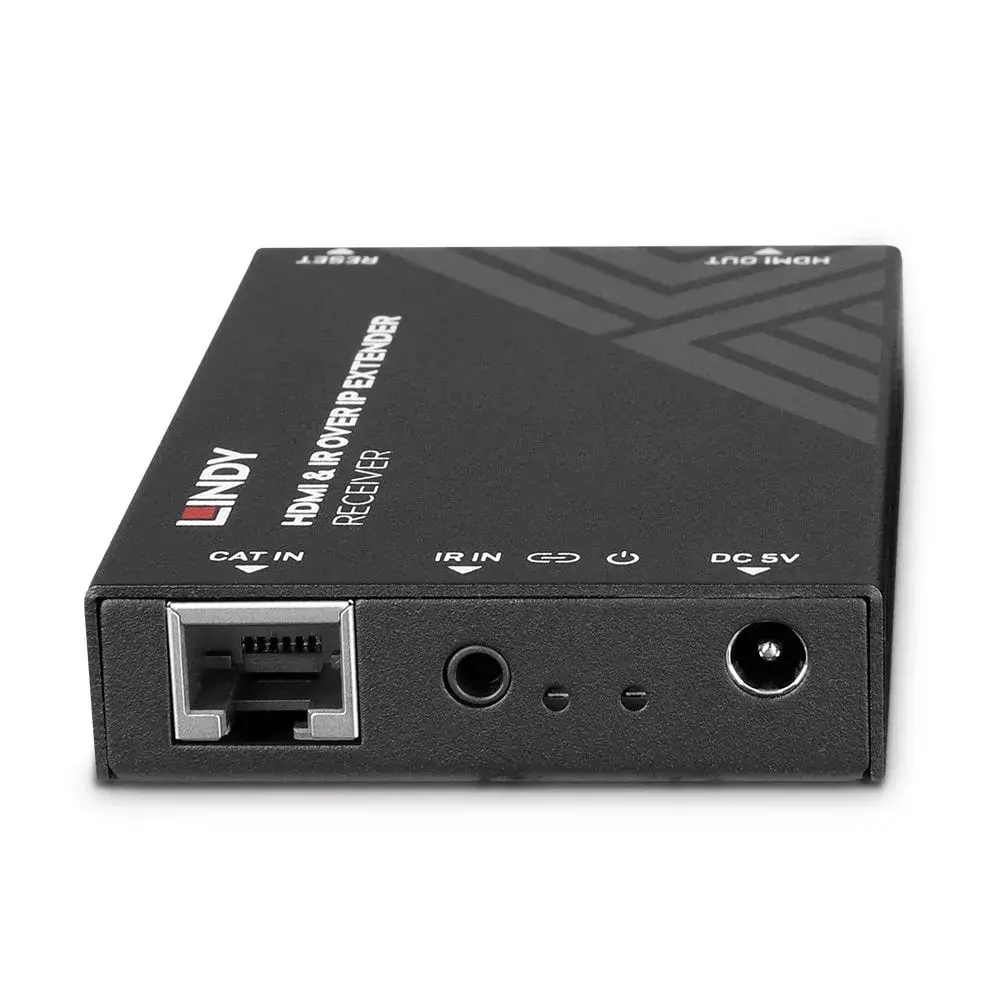

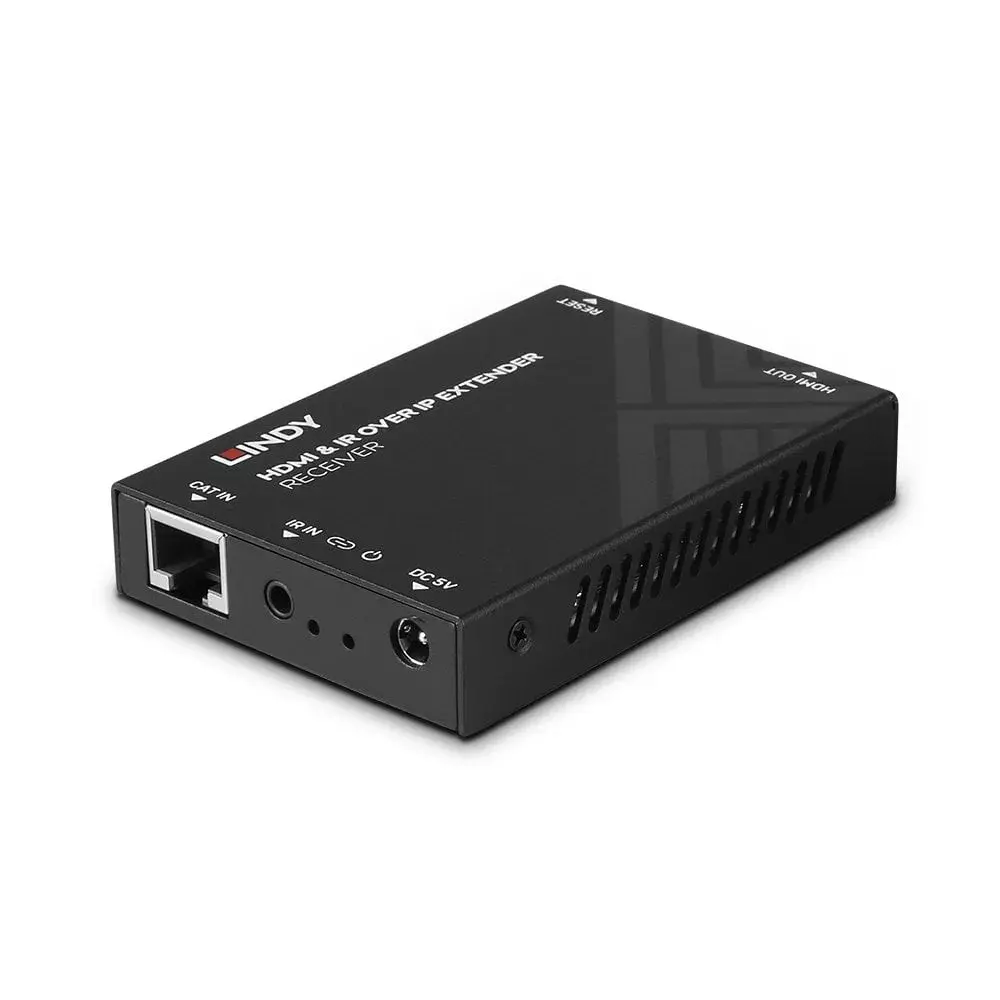

AV uztvērējs Lindy HDMI un IR pār IP pagarinātājs Uztvērējs 1920x1080

Atbalstāmie tīkla protokoli: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

IP

Savienojamības tehnoloģija: The technology that enables connectivity of the device, e.g. wired or wireless.

Vadu

Barošanas avota veids: What the power source is.

Līdzstrāvas

Infrasarkanais (IR) frekvences diapazons:

20 - 60

Tehniskā informācija

Ilgtspējas atbilstība:

Jā

Video kompresijas formāti:

H.265

Maksimālais pārskaitījums attālums: The greatest distance over which the data/signal can be transferred.

150 m

Tips: Characteristics of the device.

AV uztvērējs

Atbilstības sertifikāti: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE, UKCA, Federālā komunikāciju komisija, REACH, RoHS

Informācija par iepakojumu

Iepakojuma augstums: The distance from the top to the bottom of the packaging.

105 mm

Iepakojuma platums: The distance from one side of the packaging to the other.

146 mm

Iepakojuma svars: Weight of the packaged product.

357 g

Iepakojuma dziļums: The distance from the front to the back of the packaging.

65 mm

Iepakojuma tips: The type of product package e.g. box.

Kaste

Iekļauto strāvas kontaktdakšu veidi:

US, UK, EU, AU

Skaits iepakojumā:

1 pcs

Svars&dimensijas

Svars: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.236 kg

Augstums: The measurement of the product from head to foot or from base to top.

61.2 mm

Dziļums: The distance from the front to the back of something.

16.5 mm

Platums: The measurement or extent of something from side to side.

88 mm

Ārējās vides apstākļi

Darbības relatīvā mitruma amplitūda:

20 - 90

Uzglabāšanas temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-10 - 50

Uzglabāšanas relatīvā mitruma amplitūda:

20 - 90

Iepakojuma saturs

AC adaperis komplektā:

Jā

Pievienoti kabeļi:

IR

Manuāls:

Jā

Audio

Audio izvades kanāli: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

2.0

Video

Joslas platums:

6.75 Gbit/s

Savienojamība

Attālināta (IR) ievade:

1

DC ieejas ligzda: The socket/plug where the DC electricity supply connects to the device.

Jā

RJ-45 ievades porti:

1

HDMI izeju skaits: Port (socket) for HDMI output.

1

HDMI versija: HDMI ir ciparu savienotājs, ar kura palīdzību var pieslēgt televizoru, projektoru un citas ierīces, kas nodod attēlu portatīvajam datoram. Atšķirībā no VGA, HDMI nodod skaņu un attēlu bez traucējumiem un augstā izšķirtspējā ( HD, Full HD – ja ir pieejams).

1.3

Enerģijas pārvaldība

Darbības spriegums: Defines the range of operating voltages available

5 V

Izejas strāva:

1 A

Tīklošana

Kabeļu tipi, kas ir atbalstīti:

Cat6, Cat5e

Īpašības

Ethernet/LAN savienojums: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Jā

Maksimālā izšķirtspēja: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

1920 x 1080

Maksimālais atjauninājuma ātrums:

60 Hz

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

SSD203D

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Jā

Produkta krāsa: The colour e.g. red, blue, green, black, white.

Melns

HDCP versija:

1.4
