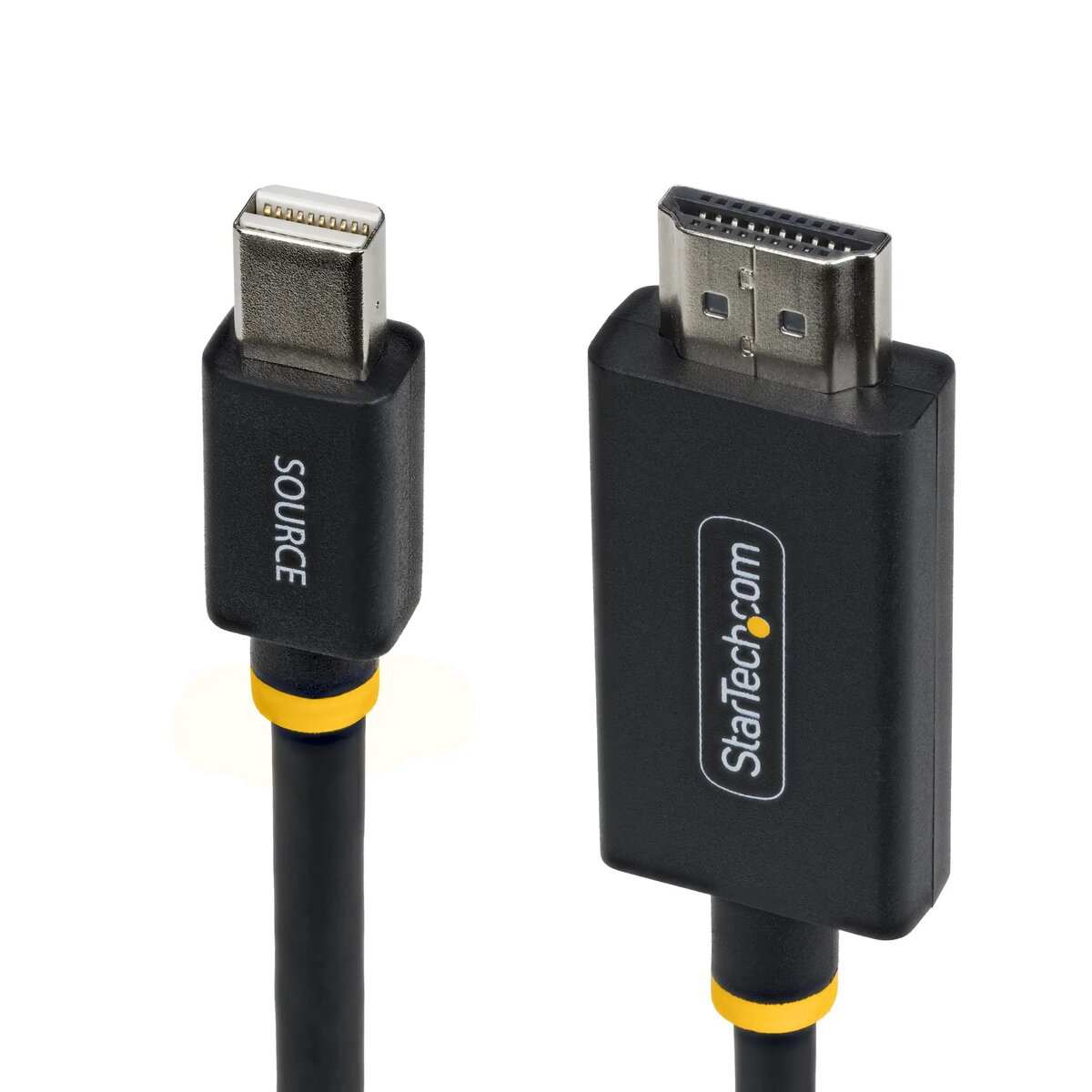

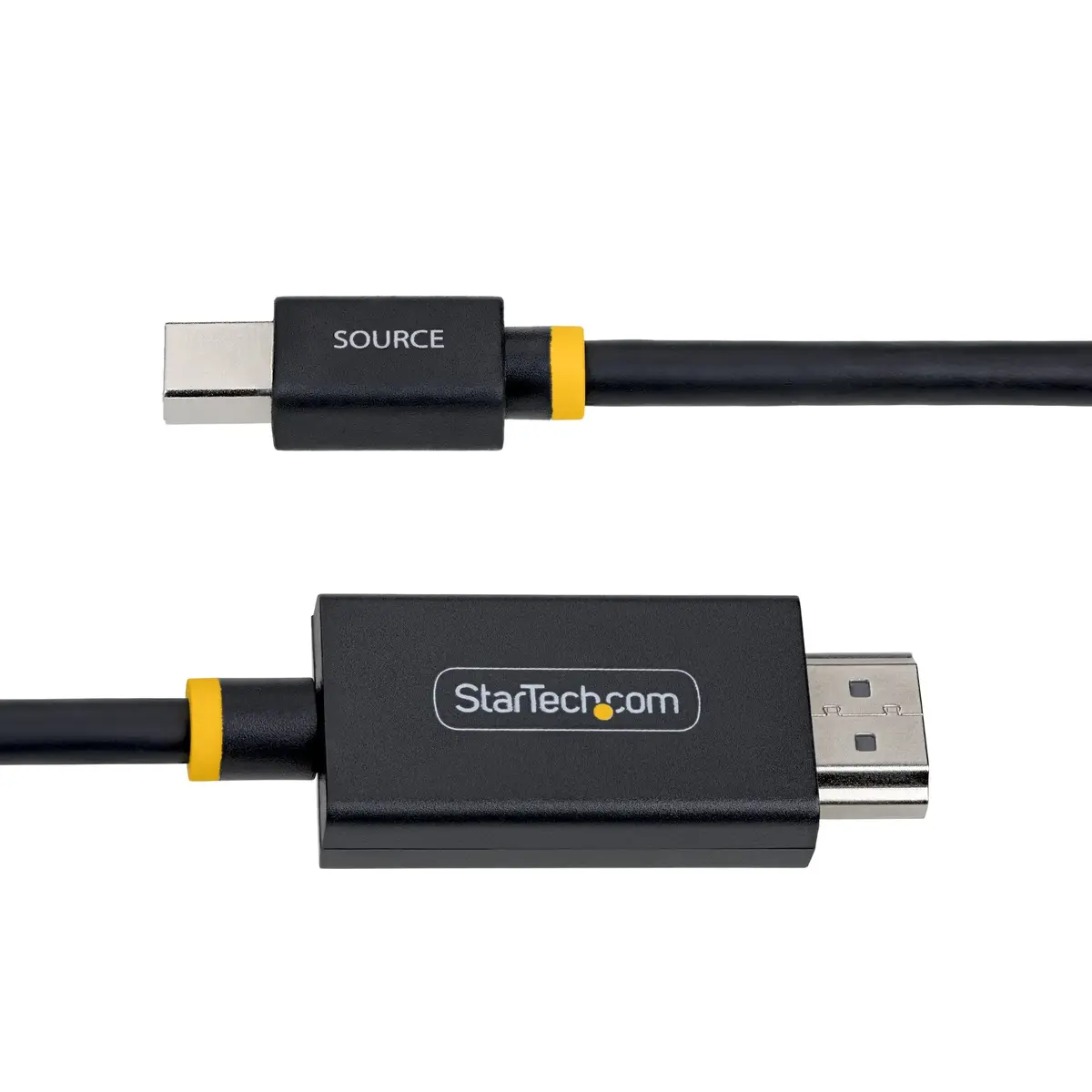

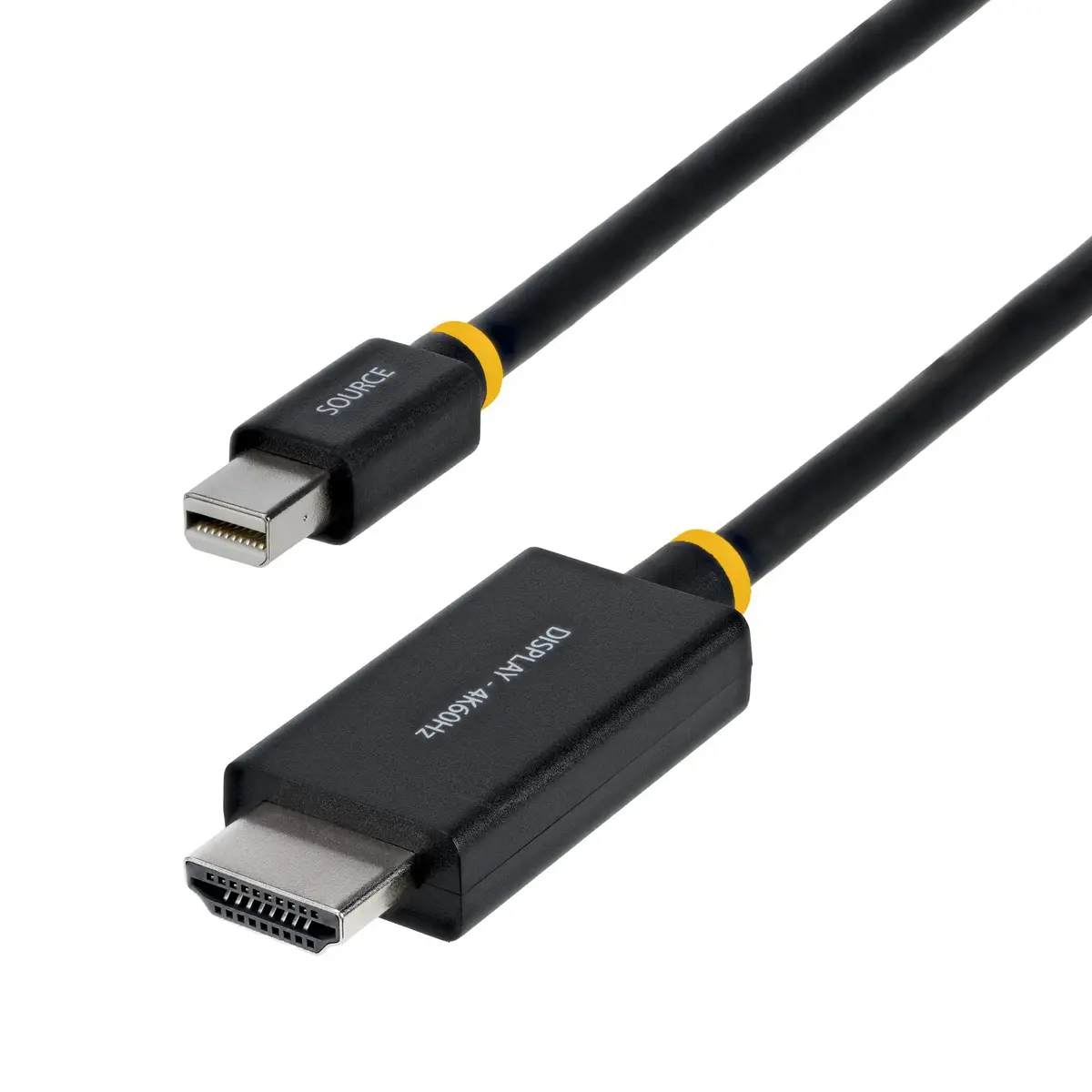

Mini DisplayPort uz HDMI kabelis 1 m StarTech 1M-MDP-HDMI2-4K60 — 4K@60Hz, HBR3, HDCP 2.3, aktīvs pārveidotājs

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Parade PS176

Maksimālā izšķirtspēja: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160

Joslas platums:

32000 MB/s

Atbalstītās grafikas izšķirtspējas: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

3840 x 2160, 3200 x 1800, 3072 x 1728, 2560 x 1440, 2048 x 1536 (QXGA), 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080)

HDMI versija: HDMI ir ciparu savienotājs, ar kura palīdzību var pieslēgt televizoru, projektoru un citas ierīces, kas nodod attēlu portatīvajam datoram. Atšķirībā no VGA, HDMI nodod skaņu un attēlu bez traucējumiem un augstā izšķirtspējā ( HD, Full HD – ja ir pieejams).

2.0

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Jā

DisplayPort versija:

1.4

Iespējamie audio kanāli:

7.1

Konektora korpusa materiāls:

Acrylonitrile Butadiene Styrene (ABS)

Loģistiskie dati

Daudzums Master kastē:

120 pcs

Oriģinālās kastes augstums:

210 mm

Kastes garums (Master):

320 mm

Oriģinālās kastes platums:

500 mm

Informācija par iepakojumu

Iepakojuma svars: Weight of the packaged product.

46 g

Iepakojuma augstums: The distance from the top to the bottom of the packaging.

15 mm

Iepakojuma dziļums: The distance from the front to the back of the packaging.

128 mm

Iepakojuma platums: The distance from one side of the packaging to the other.

200 mm

Iepakojuma saturs

Skaits iepakojumā:

1 pcs

Svars&dimensijas

Kabeļa diametrs: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.

5 mm

Ārējās vides apstākļi

Uzglabāšanas temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Sertifikāti

Atbilstības sertifikāti: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS

Īpašības

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Jā

Jakas materiāls:

Termoplastiska elastomēra (TPE)

Produkta krāsa: The colour e.g. red, blue, green, black, white.

Melns

Konektora kontaktu apvalks: What the connector contacts are covered with (layer on top).

Zelts

Konektora 2 formas standarts:

Taisni

Konektora 1 formas standarts:

Taisni

Konektora 2 tips: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Vīrietis

Konektora 1 tips: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Vīrietis

Savienotājs 2: This is the second connector in the device.

HDMI Type A (Standard)

Savienotājs 1: This is the first connector in the device.

Mini DisplayPort

Kabeļa garums: How long the cable is.

1 m
