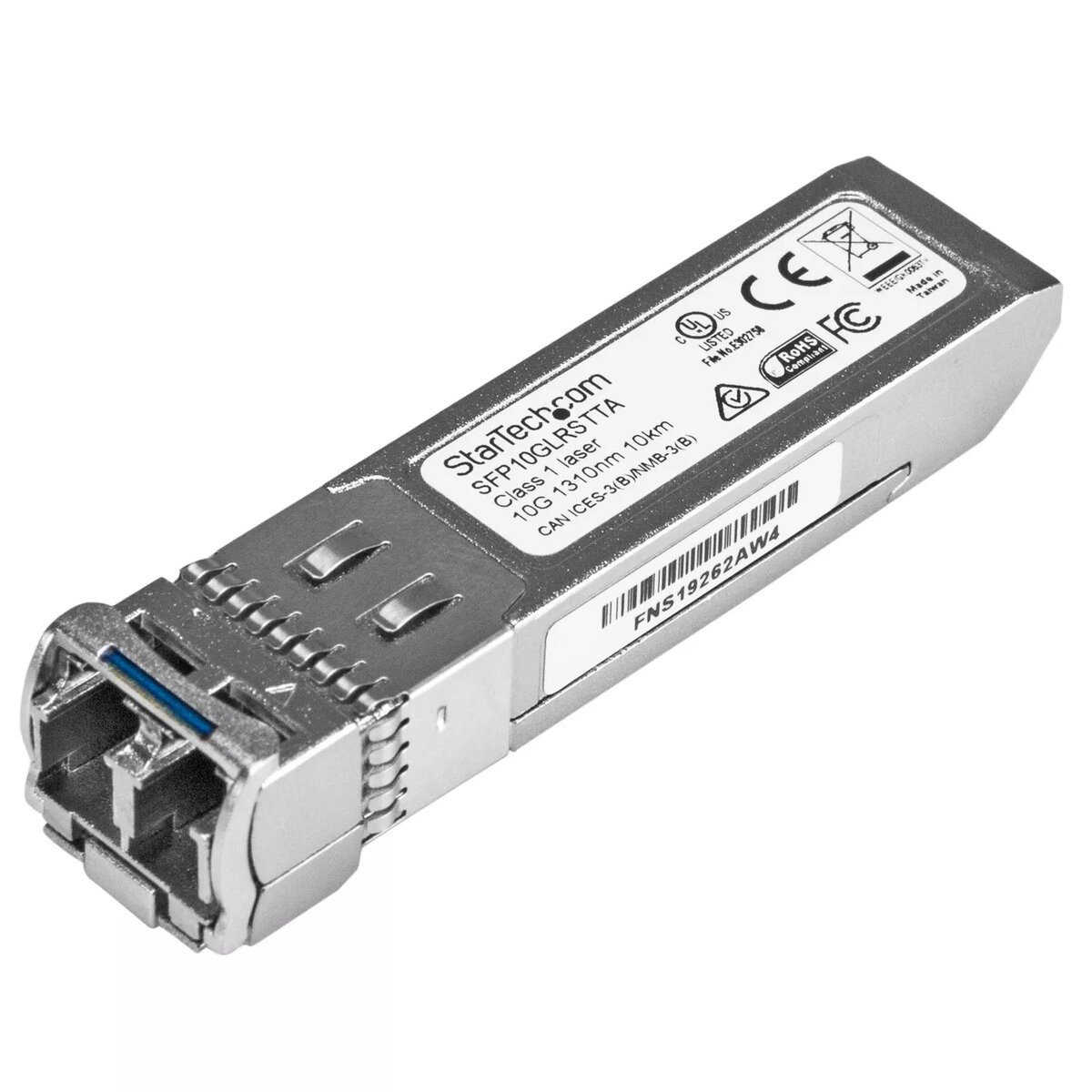

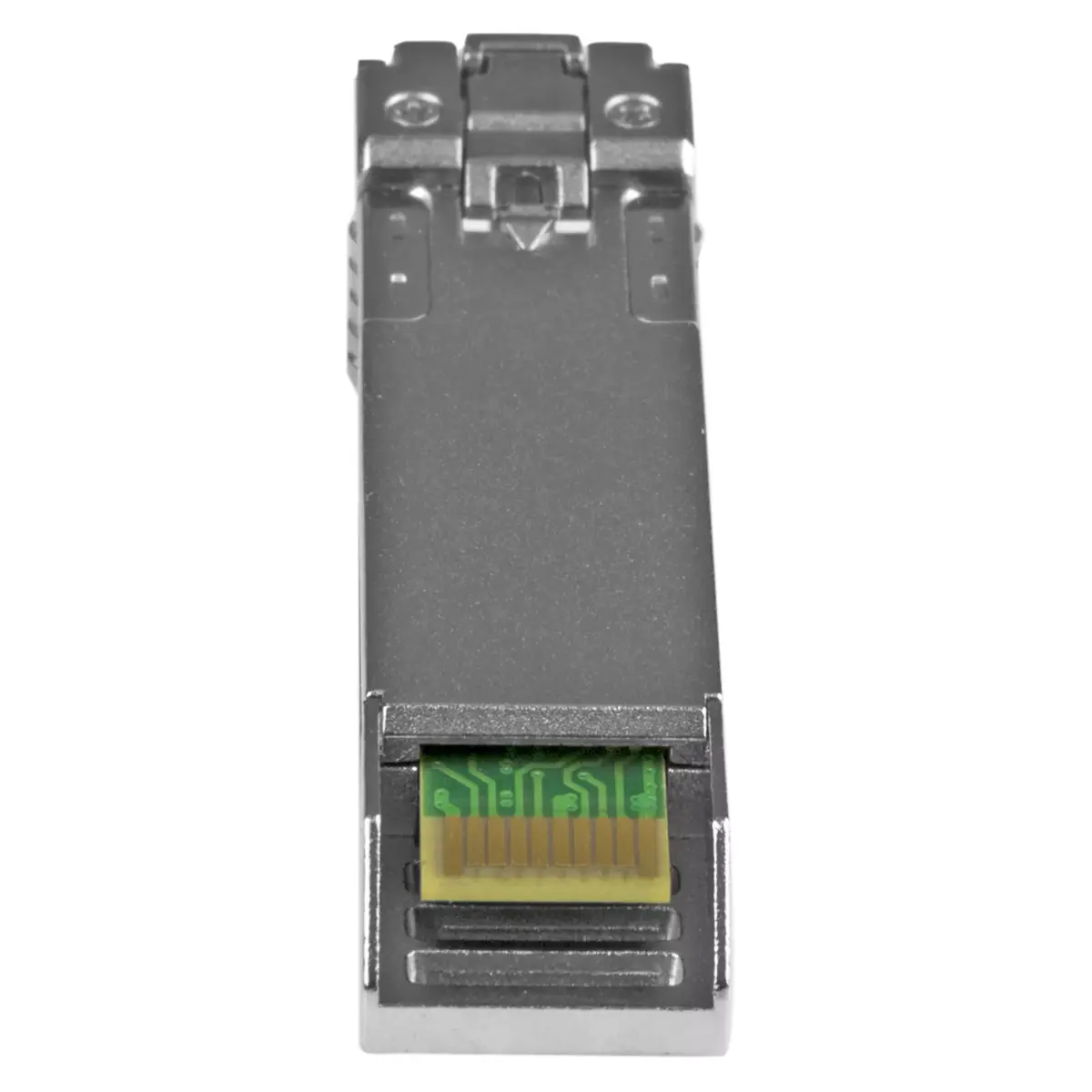

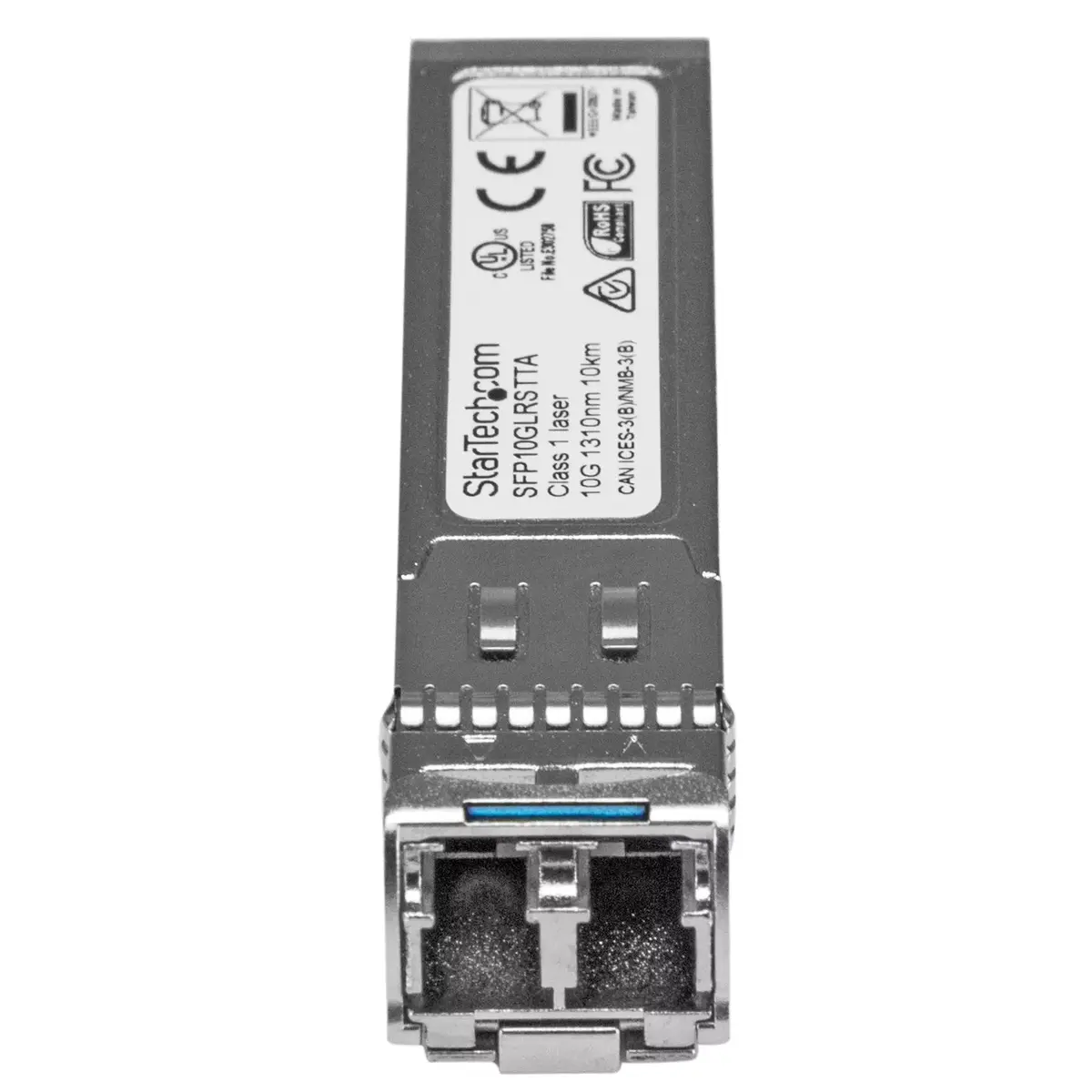

SFP+ modulis StarTech.com SFP-10G-LR-S 10GBASE-LR 10GbE SMF 10km 1310nm

Interfeisa tips:

SFP+

Iekļauto produktu skaits: The number of products that are included in the package.

1 pcs

SFP veids raiduztvērēja veids:

Fiber optic

Tiek atbalstīta viena režīma optiskā šķiedra (SMF):

Jā

SFP raiduztvērēja standarts:

LR

Loģistiskie dati

Daudzums Master kastē:

150 pcs

Oriģinālās kastes augstums:

296 mm

Kastes garums (Master):

638 mm

Oriģinālās kastes platums:

340 mm

Harmonizētās sistēmas (HS) kods:

85369010

Sertifikāti

Sertifikācija:

CE, FCC, UL, TAA

Informācija par iepakojumu

Iepakojuma svars: Weight of the packaged product.

100 g

Iepakojuma augstums: The distance from the top to the bottom of the packaging.

34 mm

Iepakojuma dziļums: The distance from the front to the back of the packaging.

122 mm

Iepakojuma platums: The distance from one side of the packaging to the other.

75 mm

Ārējās vides apstākļi

Darbības relatīvā mitruma amplitūda:

5 - 95

Uzglabāšanas temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 85

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 70

Svars&dimensijas

Svars: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.019 kg

Augstums: The measurement of the product from head to foot or from base to top.

10 mm

Dziļums: The distance from the front to the back of something.

57 mm

Platums: The measurement or extent of something from side to side.

13.3 mm

Ilgtspēja

Ilgtspējas sertifikāti:

RoHS

Enerģijas pārvaldība

Enerģija patēriņš: Enerģijas patēriņš ieslēgtā veidā vatos.

1 W

Savienojamība

Optiskās šķiedras konektors: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

LC

Īpašības

Produkta krāsa: The colour e.g. red, blue, green, black, white.

Sudrabs

Apvalka materiāls: What the casing of the product is made of.

Cinka tērauda

Karstā pārnese (hot-swap):

Jā

Digitāls diagnostikas monitorings (DDM):

Jā

Darbības rādītāji

Vidējais laiks starp kļūmēm (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

1203430 h

Viļņa garums: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.

1310 nm

Maksimālais pārskaitījums attālums: The greatest distance over which the data/signal can be transferred.

10000 m

Tīklošana

Abpusējās drukāšanas sistēma: A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.

Pilns

Tīkla standarts: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3ae

Maksimālais datu pārraides ātrums: The maximum speed with which data can be transmitted from one device to another.

10000 Mbit/s
