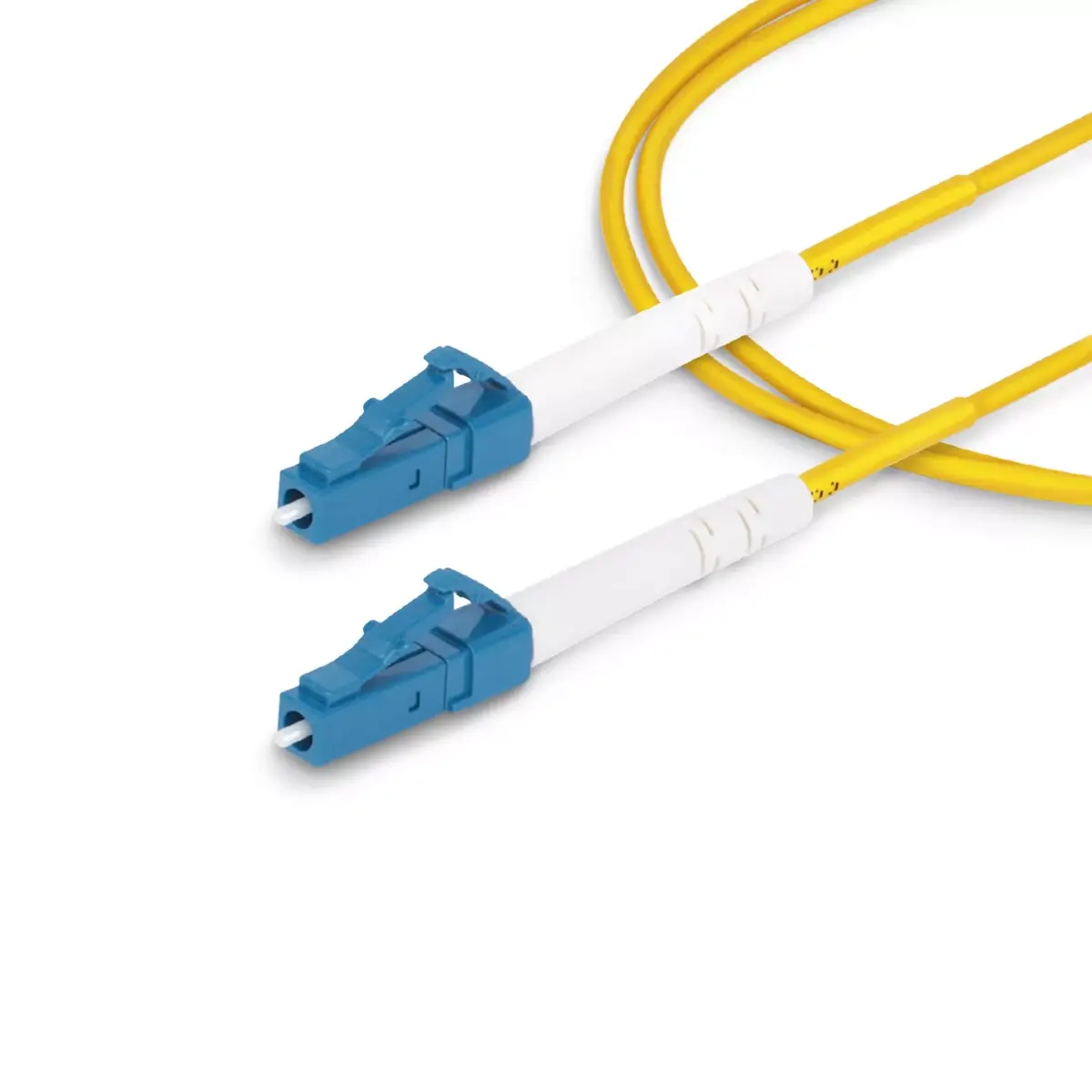

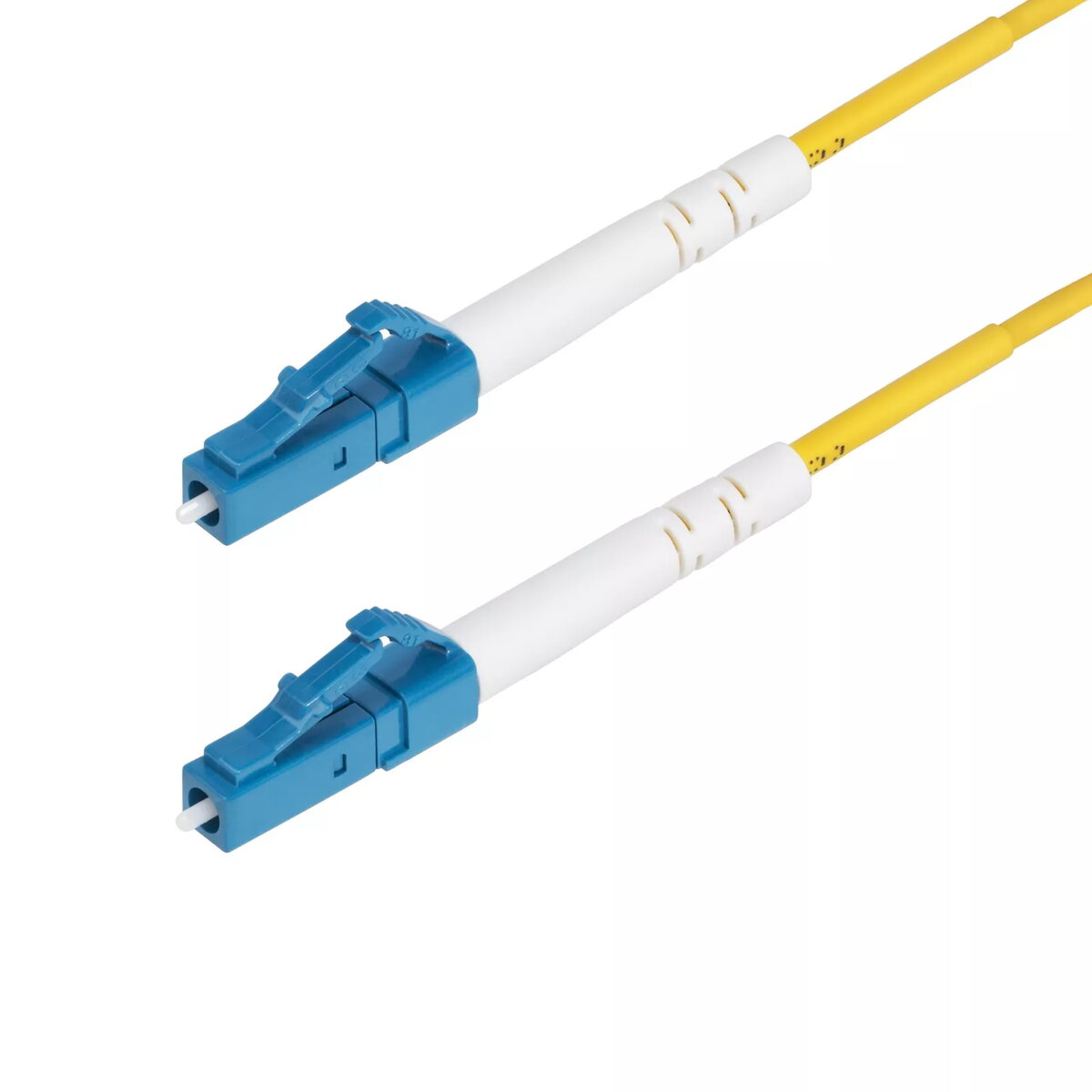

Tīkla kabelis StarTech.com SPSMLCLC-OS2-5M LC/UPC OS2 5m

Datu pārsūtīšanas ātrums: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.

100 Gbit/s

Ievietošanas zudums:

0.3 dB

Šķiedras režīma struktūra:

Viens režīms

Vidus diametrs: The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.

9 µm

Apšuvuma diametrs: The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.

125 µm

Lieces rādiuss:

10 mm

Atbalstītie viļņu garumi:

1383, 1310, 1300, 1280, 1260, 1490, 1550, 1590, 1600, 1625

Samazinājums (maks.):

0.35 dB/km

Optiskās šķiedras veids: The standardised properties of the fiber optic cable.

OS2

Atgriezeniskie zudumi:

55 dB

Konektora pulēšanas līdzekļa tips:

UPC

Loģistiskie dati

Daudzums Master kastē:

350 pcs

Oriģinālās kastes augstums:

280 mm

Kastes garums (Master):

380 mm

Oriģinālās kastes platums:

380 mm

Papildus informācija

Kabeļa diametrs: The distance from one side of the cable to the other, with a straight line going through the middle of the cable.

2 mm

Informācija par iepakojumu

Iepakojuma svars: Weight of the packaged product.

26.2 g

Iepakojuma augstums: The distance from the top to the bottom of the packaging.

2 mm

Iepakojuma dziļums: The distance from the front to the back of the packaging.

200 mm

Iepakojuma platums: The distance from one side of the packaging to the other.

220 mm

Iepakojuma saturs

Skaits iepakojumā:

1 pcs

Ārējās vides apstākļi

Uzglabāšanas temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-20 - 60

Īpašības

Kabeļa tips: Type of cable e.g. electicity cable, optical cable.

LC/UPC

Jakas materiāls:

Polipropilēns, Ar neliela dūmu daudzuma izdalīšanos degšanas gadījumā, bez halogēna (LSZH)

Konektora 1 tips: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male

Konektora 2 tips: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male

Savienotājs 2: This is the second connector in the device.

LC

Savienotājs 1: This is the first connector in the device.

LC

Produkta krāsa: The colour e.g. red, blue, green, black, white.

Dzeltens

Kabeļa garums: How long the cable is.

5 m
