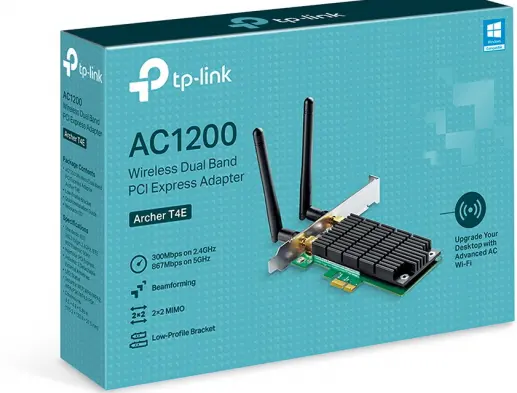

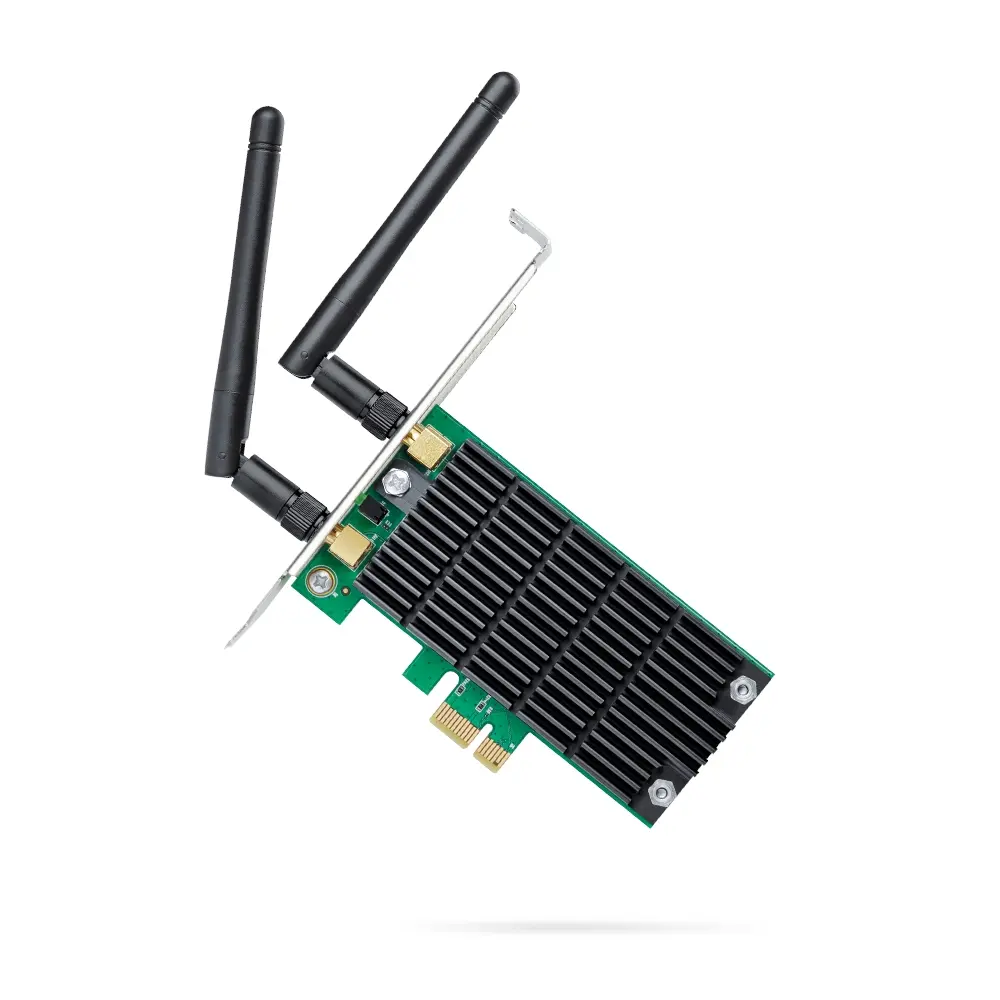

TP-Link AC1200 Dual Band PCI Express WiFi Adapter

Wi-Fi standartu: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 5 (802.11ac), 802.11a

Komponente: What this product is used as a part of (component for).

PC (dators)

Ilgtspējas sertifikāti:

RoHS

Antenas forma:

Ārējs

Savienojamība

Savienojamības tehnoloģija: The technology that enables connectivity of the device, e.g. wired or wireless.

Bezvadu

Interfeiss: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN

Saimnieka interfeiss: Interface that enables a host controller to communicate with a driver.

PCI Express

Iekšējs: The product is built in.

Jā

PCI versija:

3.0

Joslas platums

Maksimālais datu pārraides ātrums: The maximum speed with which data can be transmitted from one device to another.

867 Mbit/s

Tīklošana

Tīkla standarts: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a

Modulācija: Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

CCK, OFDM, DQPSK, DBPSK, 256-QAM, 64-QAM, 16-QAM

Bezvadu LAN īpašības

Wi-Fi: WiFi ir bezvadu ierīce savienojumam ar tīklu. Mūsdienās jaunākais ir 802.11 B/G/N/AC pieslēgums, kuram ir augstākā ātrdarbība (150 - 900Mb/s) un drošība. Ar 802.11 B/G arī var pieslēgties praktiski visiem tīkliem, tikai maksimālā ātrdarbība pieslēdzoties N vai AC tipa tīklam būs 54 Mb/s.

Jā

Wi-Fi josla: The frequency bands the product features.

Divkāršā frekvenču josla (2.4 GHz / 5 GHz)

Wi-Fi standarts: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 5 (802.11ac)

WLAN atbalstāmie datu pārraides ātrumi:

54, 300, 867, 11

Antena

Antena:

Jā

Frekvences diapazons:

2.4 - 5

Antenu daudzums:

2

Noņemama(s) antena(s):

Jā

Darbības rādītāji

Drošības algoritma atbalstīts: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

802.1x RADIUS, WPA2-PSK, WPA2, WPA-PSK, WPA, 128-bit WEP, 64-bit WEP

Atbalstītās Windows operētājsistēmas: Windows vesions wich can be used with the device.

Windows XP, Windows 8.1, Windows 8, Windows 7, Windows 10

Dizains

LED indikatori:

Status

Produkta krāsa: The colour e.g. red, blue, green, black, white.

Melns, Zaļš

Svars&dimensijas

Augstums: The measurement of the product from head to foot or from base to top.

21.5 mm

Platums: The measurement or extent of something from side to side.

115.2 mm

Dziļums: The distance from the front to the back of something.

120.8 mm

Iepakojuma dziļums: The distance from the front to the back of the packaging.

148 mm

Iepakojuma augstums: The distance from the top to the bottom of the packaging.

42 mm

Iepakojuma platums: The distance from one side of the packaging to the other.

207 mm

Ārējās vides apstākļi

Darbības relatīvā mitruma amplitūda:

10 - 90

Uzglabāšanas temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Uzglabāšanas relatīvā mitruma amplitūda:

5 - 90

Sertifikāti

Sertifikācija:

CE, FCC

Iepakojuma saturs

Iekļautā programmatūra: Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.

CD

Ātrās startēšanas gids: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Jā
