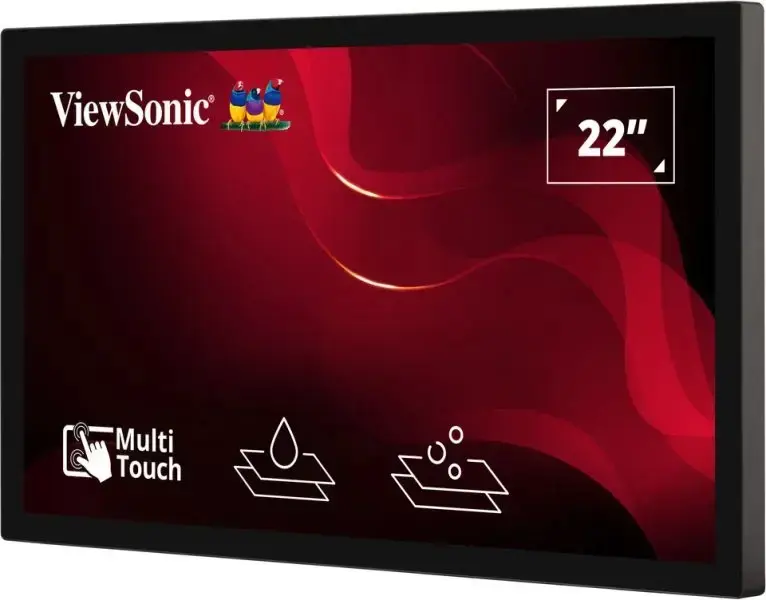

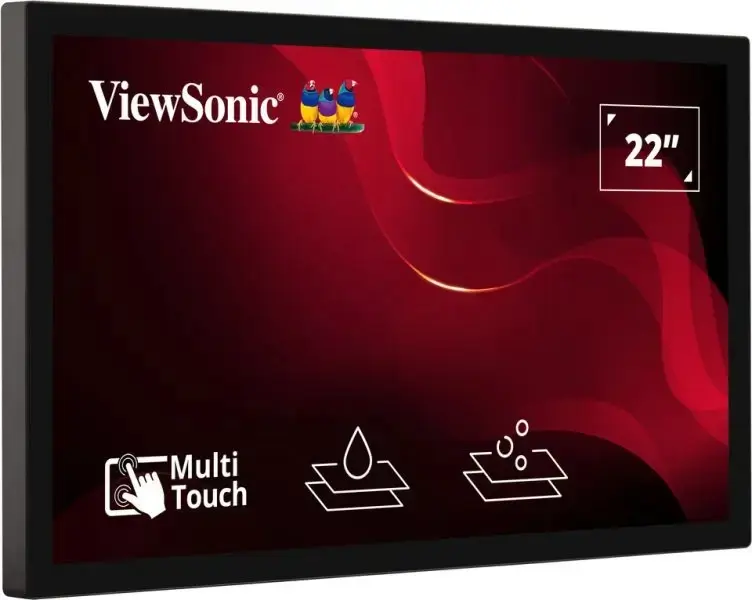

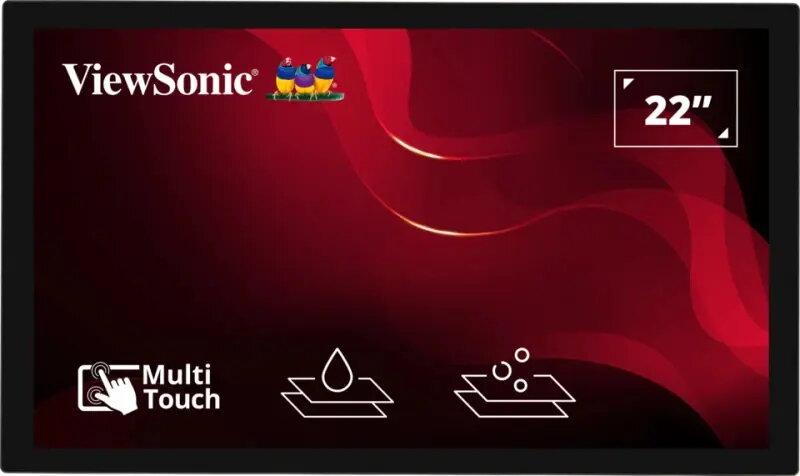

Open Frame skārienekrāna monitors VIEWSONIC XF2230 21,5" Full HD 1920x1080 DisplayPort HDMI VGA USB-B 24/7

AC adaptera ieejas spriegums:

100 - 240

AC adaptera izvades strāva:

4 A

Barošanas avota veids: What the power source is.

Līdzstrāvas

Papildus informācija

Interfeiss: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

DisplayPort + HDMI + VGA + USB Type-B

USB 2.0 pieslēgvietu skaits: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Efektīvais skatu laukums:

476,1 x 267,8

Tehniskā informācija

Atbilstības sertifikāti: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS, Federālā komunikāciju komisija, CE, CB

Loģistiskie dati

Paletes platums:

1200 mm

Paletes garums:

1000 mm

Paletes augstums:

2000 mm

Daudzums Master kastē:

1 pcs

Ārējās vides apstākļi

Uzglabāšanas temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Darbības relatīvā mitruma amplitūda:

5 - 90

Darbības temperatūras amplitūda (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 50

Svars&dimensijas

Svars: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

4.92 kg

Augstums: The measurement of the product from head to foot or from base to top.

303.4 mm

Dziļums: The distance from the front to the back of something.

47.8 mm

Platums: The measurement or extent of something from side to side.

511.9 mm

Informācija par iepakojumu

Iepakojuma svars: Weight of the packaged product.

6280 g

Iepakojuma augstums: The distance from the top to the bottom of the packaging.

470 mm

Iepakojuma dziļums: The distance from the front to the back of the packaging.

140 mm

Iepakojuma platums: The distance from one side of the packaging to the other.

590 mm

Enerģijas pārvaldība

AC adaptera izejas spriegums:

12

Ergonomika

VESA stiprinājums:

Jā

Dizains

Produkta krāsa: The colour e.g. red, blue, green, black, white.

Melns

Datorsistēma

Mac operētājsistēmas atbalstītas: Mac operating systems e.g. OS X can be used with the device.

MacOS

Atbalstītās Windows operētājsistēmas: Windows vesions wich can be used with the device.

Jā

Darbības rādītāji

Vidējais laiks starp kļūmēm (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

50000 h

Displejs

Virsmas cietība:

7H

Pikseļa iestatne: This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.

0,25 x 0,25

Skata leņķis, vertikāli: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

178 °

Skata leņķis, horizontāli: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

178 °

Kontrasta attiecība (tipiskā): The difference in light intensity between the brightest white and the darkest black.

1000:1

Atbildes laiks: The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

22 ms

Projektora formātu attiecība: The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.

16:9

Skārienjūtīgais ekrāns: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Jā

Ekrāna spilgtums: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

210 cd/m²

Skārienjutīga ekrāna veids: There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.

Projicētais kapacitīvais (PCAP) ekrāns

HD veids: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Full HD

Displeja diagonāle: Skatāmā laukuma diagonāle collās.

21.5 "

Ekrāna izšķirtspēja: Ekrāna izšķirtspēja izteikta pikseļos (punktos). Ekrāna izšķirtspēja tiek norādīta ar horizontālu un vertikālu rindiņu punktu skaitu. Jo lielāka ekrāna izšķirtspēja, jo detalizētāks ir redzams attēls.

1920 x 1080
