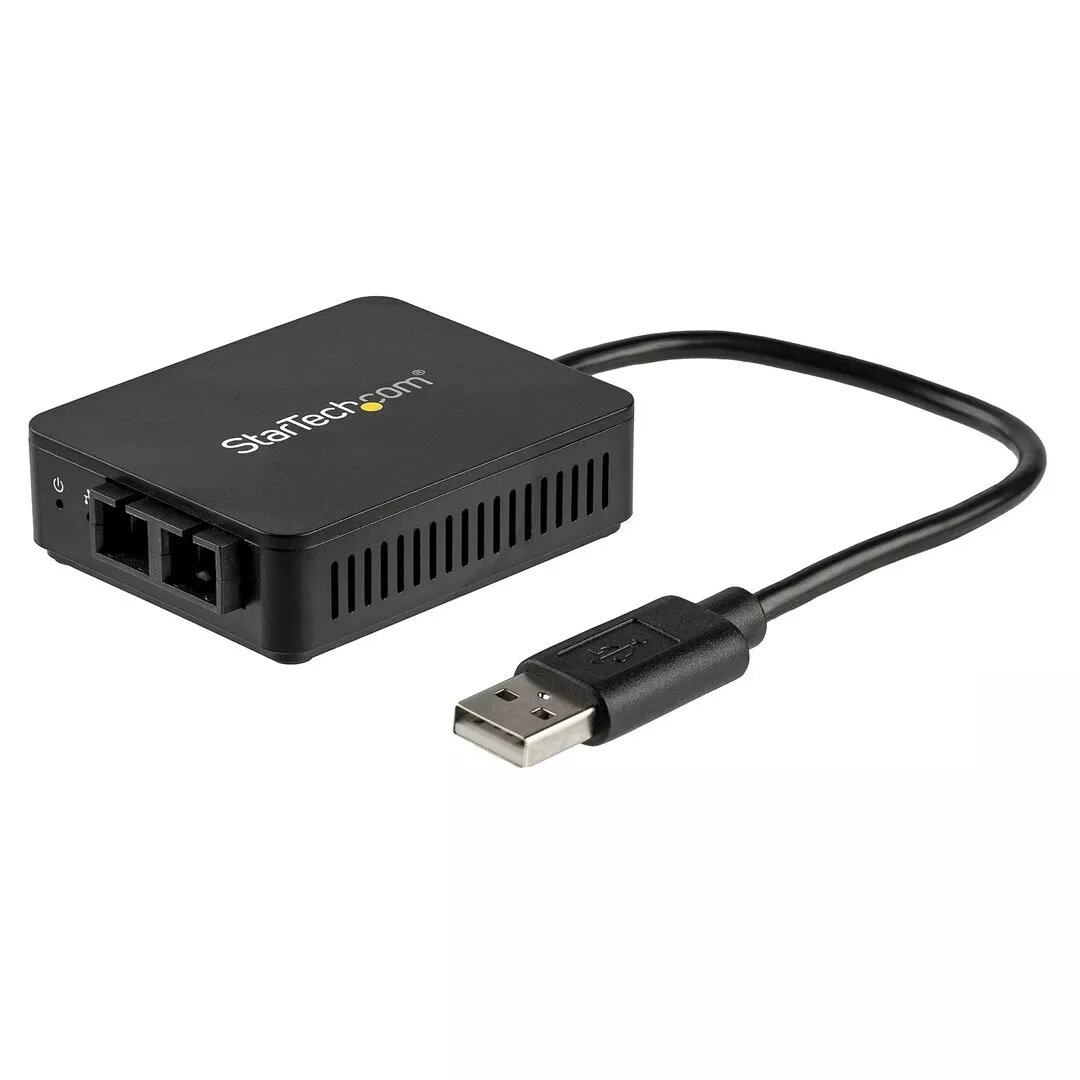

StarTech.com USB к оптическому конвертеру 100Mbps USB 2.0 100Base-FX SC Female Duplex Multimode Fiber 2Km

Высота мастер-картона:

355 mm

Ширина мастер-картона:

310 mm

Длина мастер-картона:

590 mm

Количество в мастер-картоне:

80 шт

Код гармонизированной системы описания (HS):

85176990

Соответствие требованиям экологически безопасного развития:

Да

Сертификаты устойчивого развития:

RoHS, CE

Порты и интерфейсы

Технология подключения: The technology that enables connectivity of the device, e.g. wired or wireless.

Проводная

Интерфейс: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Фибра

Основной интерфейс: Interface that enables a host controller to communicate with a driver.

USB

Внутренний: The product is built in.

Нет

Количество оптоволоконных портов: The number of sockets (ports) for fibers (cables).

1

Оптоволоконный коннектор: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

SC

Версия USB: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

2.0

Пропускная способность

Максимальная скорость передачи данных: The maximum speed with which data can be transmitted from one device to another.

1000 Мбит/с

Сеть

Стандарты сети: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3x, IEEE 802.1Q

Чипсет: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

ASIX Electronics - AX88772C

Максимальное рабочее расстояние: The maximum distance from which you can operate the device.

2000 m

Технология свивки оптоволоконного Ethernet:

100BASE-FX

Тегирование виртуальной ЛВС:

Да

Производительность

Plug & Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Да

Длина кабеля: How long the cable is.

0.195 m

Функция Wake-on-LAN:

Да

Поддерживаемые операционные системы Windows: Windows vesions wich can be used with the device.

Windows 8.1 Pro, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 7 Home Premium x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 10 x64, Windows 7 Professional

Поддерживаемые операционные системы Mac: Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks

Поддерживаемые операционные системы Linux: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Да

Поддерживаемые серверные операционные системы:

Windows Server 2008, Windows Server 2012, Windows Server 2016

Дизайн

Светодиодные индикаторы:

Напряжение, Ссылка, Активность

Материал корпуса: What the casing of the product is made of.

Пластик

Цвет товара: Цвет продукции, например: красный, синий, зеленый, черный, белый.

Черный

Вес и размеры

Вес: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.108 kg

Масса брутто: Weight of the packaged product.

52 g

Высота: The measurement of the product from head to foot or from base to top.

20 mm

Ширина: The measurement or extent of something from side to side.

140 mm

Глубина: The distance from the front to the back of something.

170 mm

Глубина упаковки: The distance from the front to the back of the packaging.

270 mm

Высота упаковки: The distance from the top to the bottom of the packaging.

30 mm

Ширина упаковки: The distance from one side of the packaging to the other.

52 mm

Условия эксплуатации

Диапазон относительной влажности при эксплуатации:

5 - 90

Диапазон температур при хранении: The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70

Диапазон температур при эксплуатации: The minimum and maximum temperatures at which the product can be safely operated.

0 - 60

Содержимое упаковки

Краткая инструкция пользователя: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Да
