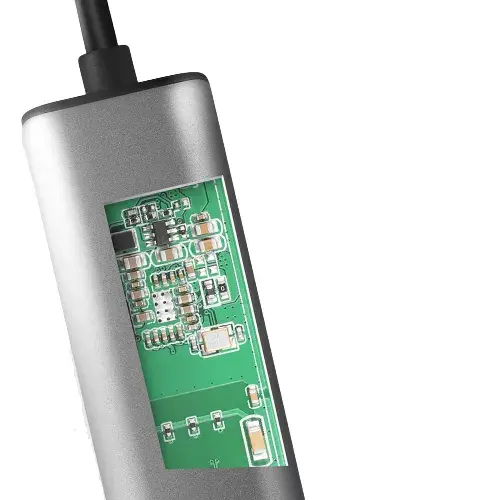

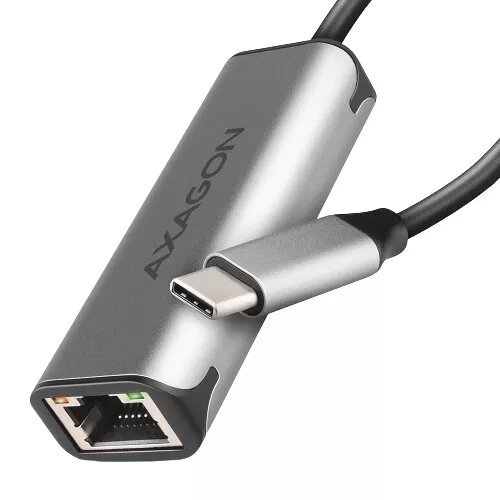

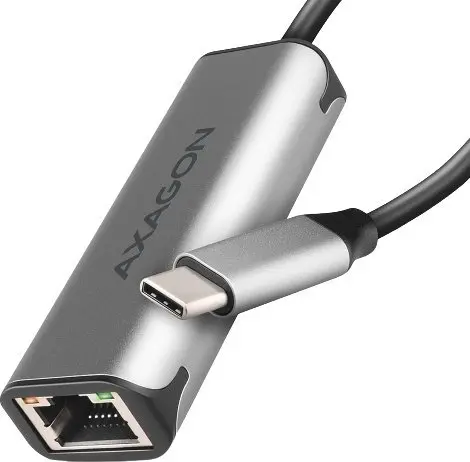

Сетевая карта Axagon ADE-25RC Ethernet 2500 Mbit/s USB Type-C

Поддержка VLAN: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Да

Комплектующие для: What this product is used as a part of (component for).

ПК/ноутбук

Количество в упаковке:

1 шт

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS

Порты и интерфейсы

Технология подключения: The technology that enables connectivity of the device, e.g. wired or wireless.

Проводная

Интерфейс: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Ethernet

Основной интерфейс: Interface that enables a host controller to communicate with a driver.

USB Type-C

Внутренний: The product is built in.

Нет

Количество портов Ethernet LAN ( RJ-45): Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Версия USB: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

2.0/3.2 Gen 1 (3.1 Gen 1)

Пропускная способность

Максимальная скорость передачи данных: The maximum speed with which data can be transmitted from one device to another.

2500 Мбит/с

Скорость передачи данных: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.

2.5 Gbit/s

Полнодуплексный режим: Режим, при котором передача данных может производиться одновременно с приемом данных. Полудуплексный режим — это режим, при котором передача ведётся в обоих направлениях, но с разделением по времени.

Да

Сеть

Стандарты сети: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3u, IEEE 802.3ab, IEEE 802.3

Чипсет: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Realtek RTL8156B

Подключение Ethernet: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Да

Поддержка Jumbo Frames:

Да

Скорость передачи данных Ethernet LAN: The different speed levels of the Ethernet LAN connection.

2500, 1000, 100, 10

Тип Ethernet интерфейса:

Гигабитный Ethernet

Производительность

Plug & Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Да

Длина кабеля: How long the cable is.

0.15 m

Совместимые продукты: Other products that can be used with this product.

IEEE 802.3ab 1000Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3 10Base-T

Функция Wake-on-LAN:

Да

Поддерживаемые операционные системы Windows: Windows vesions wich can be used with the device.

Да

Поддерживаемые операционные системы Mac: Mac operating systems e.g. OS X can be used with the device.

Да

Поддерживаемые операционные системы Linux: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Да

Поддерживаемые серверные операционные системы:

Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016

Дизайн

Светодиодные индикаторы:

Да

Материал корпуса: What the casing of the product is made of.

Металл

Цвет товара: Цвет продукции, например: красный, синий, зеленый, черный, белый.

Серый

Страна производства: Country where the device is made. Aka Country of manufacture (COM).

Китай

Вес и размеры

Вес: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.026 kg

Масса брутто: Weight of the packaged product.

58 g

Высота: The measurement of the product from head to foot or from base to top.

14 mm

Ширина: The measurement or extent of something from side to side.

64 mm

Глубина: The distance from the front to the back of something.

24 mm

Глубина упаковки: The distance from the front to the back of the packaging.

90 mm

Высота упаковки: The distance from the top to the bottom of the packaging.

25 mm

Ширина упаковки: The distance from one side of the packaging to the other.

180 mm

Энергопитание

Питание через USB: The device can be powered via a USB connection.

Да

Сертификаты

Сертификация:

CE

Содержимое упаковки

Поставляемые кабели:

USB Type-C

Инструкция:

Да

Тип упаковки: The type of product package e.g. box.

Коробочная версия
