Network Card Axagon ADE-25RC

Name: Network Card Axagon ADE-25RC Ethernet ADE-25RC
Brand: AXAGON
SKU: 4792538
Price: 19.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Network Card Axagon ADE-25RC Ethernet 2500 Mbit/s USB Type-C

Fast shipping

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Axagon ADE-25RC is a wired network card that supports Ethernet speeds of up to 2500 Mbit/s. It connects via USB Type-C and is powered through USB. The card is designed for high-speed data transfer, making it ideal for gaming, streaming, and large file transfers. Its compact grey design ensures it fits seamlessly into any setup.

Available at price 19.99 €: 8 pcs.

Total available for order: 81 pcs.

Warranty: 3 Years

SKU: 4792538

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

Tuesday {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Tuesday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

Friday {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.06 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

Friday {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

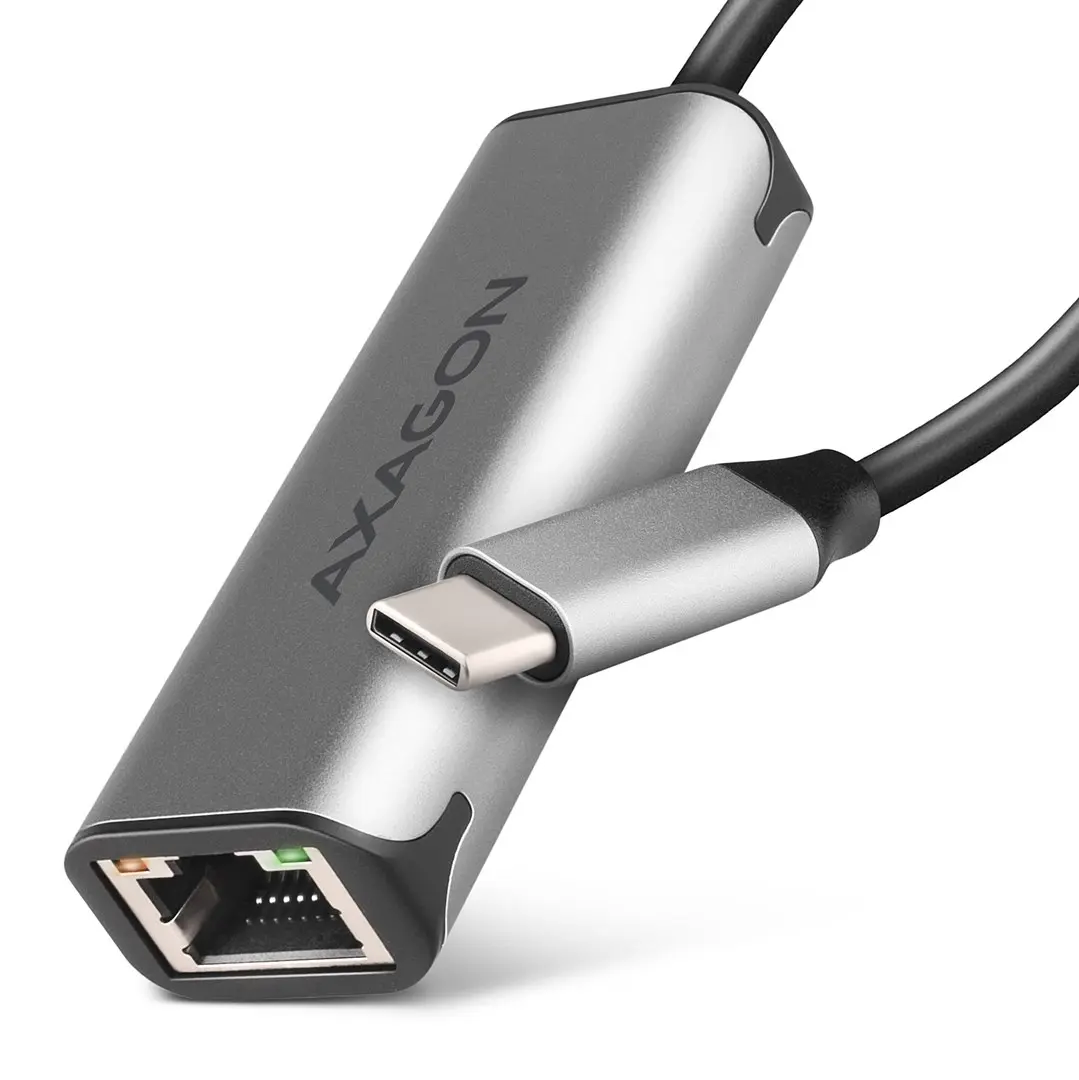

The AXAGON ADE-25RC external network adapter converts a USB-C 3.2 Gen 1 (USB 3.0) port into a 2.5 Gigabit Ethernet RJ-45 port. It supports link speeds of 10/100/1000/2500 Mbit/s, uses the Realtek RTL8156B chipset and provides a compact aluminum-bodied solution for adding a fast and stable wired network connection to laptops, ultrabooks and desktops with a USB-C port. The adapter is compatible with current Windows, macOS and Linux versions and supports automatic installation on modern Windows systems without requiring an Internet connection.

Advantages

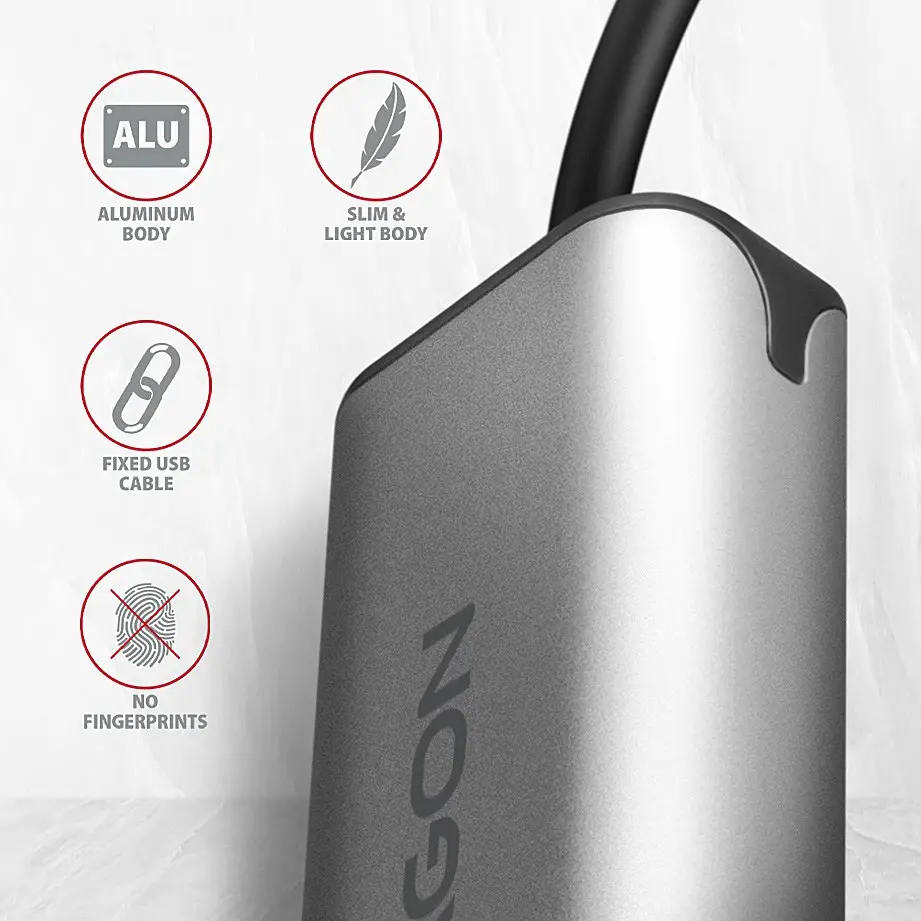

The adapter delivers 2.5 Gb/s throughput over standard Cat5e/Cat6 cables up to 100 m using the IEEE 802.3bz (NBASE-T) standard. Its metal (aluminum) housing provides mechanical protection and good heat dissipation while the permanently attached 15 cm USB-C cable keeps the design compact and lightweight. The device supports advanced network features such as IPv4/IPv6 checksum offload, TCP large send offload, VLAN tagging, jumbo frames, Auto MDI/MDIX and Wake-on-LAN modes. Bus-powered operation requires no external power and two LEDs indicate link and activity.

Key specifications

Input: 1× USB 3.2 Gen 1 (USB-C male), backward compatible with USB 3.1 Gen 1/USB 3.0 and USB 2.0; supports Thunderbolt 3/4.
USB transmission rates supported: 5.000 / 480 / 12 / 1.5 Mb/s (SuperSpeed / High / Full / Low).

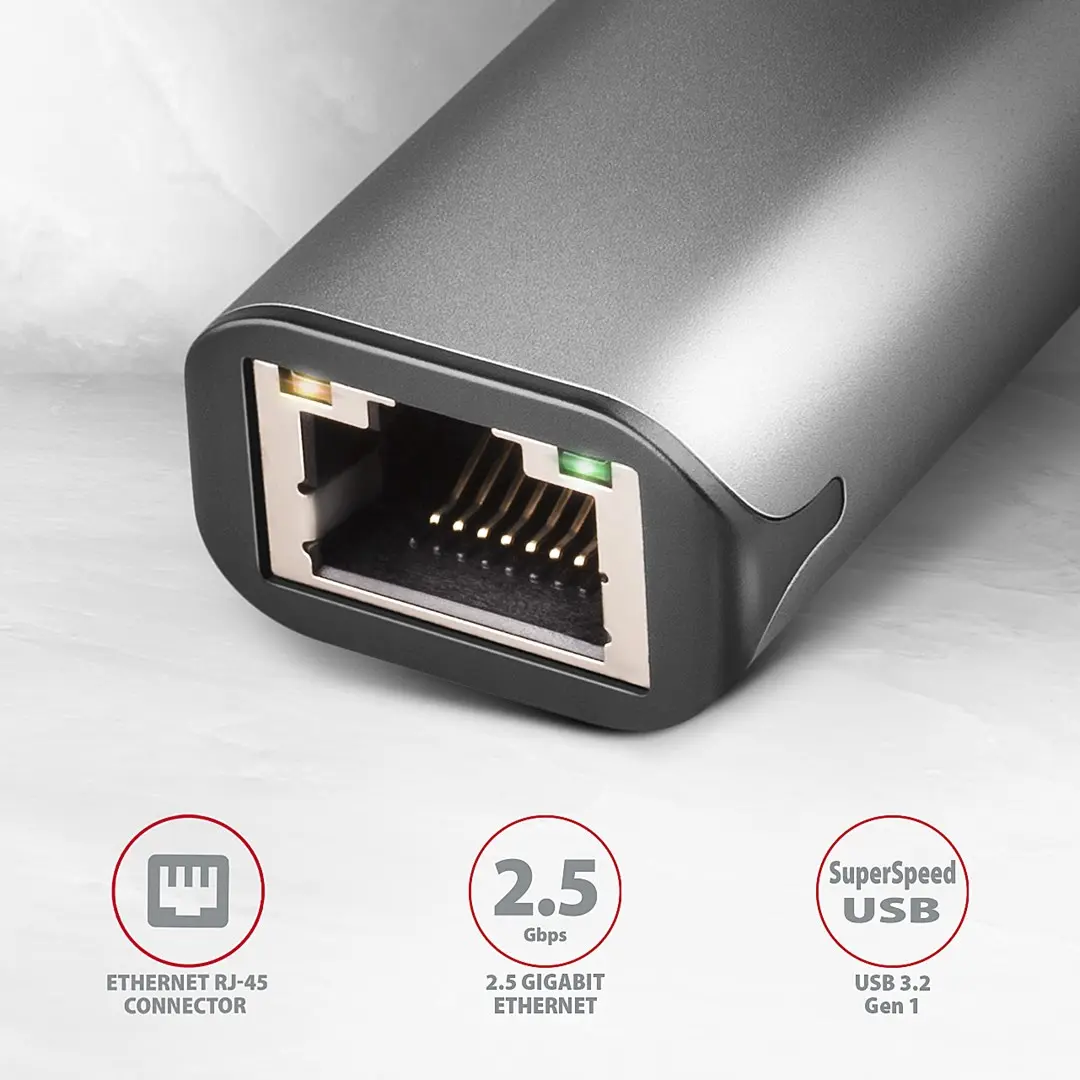

Output: RJ-45 Gigabit Ethernet interface; supported Ethernet speeds 10/100/1000/2500 Mb/s.
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz (2.5GBase-T).
NBASE-T support: 2.5 Gb/s over standard UTP Cat5e cabling.
Offload and performance: IPv4/IPv6 checksum offload, TCP Large Send Offload V1/V2, hardware CRC, jumbo frame support.
Network features: IEEE 802.1Q VLAN tagging, IEEE 802.1P priority, IEEE 802.3x flow control, Auto MDI/MDIX, Pair Swap/Polarity/Skew Correction.
Power and management: Energy Efficient Ethernet (IEEE 802.3az), ACPI, Power Management offload (ARP & NS), AOAC, CPPM, LPM, OSPM.

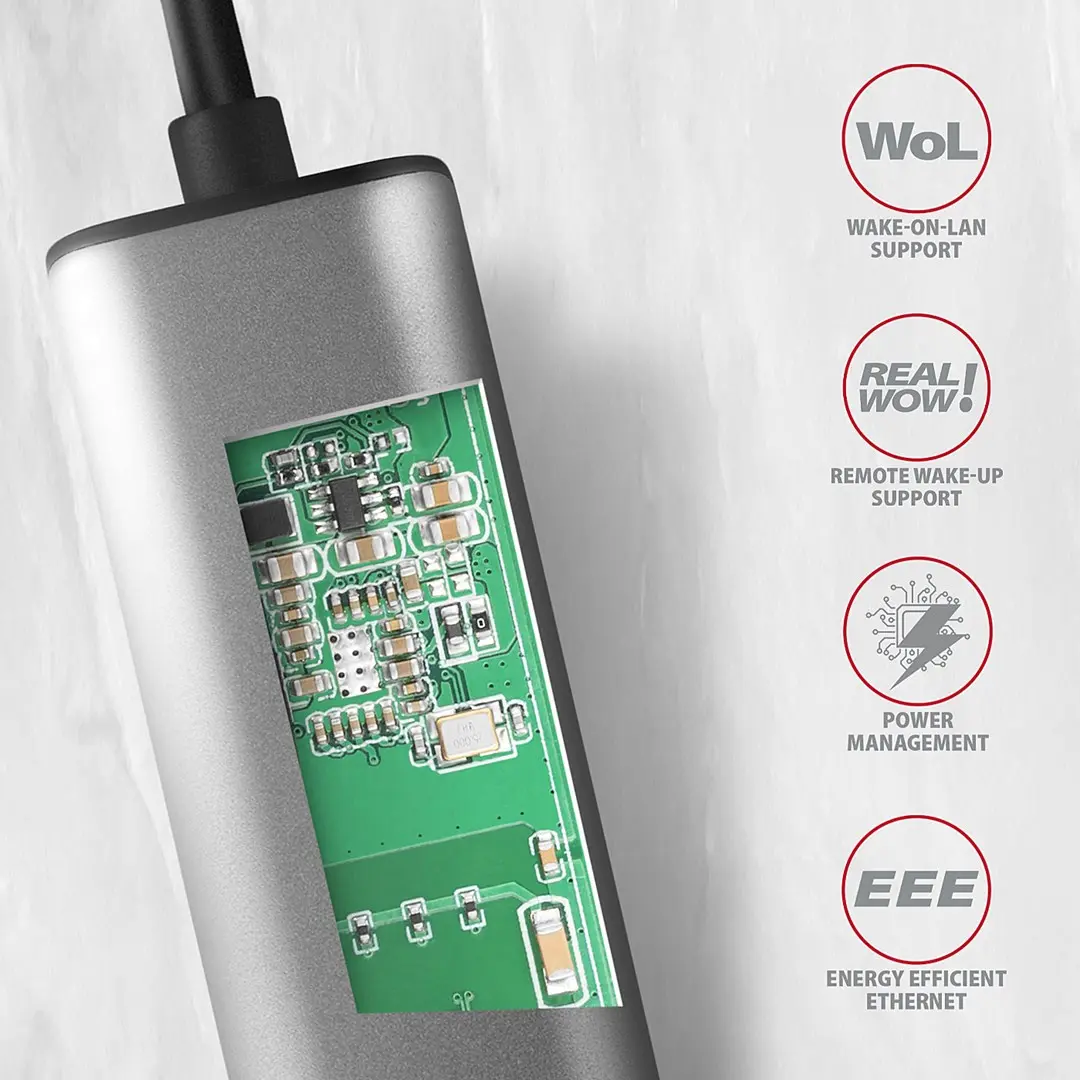

Wake-on-LAN: supports Magic Packet, Microsoft Wakeup Frame/Packet Detection, Link Change Wake-up, ECMA-393 proxZzzy® and RealWoW! remote wake.
Other: Plug and Play, Hot Plug, CDC-ECM driver support, bus-powered (no external PSU), two LEDs for link/activity.
Physical: dimensions 64 × 24 × 14 mm, weight 26 g (including cable), USB cable length 15 cm.
Chipset: Realtek RTL8156B.
Supported OS: Windows 7/8/8.1/10/11 and later (32/64-bit), Windows Server 2008/2012/2016/2019/2022 and later, macOS X 10.6 and later, Linux kernel 2.6.14 and later.

How to use

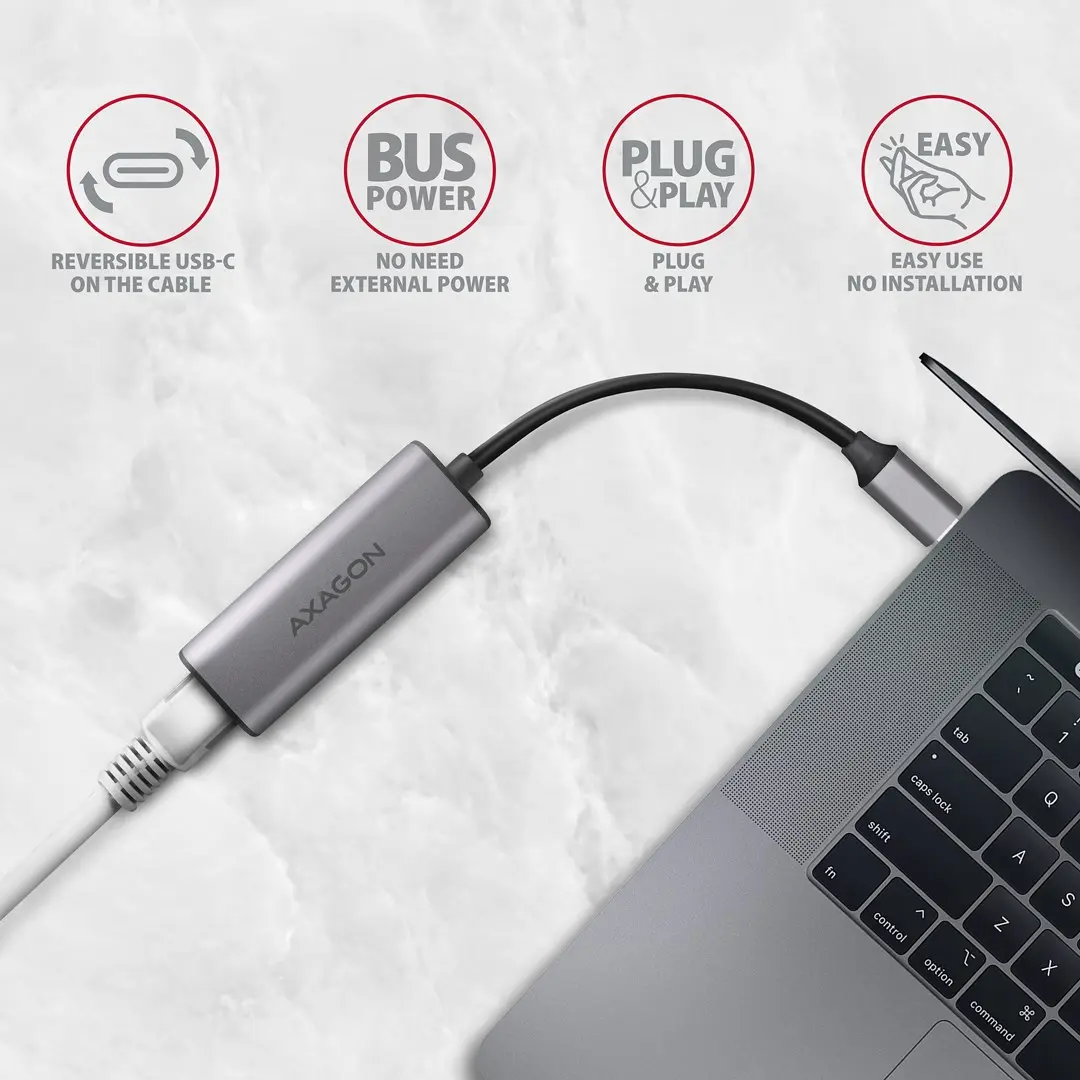

Connect the fixed USB-C plug to a compatible USB-C or Thunderbolt 3/4 port on your computer. The adapter is bus-powered so no additional power supply is required. Plug an Ethernet cable (UTP/STP Cat5e or Cat6) into the RJ-45 connector. On supported modern Windows systems the adapter installs automatically; on other systems follow the printed manual to install drivers if needed. After connection, check the LEDs to confirm link and network activity and configure network settings in the operating system as required.

Recommendations

For best 2.5 Gb/s performance use Cat5e or Cat6 cables up to 100 m and ensure the host system supports USB 3.2 Gen 1 or Thunderbolt 3/4. Use the adapter for adding or replacing a faulty RJ-45 connector on laptops and for stable wired connections where Wi‑Fi is unreliable. Consult the included multilingual manual for driver installation steps on older operating systems.

Specifications

Connectivity technology:: Wired
Interface:: Ethernet
Host interface:: USB Type-C
Maximum data transfer rate:: 2500 Mbit/s
Weight:: 0.026 kg
Networking standards:: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3
Product colour:: Grey

All features

VLAN support:: Yes
Component for:: PC/Laptop
Quantity per pack:: 1 pc(s)
Compliance certificates:: RoHS

Ports & interfaces

Connectivity technology:: Wired
Interface:: Ethernet
Host interface:: USB Type-C
Internal:: No
Ethernet LAN (RJ-45) ports:: 1
USB version:: 2.0/3.2 Gen 1 (3.1 Gen 1)

Bandwidth

Maximum data transfer rate:: 2500 Mbit/s
Data transfer rate:: 2.5 Gbit/s
Full duplex:: Yes

Network

Networking standards:: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3
Chipset:: Realtek RTL8156B
Ethernet LAN:: Yes
Jumbo frames support:: Yes
Ethernet LAN data rates:: 2500, 1000, 100, 10
Ethernet interface type:: Gigabit Ethernet

Performance

Plug and Play:: Yes
Cable length:: 0.15 m
Compatible products:: IEEE 802.3ab 1000Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3 10Base-T
Wake-on-LAN ready:: Yes
Windows operating systems supported:: Y
Mac operating systems supported:: Y
Linux operating systems supported:: Y
Server operating systems supported:: Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016

Design

LED indicators:: Y
Housing material:: Metal
Product colour:: Grey
Country of origin:: China

Weight & dimensions

Weight:: 0.026 kg
Package weight:: 58 g
Height:: 14 mm
Width:: 64 mm
Depth:: 24 mm
Package depth:: 90 mm
Package height:: 25 mm
Package width:: 180 mm

Power

USB powered:: Yes

Certificates

Certification:: CE

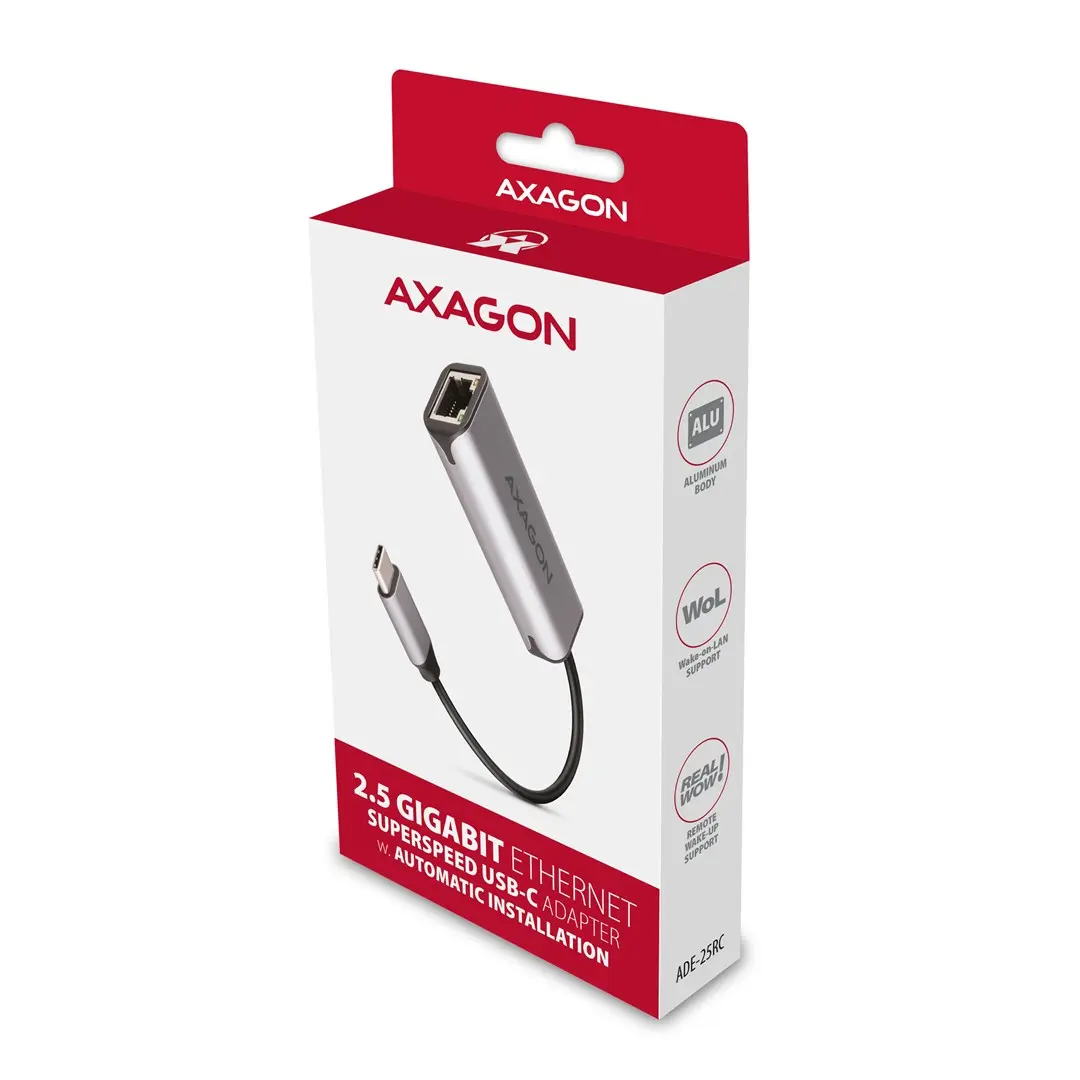

Packaging content

Cables included:: USB Type-C
Manual:: Yes
Package type:: Box
