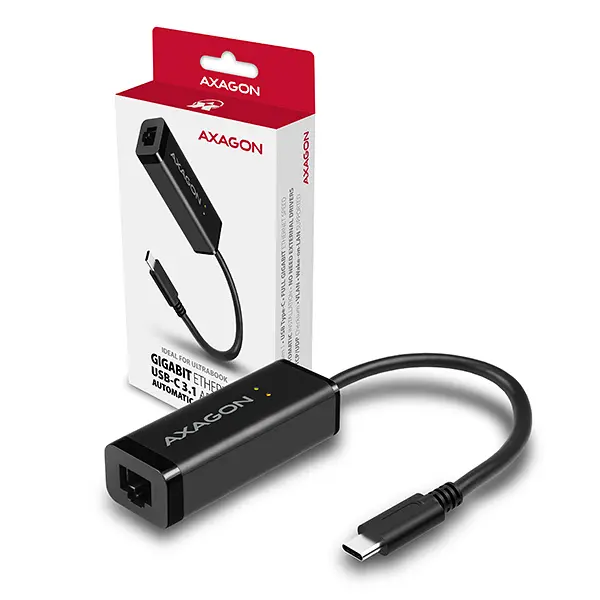

Сетевая карта Axagon ADE-SRC Ethernet 1000 Mbit/s

Максимальная скорость передачи данных: The maximum speed with which data can be transmitted from one device to another.

1000 Мбит/с

Подключение Ethernet: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Да

Функция Wake-on-LAN:

Да

Контроллер LAN:

Realtek RTL8153

Поддержка Jumbo Frames:

Да

Скорость передачи данных Ethernet LAN: The different speed levels of the Ethernet LAN connection.

10, 100, 1000

Поддержка VLAN: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Да

Тип Ethernet интерфейса:

Быстрый Ethernet, Гигабитный Ethernet

Версия USB: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

2.0/3.2 Gen 1 (3.1 Gen 1)

Комплектующие для: What this product is used as a part of (component for).

ПК/ноутбук

Вес и размеры

Масса брутто: Weight of the packaged product.

54 g

Вес: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.023 kg

Высота: The measurement of the product from head to foot or from base to top.

17 mm

Глубина: The distance from the front to the back of something.

25 mm

Ширина: The measurement or extent of something from side to side.

61 mm

Системные требования

Поддерживаемые серверные операционные системы:

Да

Поддерживаемые операционные системы Linux: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Да

Поддерживаемые операционные системы Mac: Mac operating systems e.g. OS X can be used with the device.

Да

Поддерживаемые операционные системы Windows: Windows vesions wich can be used with the device.

Да

Прочие свойства

Интерфейс: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Ethernet

Стандарты сети: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az

Количество портов Ethernet LAN ( RJ-45): Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Технология подключения: The technology that enables connectivity of the device, e.g. wired or wireless.

Проводная

Длина кабеля: How long the cable is.

0.15 m

Инструкция:

Да

Логистические данные

Страна производства: Country where the device is made. Aka Country of manufacture (COM).

Китай

Данные об упаковке

Высота упаковки: The distance from the top to the bottom of the packaging.

25 mm

Глубина упаковки: The distance from the front to the back of the packaging.

90 mm

Ширина упаковки: The distance from one side of the packaging to the other.

180 mm

Технические характеристики

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS

Энергопитание

Питание через USB: The device can be powered via a USB connection.

Да

Свойства

Plug & Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Да

Полнодуплексный режим: Режим, при котором передача данных может производиться одновременно с приемом данных. Полудуплексный режим — это режим, при котором передача ведётся в обоих направлениях, но с разделением по времени.

Да

Дизайн

Цвет товара: Цвет продукции, например: красный, синий, зеленый, черный, белый.

Черный

Внутренний: The product is built in.

Нет

Порты и интерфейсы

Основной интерфейс: Interface that enables a host controller to communicate with a driver.

USB Type-C

Производительность

Сертификация:

CE, FCC

Светодиодные индикаторы:

Да

Чипсет: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Realtek RTL8153

Скорость передачи данных: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.

5 Gbit/s
