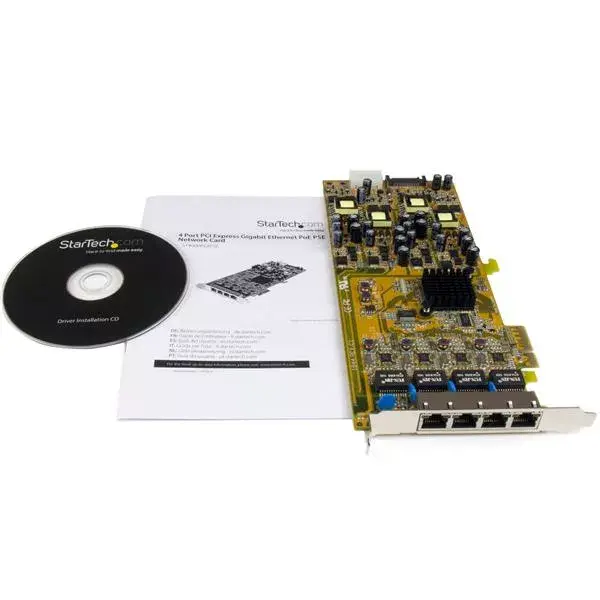

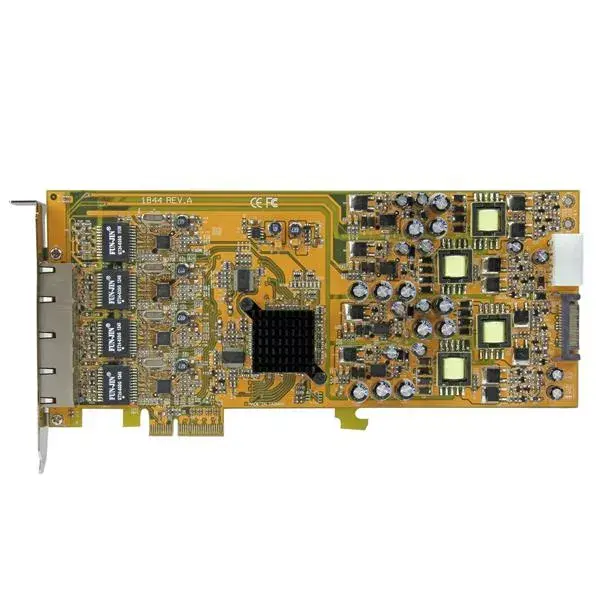

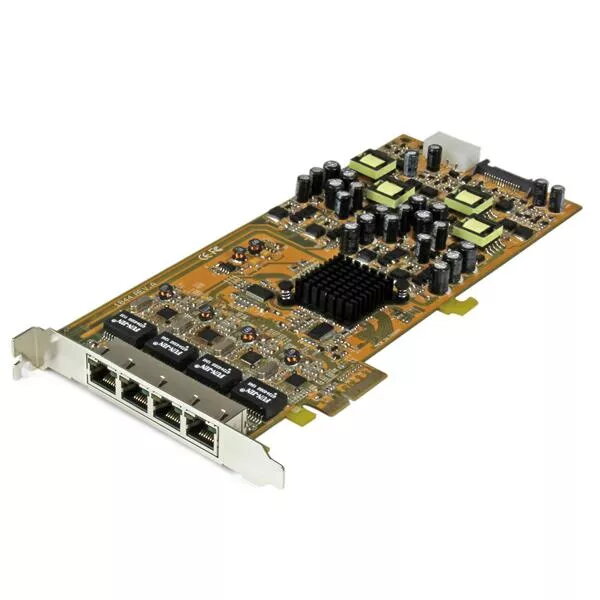

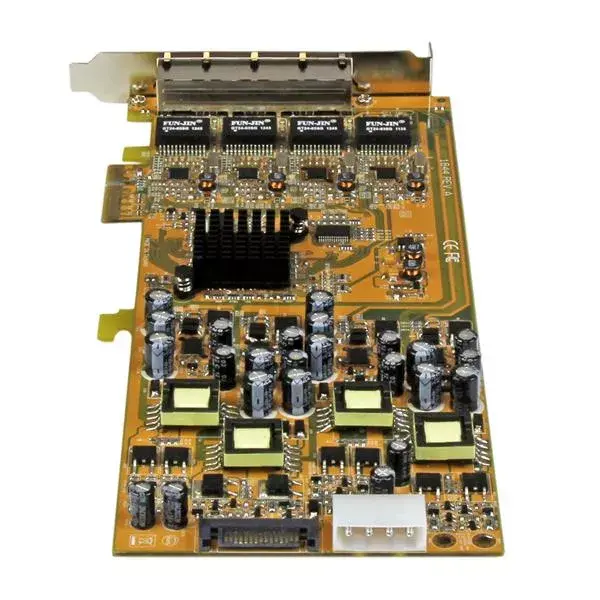

Сетевая карта StarTech 4 порта Gigabit Power over Ethernet PCIe (PCI Express, 2000 Мбит/с)

Код гармонизированной системы описания (HS):

85176990

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS

Порты и интерфейсы

Технология подключения: The technology that enables connectivity of the device, e.g. wired or wireless.

Проводная

Интерфейс: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Ethernet

Основной интерфейс: Interface that enables a host controller to communicate with a driver.

PCI Express

Внутренний: The product is built in.

Да

Количество портов Ethernet LAN ( RJ-45): Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4

Количество разъемов питания SATA:

1

Периферийные (Molex) разъемы питания (4-конт): White 4-pinned connector used to connect a peripheral to the power supply.

1

Пропускная способность

Максимальная скорость передачи данных: The maximum speed with which data can be transmitted from one device to another.

2000 Мбит/с

Полнодуплексный режим: Режим, при котором передача данных может производиться одновременно с приемом данных. Полудуплексный режим — это режим, при котором передача ведётся в обоих направлениях, но с разделением по времени.

Да

Размер буфера: The buffer is a temporary memory area in which data is stored while it is being processed or transferred, especially one used while streaming video or downloading audio. The buffer size is usually measured in MB (megabytes) or KB (kilobytes).

48 KB

Сеть

Стандарты сети: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Свивка кабеля: Type of cable technology performance.

10/100/1000BaseT(X)

Чипсет: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

RTL8111E

Подключение Ethernet: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Да

Поддержка Jumbo Frames:

Да

Скорость передачи данных Ethernet LAN: The different speed levels of the Ethernet LAN connection.

10, 100, 1000

джамбо кадры:

9000

Производительность

Функция Wake-on-LAN:

Да

Поддержка функции Auto-MDIX IEEE:

Да

Поддерживаемые операционные системы Windows: Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Поддерживаемые операционные системы Linux: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Да

Поддерживаемые серверные операционные системы:

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Дизайн

Светодиодные индикаторы:

Ссылка, PoE

Формат PCI карты: Design of the PCI Card.

Полная высота

Вес и размеры

Вес: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.102 kg

Масса брутто: Weight of the packaged product.

428 g

Высота: The measurement of the product from head to foot or from base to top.

120 mm

Ширина: The measurement or extent of something from side to side.

18 mm

Глубина: The distance from the front to the back of something.

243 mm

Глубина упаковки: The distance from the front to the back of the packaging.

296 mm

Высота упаковки: The distance from the top to the bottom of the packaging.

66 mm

Ширина упаковки: The distance from one side of the packaging to the other.

188 mm

Энергопитание

Выходное напряжение:

48

Условия эксплуатации

Диапазон относительной влажности при эксплуатации:

10 - 90

Диапазон температур при хранении: The minimum and maximum temperatures at which the product can be safely stored.

-40 - 75

Диапазон температур при эксплуатации: The minimum and maximum temperatures at which the product can be safely operated.

0 - 55

Сертификаты

Сертификация:

CE, FCC, REACH, TAA

Содержимое упаковки

Инструкция:

Да

Драйвера в комплекте:

Да
