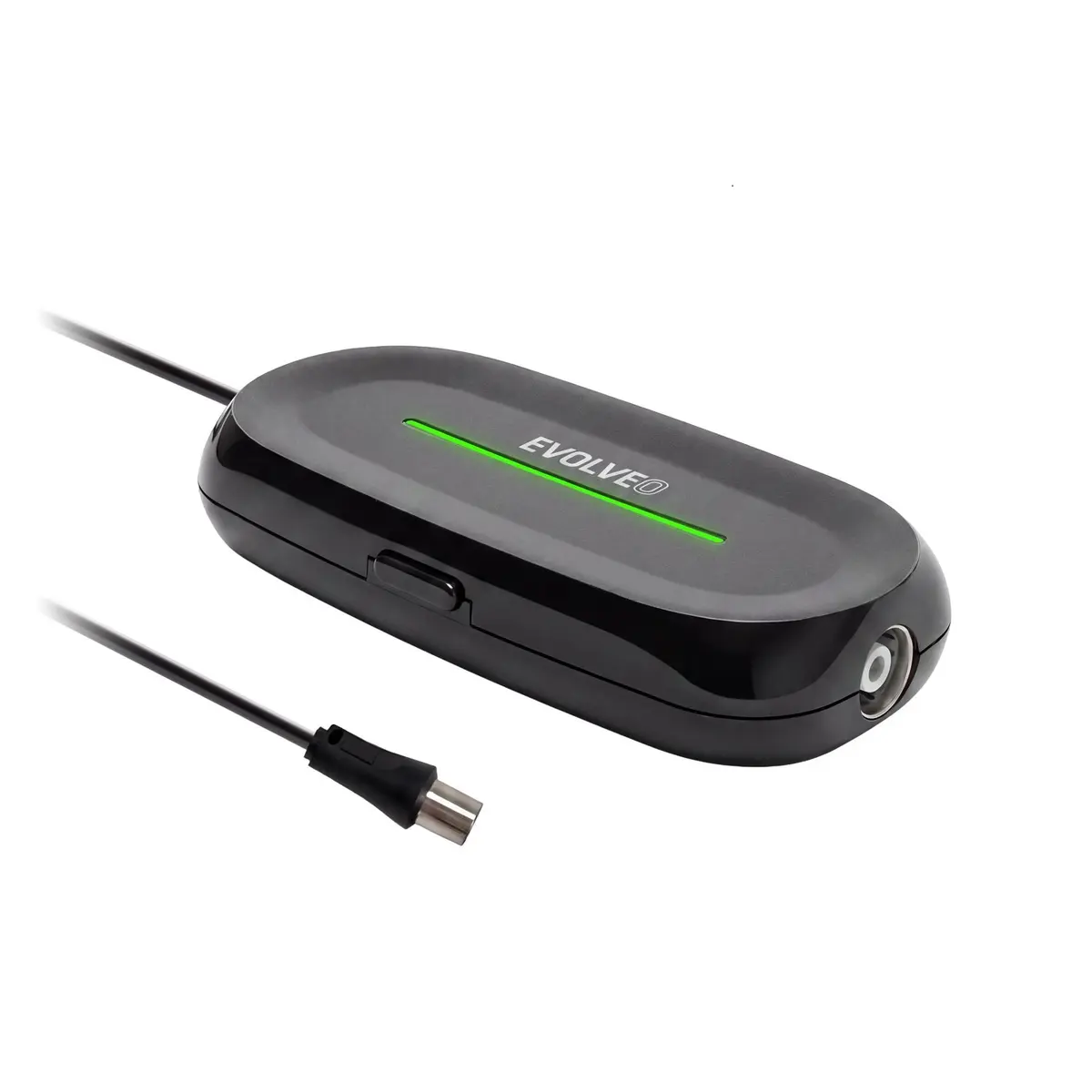

Evolveo Amp 2 smart antenna amplifier for FM, DAB+, and DVB-T2 with 20 dBi gain, LED signal strength indication, and LTE/4G/5G interference filter

The Evolveo Amp 2 smart antenna amplifier is designed to significantly improve FM, DAB+, and DVB-T2 radio and television signal reception. By delivering an amplifying gain of up to 20 dBi, this device ensures more stable and reliable entertainment experiences. It features a three-color LED signal strength indicator that provides immediate visual feedback on reception quality, simplifying the antenna positioning process. Additionally, the integrated LTE/4G/5G filter effectively suppresses mobile network interference to deliver a cleaner broadcast signal.

Advantages

This antenna amplifier provides a practical solution for households struggling with unstable broadcasting signals. The smart three-color LED indicator allows users to easily determine signal strength at a glance, removing the guesswork during installation. Green indicates optimal reception, orange shows a moderate signal level, and red highlights a weak input. Furthermore, the built-in mobile network filter protects the television and radio stream from unwanted disruptions caused by modern wireless transmitters, ensuring consistent audio and visual clarity.

Suitable for

• Improving DVB-T2 television signal reception in areas with weak coverage
• Enhancing DAB+ and FM radio signal quality
• Quick alignment and positioning of home antennas using visual LED feedback
• Filtering out LTE, 4G, and 5G mobile network interference

When it may not be suitable

This device may not be suitable if the incoming antenna signal is completely absent or entirely blocked by physical obstructions. It cannot generate a signal where none exists and is intended to amplify and clean existing reception rather than replace a functional outdoor antenna setup.

Key specifications

• Amplifying gain up to 20 dBi
• Three-color LED signal quality indication
• Integrated LTE/4G/5G interference filter
• VHF frequency range of 87.5 to 230 MHz for FM and DAB+
• UHF frequency range of 470 to 698 MHz for DVB-T2
• USB-C power connector
• Coaxial input F IEC169-2 and output M IEC169-2 connectors
• Amplifier coaxial cable length of 0.86 meters
• Compact dimensions of 102 x 50 x 19.5 mm

How to use

Connect the amplifier to your existing antenna setup using the coaxial connectors. Power the device using the provided USB-C cable and adapter connected to a standard electrical outlet. Observe the three-color LED indicator on the unit to evaluate the signal strength in your current location. Adjust the position of your antenna until the indicator displays a green light for optimal reception quality. If a red light persists, try moving the antenna to a different spot to achieve the best possible broadcast stability.

What to consider before purchase

• Verify that your local broadcasting relies on FM, DAB+, or DVB-T2 frequencies
• Check if your current reception issues are related to weak signal or mobile network interference
• Ensure you have a compatible power source nearby for the USB-C power connection

Usage recommendations: For the best results, position your antenna in an area with a clear line of sight and monitor the LED indicator closely during setup. Keep the device away from excessive moisture and ensure all coaxial connections are securely fastened to prevent signal loss.
