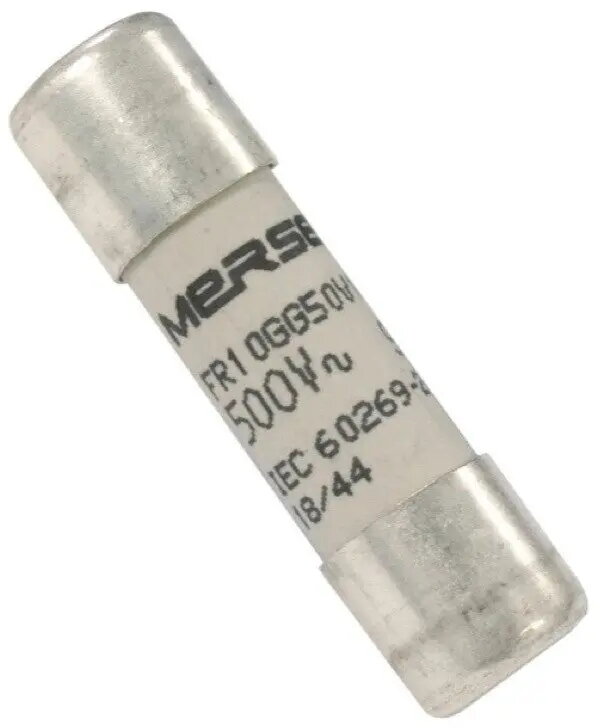

Mersen Cylindrical Fuse Link 10x38mm 25A 500VAC gG

The Mersen cylindrical fuse link, sized 10x38mm, is a high-quality electrical component engineered to provide dependable circuit protection. With a rated current of 25A and a voltage capacity of 500VAC, this fuse is specifically designed to safeguard electrical installations against the risks of overloads and short circuits. Its gG characteristic ensures it functions as a general-purpose protection device, making it a versatile choice for maintaining the integrity of various industrial and commercial electrical systems.

Advantages

This Mersen fuse link offers exceptional reliability and consistent performance under standard operating conditions. Its compact 10x38mm design allows for easy integration into existing fuse holders and electrical panels without requiring significant space. The gG protection class provides a comprehensive solution for protecting cables and equipment, ensuring that the circuit is interrupted safely and effectively when a fault occurs. The robust construction of the fuse ensures long-term durability and stability in demanding electrical environments.

Suitable for

• Industrial control panels
• Electrical distribution boards
• General-purpose circuit protection
• Commercial electrical installations
• Protection of cables and electrical equipment

This fuse is not suitable for applications requiring high-speed protection for sensitive power electronics, such as semiconductor devices, where aR or gR characteristics are typically required. It is also not intended for use in circuits exceeding the specified 500VAC voltage rating or for currents significantly higher than the 25A nominal rating.

Key specifications

• Dimensions: 10x38mm
• Rated current: 25A
• Rated voltage: 500VAC
• Characteristic: gG (general purpose)

To use this fuse link, ensure that the power supply to the circuit is completely disconnected before installation. Insert the fuse into a compatible 10x38mm fuse holder, ensuring it is seated firmly to establish a proper electrical connection. Once installed, restore power to the system. If the fuse blows, it must be replaced with an identical unit to maintain the safety and functionality of the circuit.

What to consider before purchase

• Verify that the 25A current rating matches your circuit requirements.
• Ensure the fuse holder is compatible with the 10x38mm form factor.
• Check that the operating voltage of the system does not exceed 500VAC.
• Confirm that the gG characteristic is appropriate for your specific application.

Usage recommendations

Always replace a blown fuse with one of the exact same rating and type to prevent potential damage to your electrical system or safety hazards. Never attempt to bypass or repair a blown fuse.
