Pull-out shelf SCHROFF 800B 700T rack-mount accessory model 22130374

The SCHROFF Pull-Out Shelf 800B 700T (model 22130374) is a rack-mount accessory engineered for 19-inch enclosures to provide a stable sliding support surface inside server cabinets and instrument racks. The shelf is designed to extend smoothly, allowing technicians to pull equipment out for inspection, cabling or short-term placement during maintenance and installation. Constructed to match common rack depths and mounting patterns, it offers a convenient workspace inside populated racks without requiring full equipment removal.

Advantages

The pull-out mechanism permits controlled extension and retraction, improving access to rear and front connections while maintaining load stability. Built to integrate with standard 19-inch racks, it reduces handling time and minimizes the need to remove mounted devices for simple servicing tasks. The shelf provides a flat, reliable support surface suitable for temporary placement of servers, measurement instruments or networking components, and it helps keep cabling organized during interventions.

Suitable for

• Temporary support of servers and blade components during servicing
• Mounting instrumentation and measurement devices for adjustment or calibration
• Supporting networking gear, switches or patch panels while accessing connections
• Providing a work surface for cable routing and short-term diagnostic equipment

Key specifications

• Form factor: 19-inch rack-compatible pull-out shelf
• Designed rack depth compatibility: standard 700 mm class enclosures

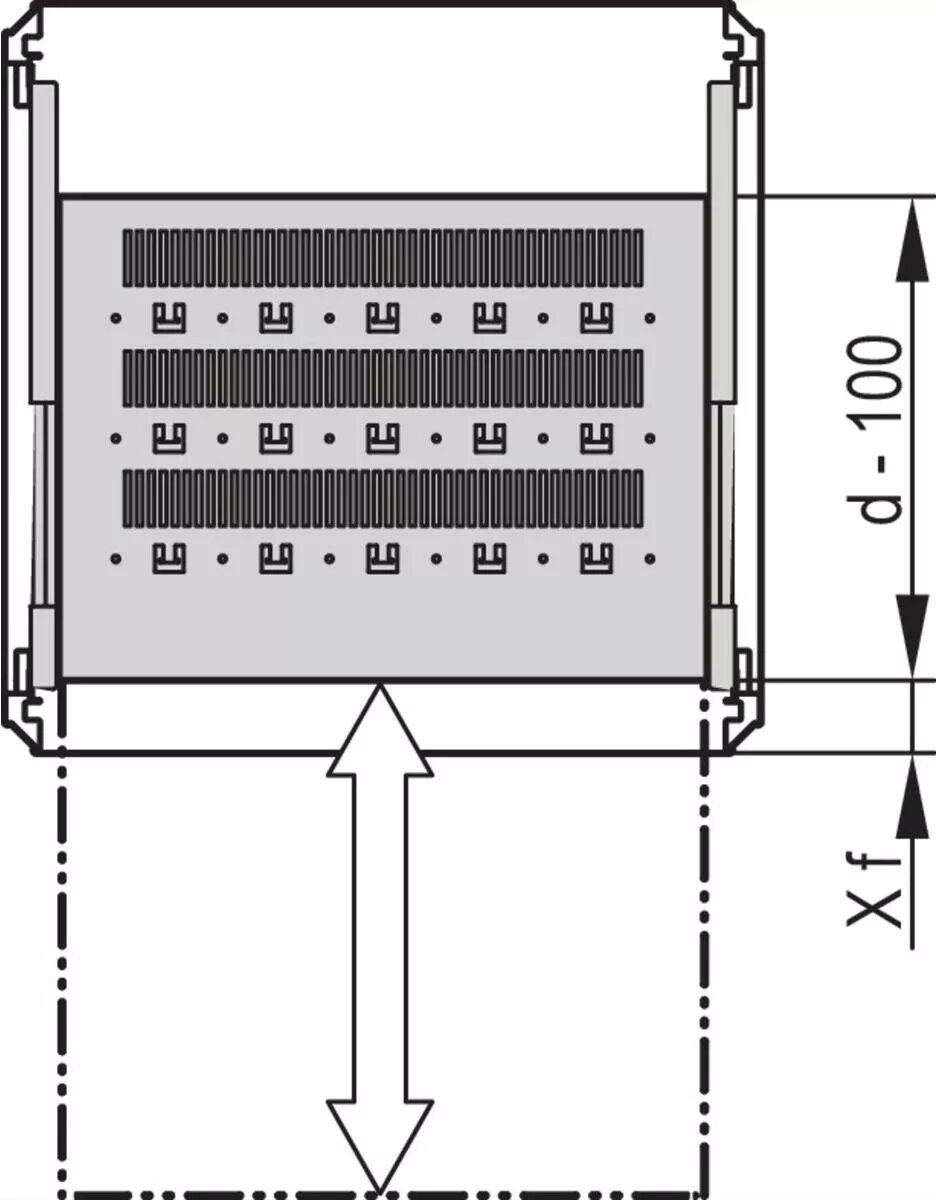

• Sliding mechanism: telescopic rails for controlled extension and retraction
• Support surface: flat metal shelf suitable for electronic equipment
• Mounting: front-mountable to standard rack rails
• Intended use: temporary equipment support and front access within cabinet

How to use

Install the shelf by aligning it with the rack’s mounting rails and securing it at the required rack unit positions according to the enclosure’s mounting holes. Slide the shelf fully into the rack for normal operation and pull it out along the telescopic rails when access to equipment or cabling is needed. Place equipment centrally on the flat surface to maintain balance and avoid exceeding the shelf’s load capability. After completing maintenance or adjustments, retract the shelf fully and ensure it is locked or stopped in the closed position.

Usage recommendations

Verify the shelf’s load capacity and ensure the supported equipment weight is within safe limits for the mounting configuration. Use the pull-out shelf to reduce repeated removal of mounted devices, keep cabling tidy while working, and check that the rail movement is unobstructed before extending. Periodically inspect mounting points and sliding rails for wear or debris that may affect smooth operation.
