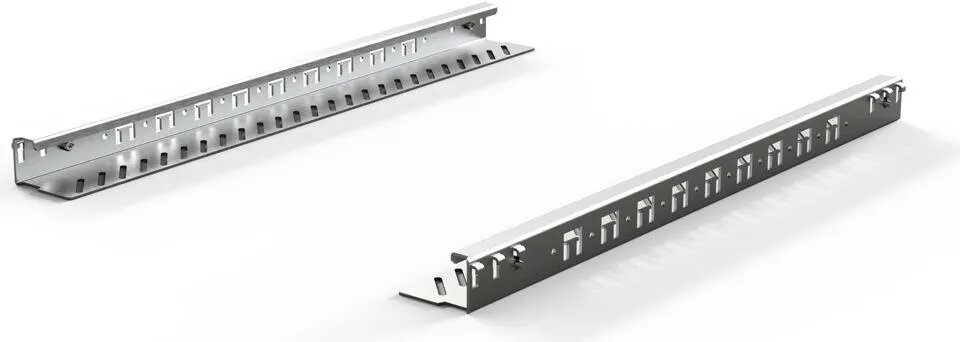

Rack slide rail accessory SCHROFF 800D Heavy Load model 23130119 for server cabinets

SCHROFF 800D Heavy Load slide rail model 23130119 is designed for mounting and guiding heavy equipment in server cabinets and industrial racks. The component provides a stable, low-friction sliding mechanism that helps technicians extend and retract servers or other rack-mounted devices for installation and service access. It is intended for use where higher static and dynamic loads are present and where reliable long-term operation is required.

Advantages

The heavy-duty construction delivers increased load capacity and mechanical stability compared with standard rails, while precision bearings or rollers ensure consistent, smooth travel. Corrosion-resistant finishes and robust locking points reduce wear and contribute to predictable service intervals. Compact profile and standardized mounting points make the rail compatible with common 19-inch rack layouts and allow straightforward integration into existing cabinet installations.

Suitable for

• Mounting heavy servers, storage units and industrial IT equipment in 19-inch cabinets
• Data center racks requiring frequent equipment access and maintenance
• Telecommunications and broadcast racks with high-load components
• Industrial enclosures where vibration-resistant support is needed

Key specifications

• Heavy-load rated slide rail designed for server cabinet installation
• Full-extension sliding travel for improved access to mounted equipment
• Durable metal construction with protective finish for long-term use
• Precision sliding elements (rollers or bearings) for low-friction operation
• Standardized mounting flange compatible with 19" rack profiles

How to use

Install the slide rail into the cabinet by aligning the mounting flanges with the rack uprights and fastening with appropriate rack screws or cage nuts. Attach the matching rail or adapter to the equipment chassis, then engage the two components so the sliding elements interlock. Verify smooth travel by gently extending and retracting the equipment several times and lock any built-in retention mechanisms to secure the load. Follow cabinet manufacturer guidelines and safe handling practices when lifting and positioning heavy devices.

Usage recommendations

Check load ratings and compatibility with the specific server or device before installation. Use two matched rails (left and right) for each piece of equipment to ensure balanced support. Periodically inspect sliding elements for wear, keep mounting hardware tightened, and avoid exceeding the rated load to maintain safe operation.
