Front panel SCHROFF 6U 28TE EL/CHR Unshielded for rack enclosure
Offer for a legal entity, non-cash payment.
Short description
Cheapest delivery:
Unisend LV
Product information
Description
Front panel SCHROFF 6U 28TE EL/CHR Unshielded is a metal replacement front plate designed for 6U rack enclosures with a 28 TE width. The unshielded panel features an EL/CHR finish and conforms to SCHROFF mounting standards to provide a clean front appearance and mechanical support for modules and connectors in server, telecom or industrial rack systems.
Advantages
This front panel provides precise fitting for 6U rack bays with a 28 TE width, ensuring correct alignment of modules and connectors. The EL/CHR surface offers a consistent industrial finish that resists minor wear and simplifies identification of front-mounted components. As an unshielded metal plate, it is lightweight and easy to handle during installation or replacement while delivering a stable mounting surface for front-access equipment.
Suitable for
- Server rack installations requiring a 6U, 28 TE front plate
- Telecommunications equipment with standard rack module widths
- Industrial control panels and enclosures where a neat front appearance is needed
- Replacement or refurbishment of SCHROFF-compatible rack enclosures
Key specifications
- Form factor: 6U height, 28 TE width
- Material: metal (unshielded)
- Finish: EL/CHR surface treatment
- Compatibility: designed for standard SCHROFF rack mounting dimensions
- Function: front panel for mounting modules and connectors, providing front access and mechanical support
How to use

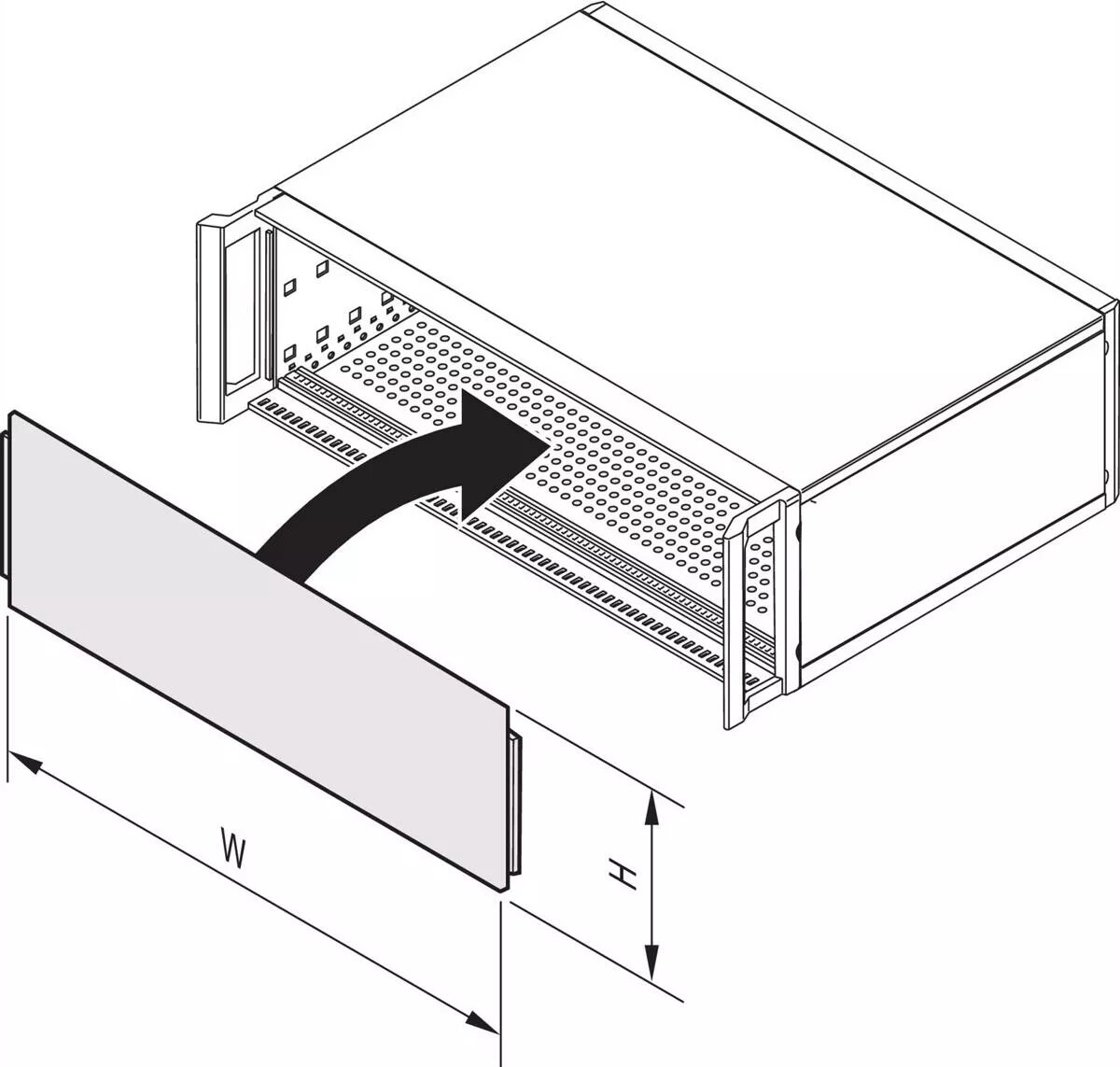

Install the front panel into the 6U bay following the enclosure manufacturer’s rack mounting procedure. Align the panel with the rack’s mounting rails and secure it with the recommended fasteners at the mounting points. After fastening, populate the panel with compatible modules, blanking plates, or connectors as required, taking care that each module aligns with the TE positions. For maintenance or replacement, remove fasteners and extract the panel carefully to avoid disturbing nearby components.
Usage recommendations
Ensure the panel is used in enclosures that match 6U, 28 TE dimensions and SCHROFF mounting standards. Use appropriate grounding and shielding measures at system level if electromagnetic compatibility is required, since this panel is unshielded. Verify fastener type and torque per the enclosure documentation to maintain mechanical integrity.
