Ceiling Mount SMS Smart Media Solutions CM F110
Offer for a legal entity, non-cash payment.
Short description
Cheapest delivery:
Unisend LV
Product information
Description

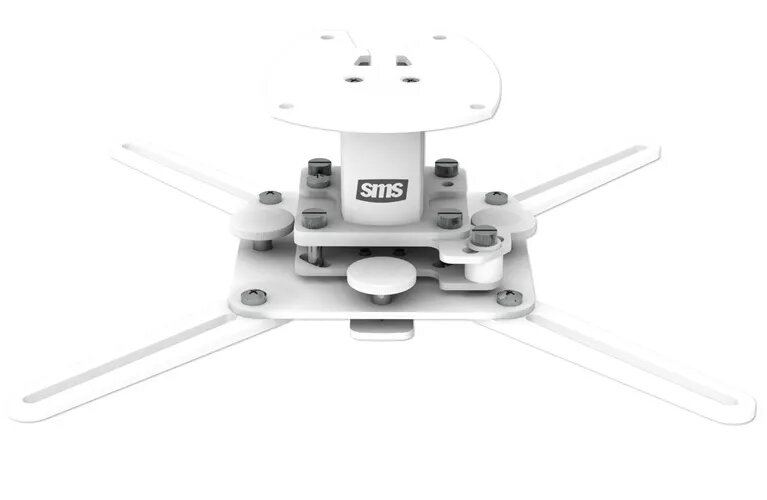

The SMS Smart Media Solutions CM F110 ceiling mount provides a stable, serviceable support for projectors and other media devices. It includes an ingenious joint that allows fine tool-free adjustment at the projector bracket and a cable holder integrated into the column to keep cables concealed. The mount is finished in white and is delivered with a universal slide compatible with most heavy projectors. Maximum load: 20 kg; height: 110 mm; weight: 1 kg.
Advantages
The joint enables accurate tilt and alignment directly at the bracket without tools, reducing the need to adjust the image from the projector and speeding up installation. Cables are routed through the column for a clean appearance. The included universal slide supports compatibility with a wide range of heavy projectors, while the construction offers high stability and ease of maintenance.
Suitable for
- Ceiling mounting of projectors up to 20 kg
- Home cinema and office meeting rooms
- Fixed installations requiring concealed cable routing
Key specifications
- Maximum load: 20 kg
- Length / height: 110 mm
- Finish: white
- Weight: 1 kg
- Mounting type: ceiling
- Included: universal slide
How to use
Attach the ceiling mount to a suitable structural surface following local building codes and using appropriate hardware. Fit the universal slide to the projector, secure the projector to the bracket, then make fine tilt and alignment adjustments directly at the projector bracket using the joint—no tools required. Route power and signal cables into the column cable holder to conceal them.
Usage recommendations
Install on a load-bearing ceiling surface; if in doubt, consult a qualified installer. Do not exceed the 20 kg maximum load. For installations requiring a different drop length, consider the longer 380 mm version (cuttable) when additional extension or adjustment is needed.
Features
- Maximum weight capacity:
- 20 kg
- Mounting type:
- Ceiling
- Product colour:
- White
