StarTech.com 4K HDMI Audio Extractor Black 4K 60Hz 5.1 Channels
Short description
Cheapest delivery:
Unisend LV
Esto — pay in 6 equal parts
Product information
Description

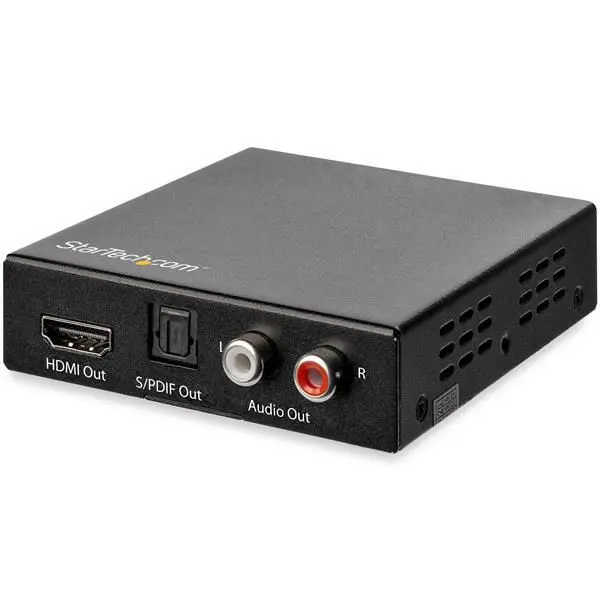

The StarTech.com 4K HDMI Audio Extractor (model HD202A) separates audio from HDMI video signals so you can route sound to dedicated audio equipment while preserving 4K video quality. Compliant with HDMI 2.0 and HDCP, the compact black extractor supports video up to 4K 60Hz and provides digital optical (Toslink) and dual RCA analog outputs for flexible audio connections.
Advantages
This HDMI audio de-embedder supports 4K@60Hz video and HDR pass-through while maintaining up to 18 Gbps video bandwidth. It offers maximum compatibility with HDMI 2.0 sources and provides EDID-managed audio modes for 2-channel, 5.1-channel and pass-through configurations. The unit includes Toslink optical and dual RCA outputs and works with common RCA-to-3.5 mm adapters for integration with desktop speakers or other analog systems. Its compact footprint fits unobtrusively into AV setups and the product is backed by a 2-year StarTech.com warranty with lifetime technical support.
Suitable for
- Extracting audio from 4K HDMI sources (Blu-ray players, streaming devices, PCs)
- Connecting HDMI audio to digital optical (Toslink) receivers
- Connecting HDMI audio to analog equipment via dual RCA or RCA-to-3.5 mm adapters
- AV installations that require HDR pass-through with separate audio routing
Key specifications
- Model: HD202A
- Brand: StarTech.com
- HDMI version: HDMI 2.0 compliant
- Maximum video resolution: up to 4K 60Hz (3840 x 2160 / 4096 x 2160)
- Video bandwidth: up to 18 Gbps
- Audio outputs: Toslink (optical) and Dual RCA (analog)
- Audio modes: 2-channel, 5.1-channel and passthrough (EDID-managed)
- HDCP: compliant
- Colour: Black
- Weight: 0.32 kg
- Manufacturer part number (MPN): HD202A
- EAN: 0065030878609
How to use
Connect an HDMI source (for example a 4K Blu-ray player or streaming box) to the HDMI input on the extractor and connect the HDMI output to your display. Use the Toslink optical cable or dual RCA cables to connect the extractor’s audio outputs to your sound system, AV receiver, or powered speakers. Configure the output device and the extractor EDID settings as needed to select 2-channel, 5.1 or passthrough audio. Ensure cables and connected devices support HDMI 2.0 and HDCP for full functionality.
Usage recommendations
For reliable 4K 60Hz and HDR performance, use high-speed HDMI cables rated for 18 Gbps or higher and verify source and display compatibility with HDMI 2.0 and HDCP. When connecting to 3.5 mm inputs, use a compatible RCA-to-3.5 mm adapter (sold separately) and confirm EDID settings to avoid channel configuration issues.
- Input voltage:
- 100 - 240
- Host interface:
- HDMI
- Maximum video resolution:
- 4096 x 2160
- Operating current:
- 1 A
- Video resolutions:
- 4096 x 2160, 3840 x 2160, 1920 x 1200, 1920 x 1080, 1280 x 720
- Number of screws:
- 2
- Screws included:
- Yes
- Mounting bracket(s) included:
- Yes
Logistics data
- Harmonized System (HS) code:
- 85176990
Packaging content
- Included power plug types:
- UK, ANZ, EU, NA
- AC adapter included:
- Yes
Packaging data
- Package weight:
- 470 g
- Package height:
- 50 mm
- Package depth:
- 192 mm
- Package width:
- 152 mm
Weight & dimensions
- Weight:
- 0.32 kg
- Height:
- 22 mm
- Depth:
- 90 mm
- Width:
- 80 mm
Operational conditions
- Operating relative humidity (H-H):
- 10 - 90
- Storage temperature (T-T):
- -20 - 70
- Operating temperature (T-T):
- 0 - 45
Power
- Power plug type:
- Type M
- External power adapter:
- Yes
- Input current:
- 0.4
- Operating voltage:
- 5 V
Ports & interfaces
- Audio output:
- RCA + Toslink
- Video in:
- HDMI
- Video out:
- HDMI
Features
- Product colour:
- Black
- Audio output channels:
- 5.1
- Maximum refresh rate:
- 60 Hz
Stock data
| Warehouse | Stock | Delivery to the store | Store Price | |
| WH355 | 6 | 07.12.2026 | 88.49 € | Add to cart |
| WH94 | 24 | 07.12.2026 | 101.99 € | Add to cart |
- 88.49 €Stock: 6Delivery Date: 07.12.2026Warehouse: WH355Add to cart
- 101.99 €Stock: 24Delivery Date: 07.12.2026Warehouse: WH94Add to cart
| Warehouse | Stock | Delivery to the store | Store Price | |
| WH109 | 6 | 21.12.2026 | 89.49 € | Add to cart |
| WH15 | 9 | 07.12.2026 | 89.49 € | Add to cart |
| EU9 | 24 | 07.12.2026 | 91.99 € | Add to cart |
- 89.49 €Stock: 6Delivery Date: 21.12.2026Warehouse: WH109Add to cart
- 89.49 €Stock: 9Delivery Date: 07.12.2026Warehouse: WH15Add to cart
- 91.99 €Stock: 24Delivery Date: 07.12.2026Warehouse: EU9Add to cart
- 112.99 €Stock: 2Delivery Date: 30.11.2026Warehouse: EU6Add to cart
