4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD

Name: 4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD
Brand: StarTech
SKU: 10810227
Price: 188.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD RS232 RS422 RS485

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD Photo 1

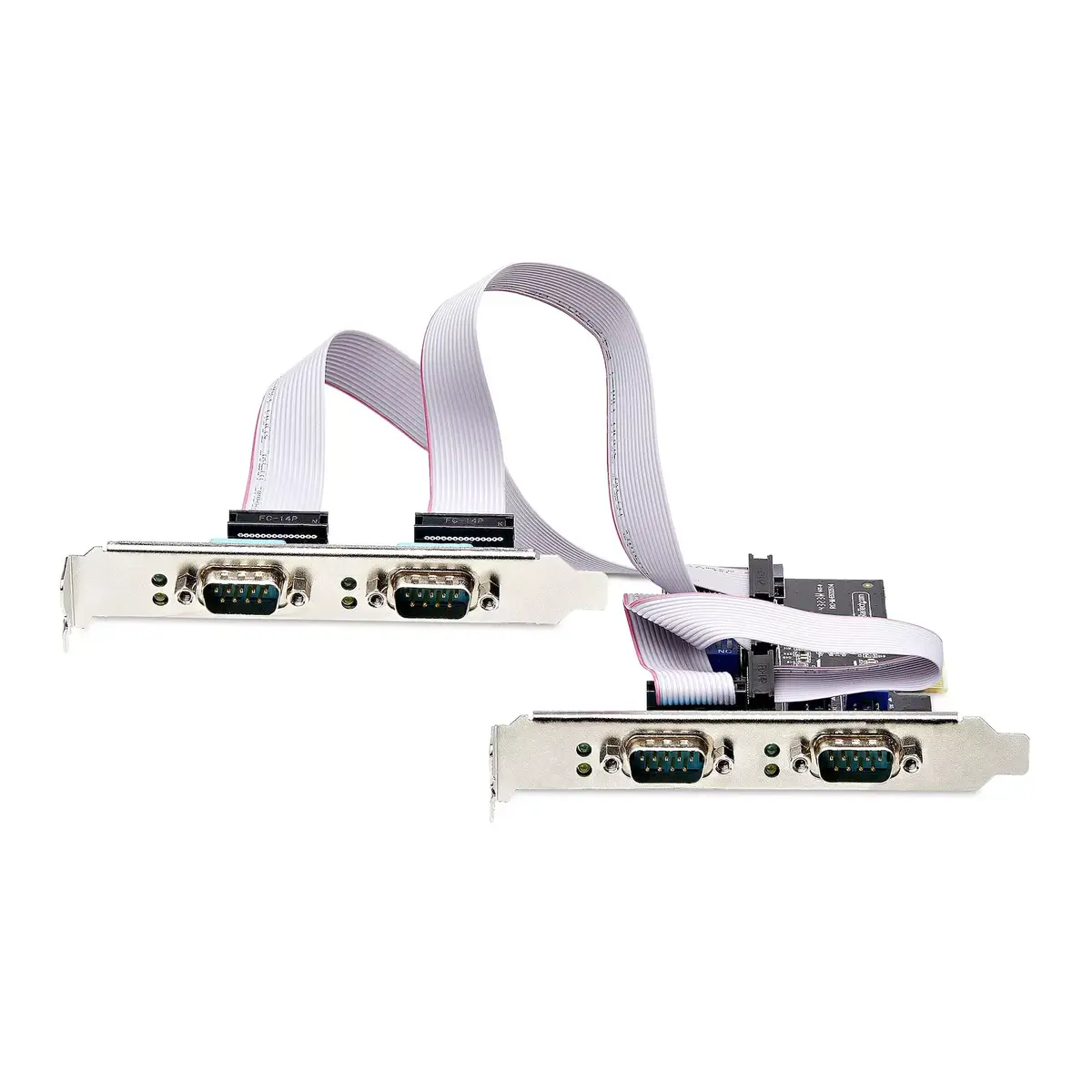

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD Photo 2

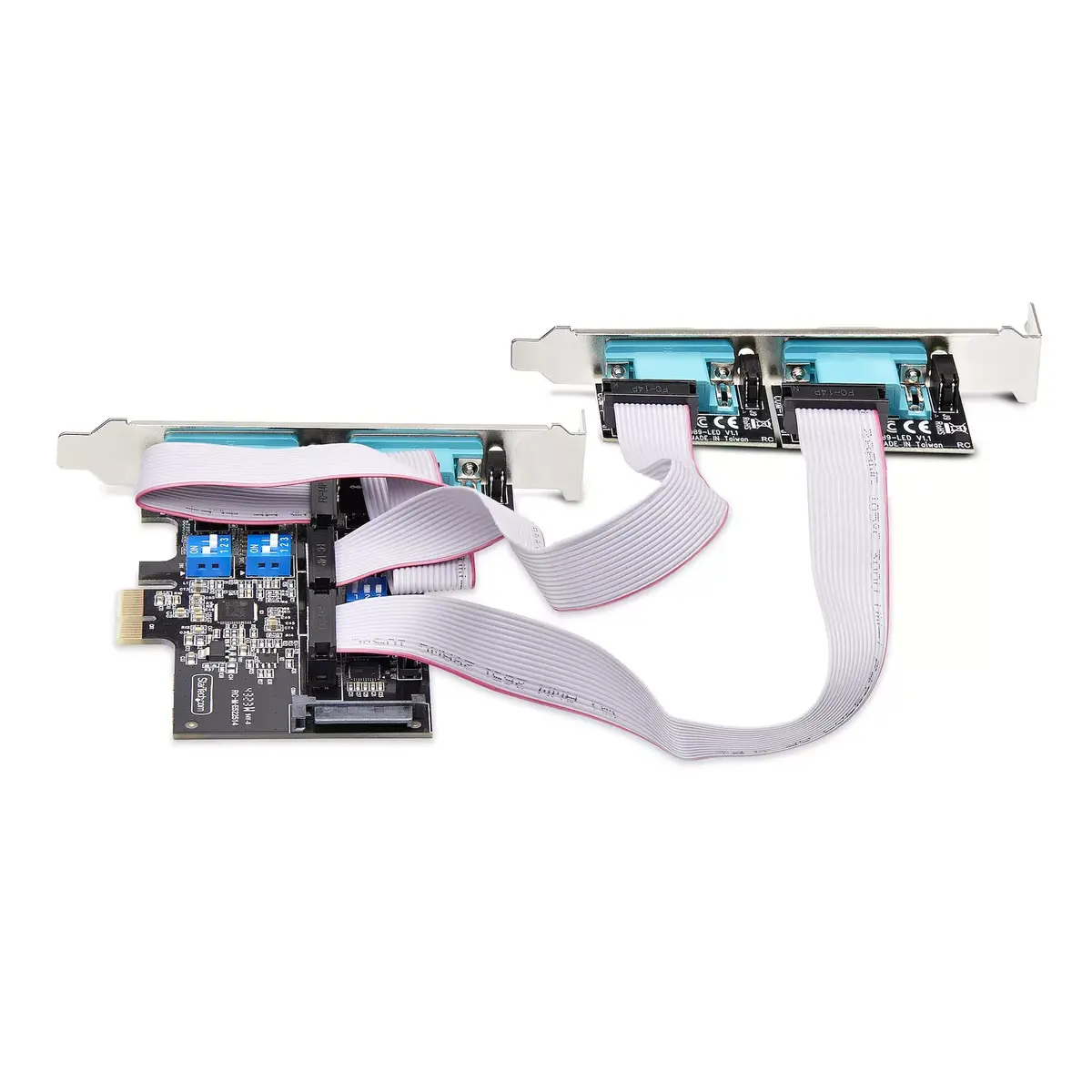

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD Photo 3

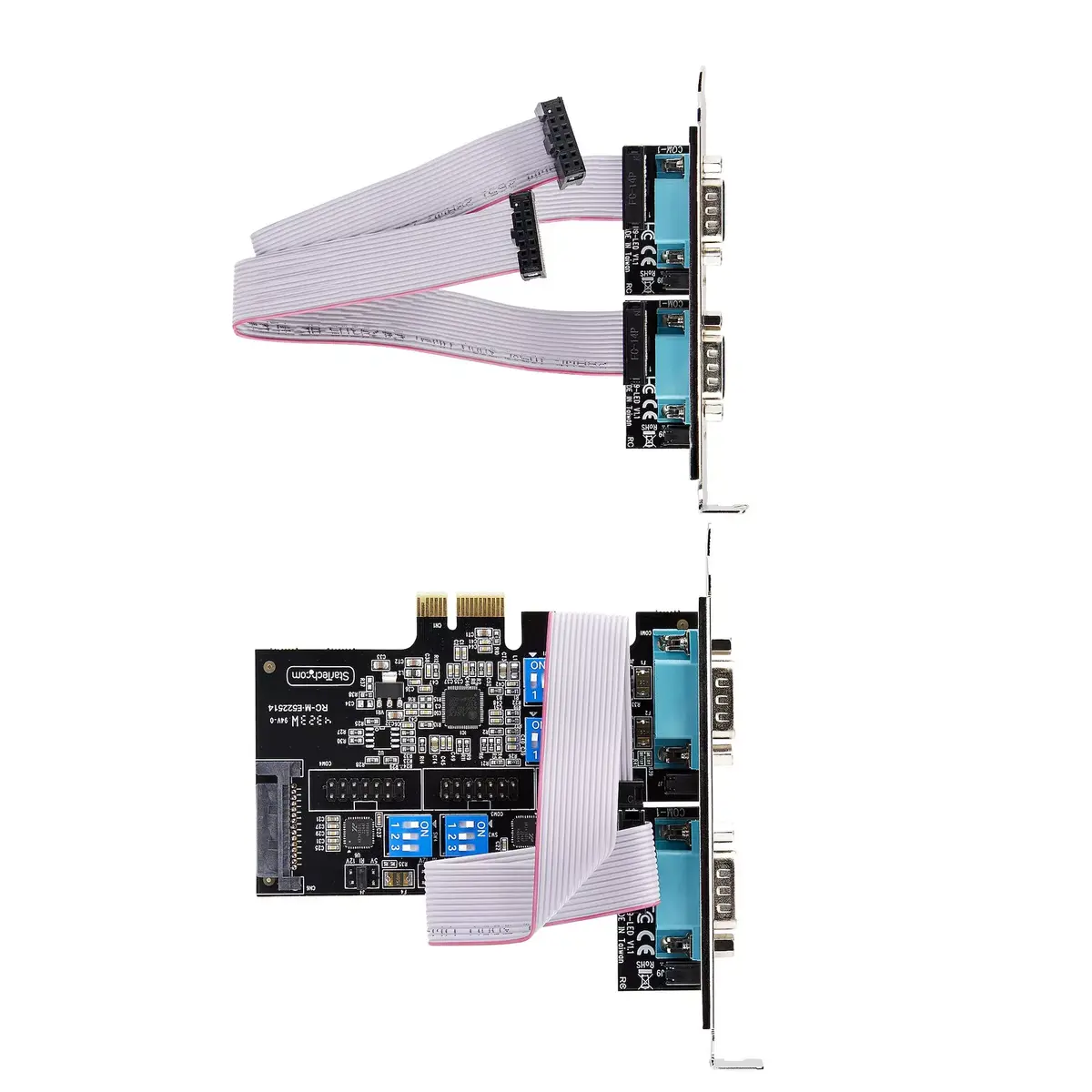

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD Photo 4

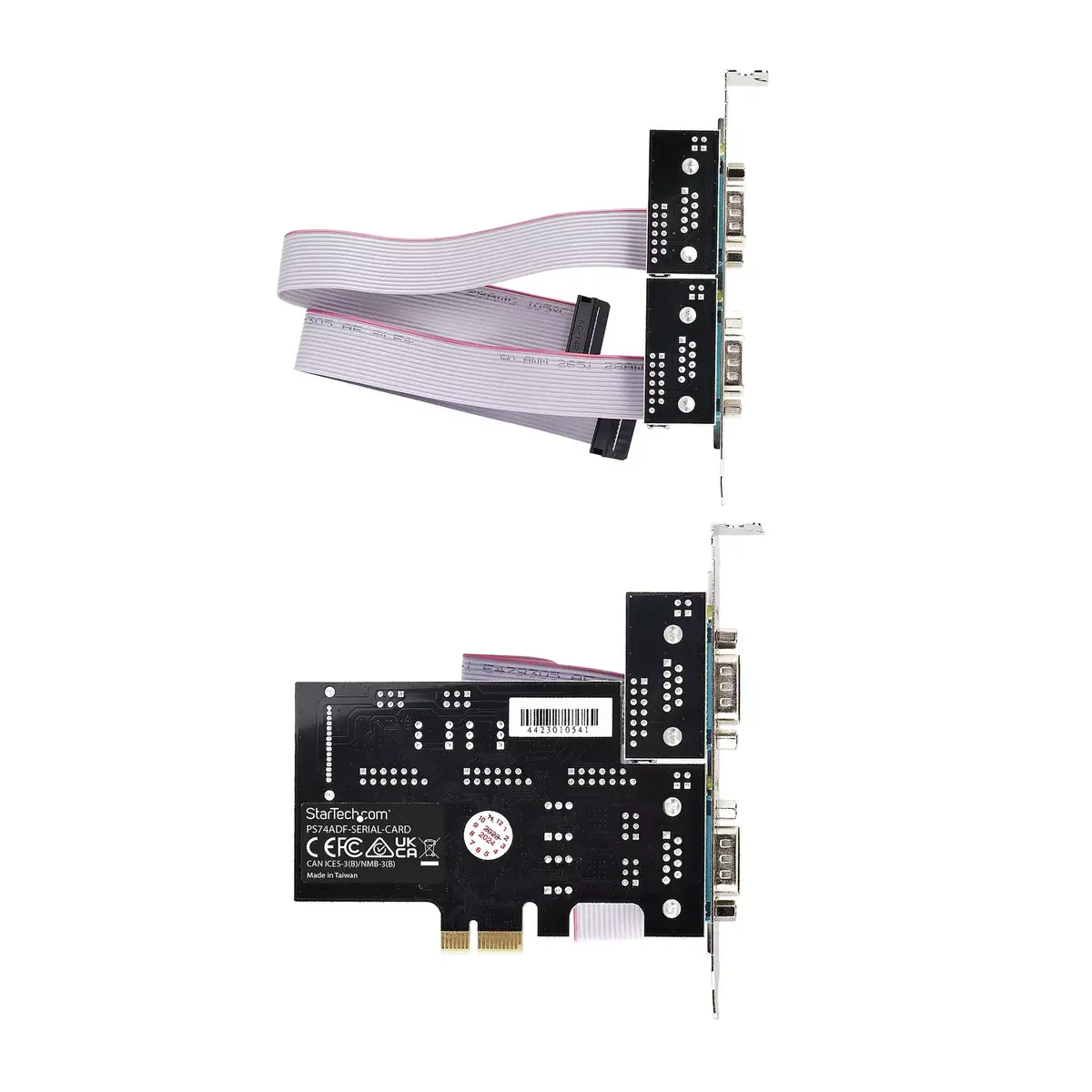

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD Photo 5

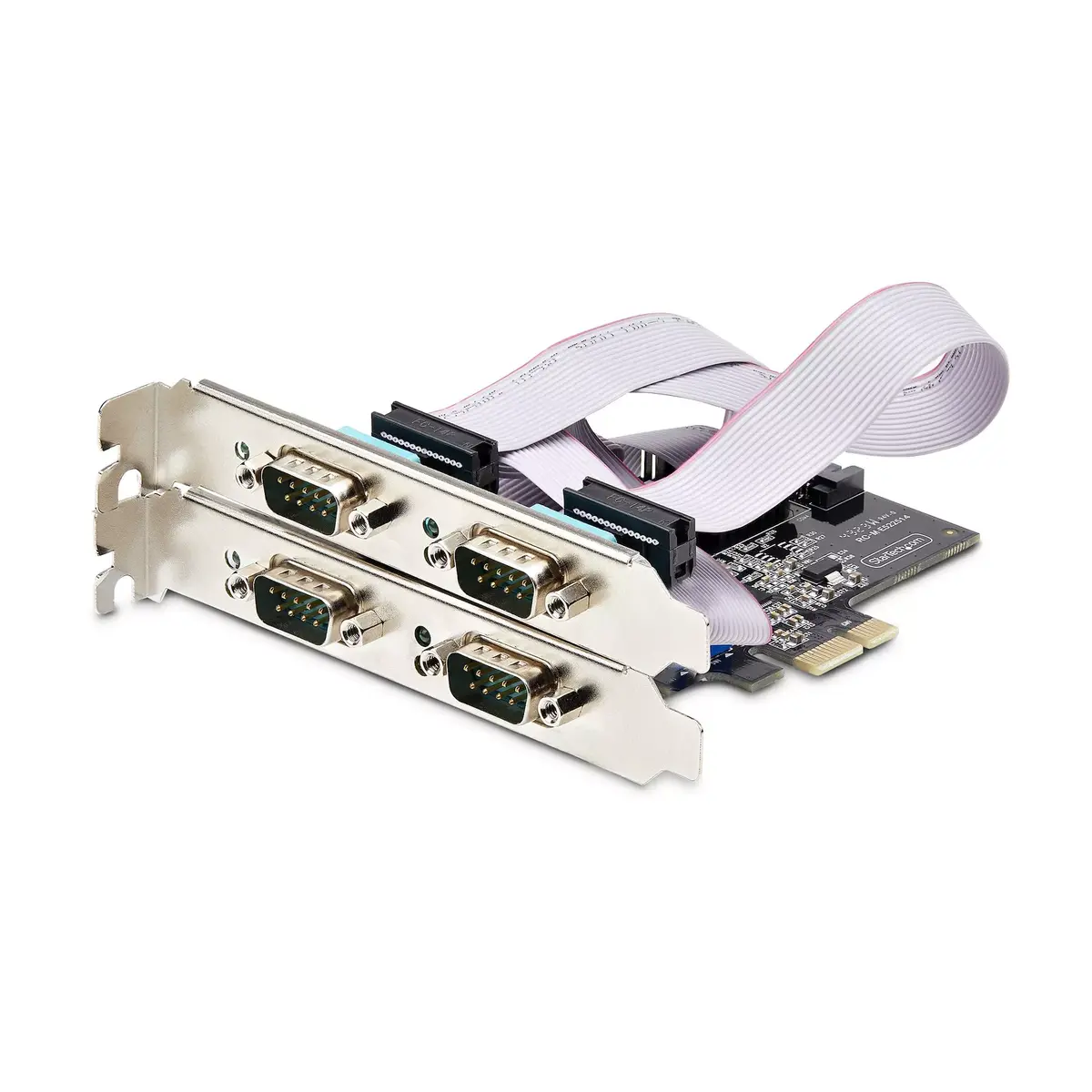

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD Photo 6

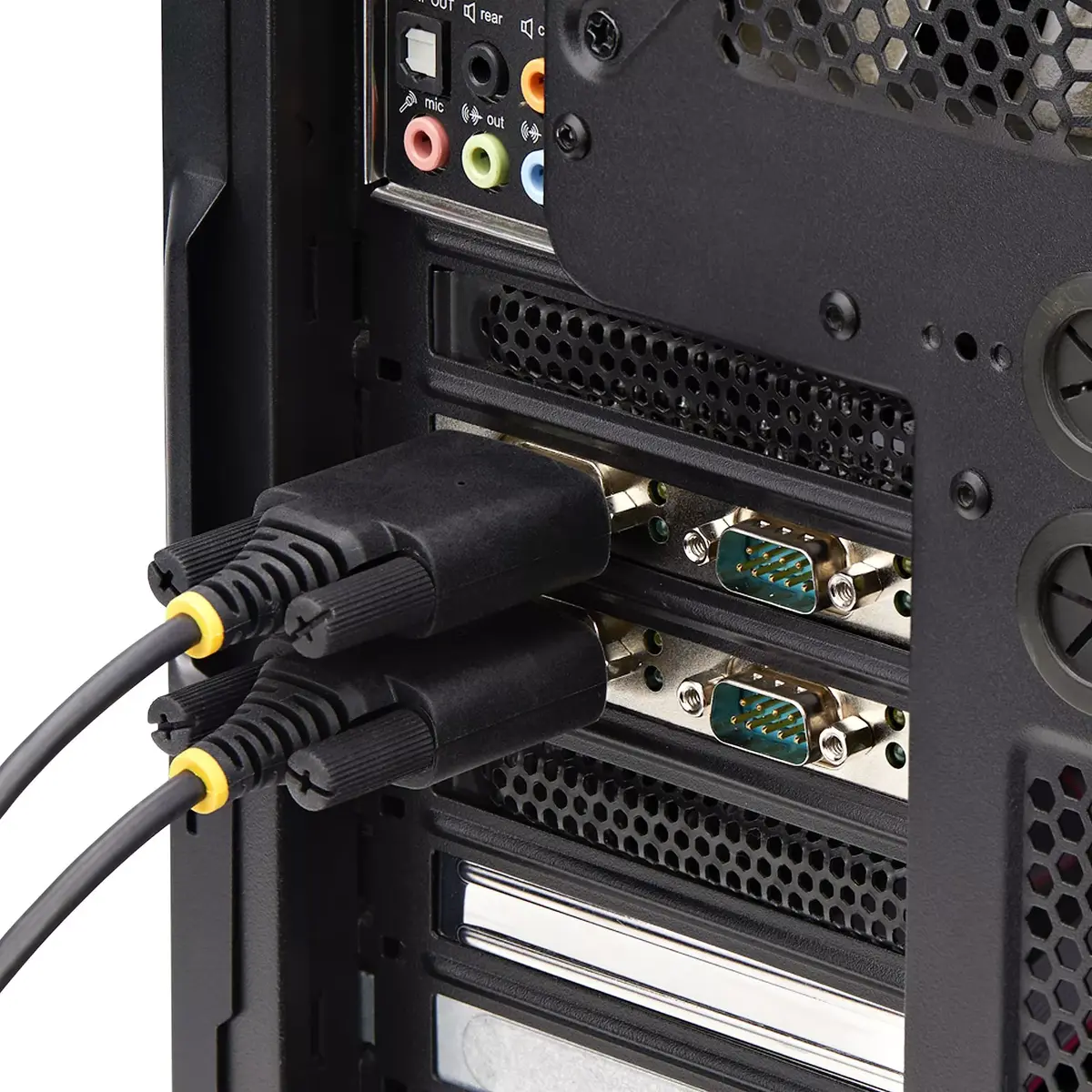

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD Photo 7

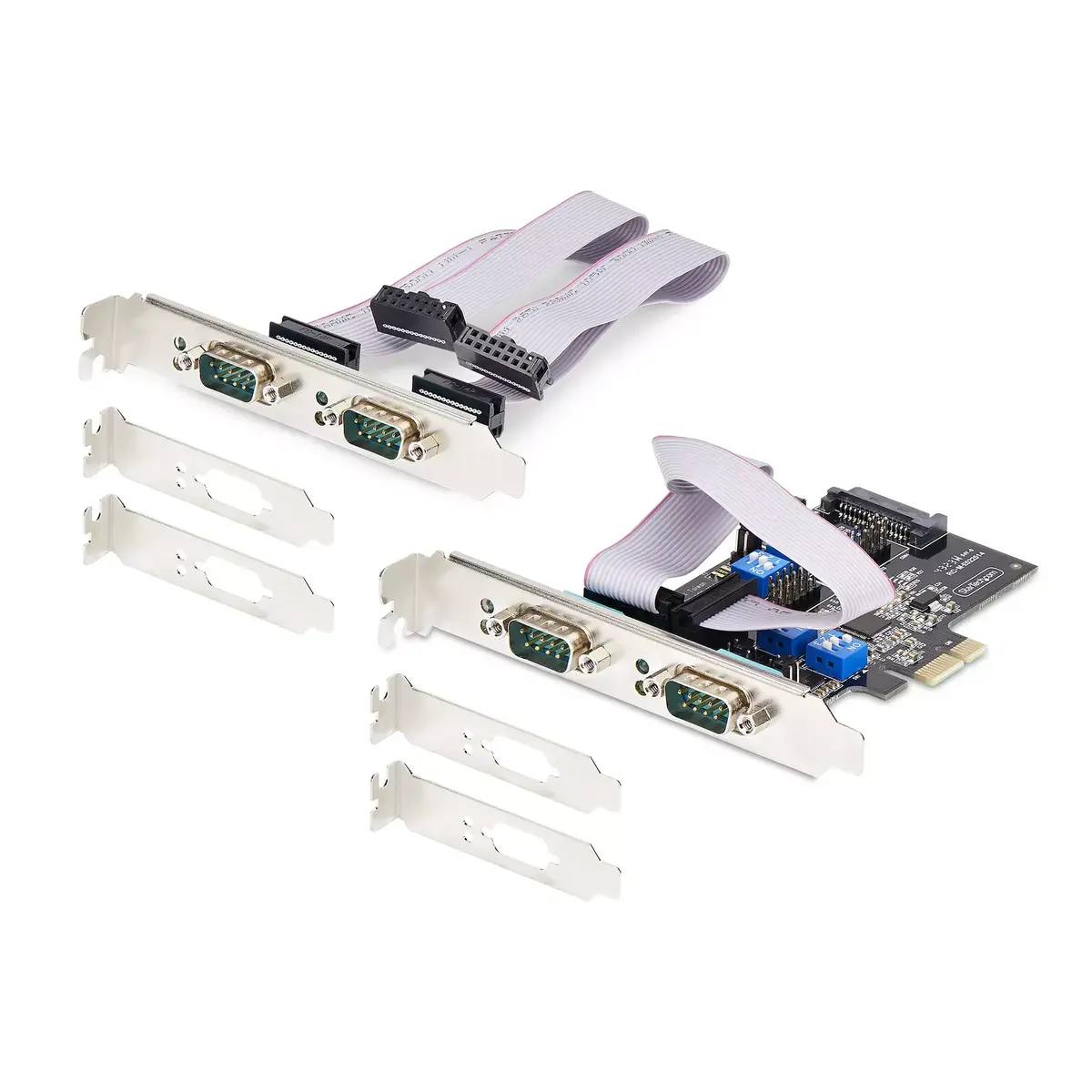

4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD Photo 8

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 4-Port Serial PCIe Card supports RS232, RS422, and RS485 interfaces, allowing connection of multiple serial devices. It features a low-profile bracket, high baud rates, and ESD protection for reliable performance. Compatible with Windows and Linux systems.

Available at price 188.49 €: 1 pcs.

Total available for order: 19 pcs.

Warranty: 2 Years

SKU: 10810227

Manufacturer: StarTech

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

12.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.06 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

17.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 265.49 €: 8 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Add four DB9 serial ports to a desktop or small form factor (SFF) system with the 4-Port Serial PCIe Card by StarTech.com (PS74ADF-SERIAL-CARD). The card provides flexible serial connectivity by allowing each DB9 port to be independently configured for RS-232, RS-422, or 2/4-wire RS-485 standards. It includes LED activity indicators per port and a low-profile form factor suitable for many PCIe x1 slots.

Advantages

The card supports per-port serial configuration via on-board DIP switches, enabling mixed-mode installations. Configurable external power over pin 9 (12V at 1.5A per port, 5V at 1.5A per port, or no power/RI) is selectable with jumpers. LEDs provide real-time port activity monitoring. The adapter is compatible with common operating systems such as Windows and Linux and includes ESD protection and support for high baud rates to ensure reliable communication with serial peripherals.

Suitable for

Point-of-sale terminals and barcode scanners
PLC, factory control and industrial automation systems
Laboratory instruments, scientific sensors, and oscilloscopes
Medical equipment and diagnostic devices
Legacy serial devices requiring continued connectivity in modern systems

Key specifications

Manufacturer: StarTech.com
Model / MPN: PS74ADF-SERIAL-CARD
Interfaces supported: RS-232, RS-422, RS-485 (2/4-wire)
Ports: 4 × DB9 serial ports
Host interface: PCIe x1 (PCI Express)
Power on pin 9: configurable 12V (1.5A/port), 5V (1.5A/port), or no power (RI)
Indicators: per-port LED activity indicators
Form factor: low-profile compatible
Product colour: Black
Weight: 0.06 kg
Compatibility: Windows and Linux

How to use

Install the card into an available PCIe x1 slot in the desktop or SFF system following standard ESD precautions. Set the DIP switches on the board to select the desired mode (RS-232, RS-422, or RS-485) for each DB9 port. Configure the power jumper to supply 12V, 5V, or no power on pin 9 as required by your connected devices. Secure the card with the appropriate bracket (low-profile or standard) and connect serial peripherals using DB9 cables. Install any required drivers for your operating system (Windows or Linux) and verify port activity using the LED indicators.

Usage recommendations

Use shielded DB9 cables for improved signal integrity and enable the appropriate termination and biasing when using RS-422/RS-485 networks. Confirm device voltage and power requirements before enabling pin 9 power to prevent damage. For mixed serial environments, verify DIP switch settings per port and test communication at the intended baud rate prior to deployment.

Specifications

Internal: The product is built in.: Yes
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: Serial

All features

Weight & dimensions

Package weight: Weight of the packaged product.: 273.2 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.06 kg
Height: The measurement of the product from head to foot or from base to top.: 16 mm
Depth: The distance from the front to the back of something.: 121 mm
Width: The measurement or extent of something from side to side.: 109 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -20 - 80
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 70

System requirements

Server operating systems supported:: Windows Server 2019, Windows Server 2016, Windows Server 2022
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows 7 Professional x64, Windows 10 Pro x64, Windows 7 Professional, Windows 7 Home Premium x64, Windows 7 Home Premium, Windows 7 Home Basic x64, Windows 7 Home Basic, Windows 7 Enterprise x64, Windows 7 Enterprise, Windows 7, Windows 11 x64, Windows 11 Pro, Windows 11 Home, Windows 11 Enterprise x64, Windows 11 Enterprise, Windows 11, Windows 10 x64, Windows 10 Pro, Windows 8 Pro, Windows 8.1 x64, Windows 8.1 Pro x64, Windows 8.1 Pro, Windows 8.1 Enterprise x64, Windows 8.1 Enterprise, Windows 8.1, Windows 8 x64, Windows 8 Pro x64, Windows 7 Starter, Windows 8 Enterprise x64, Windows 8 Enterprise, Windows 8, Windows 7 x64, Windows 7 Ultimate x64, Windows 7 Ultimate, Windows 7 Starter x64, Windows 10 IoT Enterprise, Windows 10 IOT Core, Windows 10 Home x64, Windows 10 Home, Windows 10 Enterprise x64, Windows 10 Enterprise, Windows 10 Education x64, Windows 10 Education, Windows 10

Other features

Electrostatic Discharge (ESD) protection:: 15 kV
Cable length: How long the cable is.: 0.3 m

Logistics data

Products per master (outer) case:: 50 pc(s)
Master (outer) case height:: 306 mm
Master (outer) case length:: 345 mm
Master (outer) case width:: 685 mm

Packaging data

Package height: The distance from the top to the bottom of the packaging.: 38 mm
Package depth: The distance from the front to the back of the packaging.: 207 mm
Package width: The distance from one side of the packaging to the other.: 144 mm
User guide:: Yes
Mounting brackets included:: Yes
Cables included:: Ribbon cable

Technical details

Sustainability compliance:: Yes
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: Trade Agreements Act (TAA), RoHS

Features

Flow control support:: Yes
Parity bit:: Space, Odd, No, Mark, Even
Stop bits:: 1, 2, 1.5
Data bits:: 5, 6, 8, 9
FIFO (First In, First Out):: 256
Baud rate:: 921.6 Kbit/s

Design

Product colour: The colour e.g. red, blue, green, black, white.: Black
Internal: The product is built in.: Yes

Ports & interfaces

Serial interface type:: RS-232/422/485
Serial ports quantity: The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.: 4
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: Serial

Performance

LED indicators:: Activity
Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.: ASIX - AX99100

Hide Show all

Instructions

mmo_118057330_1702999239_0004_1872667.pdf

startech-PS74ADF-SERIAL-CARD-10810227.pdf

startech-PS74ADF-SERIAL-CARD-10810227(1).pdf

Description

Instructions

mmo_118057330_1702999239_0004_1872667.pdf

startech-PS74ADF-SERIAL-CARD-10810227.pdf

startech-PS74ADF-SERIAL-CARD-10810227(1).pdf

Machine translation. Load original

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH354	8	12.08.2026 Best delivery	265.49 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH355	1	12.08.2026 Best delivery	188.49 € Best price
WH109	8	26.08.2026	225.99 €
EU9	2	12.08.2026 Best delivery	245.99 €

265.49 €

Stock: 8

Delivery Date: 12.08.2026 Best delivery

Warehouse: WH354

Available only for legal entities

188.49 €

Stock: 1

Delivery Date: 12.08.2026 Best delivery

Warehouse: WH355

225.99 €

Stock: 8

Delivery Date: 26.08.2026

Warehouse: WH109

245.99 €

Stock: 2

Delivery Date: 12.08.2026 Best delivery

Warehouse: EU9

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the 4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD cost, and is it available for purchase?

The price is 188.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 19 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 12.08.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: internal, host interface, output interface, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for 4-Port Serial PCIe Card StarTech.com PS74ADF-SERIAL-CARD?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
