header-product StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer and Video Wall Support in Black Aluminium
911.49 €

StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer and Video Wall Support in Black Aluminium

StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 1
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 2
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 3
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 4
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 5
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 6
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 1
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 2
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 3
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 4
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 5
StarTech.com 4x4 HDMI Matrix Switch VS424HDPIP Photo 6
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer and Video Wall Support in Black Aluminium

{{email}}
You keep track of price changes

StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer and Video Wall Support in Black Aluminium

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

StarTech.com 4x4 HDMI Matrix Switch featuring picture-and-picture multiviewer and video wall capabilities. Designed for versatile video routing and display management, this aluminium device supports multiple resolutions including HD 720p, HD 1080p, and WUXGA. Ideal for control rooms, digital signage, and professional AV environments requiring seamless source switching and multi-source monitoring.
Available at price 911.49 €: 3 pcs.
Total available for order: 6 pcs.
Warranty: 2 Years
SKU: 625807
Manufacturer: StarTech
Charging device included Charging device included
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
06.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
09.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 4.38 kg)
Parcel couriers
Unisend LV / DPD Paku skapis / Latvijas Pasts nodaļa
09.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 303.83 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities
36 months installment: from 25.32 euros per month
Leasing for legal entities: from 31.72 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

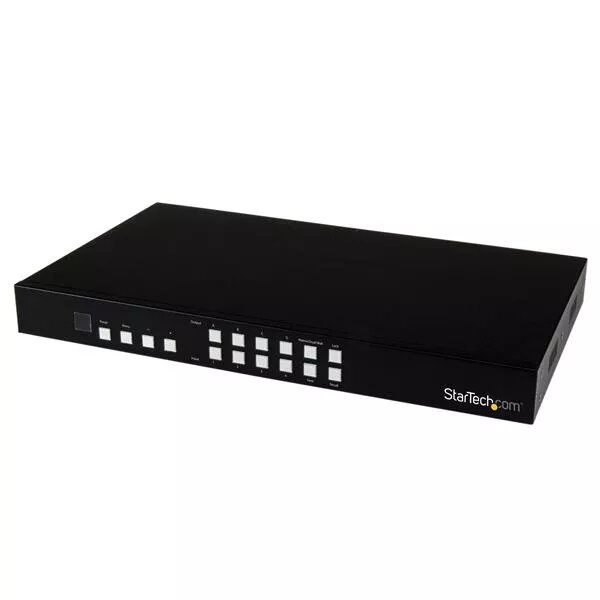

The StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer and Video Wall Support in Black Aluminium is an advanced video routing solution designed to manage and distribute four distinct HDMI audio and video sources across four independent HDMI displays. Built into a durable black aluminium chassis, this device combines the flexibility of a standard matrix switch with the versatility of a multiviewer and video wall controller. It allows users to combine multiple images on a single screen or route independent feeds to separate displays, making it a comprehensive tool for professional AV environments, monitoring stations, and corporate boardrooms.

Advantages

This HDMI matrix switch significantly enhances communication and display capabilities by allowing four different video sources to be linked and distributed across four screens with full matrix configuration. It reduces hardware costs and saves physical screen real estate by enabling multiple inputs to be viewed simultaneously on a single display through advanced picture-and-picture support. The inclusion of multiple control methods, including RS232 serial, Telnet TCP/IP network, and an included infrared remote control, ensures flexible remote management. Furthermore, the unit supports selectable audio output linked to combined video feeds, and includes mounting hardware for a tidy and professional installation.

Suitable for

  • Control rooms requiring multi-source security monitoring on single or multiple displays
  • Digital signage installations to reduce the number of required physical screens
  • Boardrooms and conference rooms for dynamic presentations and multi-source sharing
  • Professional AV environments needing flexible video wall and matrix routing capabilities

When it may not be suitable

This device is not designed for ultra-high-definition setups requiring resolutions beyond 1080p or 1920x1200, as it does not support 4K video signals. It may also be unnecessarily complex and costly for basic home entertainment systems that only require standard signal switching without multiviewer or video wall functions.

Key specifications

  • Video port type: HDMI
  • Supported resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA)
  • Configuration modes: Matrix Mode (1x1), Dual Mode (2x1), Quad Mode (4x1), TV Wall Mode (1x4)
  • Control interfaces: RS232 serial, Telnet TCP/IP network, IR remote control
  • Material: Aluminium
  • Colour: Black
  • Power supply: 100 - 240 V AC input, 12 V DC output

How to use

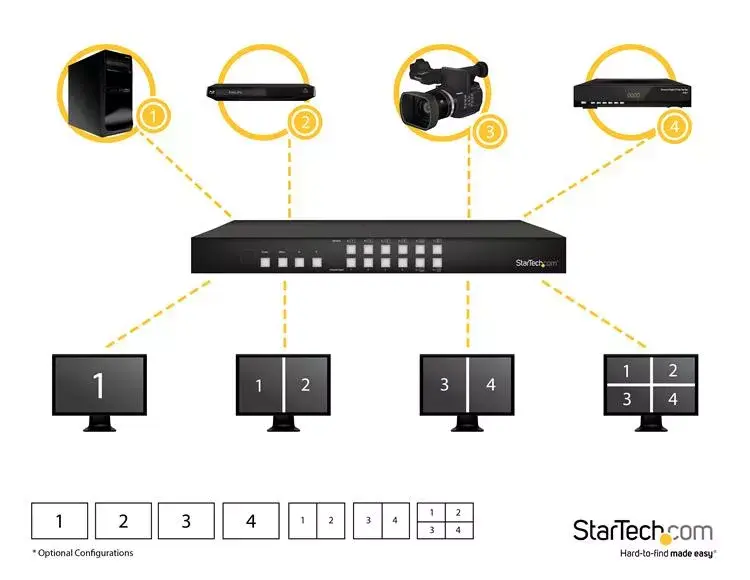

Connect up to four HDMI audio and video sources to the input ports of the switch using standard HDMI cables, and connect your displays to the four HDMI output ports. Power the unit using the provided AC adapter. Configure your desired display layout using the front panel controls, the included infrared remote control, an RS232 serial connection, or through a local TCP/IP network via Telnet. Select the active video and audio combinations according to your monitoring or presentation requirements, utilizing the picture-and-picture or video wall modes as needed.

What to consider before purchase

  • Verify that your video sources and displays operate at or below the maximum supported resolution of 1920x1200 pixels
  • Determine if your application requires advanced multiviewer or video wall features to justify a matrix switch
  • Ensure you have sufficient physical space and proper ventilation for the aluminium chassis and included mounting hardware
  • Check which control interface you plan to use, such as network integration or infrared remote
Usage recommendations: Install the device in a well-ventilated area using the provided mounting hardware to ensure reliable operation, and always use certified HDMI cables matching your required lengths to maintain stable signal transmission across all four channels.

Specifications

Video port type: The type of socket in the device for connecting a video e.g. SCART.
HDMI
All features

Logistics data

Master (outer) case height:
430 mm
Master (outer) case length:
600 mm
Master (outer) case width:
445 mm
Products per master (outer) case:
3 pc(s)
Harmonized System (HS) code:
85176990

Other features

Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
250 x 436 x 49

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Material: The material from which a thing is or can be made e.g. wood, plastic.
Aluminium

Packaging data

Package height: The distance from the top to the bottom of the packaging.
144 mm
Package width: The distance from one side of the packaging to the other.
414 mm
Package weight: Weight of the packaged product.
4300 g
Package depth: The distance from the front to the back of the packaging.
576 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2.8 kg
Height: The measurement of the product from head to foot or from base to top.
49 mm
Depth: The distance from the front to the back of something.
436 mm
Width: The measurement or extent of something from side to side.
250 mm

Operational conditions

Operating relative humidity (H-H):
20 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 40

Packaging content

AC adapter included:
Yes
Manual:
Yes
Software CD:
Yes

Audio

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1

Certificates

Certification:
CE, FCC, TAA

Ports & interfaces

RS-232 ports: The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.
1
RJ-45 input ports:
1
Number of HDMI outputs: Port (socket) for HDMI output.
4
HDMI in: Port (socket) for HDMI input.
4
HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
8
Video port type: The type of socket in the device for connecting a video e.g. SCART.
HDMI

Power

AC adapter output current:
3 A
AC adapter output voltage:
12
AC adapter input current:
1 A
AC adapter input voltage:
100 - 240

Features

LED indicators:
Y
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1200
Remote control type:
RS232, Telnet, IR
Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes: The video modes that can be displayed by the device.
720p, 1080p
Product colour: The colour e.g. red, blue, green, black, white.
Black
Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Yes
HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
Full HD
