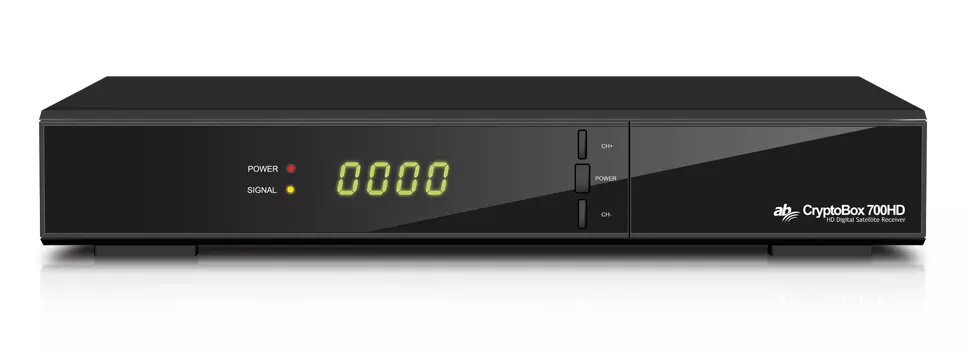

Set-top box AB-COM AB CryptoBox 700HD

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR3

S/PDIF out port: S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.

Yes

Tuner type: The type of radio tuner e.g. analog, digital.

Analog & digital

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

No

RS-232 interface:

Yes

Demodulation:

QPSK, 8PSK

Input frequency range:

950 - 2150

Digital signal format system: The protocols supported for exchange of digital signal.

DVB-S, DVB-S2

Video resolutions: The amount of detail that can be seen in the video image.

720 x 480, 720 x 576, 1280 x 720, 1920 x 1080

Built-in HDD: The product has a hard drive built into it.

No

Signal source: The type of signal and/or where it comes from.

Cable, Ethernet (RJ-45), IPTV

Other features

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

128 MB

Flash memory:

8 MB

Sustainability

Sustainability certificates:

RoHS

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

25 W

AC input frequency:

50 - 60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100-240

Weight & dimensions

Package dimensions (WxDxH):

296 x 310 x 76

Height: The measurement of the product from head to foot or from base to top.

55 mm

Depth: The distance from the front to the back of something.

233 mm

Width: The measurement or extent of something from side to side.

280 mm

Storage

Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

Yes

Features

Number of tuners: The number of devices in the product which can receive radio or TV signals.

1 tuner(s)

Timeshift:

Yes

Personal Video Recorder (PVR) included: The product includes a Personal Video Recorder (PVR). A PVR, also known as a digital video recorder (DVR), is a consumer electronics device or application software that records video in a digital format to a disk drive, USB flash drive, SD memory card, SSD or other local or networked mass storage device. The term includes set-top boxes (STB) with direct to disk recording facility, portable media players (PMP) with recording, recorders (PMR) as camcorders that record onto Secure Digital memory cards and software for personal computers which enables video capture and playback to and from a hard disk drive. A television set with built-in digital video-recording facilities was introduced by LG in 2007, followed by other manufacturers.

Yes

Digital Satellite Equipment Control (DiSEqC): DiSEqC (Digital Satellite Equipment Control) is a special communication protocol for use between a satellite receiver and a device such as a multi-dish switch or a small dish antenna rotor.

USALS, 1.3, 1.2, 1.1, 1.0

File formats

Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.

WMA, AAC, APE, FLAC, M4A, MP3, MP4, OGG, WAV, WMV

Image formats supported: The type of image files that the device can use/display e.g. gif, JPEG (jpg).

BMP, GIF, JPEG XR

Video formats supported: The type of video formats that can be used by this device.

H.265, VC-1, TS, TRP, RMVB, TP, AVI, H.263, H.264, ISO, MKV, MPEG, MPEG1, MPEG2, MPEG4, MPG, MP4

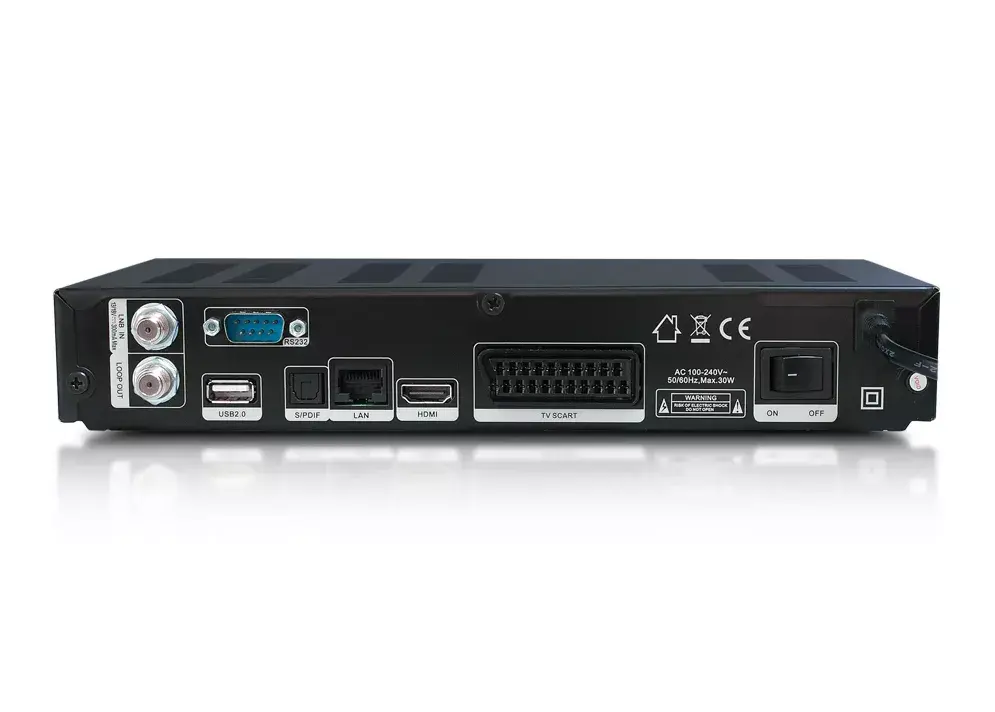

Ports & interfaces

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

SCART ports quantity: The number of sockets (ports) for SCART connections.

1

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1

Video

Supported video modes: The video modes that can be displayed by the device.

480i, 480p, 1080p, 1080i, 720p, 576p, 576i

Aspect ratio: The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.

4:3, 16:9

Analog signal format system: The supported protocols for exchanging analog signals.

NTSC, PAL

Performance

Certification:

CE, RoHs, EuP LPC

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Full HD

Product colour: The colour e.g. red, blue, green, black, white.

Black

TV tuner

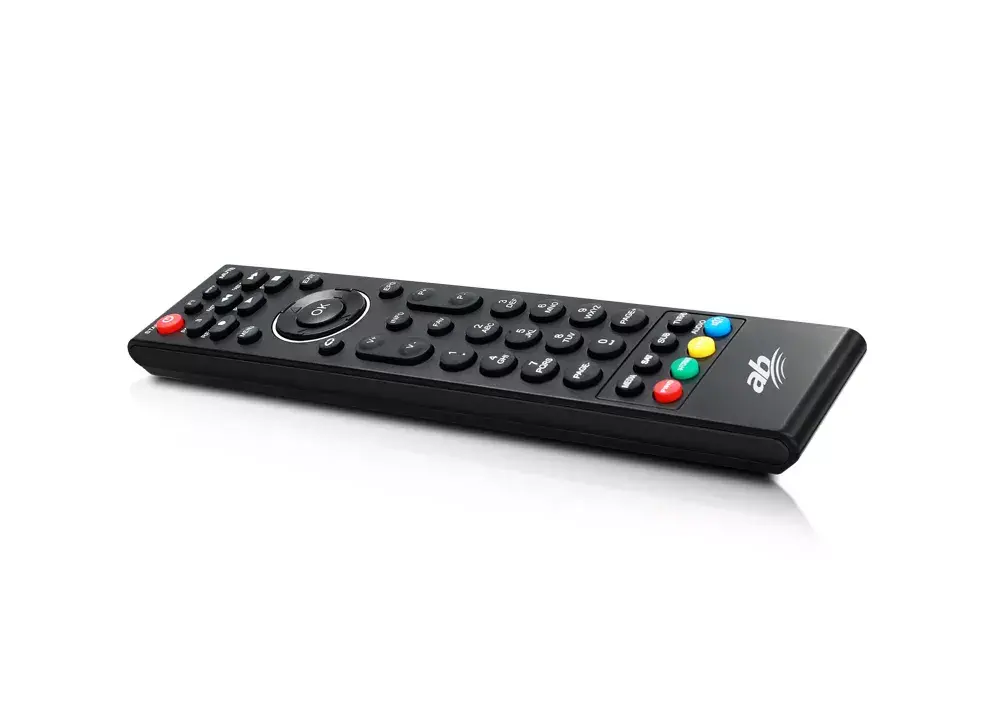

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes
