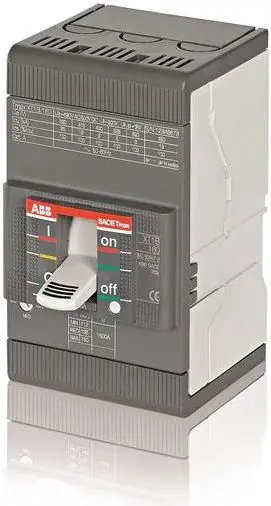

Comparing the ABB Circuit Breaker 3P 125A 18kA XT1B 160 TMD 125-1250 with alternative models Eaton AZ-B125 Circuit Breaker 1-Pole Type B 125A 25kA AC and ABB S201-B50 Miniature Circuit Breaker helps determine the most suitable electrical protection device for specific setups. All selected products safeguard circuits against overloads and short circuits, but they differ fundamentally in pole count, rated current, breaking capacity, and intended application scope.
⚙️ The specifications comparison covers pole count, rated current, breaking capacity, tripping characteristic, and application area.
| Parameter | ABB XT1B 160 TMD 125-1250 | Eaton AZ-B125 | ABB S201-B50 | Practical significance |
|---|
| Pole count | 3 poles | 1 pole | 1 pole | The ABB XT1B model is designed for three-phase systems, whereas the single-pole alternatives serve single-phase networks. |
| Rated current | 125 A | 125 A | 50 A | The ABB XT1B and Eaton models handle much higher electrical currents than the compact 50 A circuit breaker. |
| Breaking capacity | 18 kA | 25 kA | 6 kA | Eaton provides higher short-circuit fault current resistance, while the ABB S201 suits standard residential and light commercial loads. |
| Application scope | Industrial and commercial installations | Residential, commercial, and industrial power distribution | Residential and commercial installations | Products span from heavy-duty three-phase power lines down to standard single-phase building circuits. |
◎ The suitability and use cases comparison evaluates which product fits specific user requirements and installation environments.
| Use case | Recommended product | Why |
|---|
| Three-phase industrial or commercial power line protection | ABB Circuit Breaker 3P 125A 18kA XT1B 160 TMD 125-1250 | The three-pole design and 125 A rating are engineered specifically for professional three-phase electrical distribution. |
| Single-phase network requiring high short-circuit protection | Eaton AZ-B125 Circuit Breaker 1-Pole Type B 125A 25kA AC | A single-pole 125 A circuit breaker with a 25 kA breaking capacity effectively protects demanding single-phase lines. |
| Standard residential or commercial installations with moderate loads | ABB S201-B50 Miniature Circuit Breaker | The 50 A rated current and Type B trip curve provide optimal protection for regular building circuits. |
The ABB Circuit Breaker 3P 125A 18kA XT1B 160 TMD 125-1250 differs from the single-pole alternatives by offering a three-pole configuration tailored for professional three-phase distribution networks. It is best suited for professional electrical installations requiring reliable three-phase protection at 125 A. You should choose this model if your project involves three-phase power distribution, whereas single-phase networks or lower current requirements are better served by the Eaton or ABB S201 alternatives.
