Type:
Characteristics of the device.
-

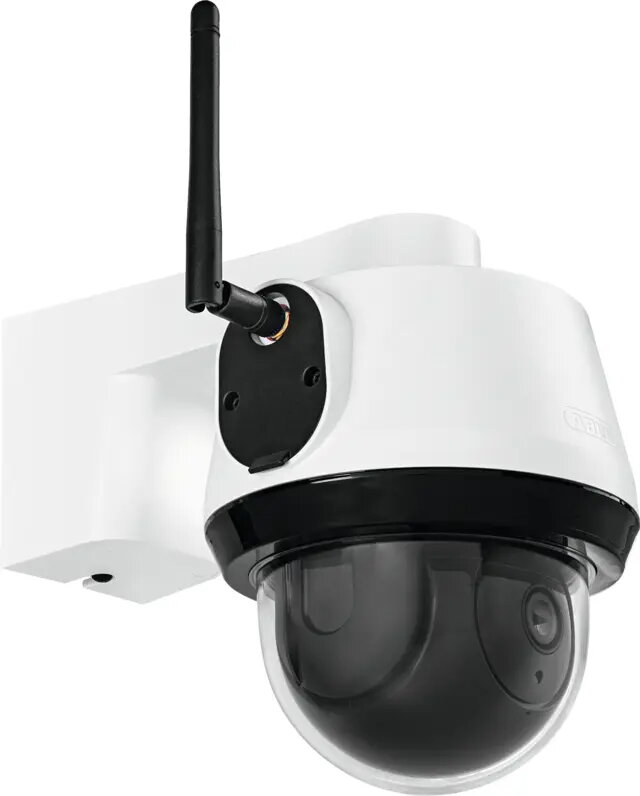

IP security camera
-
Wi-Fi standards:
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
-
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
-
Security algorithms:
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
-
WPA2-PSK, WPA, 128-bit AES
-
Zoom capability:
The amount that the camera lens can zoom.
-
Yes
-
Supported network protocols:
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
-
TCP/IP, UDP, SMTP, NTP, DHCP, ARP
-
White balance:
Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly.
-
Area white balance
-
Operating relative humidity (H-H):
-
20 - 90
-
Compatible memory cards:
Types of memory cards which can be used with this product.
-
MicroSD (TransFlash)
-
Form factor:
The shape or design of the product.
-
Dome
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-10 - 50
-
Ethernet LAN:
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
-
Yes
-
Height:
The measurement of the product from head to foot or from base to top.
-
160 mm
-
Sensor type:
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
-
CMOS
-
Minimum illumination:
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
-
1 lx
-
Optical sensor size:
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
-
25.4 / 2.8
-
Width:
The measurement or extent of something from side to side.
-
120 mm
-
Depth:
The distance from the front to the back of something.
-
210 mm
-
Connectivity technology:
The technology that enables connectivity of the device, e.g. wired or wireless.
-
Wired & Wireless
-
Maximum resolution:
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
-
3840 x 2160
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
White, Black
-
Number of users:
The number of people that use or can use this product.
-
3 user(s)
-
LED type:
-
IR
-
Tilt angle range:
-
0 - 80
-
Bluetooth:
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
-
Yes
-
Audio formats supported:
The audio formats which this device or software can read/use e.g. MP3, MP4.
-
AAC
-
Ethernet LAN (RJ-45) ports:
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
-
1
-
Headphone outputs:
Number of sockets /ports where headphones are connected.
-
11
-
Microphone in:
The socket where a microphone is connected to the device.
-
Yes
-
Pan range:
-
0 - 270
-
Wi-Fi:
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
-
Yes
-
Card reader integrated:
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
-
Yes
-
Placement supported:
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
-
Outdoor
-
Frame rate:
-
15 fps
-
Supported video modes:
The video modes that can be displayed by the device.
-
1080p
-
Housing material:
What the casing of the product is made of.
-
Plastic
-
Frequency range:
The lowest and the hightest frequencies that can be inputted/produced.
-
2.4 - 5
-
Maximum aperture number:
-
2
-
Night vision:
Night vision is technology which allows you to see in low light conditions.
-
Yes
-
Power consumption:
-
4 mA
-
Fixed focal length:
-
4 mm
-
Mounting type:
Type of mounting e.g. wall mounting.
-
Wall
-
Video formats supported:
The type of video formats that can be used by this device.
-
H.264+, H.264
-
DC output voltage:
-
5
-
Maximum memory card size:
The maximum size of memory card that can be used with this device.
-
128 GB
-
Ethernet interface type:
-
Fast Ethernet
-
PTZ control:
-
Yes
-
International Protection (IP) code:
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
-
IP66
-
Power source type:
What the power source is.
-
DC
-
Total megapixels:
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
-
8 MP
-
Built-in HDD:
The product has a hard drive built into it.
-
No
-
Night vision distance:
-
20
-
Day/night mode:
-
Yes
-
Number of cameras:
The quantity of cameras that product can support.
-
1
-
Mobile operating systems supported:
The operating systems e.g. Android, iOS, that can be used with the mobile device.
-
iOS, Android
-
Alert notification type:
-
E-mail
-
Intelligent Video Surveillance (IVS) system features:
-
Vehicle detection, Human detection
-
Camera pan control:
-
Yes
-
Camera tilt control:
-
Yes
-
Lens viewing angle, horizontal:
-
85
-
Lens viewing angle, vertical:
-
45
-
PSTI certified:
-
Yes
