Audio extender set ACT AC7710 — digital/analog over Cat5e/Cat6 with DAC, TOSLINK I/O, up to 300 m, 5V USB-powered

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

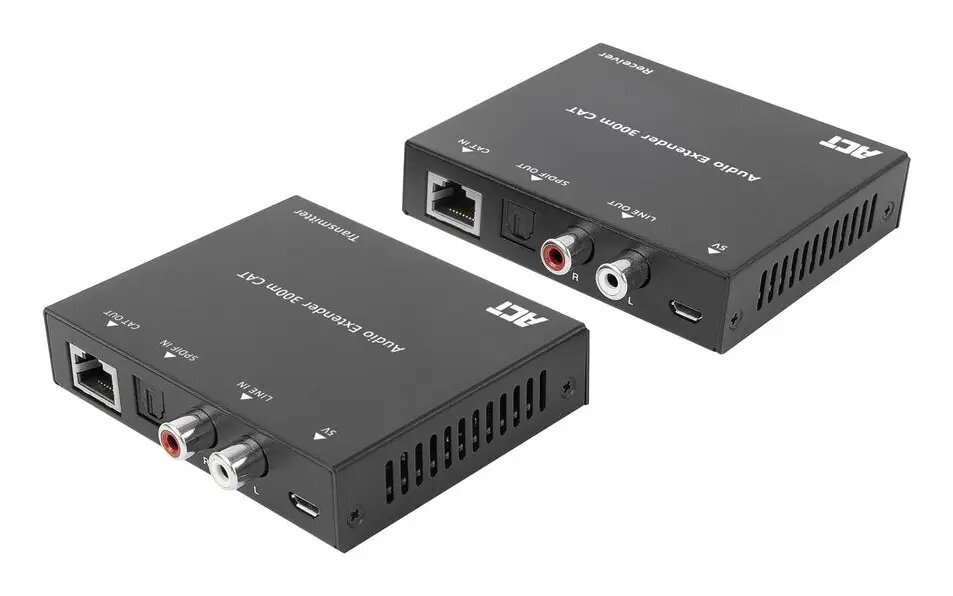

ACT AC7710 is a transmitter and receiver audio extender set that transmits digital and analog audio over Cat5e/Cat6 cabling up to 300 meters. It features a built-in DAC, TOSLINK optical input and output for digital audio, wired connectivity, and is powered from 5 V (1 A) via USB. The set includes a USB-A to Micro-USB cable and is intended for extending audio between AV equipment, media players and sound systems in installations requiring long runs.

Available for order: 23 pcs.

Warranty: 2 Years

SKU: 12371934

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ACT AC7710 Audio Extender set transmits digital and analog audio over a single CAT5e/6 cable up to 300 meters. The set includes a transmitter and receiver with TOSLINK optical I/O, a built-in Digital to Analog Converter (DAC) for converting 2‑channel digital audio to analog RCA, and USB 5 V (1 A) power via a wired DC-in jack. The extender supports multiple audio formats and offers bi-directional Power over Cable so only one unit needs an external power source.

Advantages

The AC7710 extends high-quality audio over long distances without multiple cables, with an integrated DAC for straightforward digital-to-analog conversion. Bi-directional Power over Cable simplifies installation by allowing either the transmitter or receiver to be powered while the other unit draws power through the CAT cable. The unit supports common surround and stereo formats and includes mounting brackets for fixed installations.

Suitable for

Outdoor or large-area audio distribution to speaker zones
Presentation venues, conference rooms and lecture halls
Background music or paging in retail, exhibitions or schools

When it may not be suitable

The extender is not intended as a network audio device; it transmits point-to-point audio over CAT5e/6 and does not provide network streaming or switching functions. Very high-resolution multi-channel formats beyond the supported sample rates or proprietary multi-channel formats may not be passed through depending on the selected application mode.

Key specifications

Transmission medium: single CAT5e/6 cable
Maximum transfer distance: 300 m @ 48 kHz, 150 m @ 96 kHz, 100 m @ 192 kHz
Inputs/outputs: TOSLINK optical I/O, analog RCA I/O, digital SPDIF output depending on mode
Built-in Digital to Analog Converter (DAC) for 2-channel digital to analog conversion
Power: 5 V (1 A) USB power (wired DC-in jack) with bi-directional Power over Cable (PoC)
Supported audio formats: PCM 2.0, LPCM, DTS, Dolby Digital, Dolby Digital Plus (format pass-through depends on application)
Colour: Black; mounting brackets included

How to use

Connect the transmitter to the audio source using the appropriate input (TOSLINK for digital or RCA for analog). Connect the receiver to the destination device using RCA or TOSLINK as required by your setup. Link transmitter and receiver with a single CAT5e/6 cable sized to the required distance. Power either the transmitter or the receiver from the 5 V USB supply; the other unit will receive power via the CAT cable (PoC). Select the matching application mode: digital-in to digital+analog out, multi-channel digital passthrough to SPDIF, or analog RCA-to-RCA pass-through.

What to consider before purchase

Choose CAT5e or CAT6 cable of appropriate length and quality to meet the required sample-rate distance limits
Verify source and sink device connections (TOSLINK vs RCA) and supported audio formats for your use case
Ensure one unit can be powered by a 5 V (1 A) USB supply or plan for a local power source at transmitter or receiver

Usage recommendations

For longest reliable runs, use shielded or high-quality CAT6 cable and keep the sample rate at 48 kHz when approaching the maximum 300 m distance. Confirm the chosen application mode matches your source and receiver capabilities to ensure correct format conversion and pass-through.

Specifications

Product colour:: Black

All features

Connectivity technology:: Wired
Digital audio optical in:: 1
Digital audio optical input type:: TOSLINK
Digital audio optical output type:: TOSLINK

Ports & interfaces

DC-in jack:: Yes
RJ-45 input ports:: 1
RJ-45 output ports:: 1
Audio RCA outputs:: 2
Digital audio optical out:: 1

Technical details

Type:: AV transmitter & receiver
Maximum transfer distance:: 300 m

Power

Output current:: 1 A
Operating voltage:: 5 V

Packaging data

Package weight:: 583 g
Package depth:: 240 mm
Package height:: 55 mm
Package width:: 132 mm
Package type:: Box
Quantity per pack:: 1 pc(s)

Packaging content

AC adapter included:: Yes
Cables included:: USB Type-A to Micro USB Type-B
Quick start guide:: Yes
Mounting brackets included:: Yes

Features

Product colour:: Black
Audio formats supported:: DTS, LPCM, PCM
External power adapter:: Yes

Network

Cable types supported:: Cat5e, Cat6
