AV transmitter & receiver ACT 4K HDMI 2.0 extender set

Name: AV transmitter & receiver ACT AC7811
Brand: ACT
SKU: 10772016
Price: 167.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

AV transmitter & receiver ACT 4K HDMI 2.0 extender set over CAT6 UTP with IR support 60 meters

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 1

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 2

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 3

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 4

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 5

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 6

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 7

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 8

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 9

AV transmitter & receiver ACT 4K HDMI 2.0 extender set Photo 10

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ACT 4K HDMI 2.0 extender set allows you to transmit high-resolution video up to 4096 x 2160 pixels over CAT6 cables. It supports both wired and wireless connectivity, making it versatile for various setups. The device operates on a 12V power supply and is ideal for extending HDMI signals in home theaters or professional AV installations.

Available for order: 100 pcs.

Warranty: 2 Years

SKU: 10772016

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

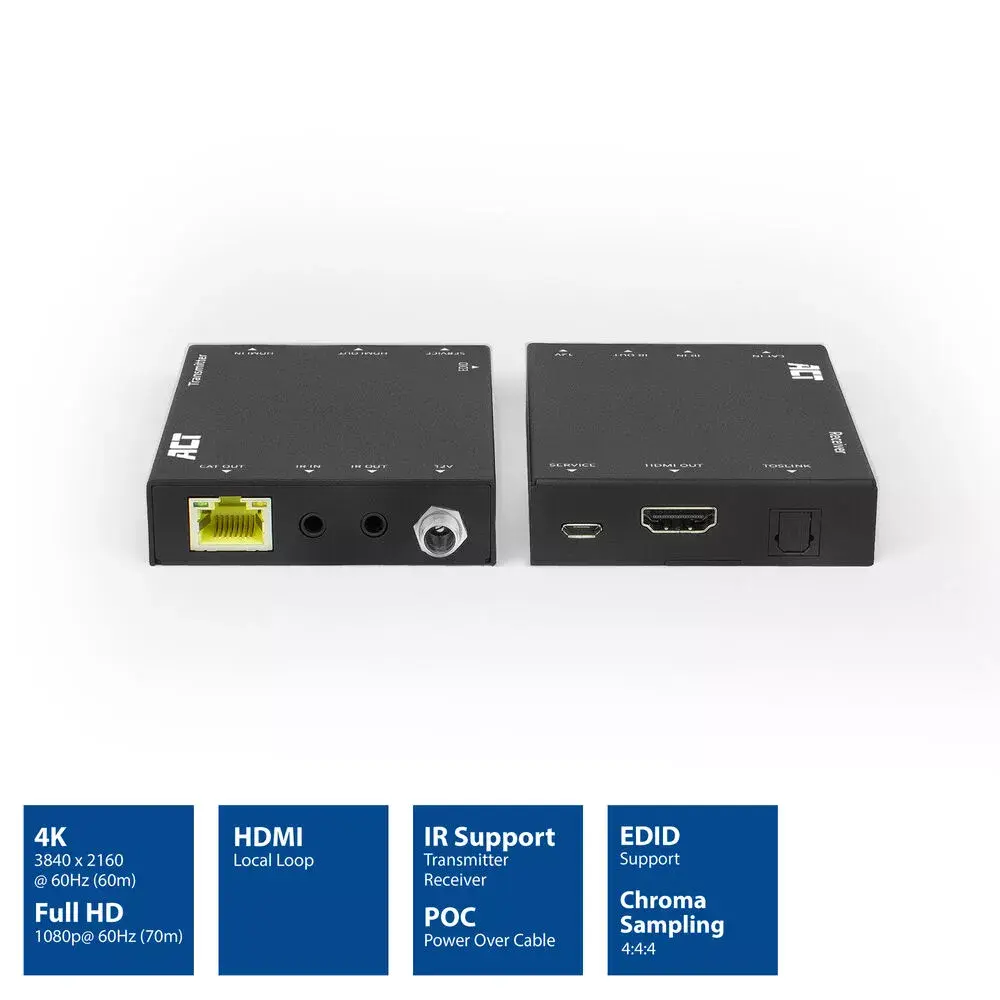

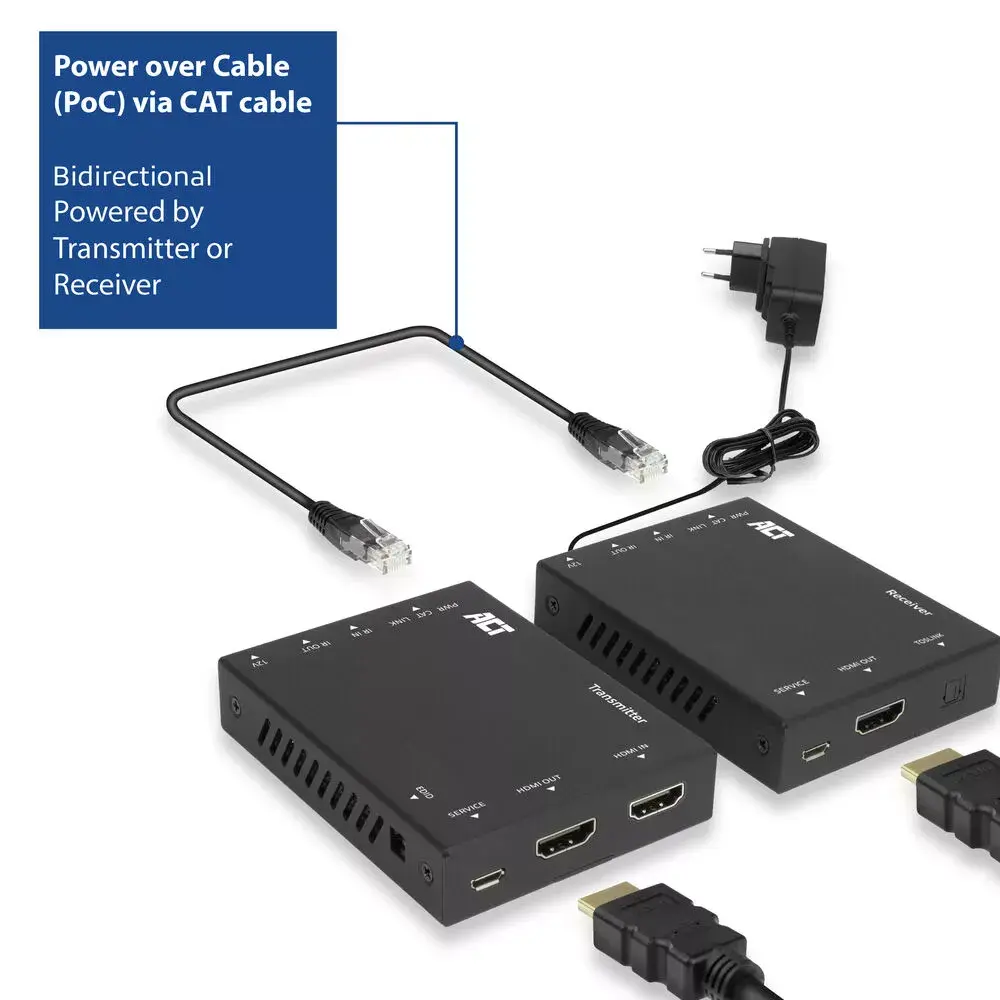

The AC7811 HDMI 2.0 extender set transmits an HDMI signal over CAT6 UTP up to 60 meters at resolutions up to 4K@60Hz. The set includes a transmitter and receiver, supports bi-directional Power over Cable (PoC) so either unit can power the other via the UTP cable, and provides an HDMI loop output on the transmitter for a local display. The kit also includes IR transmitter and receiver modules for remote control, supports EDID copy and Chroma Sampling 4:4:4, and features screw-locked power connectors and a detachable mounting bracket.

Advantages

The extender provides 4K@60Hz signal extension over CAT6 UTP up to 60 m (longer distances at lower resolutions), enables local monitoring via the transmitter's HDMI loop output, and simplifies power wiring through bi-directional PoC. Secure screw-lock power connectors reduce the risk of accidental disconnection, and EDID copy ensures correct resolution negotiation between source and display. Included IR modules allow remote control of the source device from the receiver location.

Suitable for

Extending HDMI video from media players, set-top boxes or PCs to a remote display up to 60 m
Home theatre installations requiring 4K@60Hz over structured cabling
Professional AV setups and meeting rooms where local monitoring and remote display control are needed
Cascading multiple extenders using the transmitter's HDMI loop output

Key specifications

Model: AC7811
Standard: HDMI 2.0
Maximum resolution: 4K@60Hz (4096 x 2160) at 60 m via CAT6 UTP
Extended distances: up to 70 m at 4K@30Hz or 1080p@60Hz
Cable type: CAT6 UTP
Power: 12 V input required on one unit; supports bi-directional PoC over CAT
Features: EDID copy, Chroma Sampling 4:4:4, HDMI local loop output, IR transmitter & receiver included

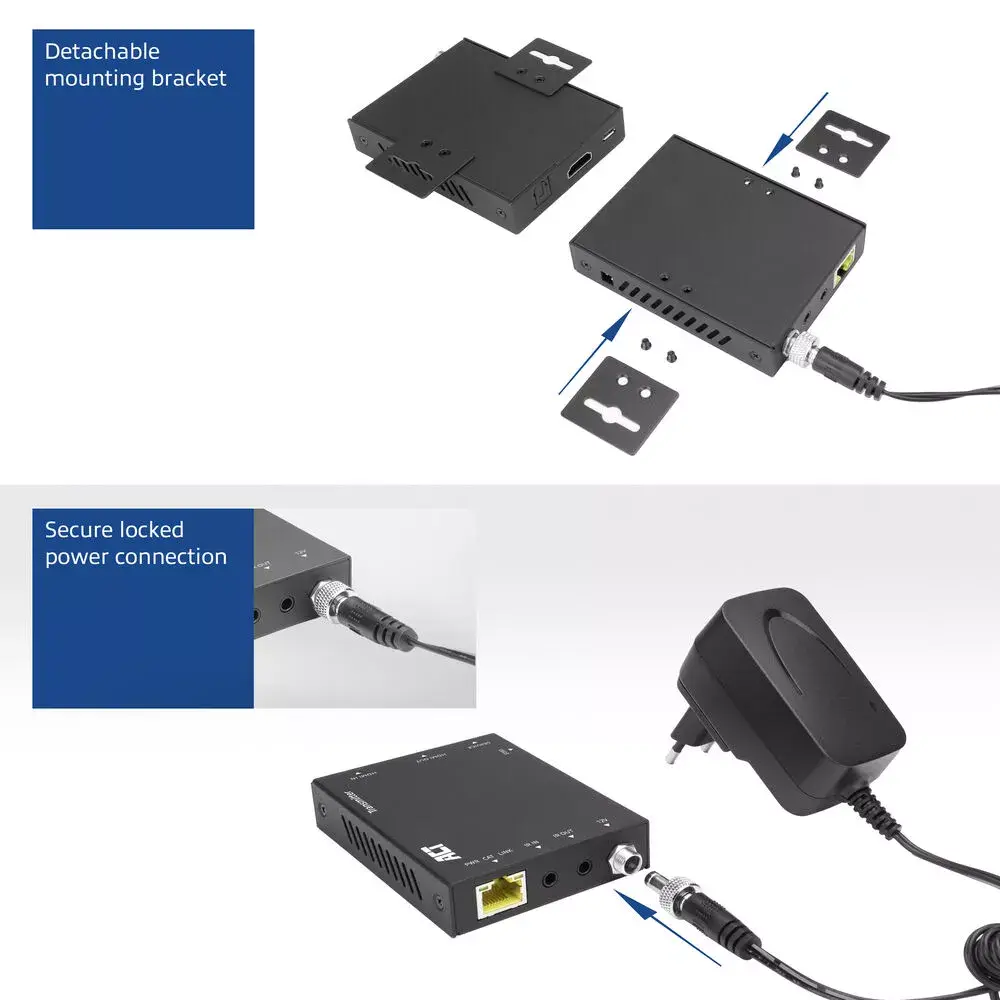

Physical: black colour, detachable mounting bracket, screw-locked power connector
Brand/MPN/EAN: ACT / AC7811 / 8716065536393

How to use

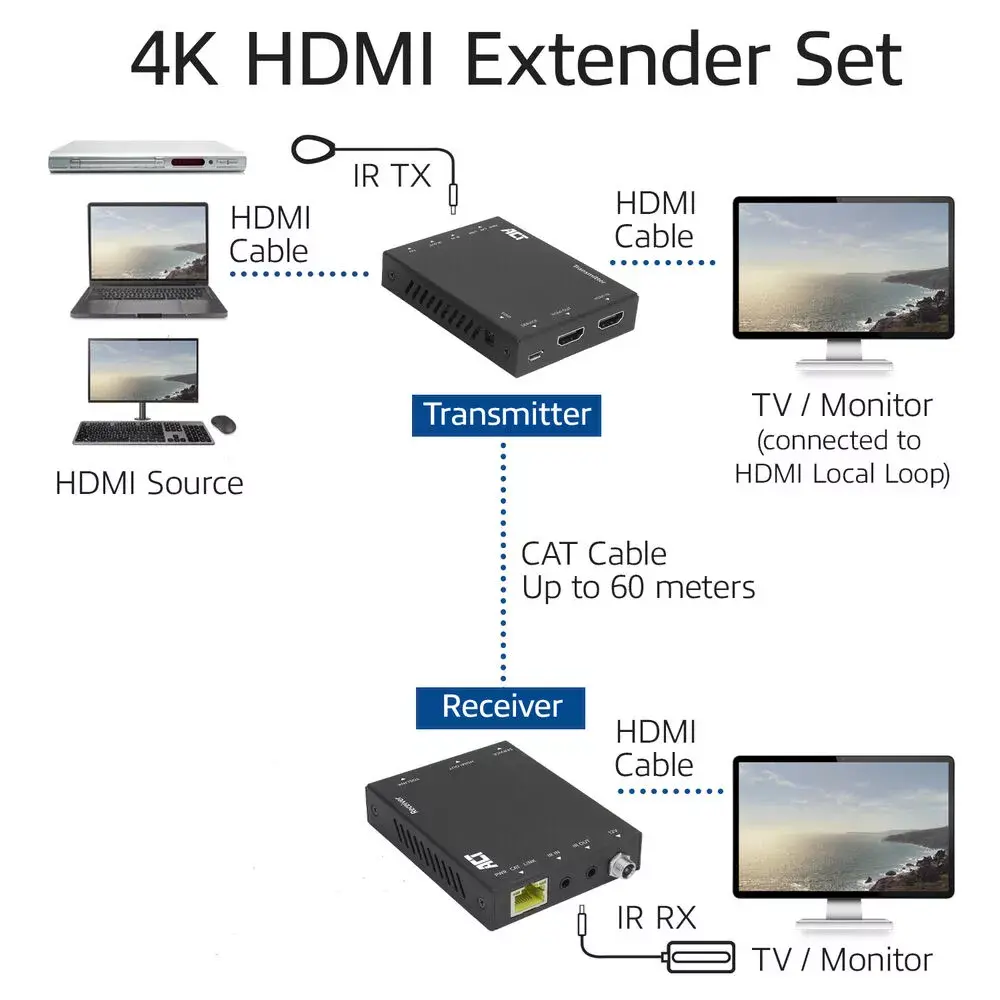

Connect the HDMI source to the transmitter unit's HDMI IN and optionally attach a local display to the transmitter's HDMI OUT. Run a CAT6 UTP cable between the transmitter and receiver and connect HDMI OUT on the receiver to the remote display. Provide 12 V power to either the transmitter or receiver; the other unit will receive power via PoC. Install the enclosed IR transmitter near the source and the IR receiver near the remote display to enable remote control. Use the EDID copy function if needed to ensure correct resolution negotiation.

Usage recommendations

For best results use quality CAT6 UTP cabling in good condition, keep cable runs away from strong sources of electromagnetic interference, and ensure the power connector is fully tightened to the screw-lock to avoid accidental disconnection. When using higher resolutions at longer distances, verify display and source compatibility and use the EDID copy feature if image issues occur.

Specifications

Product colour:: Black

All features

Connectivity technology:: Wired & Wireless
Power source type:: DC
IR emitter included:: Yes
IR extender included:: Yes

Ports & interfaces

DC-in jack:: Yes
HDMI in:: 1
Number of HDMI outputs:: 2
RJ-45 input ports:: 1
Digital audio optical out:: 1
HDMI version:: 2.0

Technical details

Type:: AV transmitter & receiver
Frame rate:: 60 fps
Maximum transfer distance:: 70 m
IR pass-through:: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 12 W
Input current:: 1
Operating voltage:: 12 V

Packaging data

Package weight:: 670 g
Package depth:: 75 mm
Package height:: 137 mm
Package width:: 219 mm
Package type:: Box
Quantity per pack:: 1 pc(s)

Packaging content

IR receiver included:: Yes

Features

Ethernet LAN:: Yes
Maximum resolution:: 4096 x 2160
Product colour:: Black
HDCP:: Yes
Maximum refresh rate:: 60 Hz
HDCP version:: 2.2
Extended display identification data (EDID):: Yes

Network

Cable types supported:: Cat6
