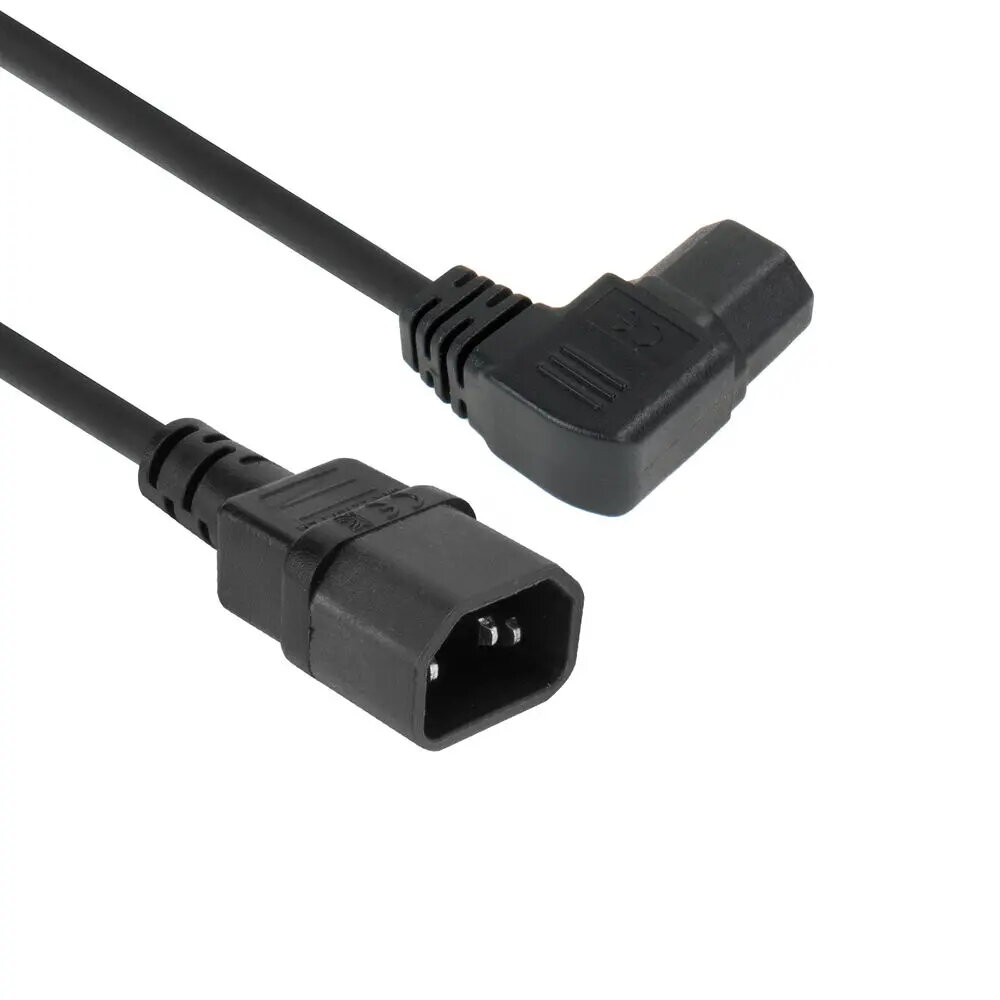

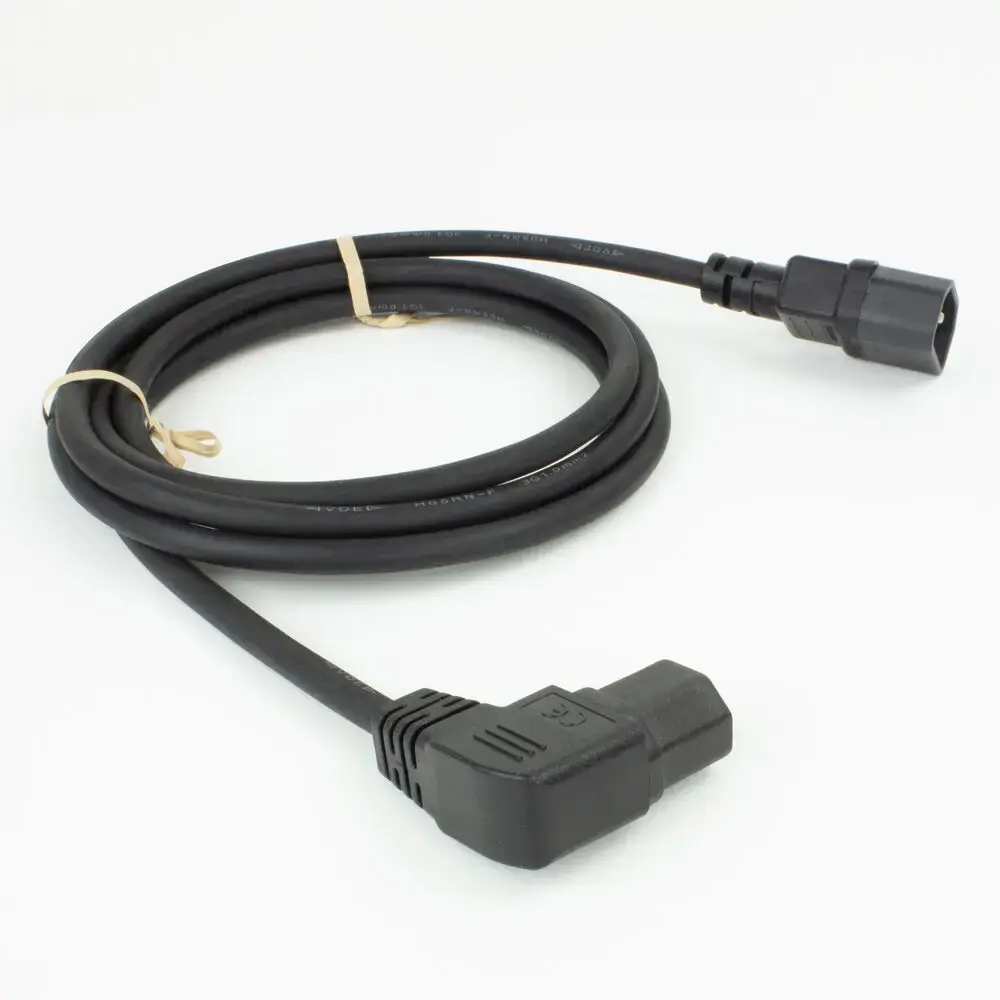

Powercord ACT C14 to C15 angled left IEC60320 H05RN-F 0.6 m 10 A 250 V

ACT power cord with IEC60320 connectors C14 (inlet) to angled-left C15 (outlet). The cable uses flexible H05RN-F conductors and is 0.6 m long, rated for 250 V and 10 A. The C15 outlet is high-temperature resistant up to 120°C, making this lead suitable for IT equipment that requires a heat-resistant inlet, such as servers, power supplies and UPS units in rack or desktop installations.

Advantages

The angled-left C15 connector allows easier routing in tight rack spaces and behind equipment. The H05RN-F jacket provides flexibility and mechanical durability for short runs, and the C15 high-temperature rating (up to 120°C) ensures compatibility with devices that have hot inlets. The 0.6 m length keeps cable clutter minimal while providing sufficient reach for nearby outlets.

Suitable for

• Servers and rack-mounted equipment
• Network switches and power distribution units (PDUs)
• Power supplies and UPS systems with C15 inlets
• Desktop IT equipment requiring a high-temperature C15 inlet

When it may not be suitable

This cable is short (0.6 m) and intended for close-proximity connections; it may not be suitable where longer reach is required. It is rated for 250 V and 10 A, so it should not be used with equipment that requires higher current or different connector types.

Key specifications

• Cable length: 0.6 m
• Connectors: IEC60320 C14 (male/inlet) to IEC60320 C15 (angled-left female/outlet)
• Maximum voltage/current: 250 V~, 10 A
• High-temperature rating (C15): up to 120°C
• Cable type: H05RN-F, conductor cross-section 1.0 mm²
• Colour: black

How to use

Insert the C14 end into the equipment inlet (device side) and the angled-left C15 end into the corresponding power source or PDU inlet designed for C15. Ensure connectors are fully seated and that the cable is routed to avoid sharp bends or mechanical strain. Use this cord for short connections inside racks, cabinets or desktop setups where a high-temperature C15 inlet is required.

What to consider before purchase

• Required connector types on both device and power source (C14 to C15)
• Needed cable length — this model is 0.6 m
• Current and voltage requirements of your equipment (250 V, 10 A max)
• Whether an angled-left outlet connector is suitable for your rack or cabinet layout

Usage recommendations

Use this powercord for short, close-proximity connections to equipment with a C15 high-temperature inlet. Avoid routing near sharp edges, and do not exceed the indicated 10 A current rating or expose the cable to conditions beyond the H05RN-F specification.
