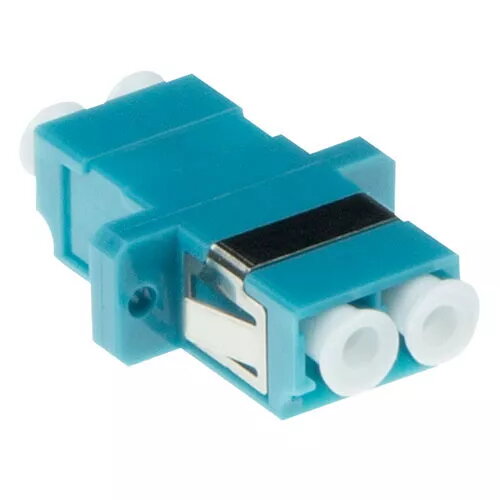

ACT EA9005 Fiber Optic LC Duplex Adapter Multimode OM3 Cyan

The ACT EA9005 fiber optic LC duplex adapter multimode OM3 in cyan is an essential component designed to ensure reliable and precise signal transmission in high-speed optical fiber infrastructures, data centers, and telecommunication networks. This adapter facilitates seamless connections between LC duplex terminated cables, maintaining low insertion loss and high return loss for optimal network performance. Its distinct cyan color coding allows for quick and easy identification within complex patch panels and server racks, minimizing maintenance time and preventing misconnections.

Advantages

The adapter utilizes high-quality zirconia ceramic alignment sleeves, which ensure exceptional durability, high precision, and consistent mating performance over thousands of insertion cycles. It delivers a very low insertion loss of less than or equal to 0.2 dB at 850 nm, preserving signal integrity across demanding multimode OM3 network links. Furthermore, its robust construction supports stable optical performance, making it a dependable choice for enterprise environments where network uptime is critical.

Suitable for

• Connecting multimode OM3 (50/125 µm) fiber optic cables in local area networks
• Data center structured cabling and high-density patch panels
• Telecommunication networks requiring LC duplex connectivity
• Enterprise IT infrastructure upgrades and maintenance

When it may not be suitable

This adapter is specifically engineered for multimode OM3 fiber optic systems and is not compatible with single-mode fiber installations due to core size and transmission characteristics. Additionally, it is not designed for environments requiring SC, ST, or MTP/MPO connector types without the use of dedicated conversion patch cords.

Key specifications

• Fiber type: Multimode OM3 (50/125 µm)
• Adapter type: LC duplex to LC duplex
• Alignment sleeve material: Zirconia (ZrO2)
• Insertion loss: Less than or equal to 0.2 dB at 850 nm
• Return loss: Greater than 60 dB
• Color: Cyan / Aqua

How to use

To use the ACT fiber optic LC duplex adapter, ensure that the connector end faces and the interior of the adapter sleeve are thoroughly cleaned using approved optical cleaning tools and lint-free wipes to prevent dust contamination. Carefully align the keys of your LC duplex connectors with the guide slots on the adapter and push them straight in until you hear a distinct click, indicating that the latches are securely engaged. When disconnecting, gently press the connector latch and pull straight back without twisting the cable to avoid damaging the internal fibers or alignment sleeves.

What to consider before purchase

• Verify that your existing cable infrastructure uses LC duplex connectors and multimode OM3 fiber types
• Check the color coding requirements of your facility to ensure cyan matches your OM3 identification standards
• Ensure that your patch panels or enclosures have compatible cutouts for standard LC duplex adapters

Usage recommendations

Always inspect and clean fiber optic end faces before mating, and keep protective dust caps attached to the adapter ports when not in use to maintain optimal optical performance and prevent signal degradation.
