ACT Fiber panel High Density for 5 MTP®-MPO cassettes

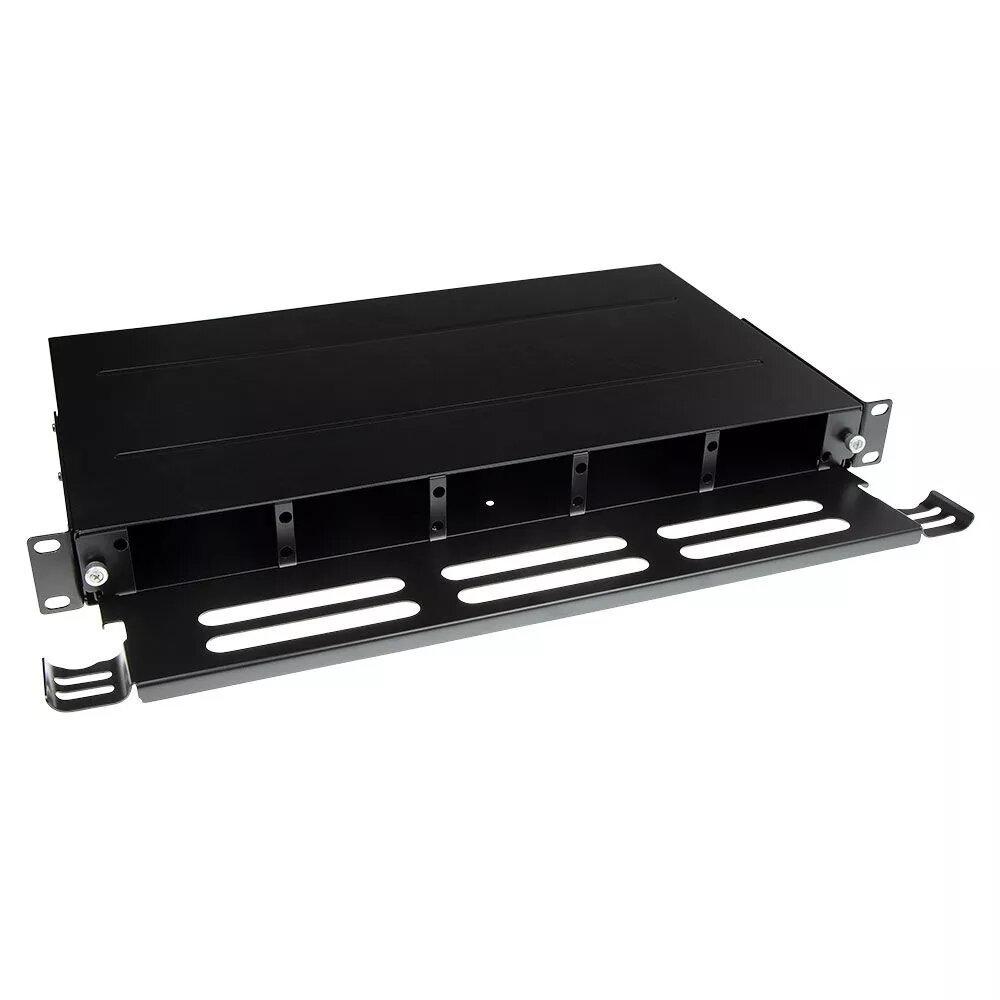

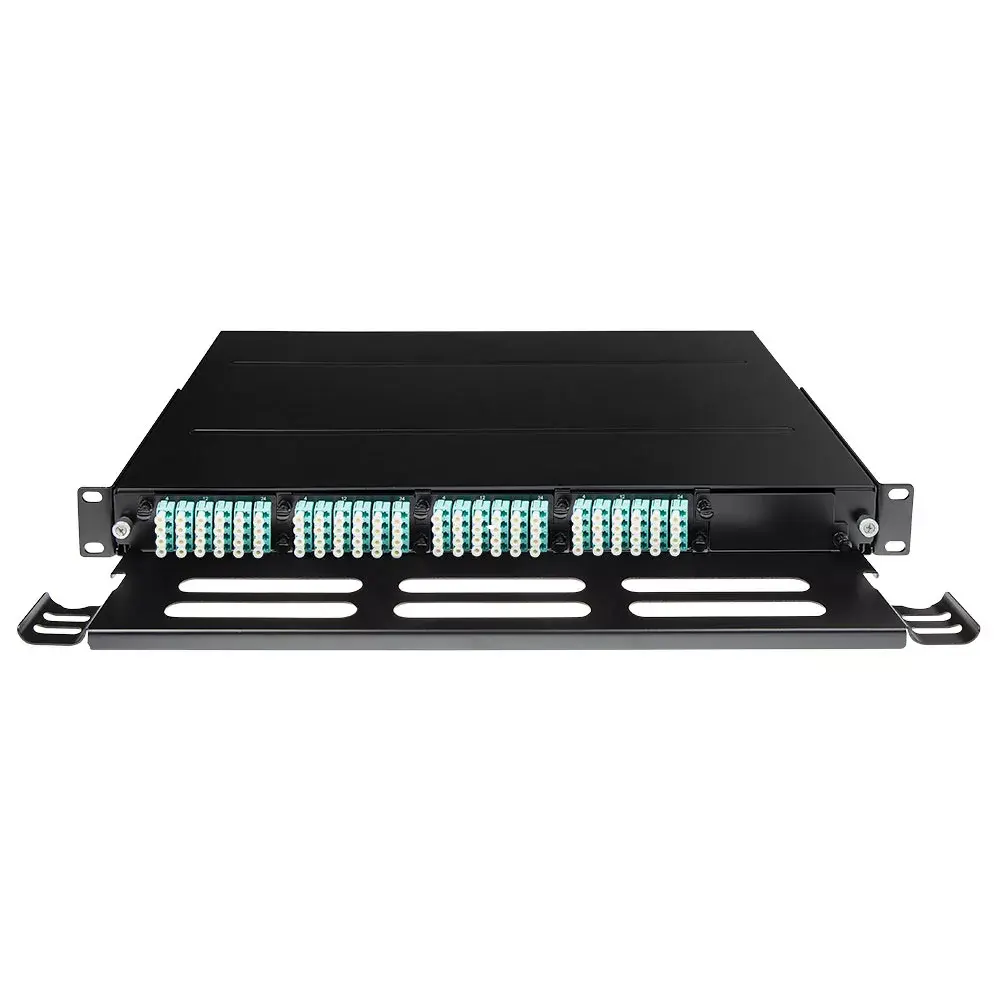

The ACT Fiber panel High Density for 5 MTP®-MPO cassettes is a compact, rack-mount metal panel designed to hold up to five MTP®-MPO fiber cassettes in a single unit. Finished in black, the panel provides a stable mounting surface and integrated cable entry points that support PG11 and PG13 cable glands. The design focuses on orderly cable routing and accessible cassette placement to simplify installation and routine maintenance of high-density fiber connections.

Advantages

The metal construction delivers mechanical stability and grounding capability while occupying minimal rack depth. Support for PG11 and PG13 cable types allows compatibility with common conduit and gland systems. A high-density layout concentrates multiple MTP®-MPO cassettes in one 19-inch panel position, reducing the number of panels needed and streamlining fiber management. Accessibility to cassette front faces and cable entries makes moves, adds, and changes straightforward.

Suitable for

• Data center patching of high-density MTP®-MPO cassette assemblies
• Telecommunications rooms where multiple fiber cassettes must be centralized
• Optical distribution frames requiring compact cassette mounting
• Network upgrades that consolidate fiber connections for space efficiency

Key specifications

• Form factor: 19-inch rack panel, designed for high-density cassette mounting
• Capacity: fits up to five MTP®-MPO cassettes
• Material: durable metal construction with black finish
• Cable entry compatibility: supports PG11 and PG13 cable glands
• Mounting: front-access cassette insertion and secured mounting points
• Intended use: indoor rack or cabinet installation for structured fiber management

How to use

Install the panel into a standard 19-inch rack or cabinet using appropriate rack screws and cage nuts. Insert MTP®-MPO cassettes into the panel openings from the front until they are secured by the panel’s cassette retention mechanism. Route fiber trunk and patch cables through the panel’s cable entry points and secure them with compatible PG11 or PG13 cable glands to provide strain relief and maintain cable organization. Ensure fibers are dressed into management guides and that connectors are protected during handling.

Usage recommendations

For reliable performance, verify that installed cassettes are compatible with the panel’s cassette retention system and that cable gland sizes match the outer diameter of incoming cables. Use proper bend-radius protection and secure cables to prevent strain on connectors. Periodically inspect mounting hardware and cable gland seals to maintain grounding and environmental integrity.
