ACT Vertical mounting bracket 19" 6U Metal Black

The ACT Vertical mounting bracket 19" 6U Metal Black is a robust metal accessory designed for efficient rack installation in network, audio, and video environments. Featuring a durable black finish, this 6U bracket allows for vertical or horizontal equipment mounting to optimize space utilization in 19-inch server racks, on walls, or under desks, ensuring secure and organized hardware deployment.

Advantages

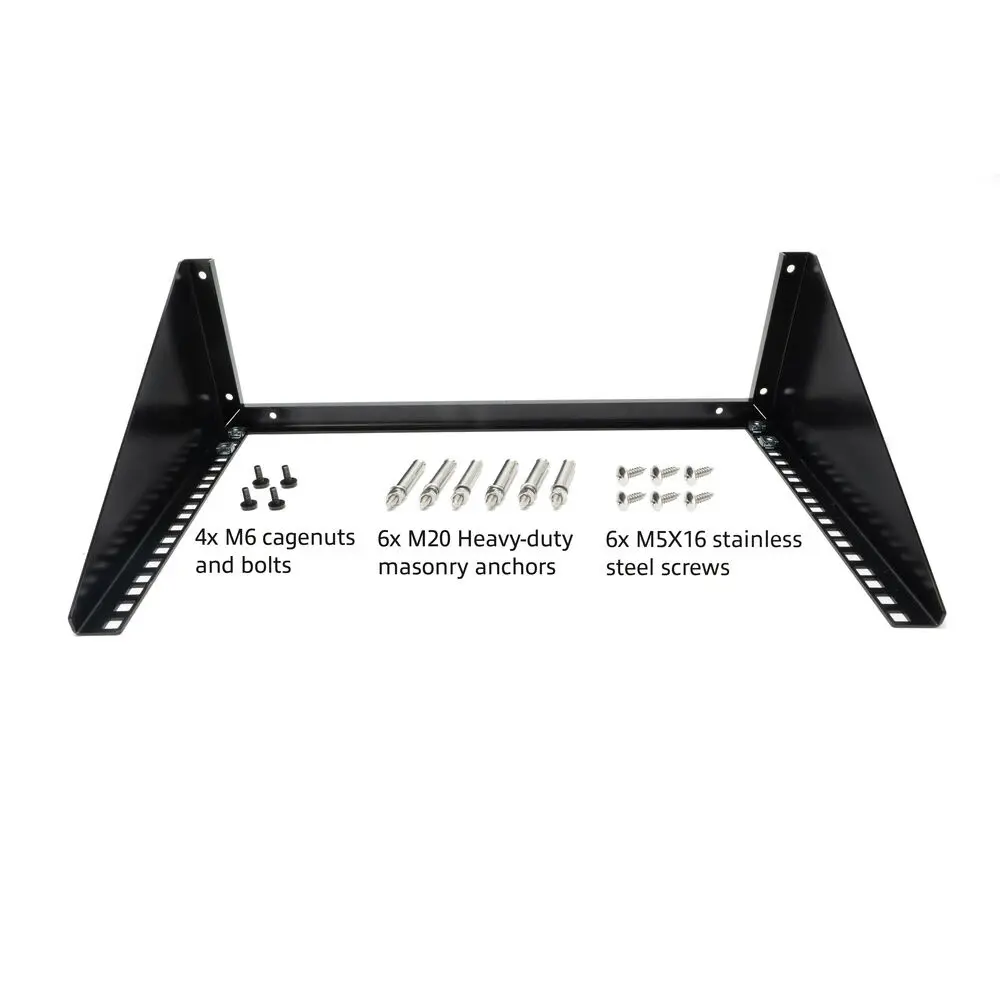

This mounting bracket offers high space-saving efficiency by allowing hardware to be installed vertically on walls or horizontally under desks. Constructed from a solid metal frame, it provides reliable stability and a maximum load capacity of 70kg for various network components. The open structure design promotes effective airflow and better heat dissipation to keep devices operating at optimal temperatures. Additionally, the package comes complete with necessary mounting hardware, including cage nuts, bolts, heavy-duty masonry anchors, and stainless steel screws for immediate installation.

Suitable for

• Mounting 19-inch network and server equipment to walls

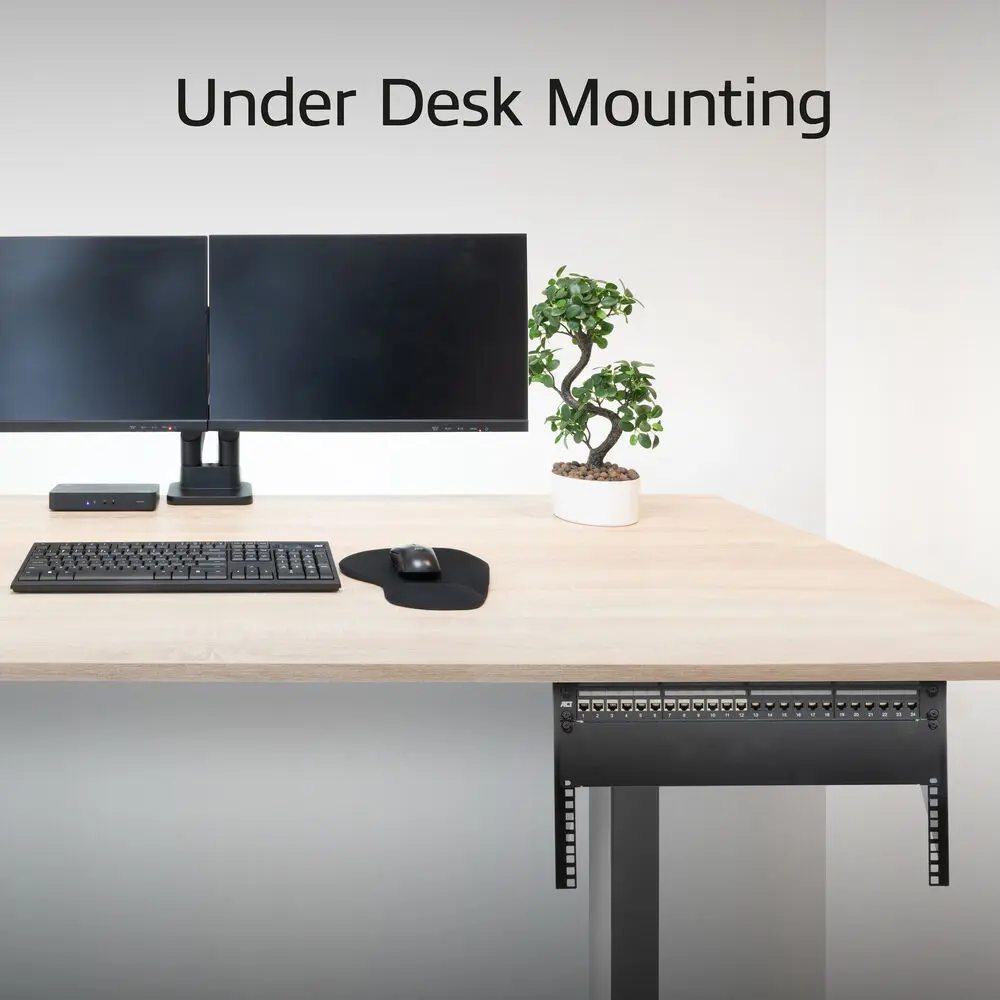

• Installing patch panels or audio and video gear under desks
• Optimizing space in small server rooms or office environments
• Organizing hardware in constrained spaces

When it may not be suitable

This mounting bracket may not be suitable for extremely heavy rack-mounted servers or equipment that exceeds the maximum load capacity of 70kg. It is also not designed for freestanding setups and requires a solid wall or a sturdy desk surface for secure installation.

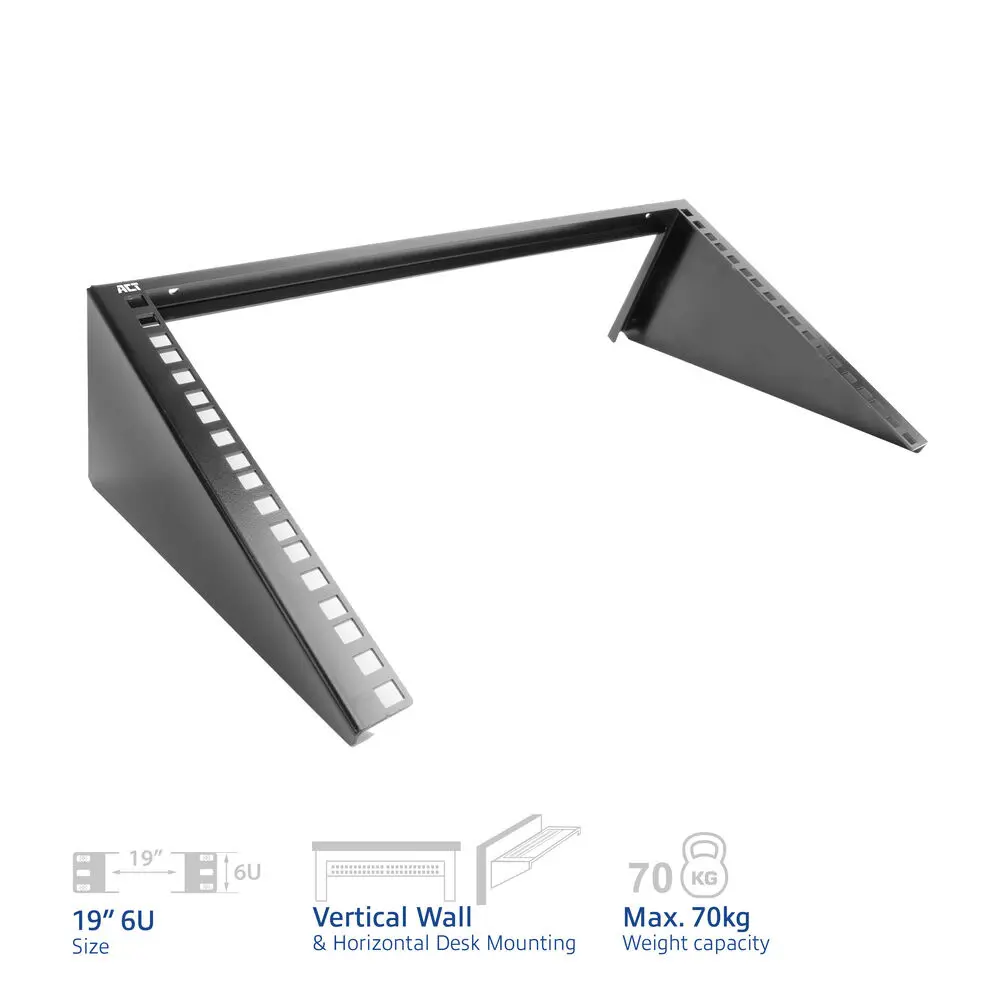

Key specifications

• 19-inch width compatibility
• 6U rack capacity
• Maximum load capacity of 70 kg
• Solid metal frame construction
• Open structure for heat dissipation
• Black colour finish

How to use

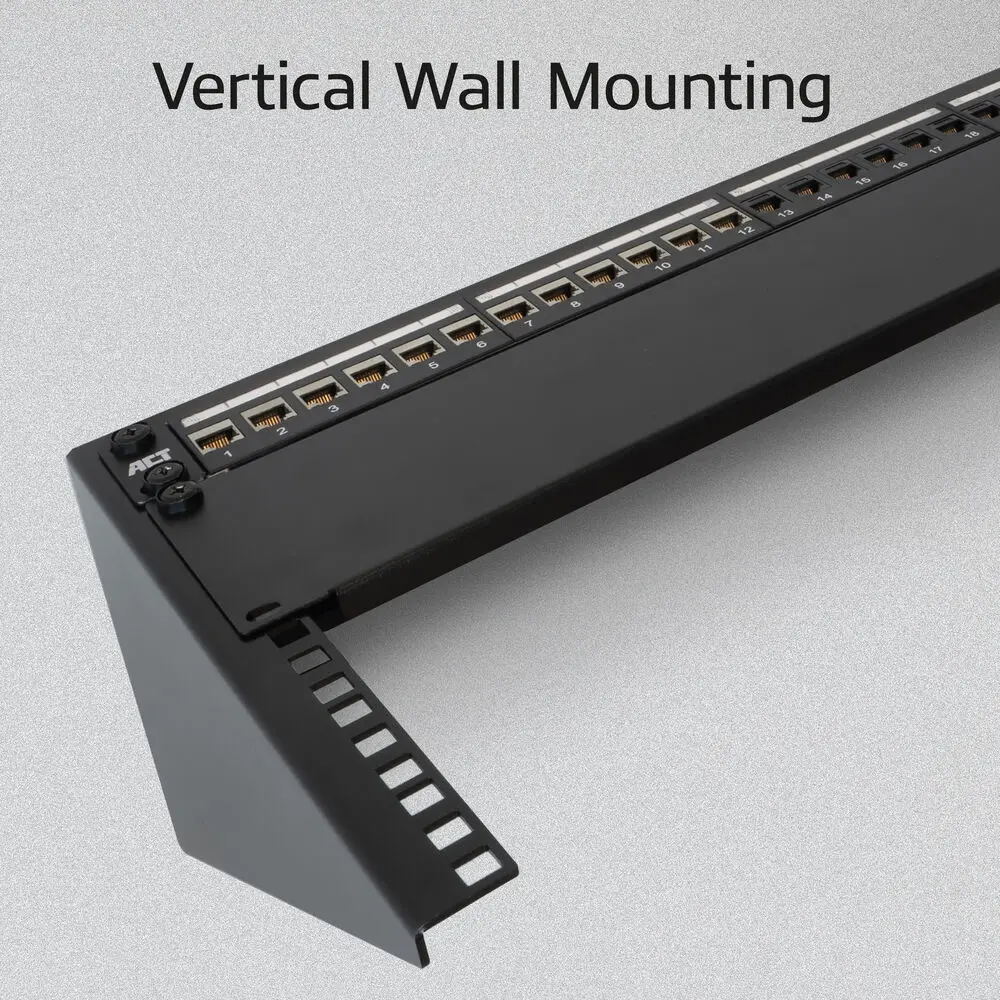

To use the ACT Vertical mounting bracket 19" 6U Metal Black, first determine whether you will mount it vertically on a wall or horizontally under a desk. Mark the mounting holes using the bracket as a template on a stable, solid surface. Secure the bracket firmly using the included masonry anchors and stainless steel screws. Once the bracket is securely attached, mount your 19-inch network, audio, or video equipment into the 6U space using the provided M6 cage nuts and bolts, ensuring the hardware is balanced and securely fastened.

What to consider before purchase

• Verify that your equipment width is compatible with 19-inch racks
• Check that the total weight of your devices does not exceed the 70kg limit
• Ensure you have adequate wall space or under-desk clearance for installation
• Confirm whether vertical wall mounting or horizontal placement best suits your workspace

Usage recommendations: Regularly inspect the mounting anchors and screws to ensure the bracket remains firmly attached to the wall or desk, especially in environments with high vibration or frequent equipment adjustments. Do not exceed the specified weight limit to maintain structural integrity and safety.
