ACT SD6521 IDC Cable Gender Changer, Black

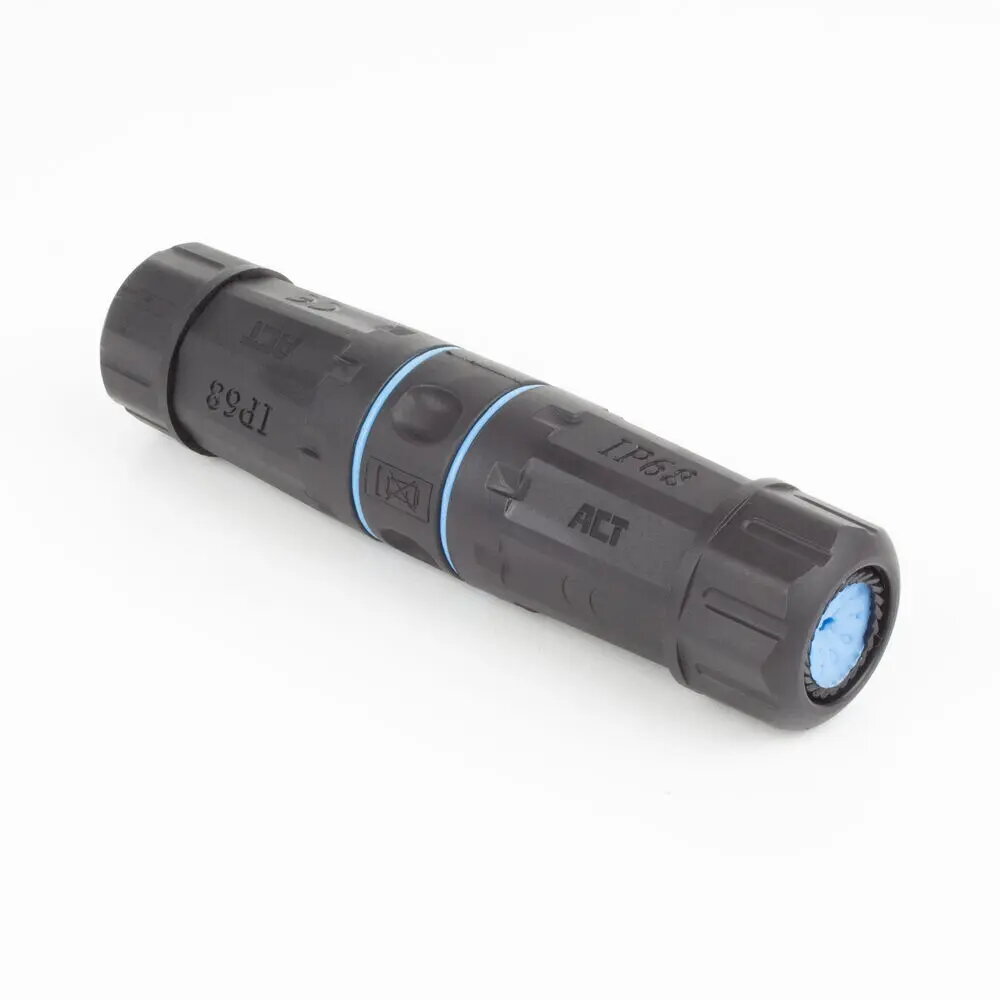

The ACT SD6521 is a high-performance CAT6A outdoor cable coupler designed to provide a secure and reliable connection for network infrastructure. Engineered with an IP68 rating, this connector is fully waterproof and dustproof, making it an ideal solution for demanding environments where protection against moisture and debris is essential. It features IDC (Insulation Displacement Contact) technology, which allows for efficient, toolless installation, ensuring signal integrity and durability for professional networking setups.

Advantages

This cable coupler offers significant benefits for network maintenance and expansion. Its toolless LSA assembly simplifies the installation process, saving time and reducing the need for specialized equipment. The robust polycarbonate housing combined with a screwable strain relief ensures that the connection remains stable even under physical stress. Furthermore, the support for PoE+ up to 25W makes it versatile for powering network devices, while the clear T568B color-coding facilitates accurate wiring, minimizing the risk of connection errors.

Suitable for

• Extending existing CAT6A network cable runs
• Outdoor network installations requiring IP68 protection
• Repairing damaged network cables in the field
• Temporary network setups for events or exhibitions
• Expanding network connectivity to new areas

When it may not be suitable

This coupler is specifically designed for CAT6A cables with wire gauges between AWG 22-26 and outer diameters of 4.5-7.5mm. It may not be suitable for cables outside these specifications or for fiber optic networking requirements.

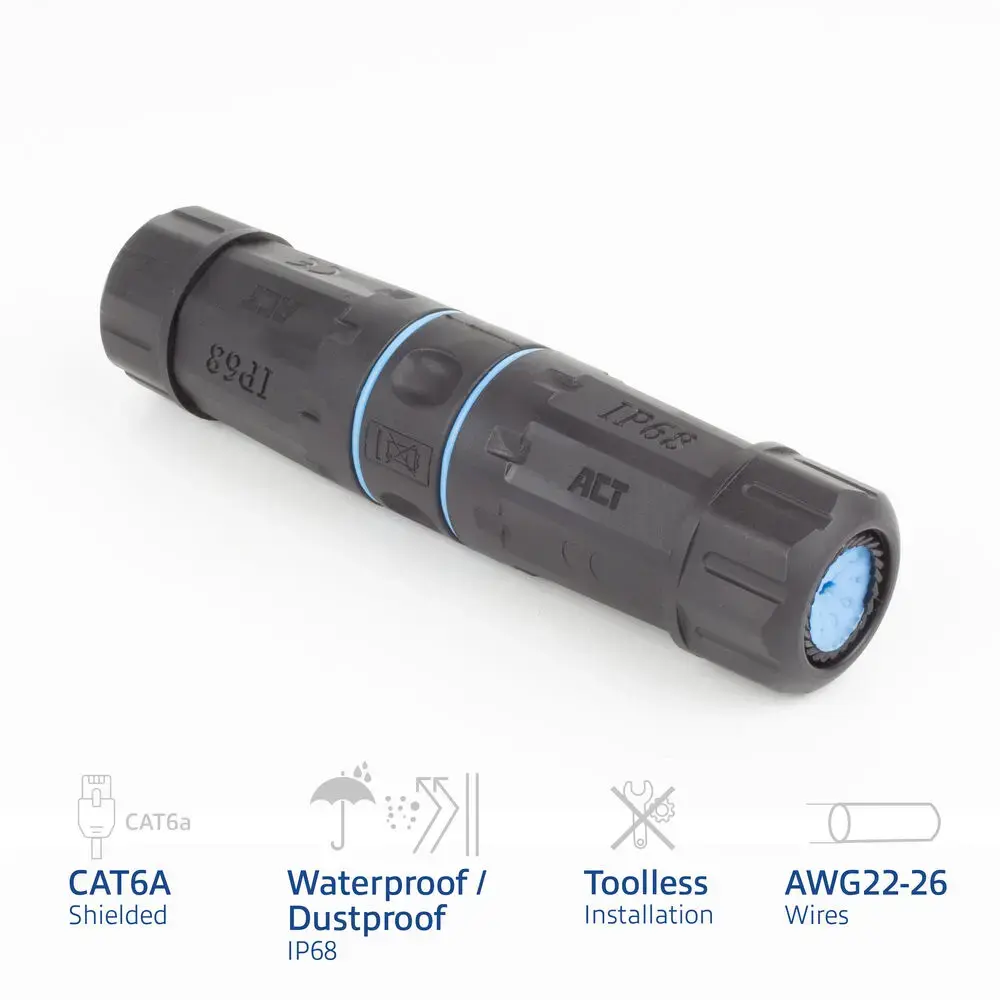

Key specifications

• Connector type: IDC Straight Female
• Protection rating: IP68 (waterproof and dustproof)
• Supported wire gauge: AWG 22-26
• Supported cable diameter: 4.5-7.5mm
• Wiring scheme: T568B
• Power support: PoE+ 25W
• Housing material: Polycarbonate

How to use

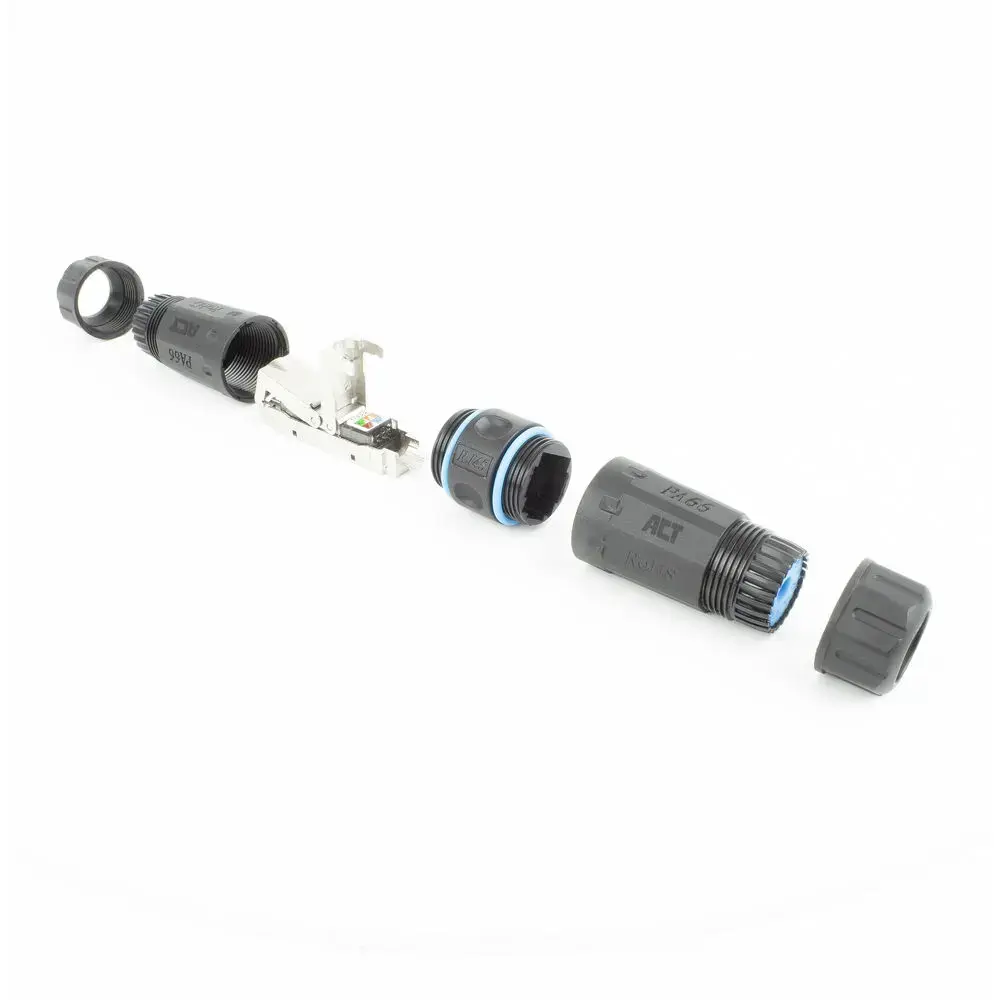

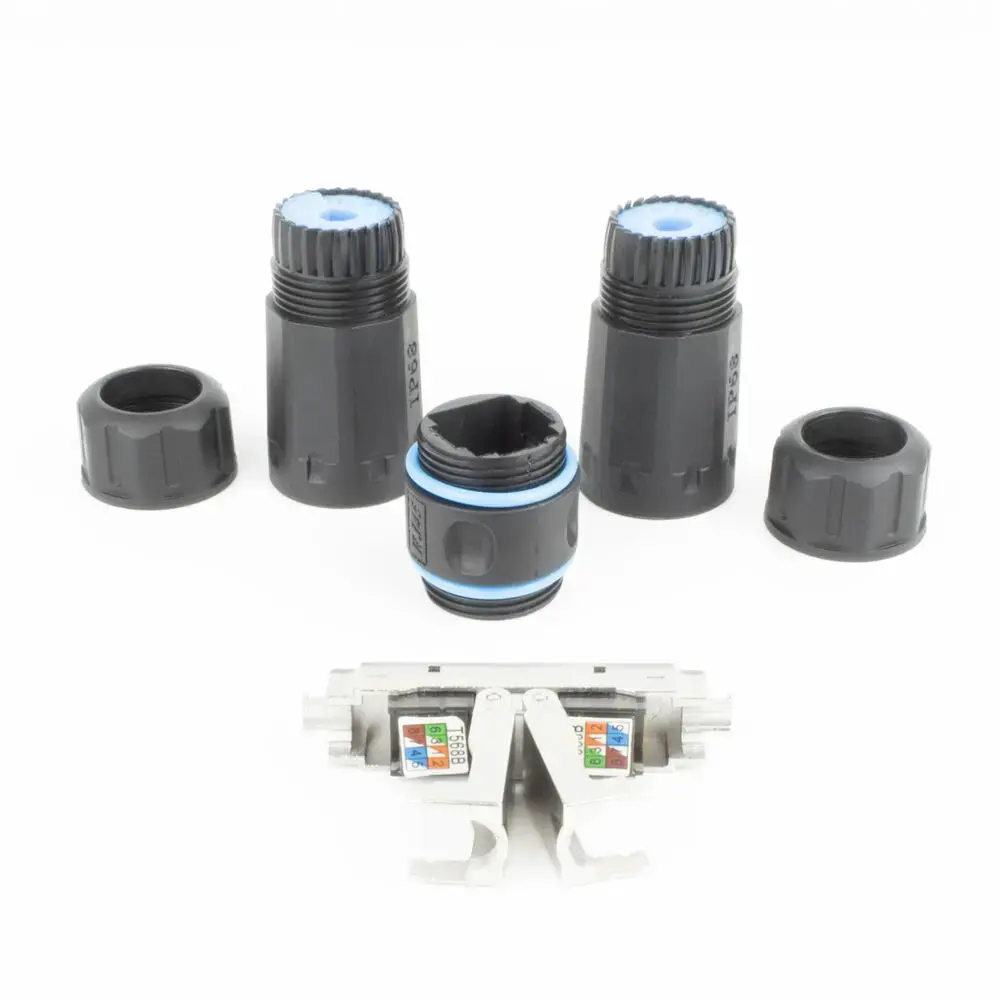

To install the coupler, first prepare the network cables by stripping the outer jacket to expose the inner wires. Arrange the wires according to the T568B color-coding scheme provided on the connector. Insert the wires into the IDC terminals and close the LSA clamps to establish the connection. Once both sides are connected, tighten the screwable strain relief to secure the cables and ensure the housing is fully sealed against environmental elements.

What to consider before purchase

• Verify that your cable type is CAT6A
• Check that your cable wire gauge is within the AWG 22-26 range
• Ensure the outer diameter of your cable is between 4.5mm and 7.5mm
• Confirm the T568B wiring standard matches your existing network infrastructure

Usage recommendations

For optimal performance and to maintain the IP68 waterproof seal, ensure that the screwable strain relief is tightened firmly and that the cable jacket is correctly seated within the sealing mechanism.
