Motherboard GIGABYTE B760M H DDR4, Code: B760M-H

Name: Motherboard GIGABYTE B760M H DDR4, B760M H DDR4
Brand: ADATA
SKU: 10864607
Price: 101.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Motherboard GIGABYTE B760M H DDR4, Intel B760, LGA 1700, micro ATX

Motherboard GIGABYTE B760M H DDR4, Code: B760M-H Photo 1

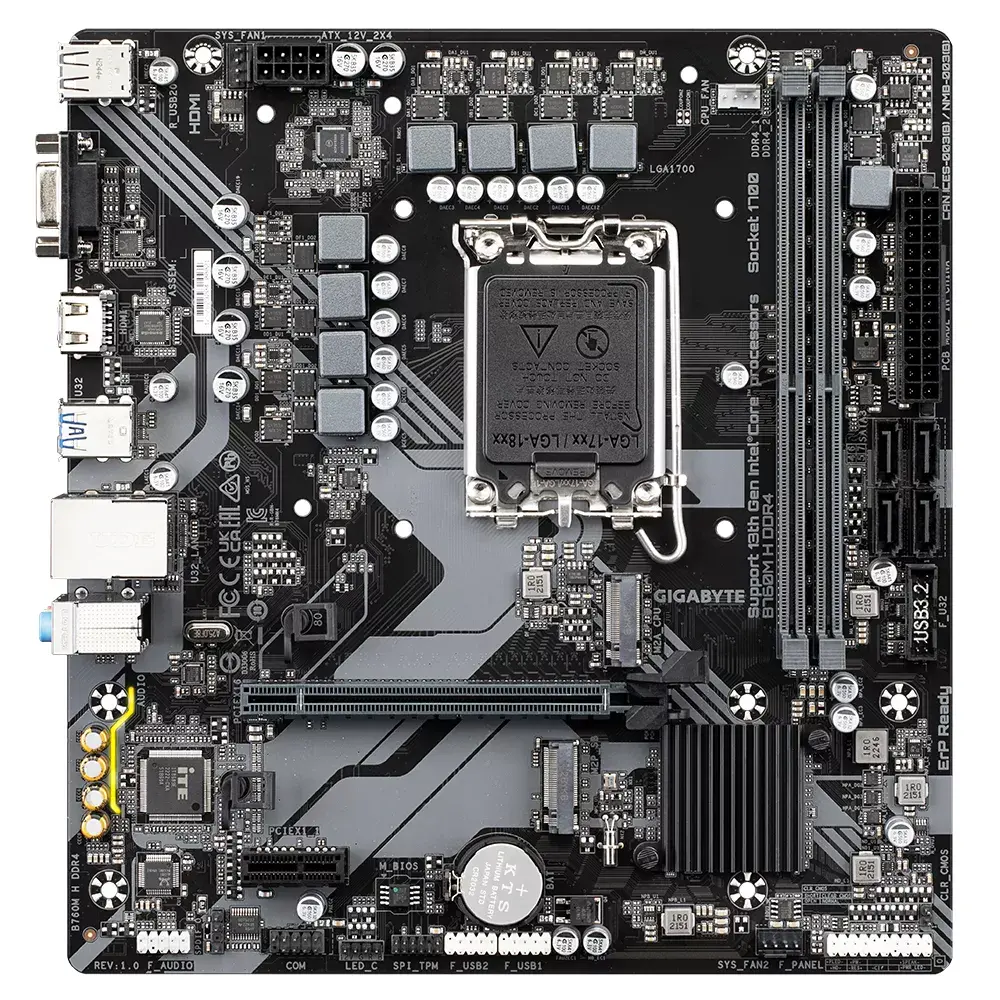

Motherboard GIGABYTE B760M H DDR4, Code: B760M-H Photo 2

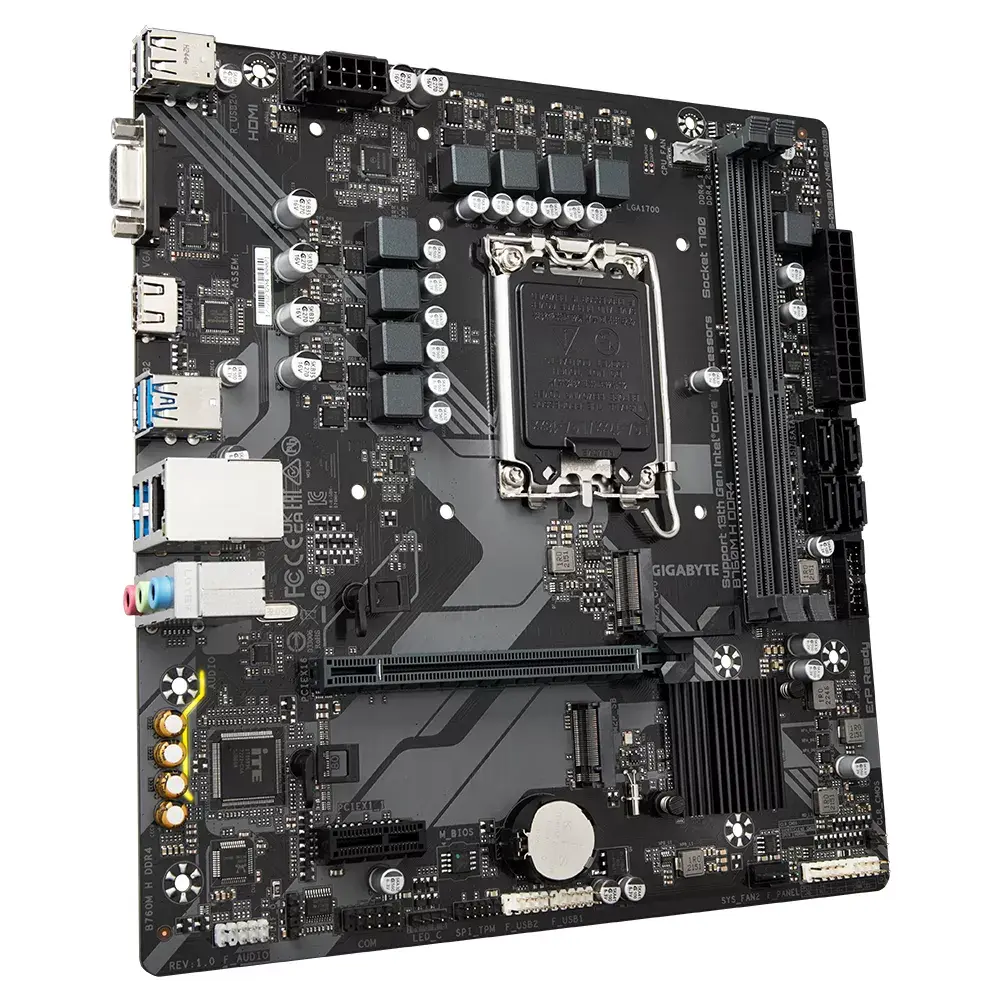

Motherboard GIGABYTE B760M H DDR4, Code: B760M-H Photo 3

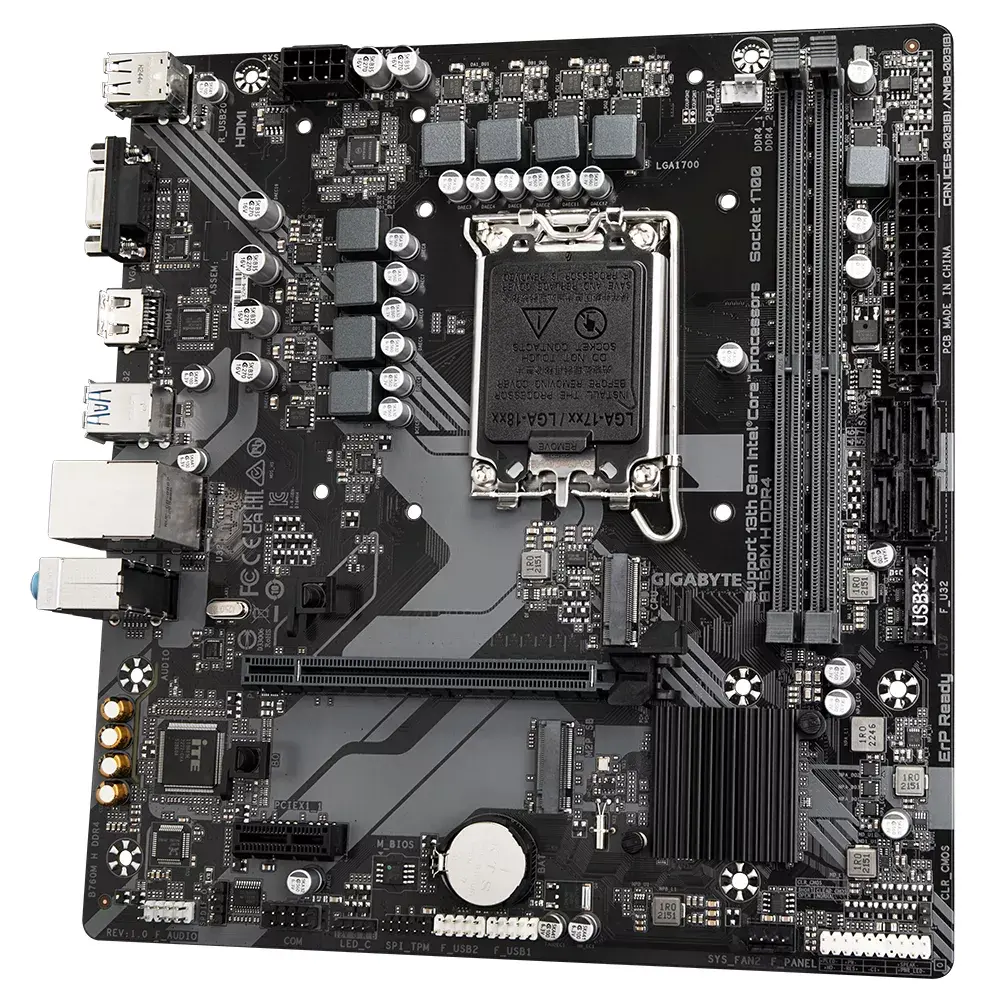

Motherboard GIGABYTE B760M H DDR4, Code: B760M-H Photo 4

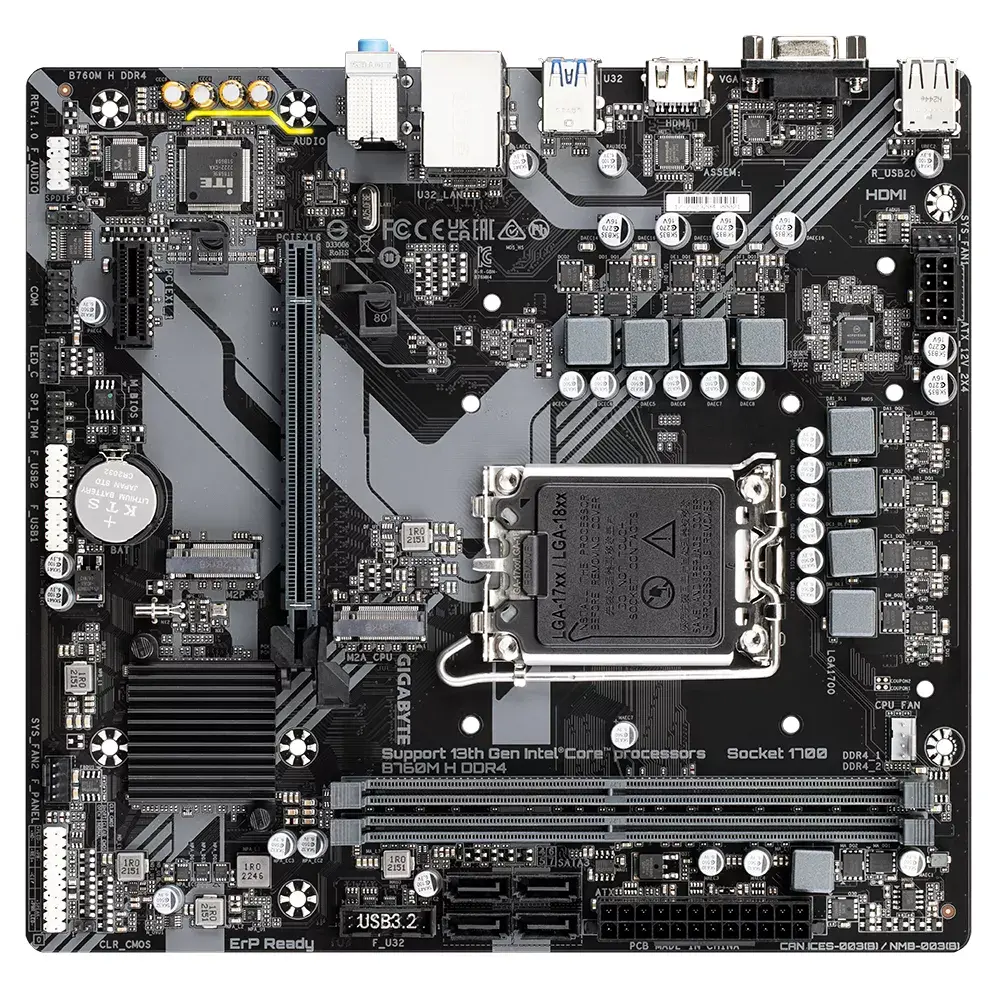

Motherboard GIGABYTE B760M H DDR4, Code: B760M-H Photo 5

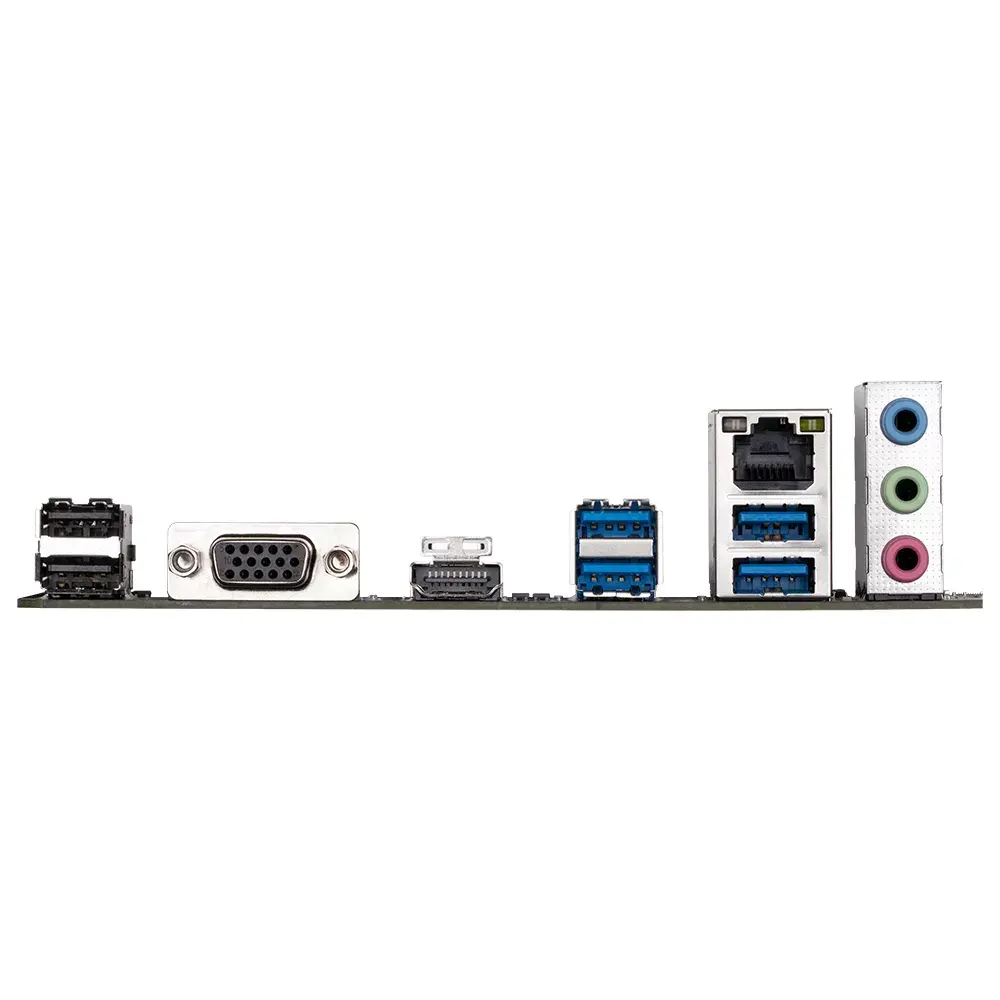

Motherboard GIGABYTE B760M H DDR4, Code: B760M-H Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Price for companies: 83.88€ Price is valid only for legal clients

Short description

The GIGABYTE B760M H DDR4 Motherboard supports Intel Core 14th Gen CPUs with a robust 6+1+1 Phases Digital VRM. It features up to 3200MHz DDR4 (OC) memory support, 2x PCIe 4.0 M.2 slots, and Gigabit Ethernet connectivity. With a maximum internal memory of 64 GB and multiple RAID levels (0, 1, 5, 10), this micro ATX motherboard is designed for high performance and versatility in PC builds.

Available for order: 39 pcs.

Warranty: 2 Years

SKU: 10864607

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.75 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 33.83 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 2.82 euros per month

Price for companies: 83.88€ Price is valid only for legal clients

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The GIGABYTE B760M H DDR4 is a micro ATX motherboard compatible with Intel LGA 1700 processors and designed for mainstream desktop builds. Based on the Intel B760 Express chipset, it supports up to 64 GB of DDR4 memory across two DIMM slots (up to DDR4-3200 OC), offers a 6+1+1 phases digital VRM for stable power delivery to 14th Gen Intel CPUs, and includes dual PCIe 4.0 M.2 slots and Gigabit Ethernet for versatile storage and network connectivity.

Advantages

The board combines compact micro ATX sizing with features typically expected in larger boards: robust digital VRM for reliable CPU power, dual high-speed M.2 slots for NVMe storage, and support for common RAID arrays (0, 1, 5, 10). Memory overclocking up to DDR4-3200 (OC) allows improved system responsiveness, while the Intel B760 chipset provides modern platform compatibility for current Intel processors.

Suitable for (tasks / use cases)

Home and office PCs requiring stable performance in a compact case
Budget or mid-range gaming systems using discrete graphics
Content creation and productivity builds needing fast NVMe storage
System builders who prefer micro ATX form factor for smaller builds

Key specifications

Form factor: Micro ATX
Chipset: Intel B760 Express
CPU socket: LGA 1700 (supports Intel 14th Gen CPUs)
Memory: 2 DIMM slots, up to 64 GB DDR4, supports up to DDR4-3200 (OC)
Storage: 2 × PCIe 4.0 M.2 slots
Networking: Gigabit Ethernet
Power delivery: 6+1+1 phases digital VRM
RAID support: 0, 1, 5, 10

How to use

Install the motherboard into a compatible micro ATX case, fit an LGA 1700 CPU and the recommended CPU cooler, populate up to two DDR4 memory modules (observing the correct slot order for dual-channel operation), and connect storage devices to the M.2 slots or SATA ports as required. Connect power from the PSU to the 24-pin ATX and CPU power headers, attach the front-panel connectors and peripherals, then proceed to install an operating system and chipset/drivers supplied by the manufacturer.

Usage recommendations

For best stability with high-performance CPUs or memory overclocking, use a quality power supply and an adequate CPU cooler. Install the latest BIOS and chipset drivers from the manufacturer to ensure full compatibility with 14th Gen Intel processors and NVMe devices.

Specifications

Motherboard form factor:: Micro ATX
Motherboard chipset:: Intel B760 Express
Component for:: PC
Processor socket:: LGA 1700
Number of memory slots:: 2
Maximum internal memory:: 64 GB
Supported memory types:: DDR4-SDRAM

All features

Features

Motherboard form factor:: Micro ATX
Motherboard chipset:: Intel B760 Express
Component for:: PC
Audio output channels:: 7.1
Windows operating systems supported:: Windows 11, Windows 10
Motherboard chipset family:: Intel
Power source type:: ATX

Product colour:: Brown

Processor

Processor manufacturer:: Intel
Maximum number of SMP processors:: 1
Compatible processor series:: Intel Pentium Gold, Intel Celeron
Processor socket:: LGA 1700
Maximum internal memory supported by processor:: 64 GB

Memory

Number of memory slots:: 2
Maximum internal memory:: 64 GB
Supported memory types:: DDR4-SDRAM
Supported memory clock speeds:: 3200, 2133, 2400, 2666, 2933, 3000
Memory channels:: Dual-channel
Memory slots type:: DIMM
Supported memory module capacities:: 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Supported memory clock speed (max):: 3200 MHz
ECC сompatibility:: non-ECC

Expansion slots

Number of M.2 (M) slots:: 2
PCI Express x16 (Gen 4.x) slots:: 1

Graphics

Parallel processing technology support:: Not supported
DirectX version:: 12.1

Network

Ethernet LAN:: Yes
Wi-Fi:: No
Ethernet interface type:: Gigabit Ethernet

Internal I/O

USB 2.0 connectors:: 2
CPU fan connector:: Yes
ATX Power connector (24-pin):: Yes
Front panel audio connector:: Yes
TPM connector:: Yes
EPS power connector (8-pin):: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:: 1
Number of SATA III connectors:: 4
Serial port headers:: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:: 0
Total number of SATA connectors:: 4
Front panel connector:: Yes
RGB LED pin header:: Yes

Rear panel I/O ports

USB 2.0 ports quantity:: 2
Ethernet LAN (RJ-45) ports:: 1
VGA (D-Sub) ports quantity:: 1
DVI-D ports quantity:: 0
HDMI ports quantity:: 1
HDMI version:: 1.4
DisplayPorts quantity:: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:: 0

Storage controllers

RAID levels:: 10, 5, 1
RAID support:: Yes
Number of storage drives supported:: 6
Supported storage drive interfaces:: SATA III, M.2

Technical details

Warranty period:: 3 year(s)

BIOS

BIOS memory size:: 128 Mbit
BIOS type:: UEFI AMI
ACPI version:: 5.0
Clear CMOS jumper:: Yes
Desktop Management Interface (DMI) version:: 2.7
System Management BIOS (SMBIOS) version:: 2.7

Weight & dimensions

Width:: 230 mm
Depth:: 215 mm

Other features

Number of HDDs supported:: 4
Supported processor sockets:: LGA 1700
Package weight:: 825 g
Height:: 35 mm
DisplayPort version:: 1.4
Audio chip:: Realtek ALC897

Packaging content

Batteries included:: Yes

Packaging data

Package depth:: 265 mm
Package height:: 54 mm
Package width:: 265 mm

Battery

Battery technology:: Lithium-Manganese Dioxide (LiMnO2)
Battery type:: CR2032
Number of battery cells:: 1
Battery weight:: 3 g
Lithium weight per battery:: 0.07 g

Logistics data

Country of origin:: China
Products per shipping (inner) case:: 1 pc(s)
