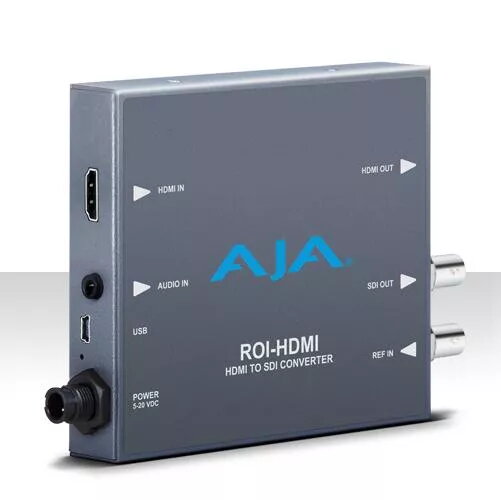

Video Signal Converter AJA ROI-HDMI

The AJA ROI-HDMI is a compact video signal converter that converts computer and HDMI outputs to baseband SDI. It supports resolutions up to 1920 x 1200 and common video modes such as 480p, 720p and 1080p, and accepts embedded HDMI audio or a 3.5 mm analog input. The unit provides loop-through HDMI connectivity so an external monitor can remain connected while the converted SDI feed is output, and a reference input ensures the SDI output remains locked for integration into production environments.

Advantages

ROI-HDMI enables selective capture of a region of interest from a computer screen, offers high-quality image scaling and precise aspect and frame rate conversion via Mini-Config software, and embeds audio into the SDI output from either HDMI or the analog input. Its small, lightweight housing and wide input voltage range make it suitable for portable and fixed installations without large power or space requirements.

Suitable for

• Integrating computer presentations or graphics into SDI-based broadcast or production systems
• Live events where a portion of the computer screen must be sent to SDI
• Small studios and mobile rigs requiring compact converters with audio embedding

Key specifications

• Model: AJA ROI-HDMI (MPN: ROI-HDMI)
• Supported resolutions: up to 1920 x 1200; video modes include 480p, 720p, 1080p
• Inputs/outputs: HDMI input with loop-through, SDI output, reference input, 3.5 mm analog audio input
• Audio: embedded HDMI up to 8 channels or 2-channel analog via 3.5 mm; audio embedded into SDI output
• Dimensions: 146.4 mm x 102.1 mm x 22.9 mm; Weight: 0.3 kg
• Power: 100–240 V input range
• Formats: NTSC and PAL compatibility
• Colour: Black

How to use

Connect the computer or HDMI source to the HDMI input and, if needed, connect an external monitor to the HDMI loop-through port. Attach the SDI output to your SDI infrastructure and connect the reference input if synchronous locking is required. Install and run the free Mini-Config application on a connected computer via USB to interactively select the Region of Interest, adjust scaling, aspect ratio and frame rate conversion, and choose audio routing. Once configured, the device outputs the scaled and embedded SDI signal for use in your production chain.

Usage recommendations

For best results, use the Mini-Config software to preview source and output formats and select only the needed screen area to avoid unnecessary scaling. When embedding audio, verify the selected audio source and routing in the software to maintain synchronization. Use the reference input when integrating into larger systems to ensure stable timing.
