Wireless connectivity module Ajax ocBridge Plus model 000001152 for integrating Ajax devices with IP-based systems

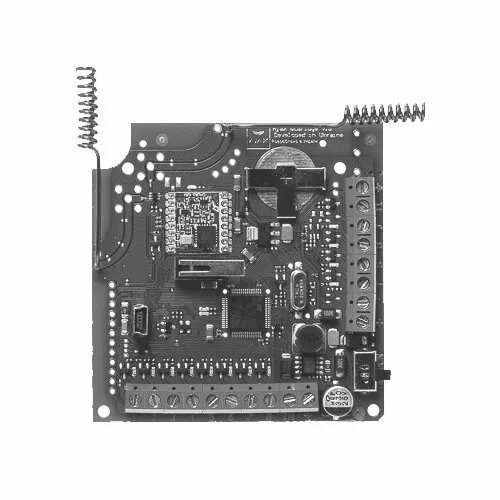

Ajax ocBridge Plus (model 000001152) is a wireless connectivity module that converts wired and IP-based security systems into a hybrid solution by bridging Ajax radio devices with Ethernet/IP networks. The module enables remote monitoring, alarm forwarding and system integration for professional security installations and smart home setups while supporting a large radio network and protection measures against interference and tampering.

Advantages

Jeweller radio technology enables reliable communication with Ajax devices at distances up to 2,000 m in open space and across multiple floors, while antenna diversity and frequency hopping reduce the risk of radio interference and jamming. The module supports up to 100 connected devices, 8 security areas and 4 service areas, stores a history of alarms and service events and uses authenticated, encrypted connections. ocBridge Plus offers professional-level configuration via USB and a Windows tool, and includes a backup CR2023 battery.

Suitable for

• Integrating Ajax detectors and sensors into IP-based or third-party security platforms
• Professional security system installations in offices, retail and multi‑floor buildings
• Remote monitoring and alarm forwarding for smart homes and commercial sites

Key specifications

• Use: Indoor
• Radio signal power: 25 mW
• Communication protocol: Jeweller (868.0–868.6 MHz)
• Maximum range: Up to 2,000 m (open area)
• Max connected devices: 100
• Security areas: 8; Service areas: 4
• Detection of jamming: Yes
• Detector performance monitoring: Yes
• History of alarms and service events: Yes
• Connection of external antenna: Yes
• Software update: Yes
• Wired outputs/inputs: 13 (8+4+1) outputs / 1 input
• Power supply: DC 8–14 V via +/- connectors; miniUSB 5 V (configuration only)
• Dimensions: 95 × 92 × 18 mm (with antennas)
• Operating temperature: -20 °C to +50 °C
• Operating humidity: Up to 90%

How to use

Connect ocBridge Plus to the third‑party security system using the wired outputs and input according to the installer manual, and connect the device to the local network for IP integration. Configure the module through a PC using the supplied Windows configuration tool via miniUSB (miniUSB supply is only for configuration). Pair Ajax radio devices using the Jeweller protocol and assign devices to the required security and service areas. Test the radio connection and device detection area and verify alarm reporting to the monitoring or integration platform.

Usage recommendations

Install the module indoors in a location with minimal metal obstructions and radio noise; use the optional external antenna when needed to improve reception. Ensure power is supplied within the specified voltage range and keep firmware up to date for security and feature updates.
