header-product Heatsink/Radiator Akasa AK-CC6603EP01 9.5 cm Aluminium Black
18.49 €

Heatsink/Radiator Akasa AK-CC6603EP01 9.5 cm Aluminium Black

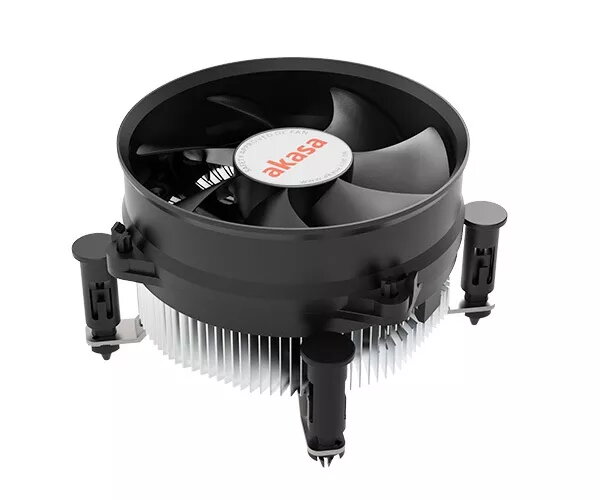

Heatsink/Radiator Akasa AK-CC6603EP01 Photo 1

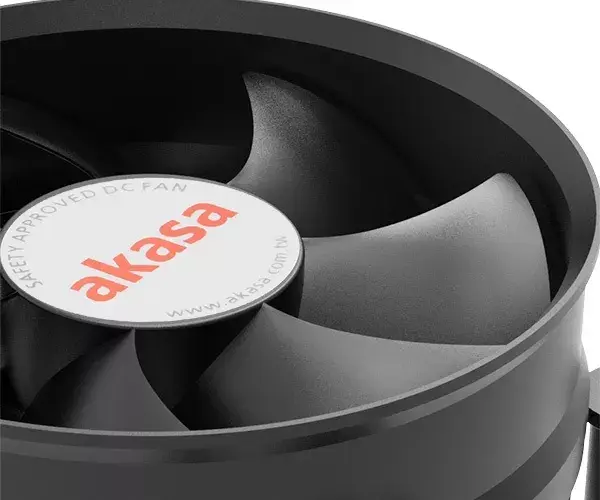

Heatsink/Radiator Akasa AK-CC6603EP01 Photo 2
Heatsink/Radiator Akasa AK-CC6603EP01 Photo 3
Heatsink/Radiator Akasa AK-CC6603EP01 Photo 1
Heatsink/Radiator Akasa AK-CC6603EP01 Photo 2
Heatsink/Radiator Akasa AK-CC6603EP01 Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Heatsink/Radiator Akasa AK-CC6603EP01 9.5 cm Aluminium Black

{{email}}
You keep track of price changes

Heatsink/Radiator Akasa AK-CC6603EP01 9.5 cm Aluminium Black

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Akasa AK-CC6603EP01 is a heatsink/radiator designed for efficient cooling with a 9.5 cm fan diameter. It features a maximum air pressure of 4.87 mmH2O, ensuring effective heat dissipation. The dimensions are 95 mm in width, 95 mm in depth, and 59.2 mm in height, making it compact yet powerful. Its aluminum and black color gives it a sleek look, suitable for various computer builds.
Available at price 18.49 €: 4 pcs.
Total available for order: 5 pcs.
Warranty: 2 Years
SKU: 4485665
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
13.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
13.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Akasa AK-CC6603EP01 is a compact aluminium heatsink and radiator with a 95 mm fan, designed to provide efficient cooling for desktop CPUs with a thermal design power up to 77 W. Its black aluminium finish and small footprint (95 × 95 × 59.2 mm) make it suitable for a variety of ATX, Micro-ATX, Mini-ITX and Thin Mini-ITX systems where quiet operation and reliable heat dissipation are required.

Advantages

Low-noise operation combined with effective airflow management minimizes acoustic output while maintaining cooling performance. The heatsink uses engineered aluminium fins and a 95 mm PWM-controlled fan to deliver required airflow on demand, and a pre-applied high-grade thermal interface reduces installation steps and improves thermal transfer. The design also includes a push-pin mounting system compatible with Intel LGA1700 sockets for easier installation.

Suitable for

  • Compact desktop builds (ATX, Micro-ATX, Mini-ITX, Thin Mini-ITX)
  • Workstation systems with CPUs up to 77 W TDP
  • Quiet office or home PC environments

Key specifications

  • Type: Heatsink / Radiator
  • Fan diameter: 95 mm
  • Dimensions (W × D × H): 95 × 95 × 59.2 mm
  • Weight: 0.2998 kg
  • TDP: 77 W
  • Supported socket: Intel LGA1700
  • Colour / material: Black aluminium
  • Max air pressure: 4.87 mmH2O

How to use

Remove the cooler from its packaging, align the push-pin mounting points with the retention holes on the motherboard for the Intel LGA1700 socket, and press the pins until they click to secure the cooler. Ensure the pre-applied thermal interface material makes full contact with the CPU heatspreader and attach the 95 mm fan to the fan header using PWM control for automatic speed adjustment. Verify clearance in the case and confirm that case airflow supports the cooler for optimal performance.

Usage recommendations

For best results, pair the Akasa AK-CC6603EP01 with a case that provides good intake and exhaust airflow. Regularly check and clean dust from the aluminium fins and fan blades. Use for CPUs up to 77 W TDP; higher-power processors may require more capable cooling solutions.

Specifications

Type: Characteristics of the device.
Heatsink/Radiatior
Product colour: The colour e.g. red, blue, green, black, white.
Black, Aluminium
Suitable location: Locations in which the product can be used.
Processor
All features

Logistics data

Harmonized System (HS) code:
84733080

Weight & dimensions

Fan thickness:
25 mm
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.2998 kg
Height: The measurement of the product from head to foot or from base to top.
59.2 mm
Depth: The distance from the front to the back of something.
95 mm
Width: The measurement or extent of something from side to side.
95 mm

Power

Fan current:
0.26 A
Thermal Design Power (TDP):
77 W
Rated voltage:
12 V

Design

Fan connector:
4-pin
Material: The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
Product colour: The colour e.g. red, blue, green, black, white.
Black, Aluminium

Performance

Fan speed (max):
3000 RPM
Fan speed (min):
600 RPM
Quantity per pack:
1 pc(s)
Pulse-width modulation (PWM) support:
Yes
Maximum air pressure:
4.87 mmH2O
Maximum airflow:
53.62 cfm
Noise level (high speed): How loud the device is when used at high speed.
36.6 dB
Supported processor sockets: The sockets (plugs) for processors that are supported (can be used) by the device.
LGA 1700
Fan diameter: The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
95 mm
Type: Characteristics of the device.
Heatsink/Radiatior
Suitable location: Locations in which the product can be used.
Processor
