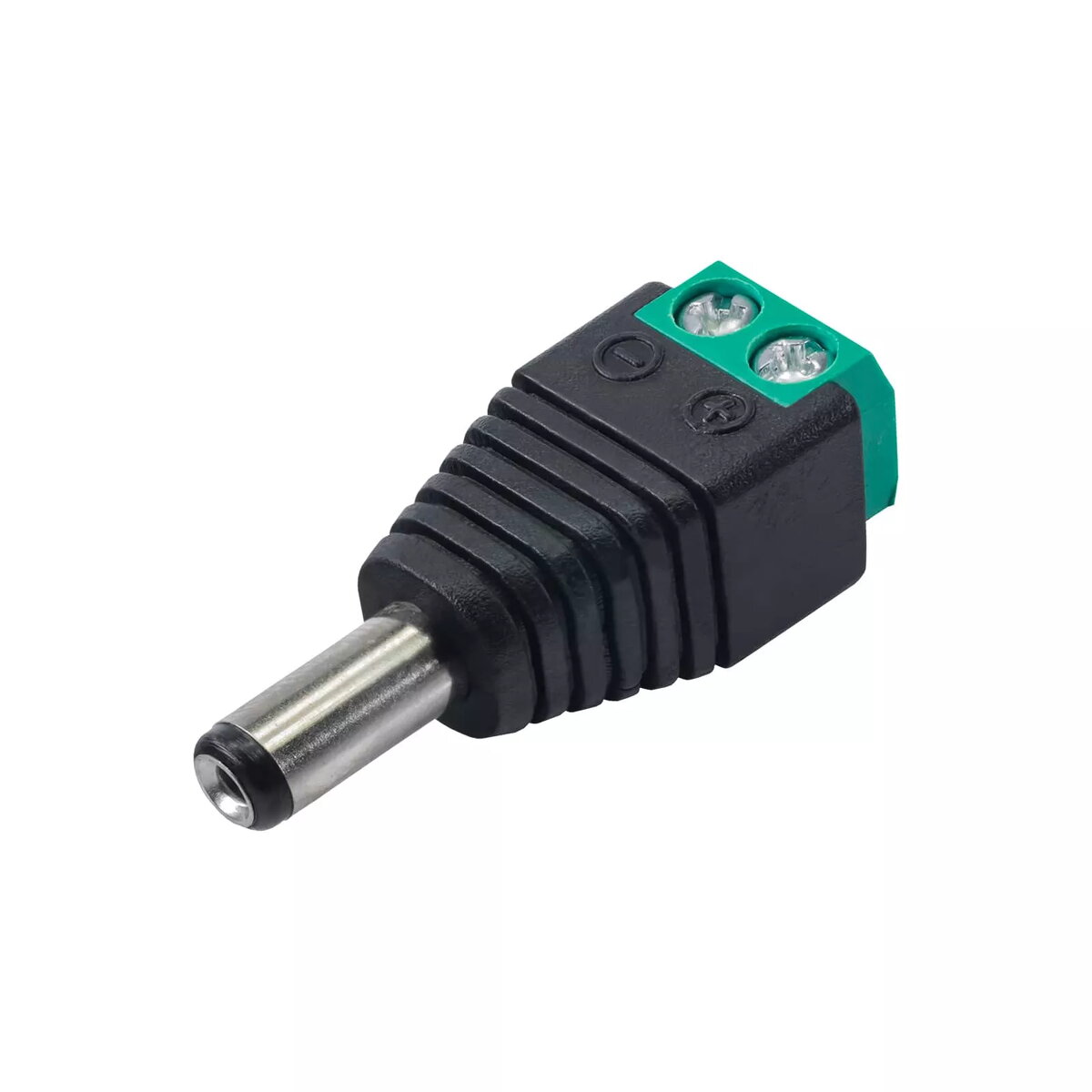

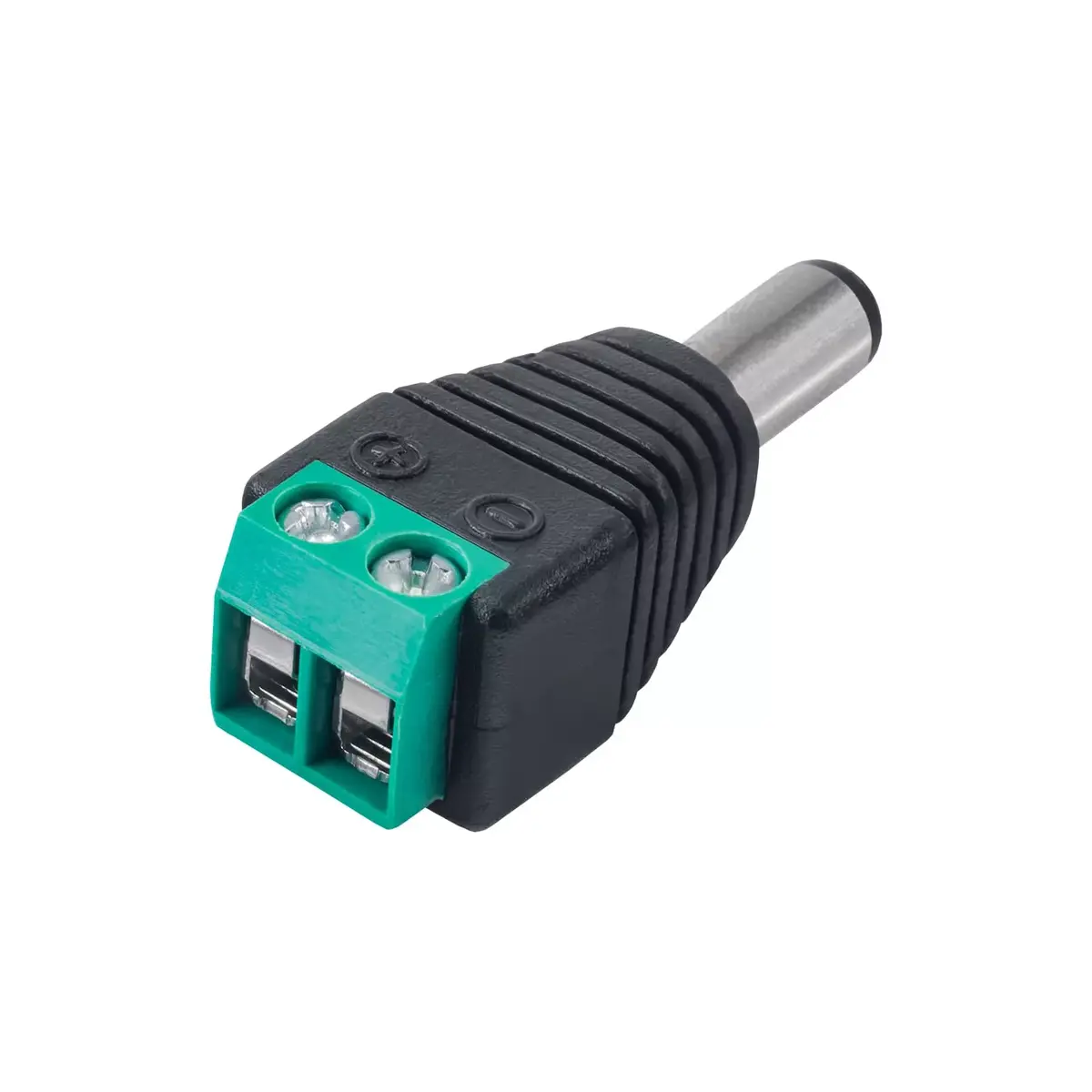

2-pin wire connector Akyga AK-SC-16 — 2-pin electrical connector, black/green/grey, 13×40 mm, 10 g

Akyga AK-SC-16 is a compact 2-pin wire connector designed for joining or terminating two conductors in low-voltage electrical and electronic installations. The connector measures 13×40 mm, weighs 10 g and is available in black, green and grey. It features screw-type terminals with polarity markings (+ and -) on the insulating housing and is certified to REACH and RoHS standards. The connector is supplied as a single piece and manufactured for straightforward field or workshop use where a simple, solder-free connection is required.

Advantages

The Akyga AK-SC-16 provides a compact, lightweight solution for quick electrical connections without soldering. Screw terminals allow secure clamping of insulated conductors and the polarity markings simplify correct wiring. Its small dimensions and light weight make it easy to carry and install in confined spaces. Compliance with REACH and RoHS ensures the product meets common material-safety and environmental requirements.

Suitable for

• Low-voltage DC power connections and repairs
• Extending or terminating power cables without soldering
• Field installations and quick prototyping in electronics
• Applications requiring a compact two-conductor connector with polarity marking

Key specifications

• Connector type: 2-pin screw terminal with DC power plug compatibility (5.5 × 2.1 mm dimensions)
• Material finish: insulated plastic housing (available in black, green, grey)
• Dimensions: 13 mm × 40 mm (width × depth)
• Weight: 10 g (single piece)
• Terminal type: screw terminals, marked for polarity (+ / -)
• Standards: REACH and RoHS compliant

How to use

Strip the insulation from the ends of the conductors to the length appropriate for the screw terminals, insert each insulated wire into the corresponding terminal and tighten the screws with a screwdriver until the conductor is firmly clamped. Observe the polarity markings on the housing when connecting positive and negative conductors. The product allows extension of DC power cables by inserting the cable conductors into the terminals without soldering. Ensure all connections are secure and check for any exposed conductor before applying power.

Usage recommendations

Use the Akyga AK-SC-16 only with insulated conductors within the connector's intended low-voltage range. Do not place bare strands outside the terminal openings. Tighten screws to a firm, but not excessive torque to avoid damaging the terminal or conductor. For installations exposed to mechanical stress, vibration, or environmental factors, consider additional strain relief and protective measures.
