Air cooler Alpenföhn Brocken 4 Max

Name: Air cooler Alpenföhn Brocken 4 8274466
Brand: Alpenföhn
SKU: 11096180
Price: 101.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Air cooler Alpenföhn Brocken 4 Max 12 cm Black 94 m³/h 1.74 mmH2O

Air cooler Alpenföhn Brocken 4 Max Photo 1

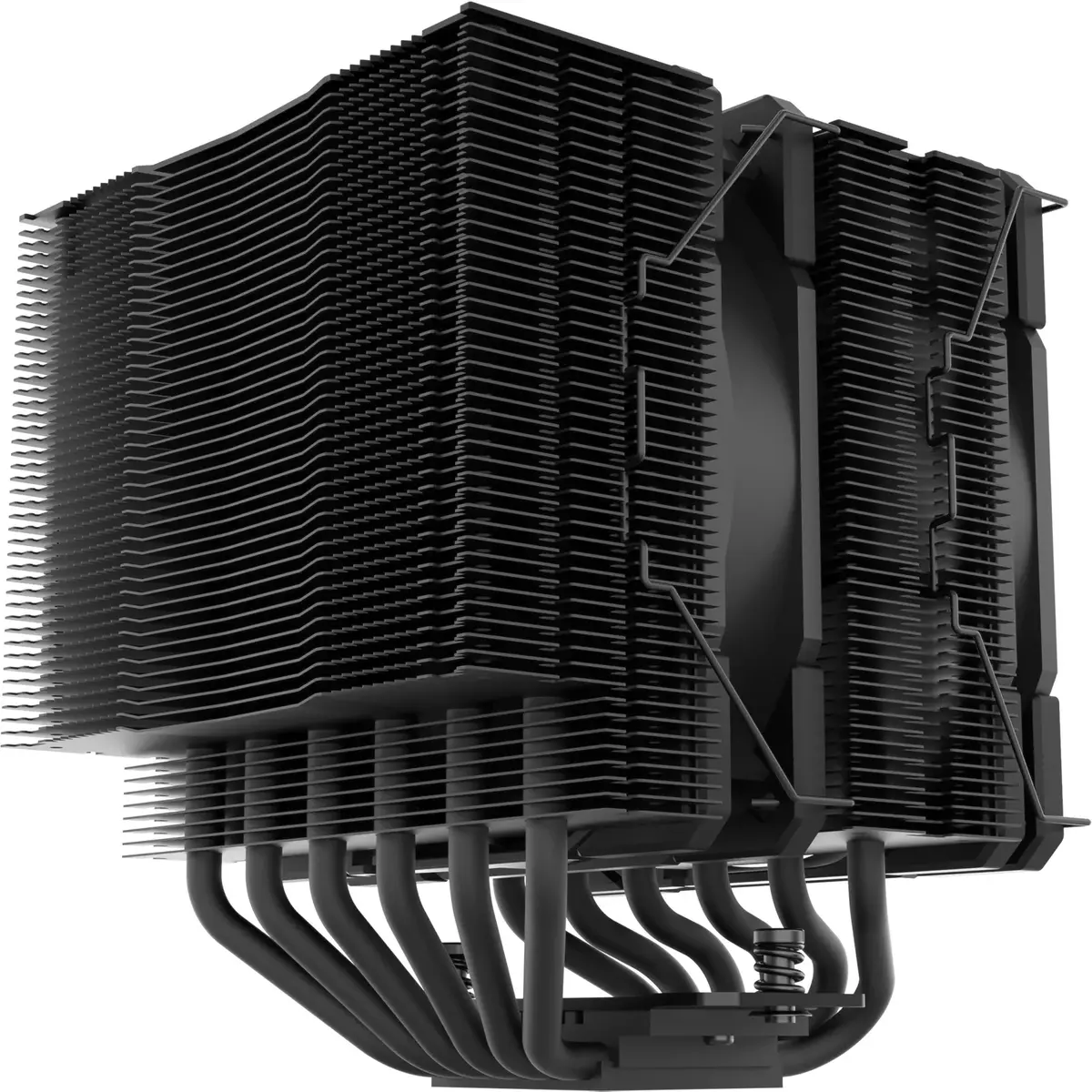

Air cooler Alpenföhn Brocken 4 Max Photo 2

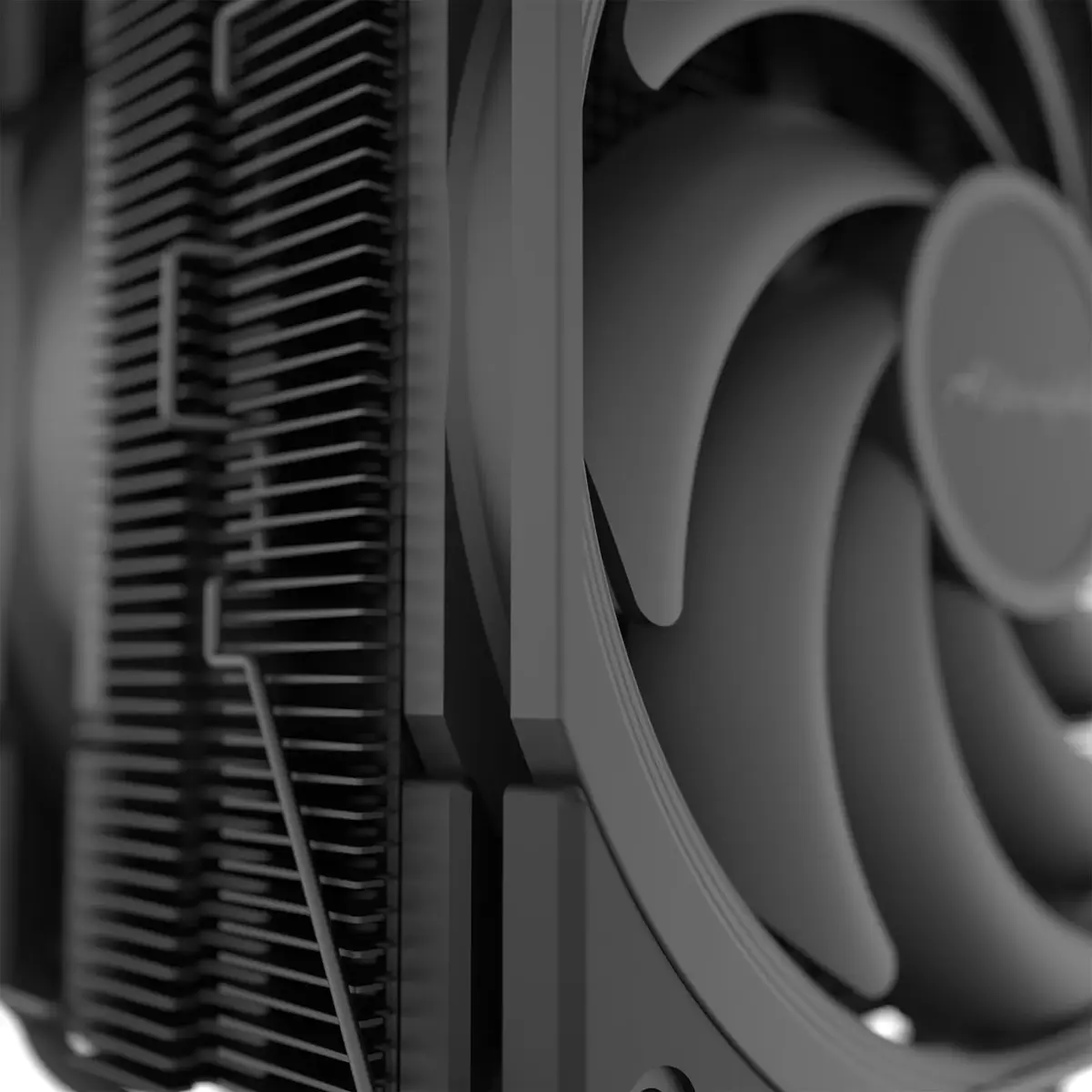

Air cooler Alpenföhn Brocken 4 Max Photo 3

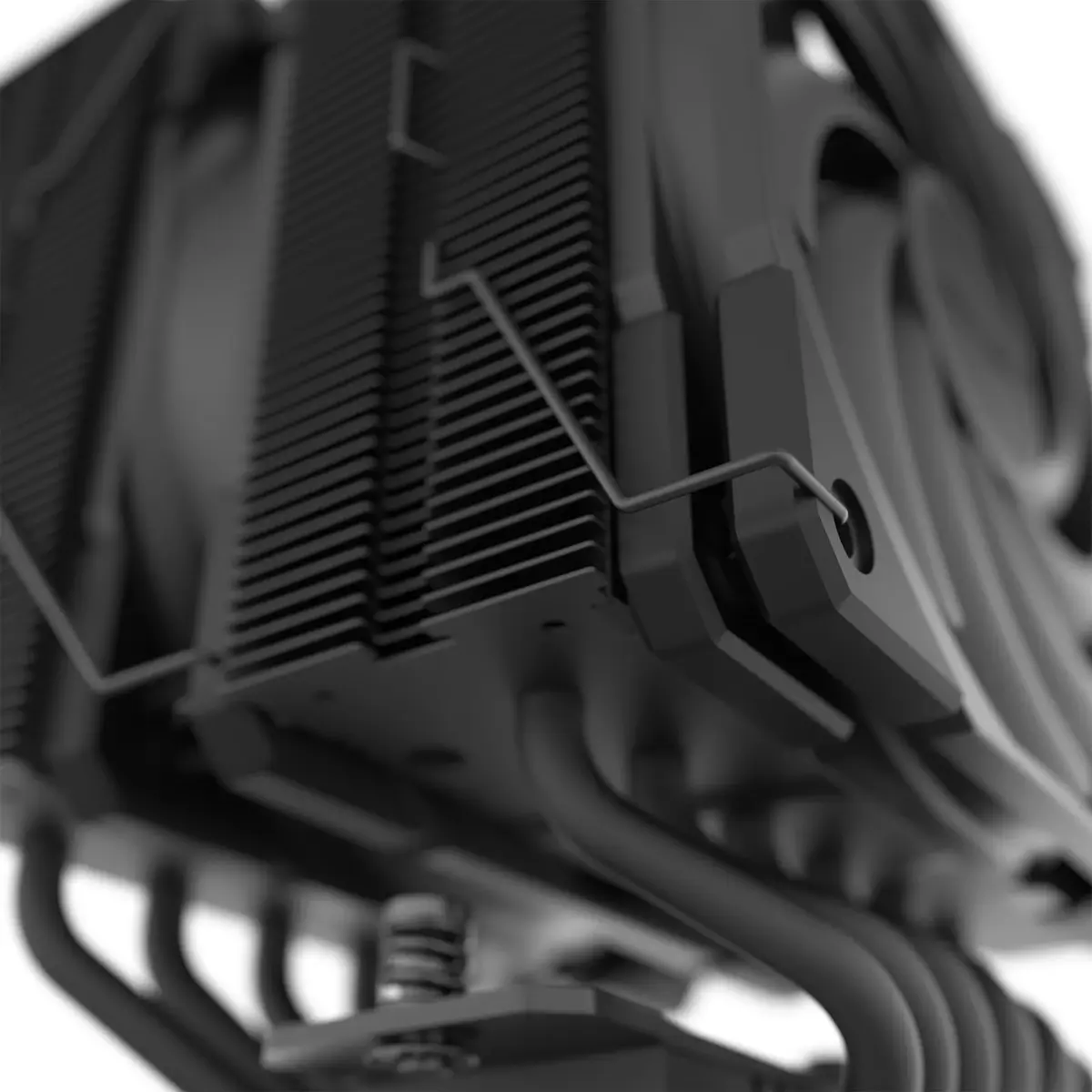

Air cooler Alpenföhn Brocken 4 Max Photo 4

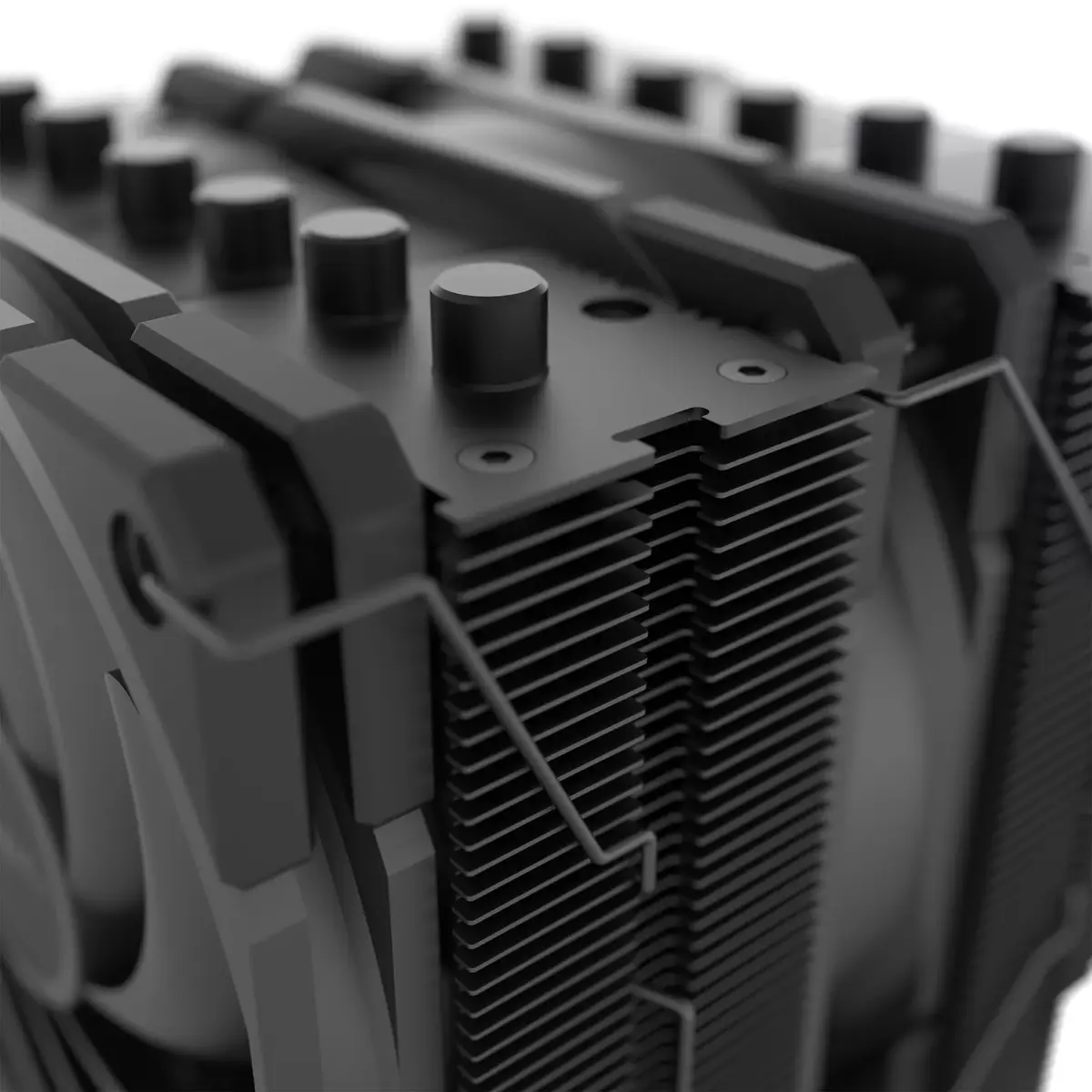

Air cooler Alpenföhn Brocken 4 Max Photo 5

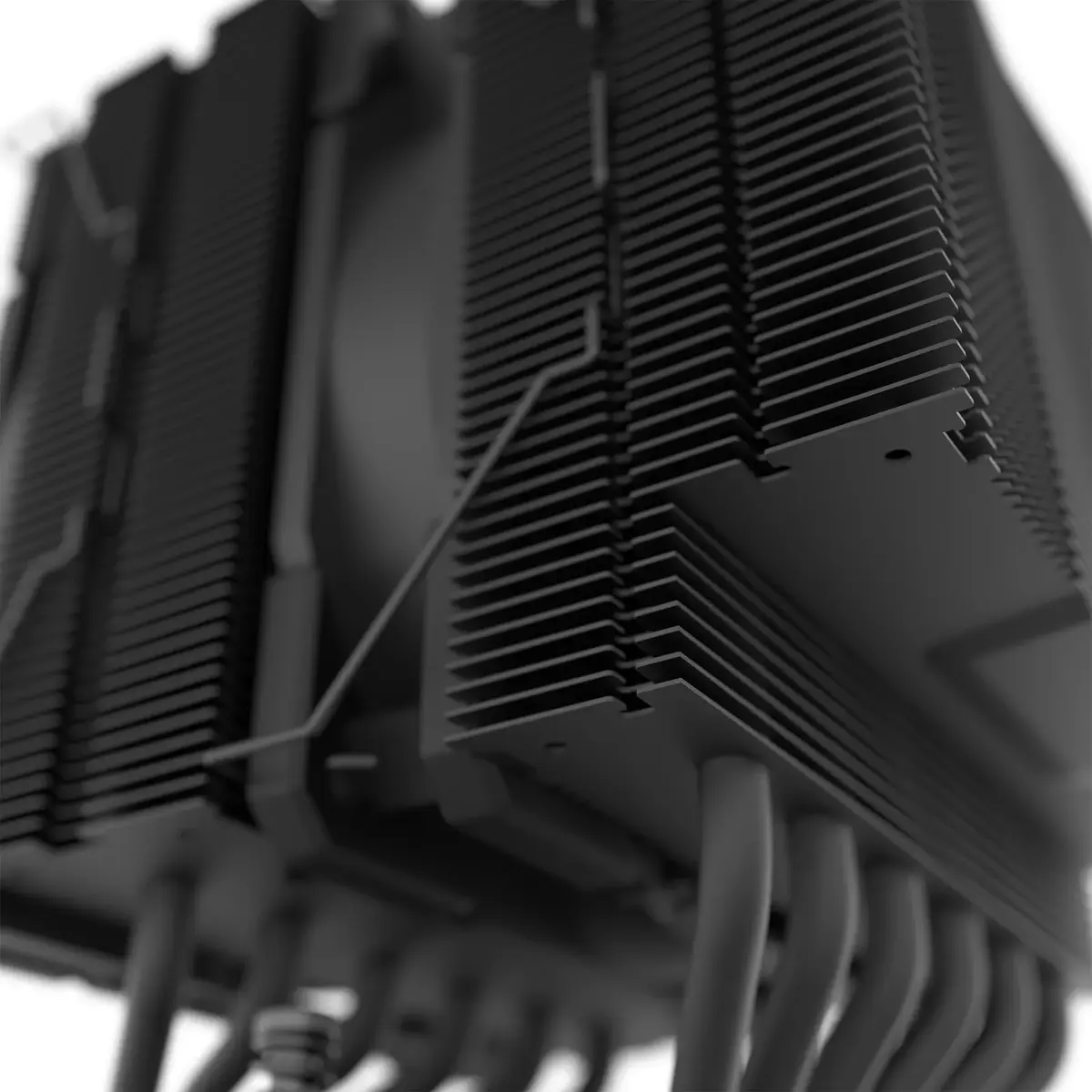

Air cooler Alpenföhn Brocken 4 Max Photo 6

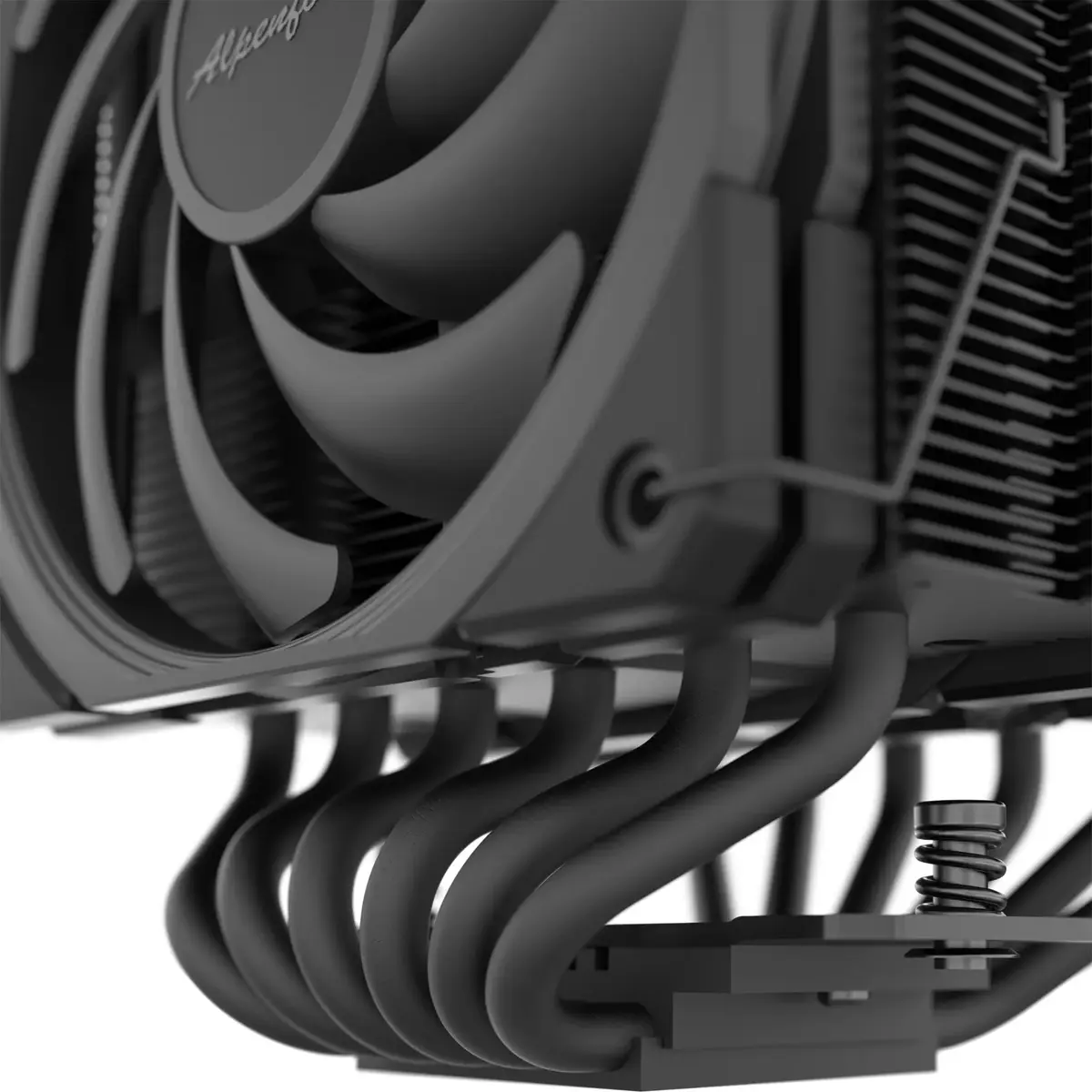

Air cooler Alpenföhn Brocken 4 Max Photo 7

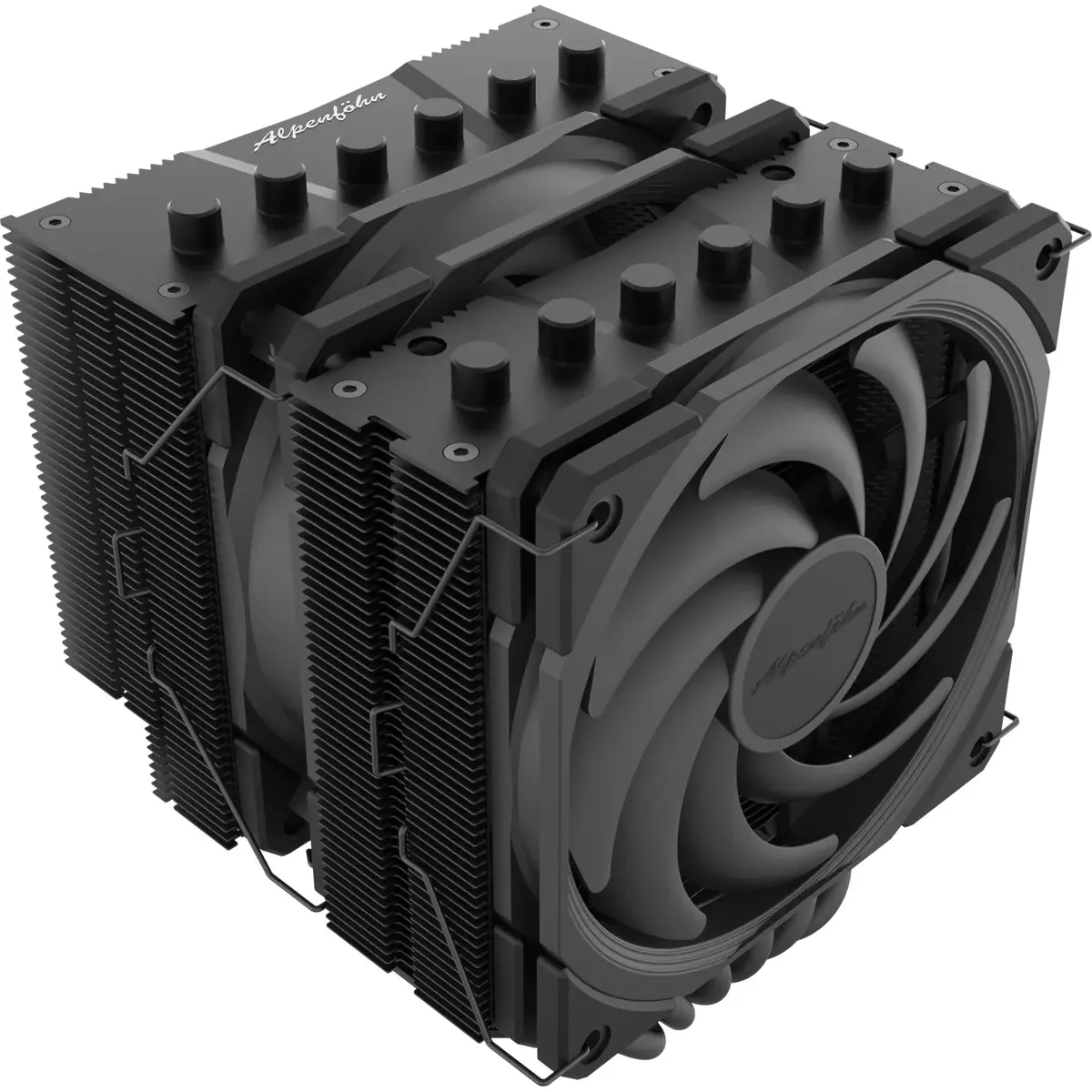

Air cooler Alpenföhn Brocken 4 Max Photo 8

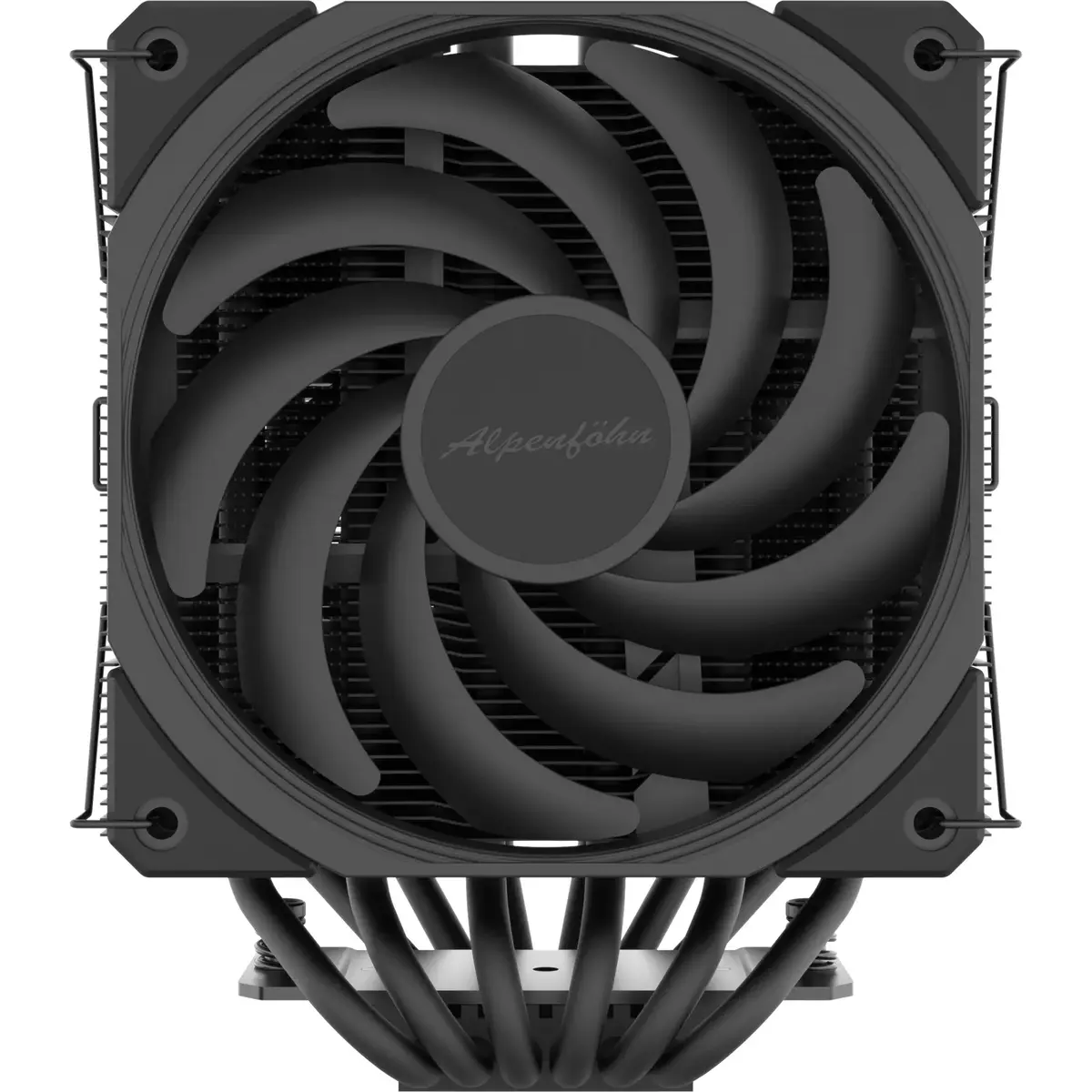

Air cooler Alpenföhn Brocken 4 Max Photo 9

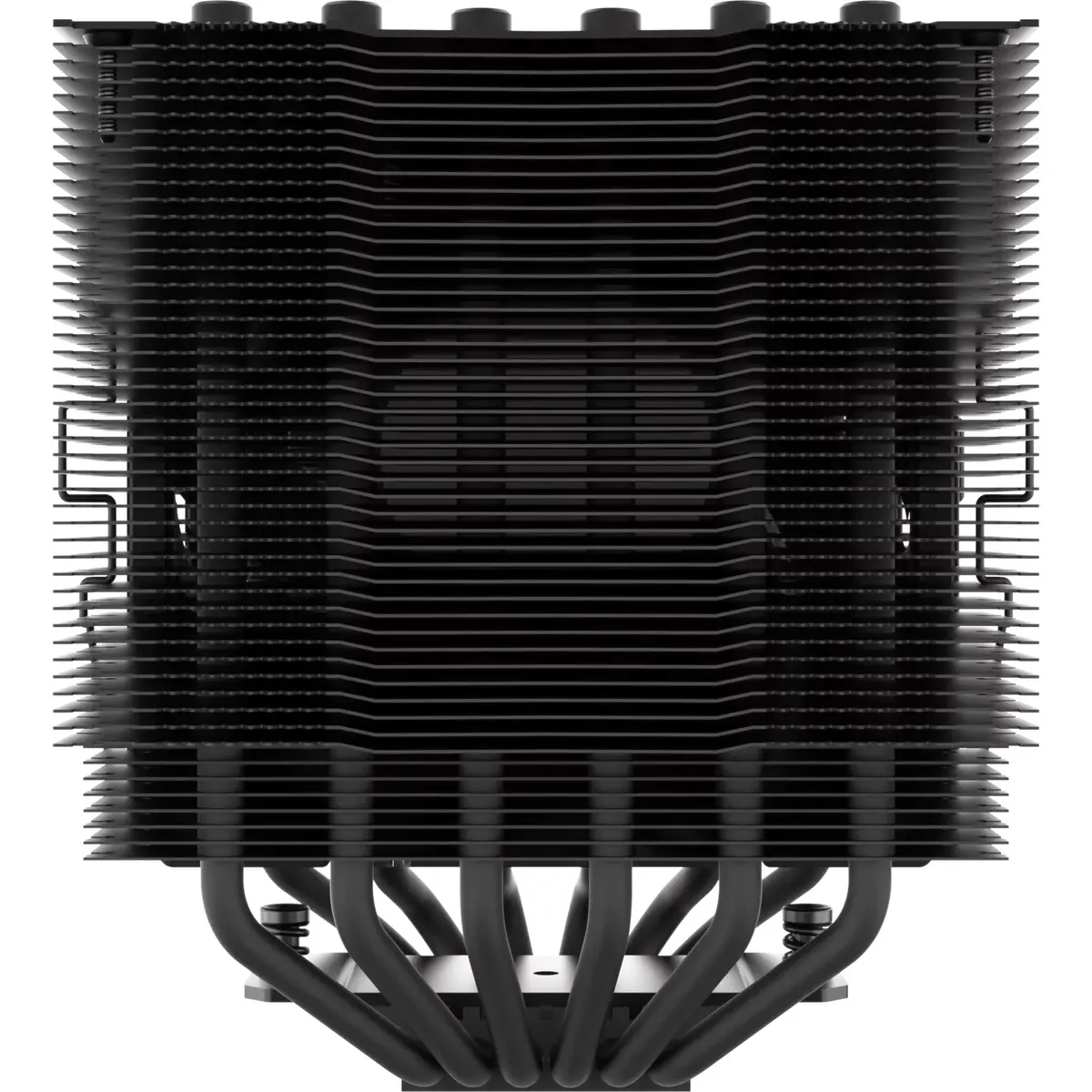

Air cooler Alpenföhn Brocken 4 Max Photo 10

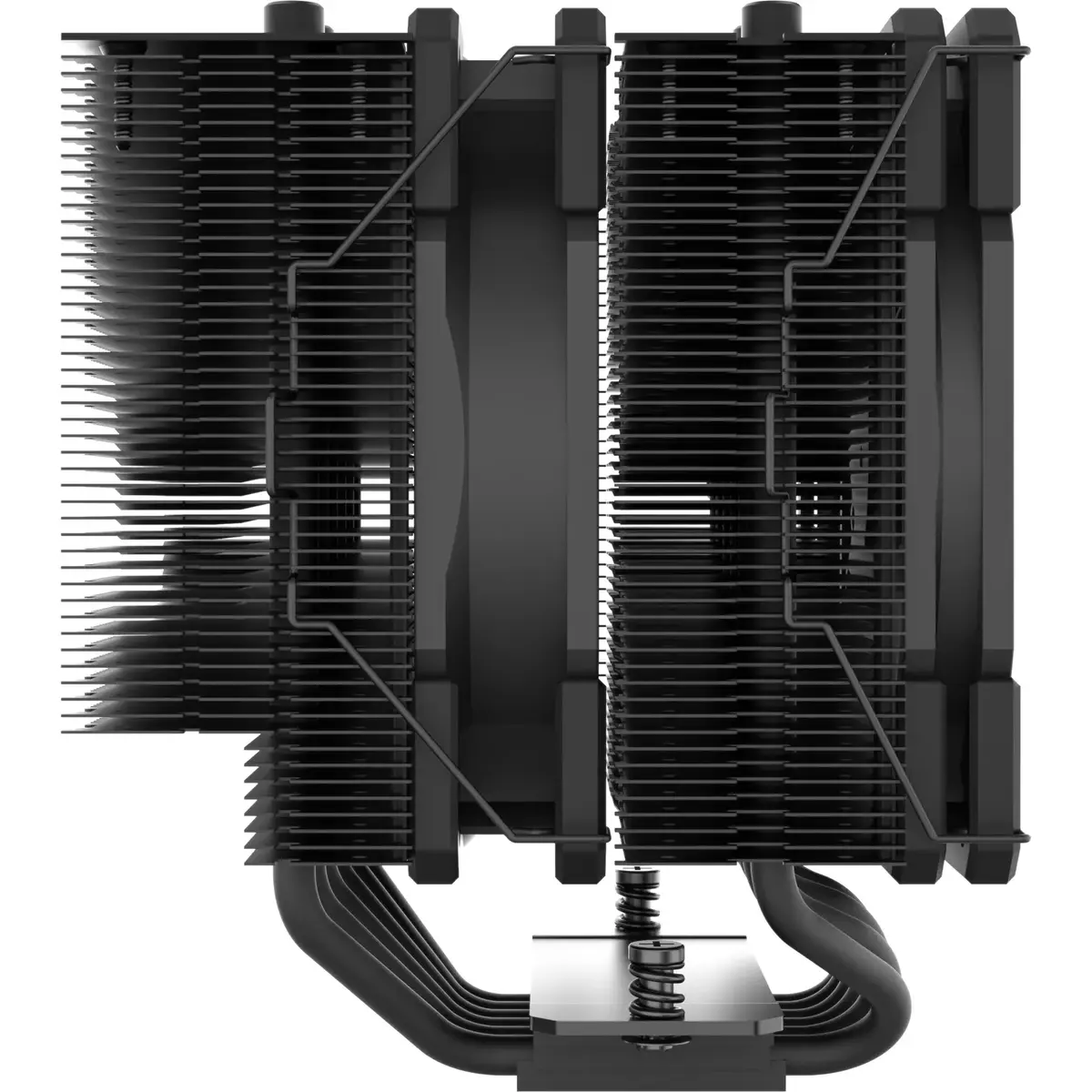

Air cooler Alpenföhn Brocken 4 Max Photo 11

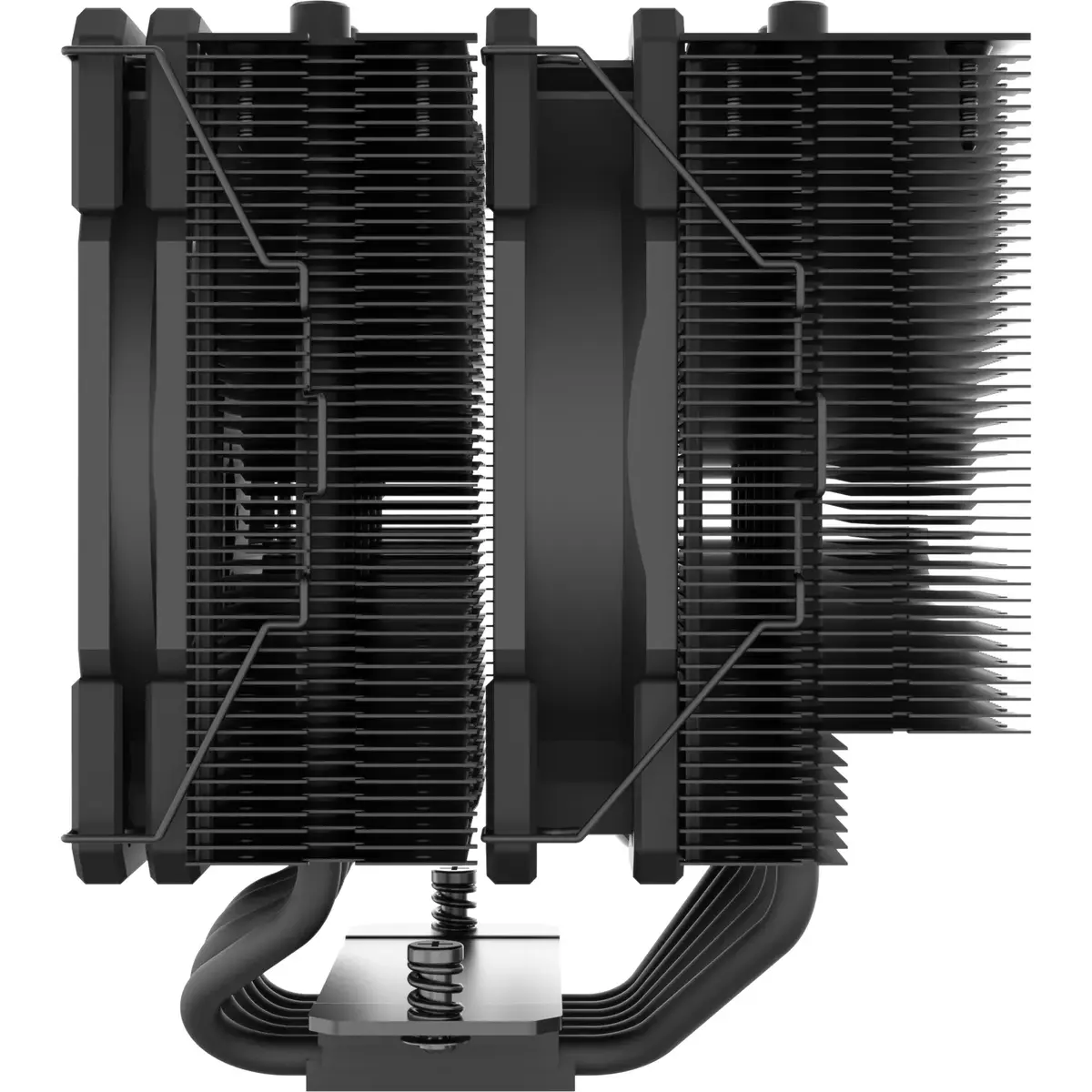

Air cooler Alpenföhn Brocken 4 Max Photo 12

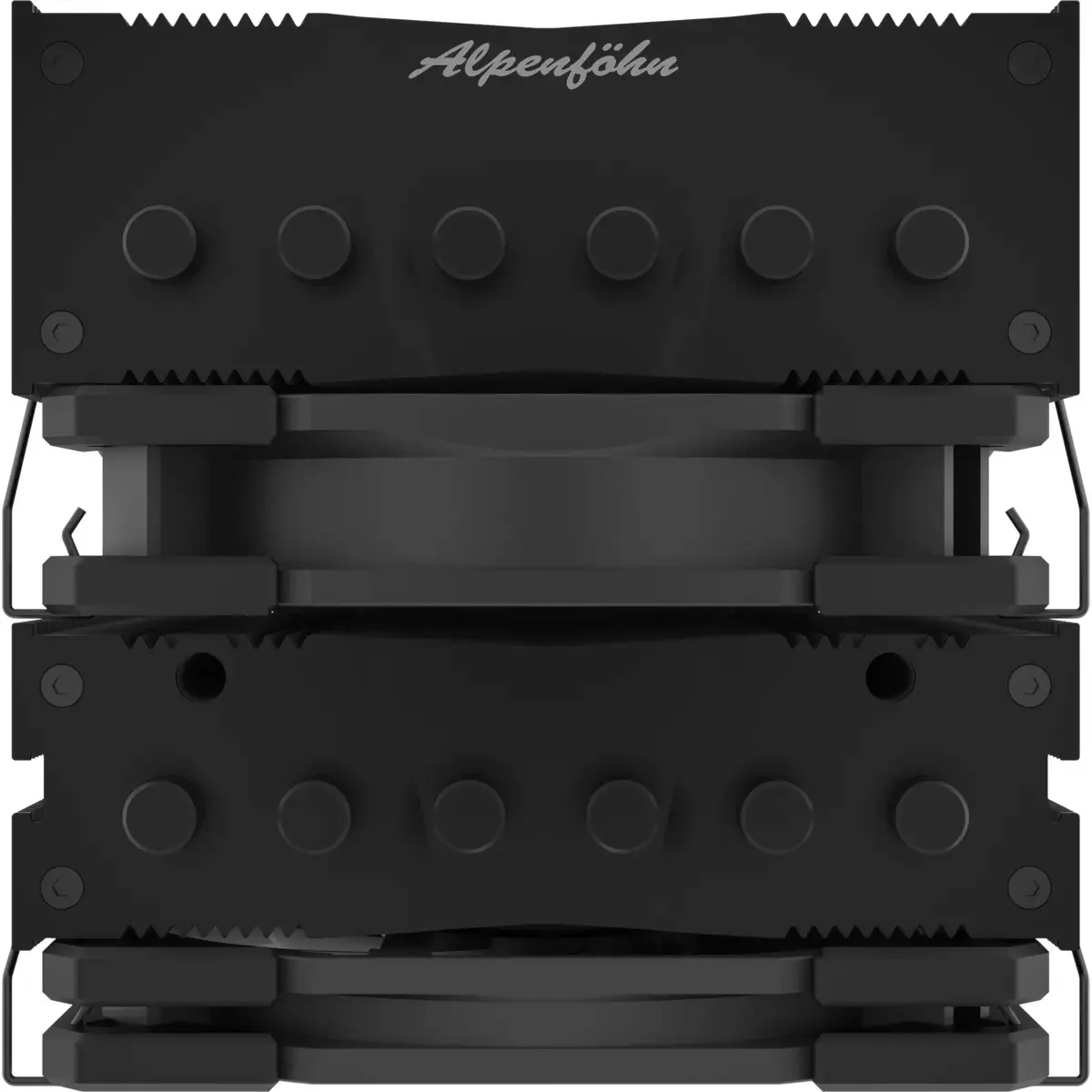

Air cooler Alpenföhn Brocken 4 Max Photo 13

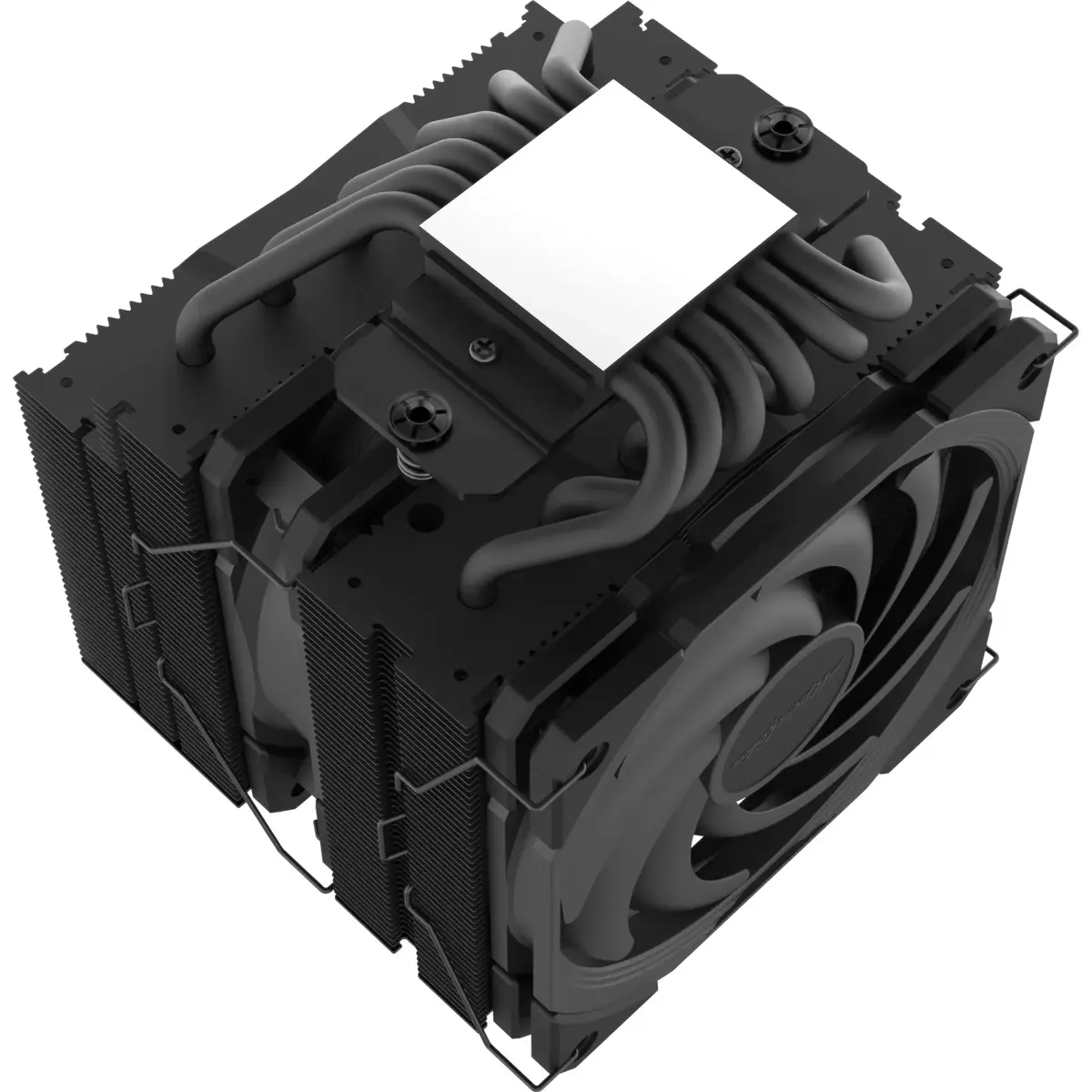

Air cooler Alpenföhn Brocken 4 Max Photo 14

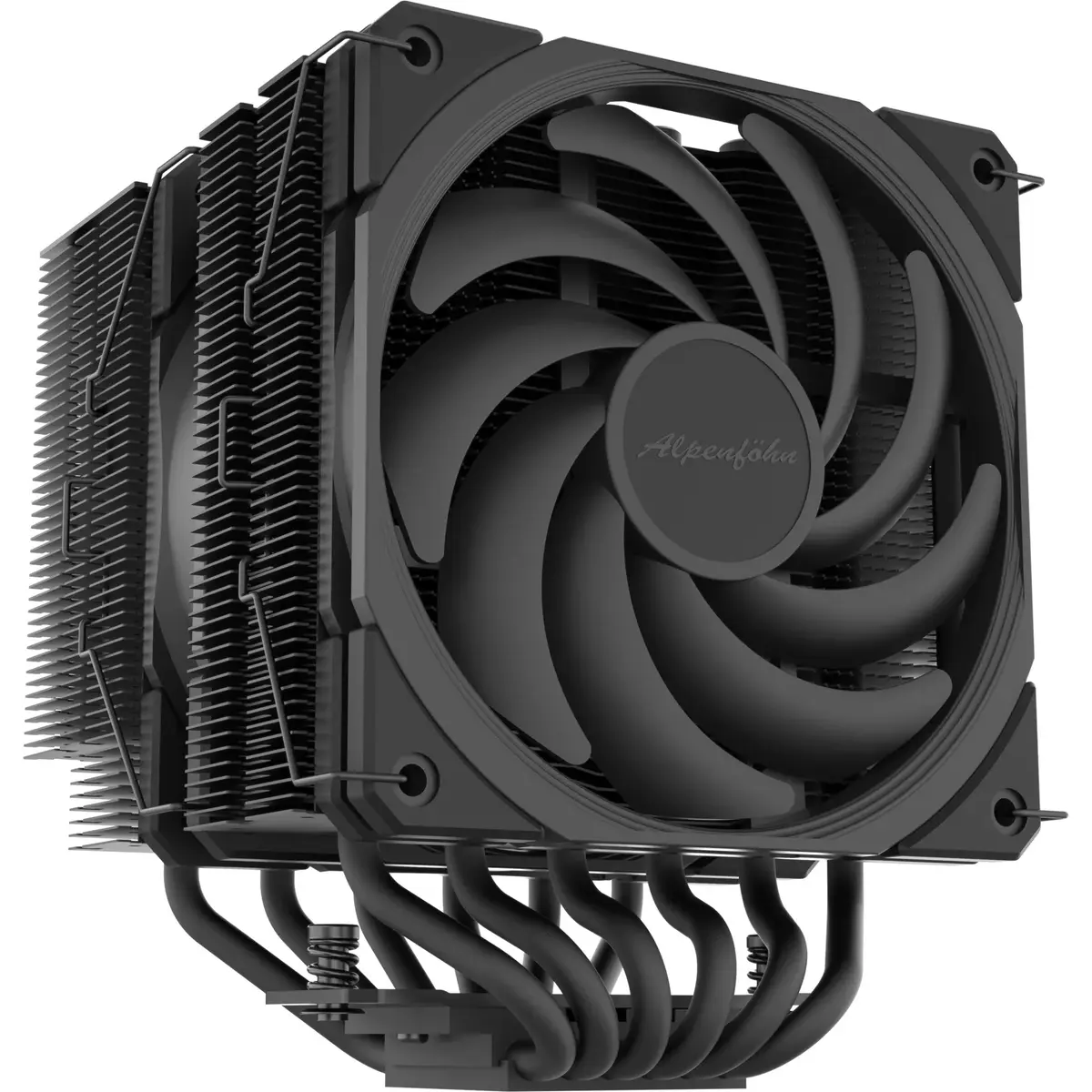

Air cooler Alpenföhn Brocken 4 Max Photo 15

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Alpenföhn Brocken 4 Max is a high-performance air cooler with a 12 cm fan diameter, providing an airflow of 94 m³/h and a maximum air pressure of 1.74 mmH2O. Its dimensions are 127 mm in width, 129 mm in depth, and 158 mm in height, all in a sleek black finish. This cooler is designed for efficient heat dissipation, making it ideal for high-performance CPUs.

Available for order: 50 pcs.

Warranty: 2 Years

SKU: 11096180

Manufacturer: Alpenföhn

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.60 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 33.83 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 2.82 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Alpenföhn Brocken 4 Max 12 cm Black is a high-performance air cooler designed for demanding CPU cooling tasks. It features a 120 mm JetStream fan delivering up to 94 m³/h airflow and a maximum static pressure of 1.74 mmH2O. The cooler uses six 6 mm heat pipes connected to a large nickel-plated copper baseplate and an asymmetric dual-tower heatsink with a matt black surface coating. Compact external dimensions (127 mm W × 129 mm D × 158 mm H) and a weight of 1.263 kg make this cooler suitable for many tower and mid-tower systems while supporting a thermal design power (TDP) of up to 250 W.

Advantages

The Brocken 4 Max combines an aerodynamically optimised fin design and JetStream fans with next-generation bearings to provide efficient heat dissipation with low noise and reduced vibration. Six high-quality heat pipes and a large-area copper baseplate ensure fast heat transfer from the CPU to the heatsink. Its asymmetric heatsink layout and matt black coating enhance RAM compatibility and offer a discreet appearance in black system builds. The cooler also supports expansion with an additional 120 mm fan for increased performance.

Suitable for

High-performance desktop CPUs in gaming and workstation builds
Systems requiring silent operation under load
Compact tower and mid-tower cases with clearance for a 158 mm cooler height
Builds that need good RAM clearance due to the asymmetric heatsink
Users who may add a second 120 mm fan for improved cooling

Key specifications

Type: Air cooler with dual-tower heatsink and optional second fan
Fan diameter: 120 mm (JetStream fan)
Airflow: 94 m³/h
Maximum air pressure: 1.74 mmH2O
Heat pipes: 6 × 6 mm high-end heat pipes
Baseplate: Nickel-plated copper baseplate for large-area contact
Surface finish: Matt black coating on heatsink
Dimensions (W × D × H): 127 × 129 × 158 mm
Weight: 1.263 kg
TDP rating: 250 W
Supported CPU sockets: multiple Intel and AMD desktop sockets including LGA 1700 and AM4

How to use

Install the Brocken 4 Max following the included Rock Mount 3 mounting system instructions appropriate to your CPU socket. Fit the nickel-plated copper baseplate flush to the CPU heatspreader using thermal compound and tighten mounting hardware to the recommended torque. Ensure the fan is connected to a motherboard fan header and oriented to provide airflow through the heatsink fins. If additional cooling is desired, attach the optional second 120 mm fan using the supplied clamps and decoupling elements on the opposite side of the heatsink.

Usage recommendations

Place the cooler so airflow aligns with your case exhaust configuration for optimal heat removal. Verify RAM clearance on your specific motherboard and memory modules before final installation. Clean dust from the fins and fan blades periodically to maintain cooling efficiency and low noise.

Specifications

Type:: Air cooler
Fan diameter:: 120 mm
Weight:: 1.263 kg
Thermal Design Power (TDP):: 250 W
Supported processor sockets:: Socket AM4, LGA 2066, LGA 2011-v3 (Socket R), LGA 2011 (Socket R), LGA 1700, LGA 1200 (Socket H5), LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1151 (Socket H4), LGA 1150 (Socket H3)
Product colour:: Black

All features

Performance

Type:: Air cooler
Fan diameter:: 120 mm
Supported processor sockets:: Socket AM4, LGA 2066, LGA 2011-v3 (Socket R), LGA 2011 (Socket R), LGA 1700, LGA 1200 (Socket H5), LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1151 (Socket H4), LGA 1150 (Socket H3)
Airflow:: 94 m³/h
Maximum air pressure:: 1.74 mmH2O
Pulse-width modulation (PWM) support:: Yes
Suitable location:: Processor
Fan speed (max):: 1600 RPM
Fan speed (min):: 400 RPM
Quantity per pack:: 1 pc(s)
Fan noise level (max):: 22.8 dB
Fan 2 rotational speed (min):: 400 RPM
Fan 2 rotational speed (max):: 1800 RPM
Fan 2 noise level (high speed):: 24.7 dB
Fan 2 maximum air pressure:: 1.2 mmH2O
Fan bearing technology:: Hydraulic bearing

Design

Product colour:: Black
Number of fans:: 2 fan(s)
Number of heat pipes:: 6
Fins material:: Aluminium
Base plate material:: Copper
Fan connector:: 4-pin
Radiator material:: Aluminum
Number of fan blades:: 9

Weight & dimensions

Heat pipes diameter:: 6 mm
Weight:: 1.263 kg
Height:: 158 mm
Width:: 127 mm
Depth:: 129 mm
Fan dimensions (W x D x H):: 120 x 120 x 27
Fan 2 dimensions (W x D x H):: 120 x 120 x 16

Power

Thermal Design Power (TDP):: 250 W
Rated current:: 0.15 A
Fan voltage:: 12 V
Fan power consumption:: 1.8 W

Packaging content

Package type:: Box
Mounting kit:: Yes
Screws included:: Yes
Installation instruction:: Yes
CPU bracket(s):: Yes

Other features

Fan rated voltage:: 5 - 13.2
