Air cooler Alpenföhn Brocken 4

Name: Air cooler Alpenföhn Brocken 4 84000000205
Brand: Alpenföhn
SKU: 10653272
Price: 59.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Air cooler Alpenföhn Brocken 4 12 cm Black 94 m³/h 1.74 mmH2O

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Alpenföhn Brocken 4 is an air cooler designed for efficient cooling with a 12 cm fan diameter. It offers an airflow of 94 m³/h and a maximum air pressure of 1.74 mmH2O. Its compact dimensions of 127 mm width, 92 mm depth, and 155 mm height make it suitable for various setups. The sleek black design adds a modern touch to your system.

Available for order: 11 pcs.

Warranty: 2 Years

SKU: 10653272

Manufacturer: Alpenföhn

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.50 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

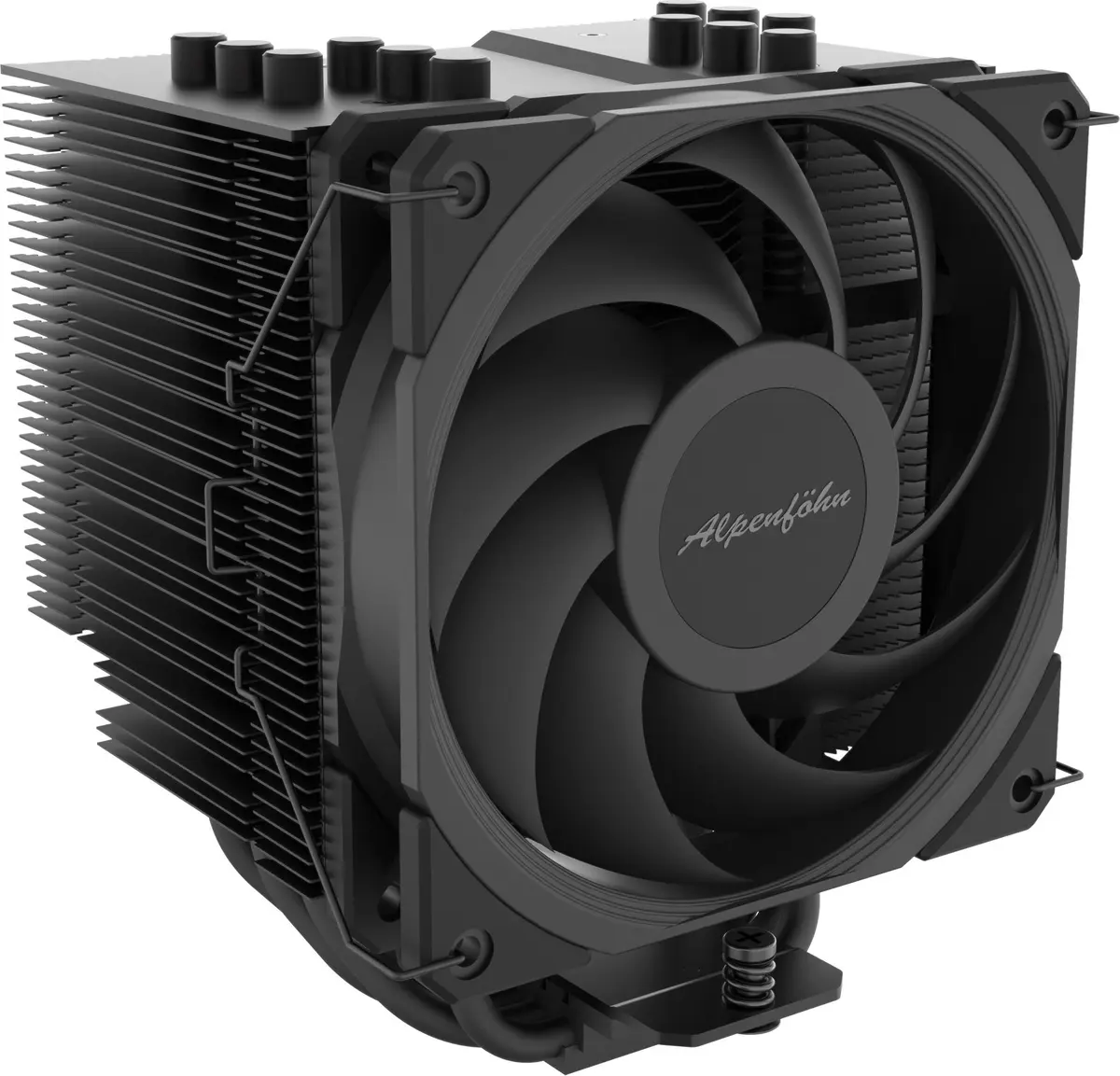

The Alpenföhn Brocken 4 is a high-performance 220 W TDP air cooler with a 120 mm JetStream fan, matt black finish and a compact footprint (127 × 92 × 155 mm). It combines six 6 mm heat pipes, a nickel-plated copper base plate and a large asymmetric heatsink with an aerodynamically optimised fin design to move heat away from the CPU efficiently while maintaining low noise levels. The cooler is compatible with a wide range of sockets including Intel LGA 1700 / 1200 / 115x and AMD AM5 / AM4.

Advantages

Brocken 4 uses JetStream fans with an airflow-optimised impeller, a modified frame and next-generation bearings for smooth operation under load. The six high-end heat pipes are joined to the nickel-plated copper base plate over a large contact area for efficient heat transfer to the large-area heatsink. A matt black surface coating gives the heatsink a uniform appearance, while the asymmetric design preserves full RAM clearance and compatibility on supported sockets.

Suitable for

Silent to moderate-noise desktop systems that require up to 220 W TDP cooling
Compact and mid-tower builds where a 120 mm tower cooler is preferred
Systems with tall RAM modules thanks to the asymmetrical heatsink design

Key specifications

Type: Air cooler
Fan diameter: 120 mm (JetStream fan)
Airflow: 94 m³/h
Max static pressure: 1.74 mmH2O
TDP: 220 W
Heat pipes: 6 × 6 mm
Base plate: Nickel-plated copper
Dimensions (W × D × H): 127 × 92 × 155 mm
Weight: 1.098 kg
Colour: Black (matt coating)
Supported sockets: Intel LGA 1700, 1200, 115x (and similar listed), AMD AM5, AM4

How to use

Install the included Rock Mount 3 mounting system according to the motherboard socket type. Secure the base plate to the CPU with an appropriate thermal paste, position the heatsink so that it clears RAM modules, and fasten it using the supplied brackets. Connect the 4‑pin fan cable to the CPU fan header to allow PWM control. If higher cooling performance is needed, mount an additional 120 mm fan on the opposite side using the supplied fan clamps and decoupling elements.

Usage recommendations

Use a compatible thermal paste and ensure the fan header supports PWM for automatic speed control; add a second fan only if your case layout and clearances permit it.

Specifications

Type:: Air cooler
Fan diameter:: 120 mm
Weight:: 1.098 kg
Thermal Design Power (TDP):: 220 W
Supported processor sockets:: Socket AM4, LGA 2066, LGA 2011-v3 (Socket R), LGA 2011 (Socket R), LGA 1700, LGA 1200 (Socket H5), LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1151 (Socket H4), LGA 1150 (Socket H3)
Product colour:: Black

All features

Performance

Type:: Air cooler
Fan diameter:: 120 mm
Supported processor sockets:: Socket AM4, LGA 2066, LGA 2011-v3 (Socket R), LGA 2011 (Socket R), LGA 1700, LGA 1200 (Socket H5), LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1151 (Socket H4), LGA 1150 (Socket H3)
Airflow:: 94 m³/h
Maximum air pressure:: 1.74 mmH2O
Pulse-width modulation (PWM) support:: Yes
Suitable location:: Processor
Fan speed (max):: 1600 RPM
Fan speed (min):: 400 RPM
Quantity per pack:: 1 pc(s)
Fan noise level (max):: 22.8 dB
Fan's mean time to failure (MTTF):: 300000 h
Fan bearing technology:: Hydro bearing

Design

Product colour:: Black
Number of fans:: 1 fan(s)
Number of heat pipes:: 6
Fins material:: Aluminium
Base plate material:: Copper
Fan connector:: 4-pin
Radiator material:: Aluminum
Number of fan blades:: 9

Weight & dimensions

Heat pipes diameter:: 6 mm
Weight:: 1.098 kg
Height:: 155 mm
Width:: 127 mm
Depth:: 92 mm
Fan dimensions (W x D x H):: 120 x 120 x 27

Power

Thermal Design Power (TDP):: 220 W
Rated current:: 0.15 A
Fan voltage:: 12 V
Fan power consumption:: 1.8 W

Packaging content

Package type:: Box
Mounting kit:: Yes
Screws included:: Yes
Installation instruction:: Yes
CPU bracket(s):: Yes

Other features

Fan rated voltage:: 5 - 13.2
