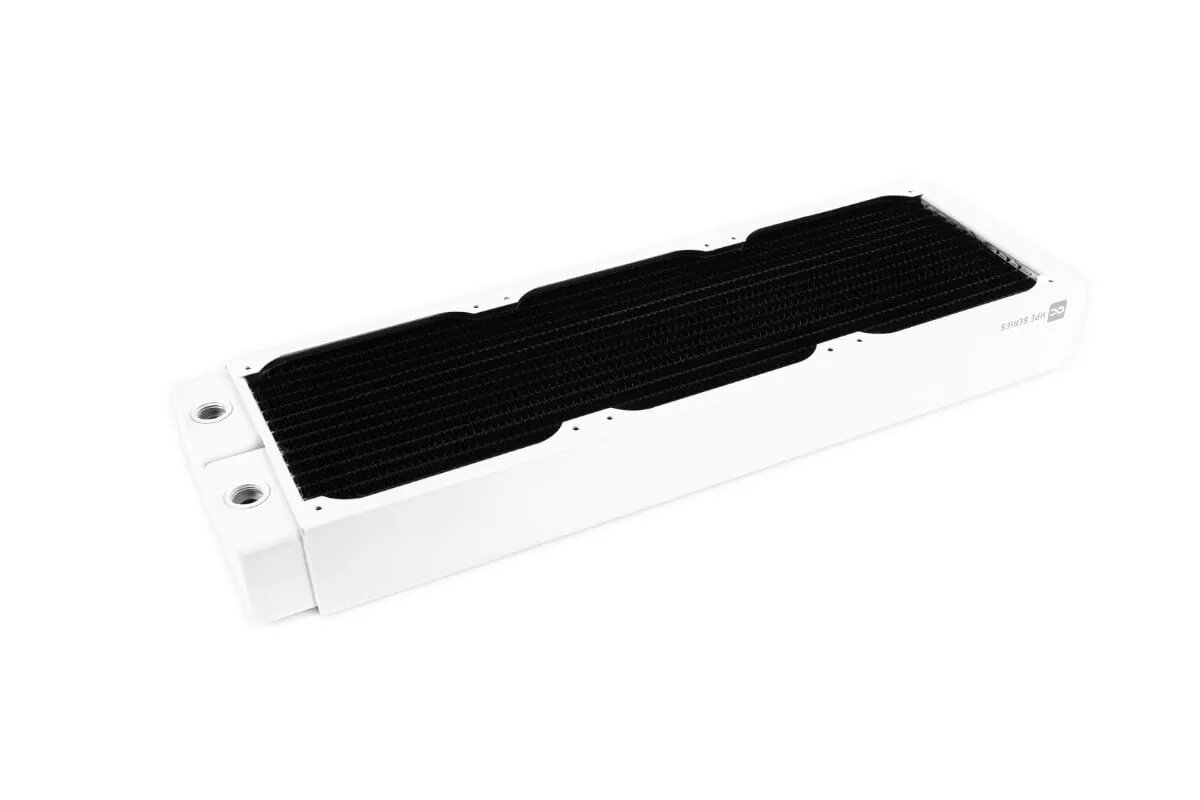

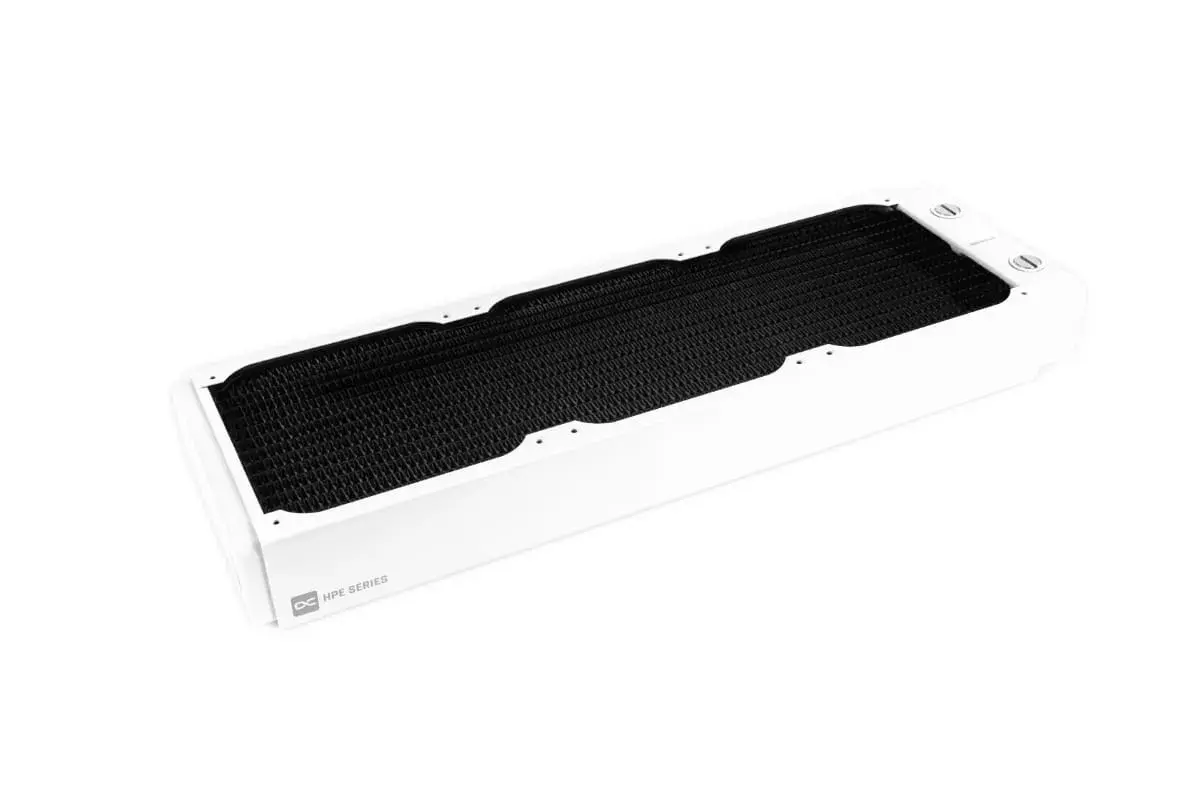

Radiator Aquatuning GmbH 1025509 Copper Black White 124mm 45mm

The Alphacool HPE full copper radiator builds on more than a decade of Alphacool experience with NexXxoS full copper radiators. Manufactured with pure copper water-bearing parts and fins, this 124 mm × 45 mm radiator increases internal channel density and fin rows to enlarge the volume of water in direct contact with cooling fins. Compared with conventional NexXxoS models, the HPE design improves heat transfer and can deliver up to approximately 4.5 K better cooling in standard conditions and up to about 6 K under higher ambient temperatures and fan speeds. The radiator includes two G1/4" threaded IN/OUT connections in the pre-chamber area and a dedicated fill/drain port on the opposite side. It is supplied with the screws required for case and fan mounting and weighs about 1.24 kg.

Advantages

The HPE full copper construction provides high thermal conductivity and durability thanks to all water-bearing parts and fins being made from pure copper. A denser internal structure with more water channels and shortened fin rows increases effective contact between coolant and fins, improving heat dissipation. Built-in protective plates under mounting holes prevent screws from penetrating too deeply and damaging fins or channels. Alphacool’s patented recessed screw plugs sit flush with the radiator surface to allow seamless installation without protruding plugs.

Suitable for

• Custom water-cooling loops in compact or mid-size PC cases
• High-performance cooling applications where improved heat transfer is required
• Systems needing reliable, corrosion-resistant copper radiators

Key specifications

• Brand: Alphacool (Aquatuning GmbH distribution, MPN 10227, EAN 4250197102278)
• Model: HPE Full Copper Radiator
• Material: Full copper (water-bearing parts and fins)
• Dimensions: 124 mm (width) × 45 mm (height)
• Threaded connections: Two G1/4" IN/OUT in pre-chamber; one fill/drain port
• Weight: approximately 1.24 kg
• Includes mounting screws for case and fans; patented recessed screw plugs

How to use

Install the radiator in the case using the supplied screws, aligning fan and case mounting holes. Connect tubing to the G1/4" IN and OUT threaded ports as required by your loop configuration and use the opposite fill/drain port when filling or draining the circuit. Ensure fittings are tightened to prevent leaks but do not overtighten to avoid thread damage. Verify the radiator is mounted securely and that protective plates are in place beneath mounting screws to protect fins and channels.

Usage recommendations

For optimal results, use the HPE radiator in well-ventilated enclosures with appropriate fan profiles; higher fan speeds and operation in warmer ambient conditions can increase the relative performance advantage of the HPE design. Periodically inspect fittings, screws and fins for tightness and cleanliness; flush and refill the loop according to your coolant manufacturer’s guidelines.
