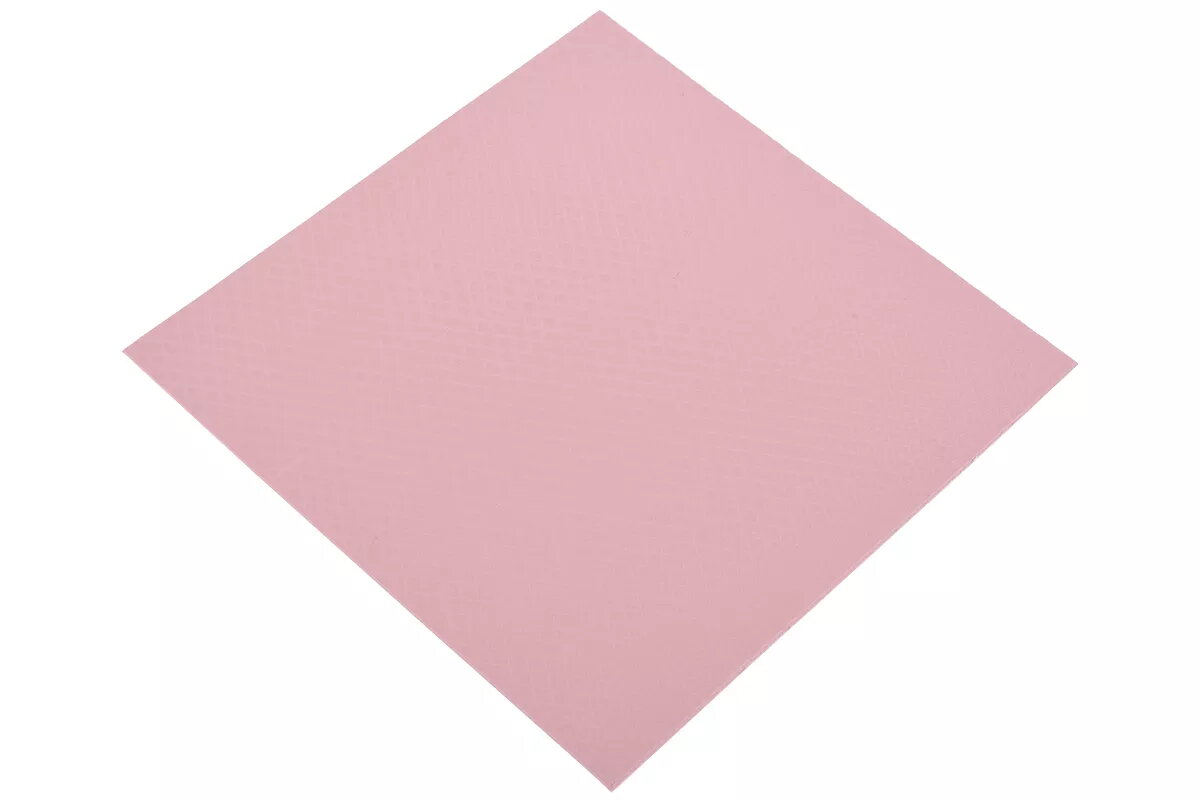

Thermal pad Alphacool 12856 7 W/m·K Pink 100x100x0.5 mm

Alphacool Eisschicht Light is a thermal pad with a thermal conductivity of 7 W/m·K designed to improve heat transfer between electronic components and cooling bodies. This 100x100x0.5 mm pink pad provides a thin, conformable interface ideal for closing small gaps and ensuring reliable contact where chips meet coolers in PCs and other devices.

Advantages

The Alphacool 12856 pad combines elasticity and self-adhesive properties to simplify mounting and positioning. Its 7 W/m·K performance offers effective thermal transfer for components such as RAM, GPU, and motherboard coolers. Available in precise thicknesses, the pad can be cut to size with scissors for a tailored fit without leaving rigid residues.

Suitable for

• RAM coolers and heat spreaders
• Motherboard chipset and VRM cooling
• Graphics card components and aftermarket GPU coolers
• CPU cooler contact areas with small height differences
• Custom electronics and compact PC builds requiring thin thermal interfaces

Key specifications

• Brand: Alphacool
• Model / MPN: 12856
• Thermal conductivity: 7 W/m·K
• Dimensions: 100 x 100 x 0.5 mm
• Color: Pink
• Material properties: elastic, self-adhesive, flexible
• EAN: 4250197128568

How to use

Clean both contact surfaces to remove dust, grease, or old thermal material. Cut the Alphacool Eisschicht Light to the required shape and size using scissors. Peel off the protective liner and position the pad on the cooler or component so it aligns with the chip area. Mount the cooler or heat spreader carefully to achieve even contact and avoid misalignment.

Usage recommendations

Use this 0.5 mm pad where only a small gap needs to be bridged; for larger height differences choose thicker Alphacool Eisschicht variants. Avoid stretching the pad during installation and replace if it becomes contaminated or damaged to maintain optimal thermal performance.
