Thermal pad Alphacool 13007 3 W/m·K 50x50x3 mm White

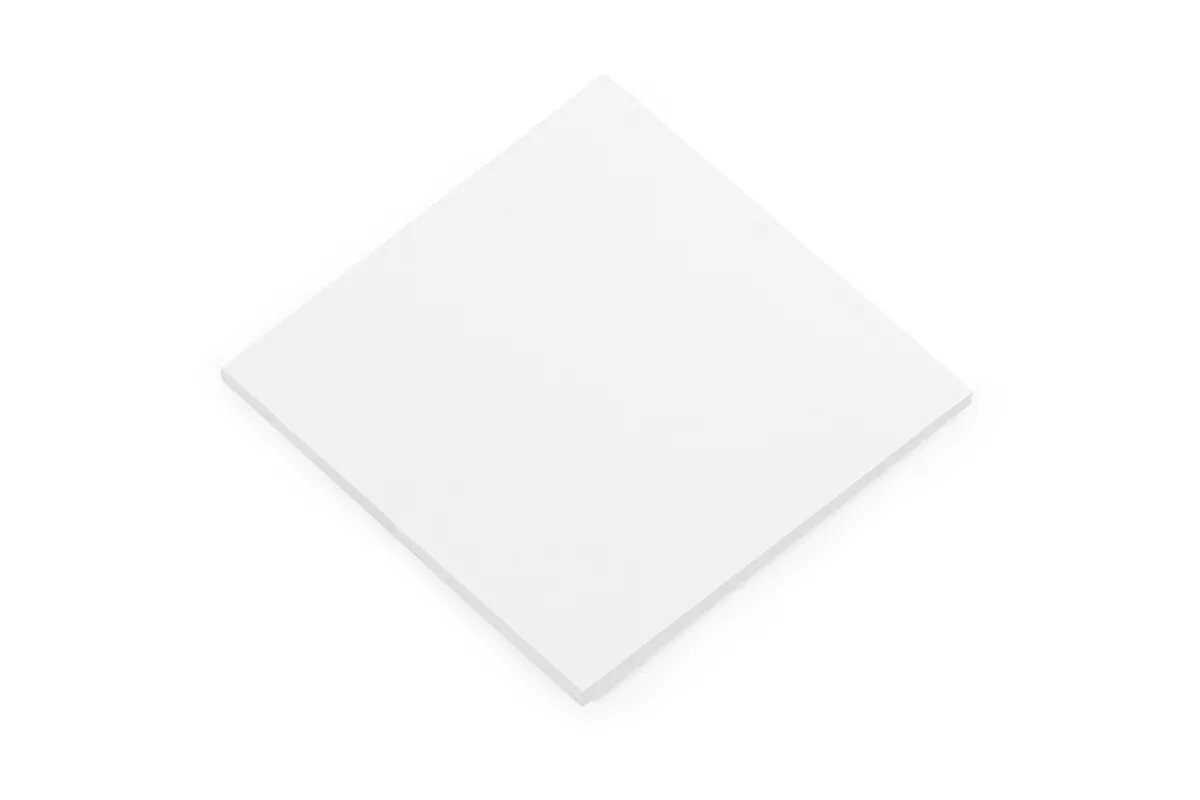

The Alphacool Ultra Soft Eisschicht thermal pad (13007) is a 50 x 50 x 3 mm white pad with a thermal conductivity of 3 W/m·K. Its viscous, fabric-reinforced material conforms to uneven surfaces and combines the handling of a pad with thermal-transfer properties close to thermal paste, enabling efficient heat transfer for electronic components such as VRAM, voltage regulators and other heat-generating parts.

Advantages

The Ultra Soft Eisschicht molds to component shapes and reduces air gaps, providing improved contact compared with standard stiff thermal pads. Its soft consistency lowers the risk of excessive mechanical stress on components and PCBs because excess material spreads instead of creating high point pressures. The special formulation resists drying and loss of performance over time, so it maintains thermal conductivity longer than conventional silicone-based pads. A fabric layer embedded in the pad stabilizes the material and allows it to be handled and cut like a conventional thermal pad.

Suitable for

• Cooling VRAM modules on graphics cards
• Thermal coupling of voltage regulators, MOSFETs and power stages
• Bridging uneven contact surfaces between coolers and electronic components
• Custom waterblock and heatsink installations, including Alphacool Eisblock Aurora GPU coolers

Key specifications

• Brand: Alphacool
• Model / MPN: 13007
• Thermal conductivity: 3 W/m·K
• Dimensions: 50 x 50 x 3 mm
• Color: White
• EAN: 4250197130073

How to use

Leave the protective foil on the pad while cutting it to the required size with scissors; the material cuts cleanly like paper and edges do not fray. Remove the foil from both sides before installing the pad between the cooler and the component. Align the pad so it fully covers the contact area; the ultra-soft material will conform to uneven surfaces under the cooler's mounting pressure to ensure good thermal contact.

Usage recommendations

For reliable results, choose pad thickness that matches component height differences and avoid excessive mounting torque. Use the Alphacool Ultra Soft Eisschicht for components that require durable, long-term thermal coupling and in installations where preventing PCB flex or point pressure is important.
