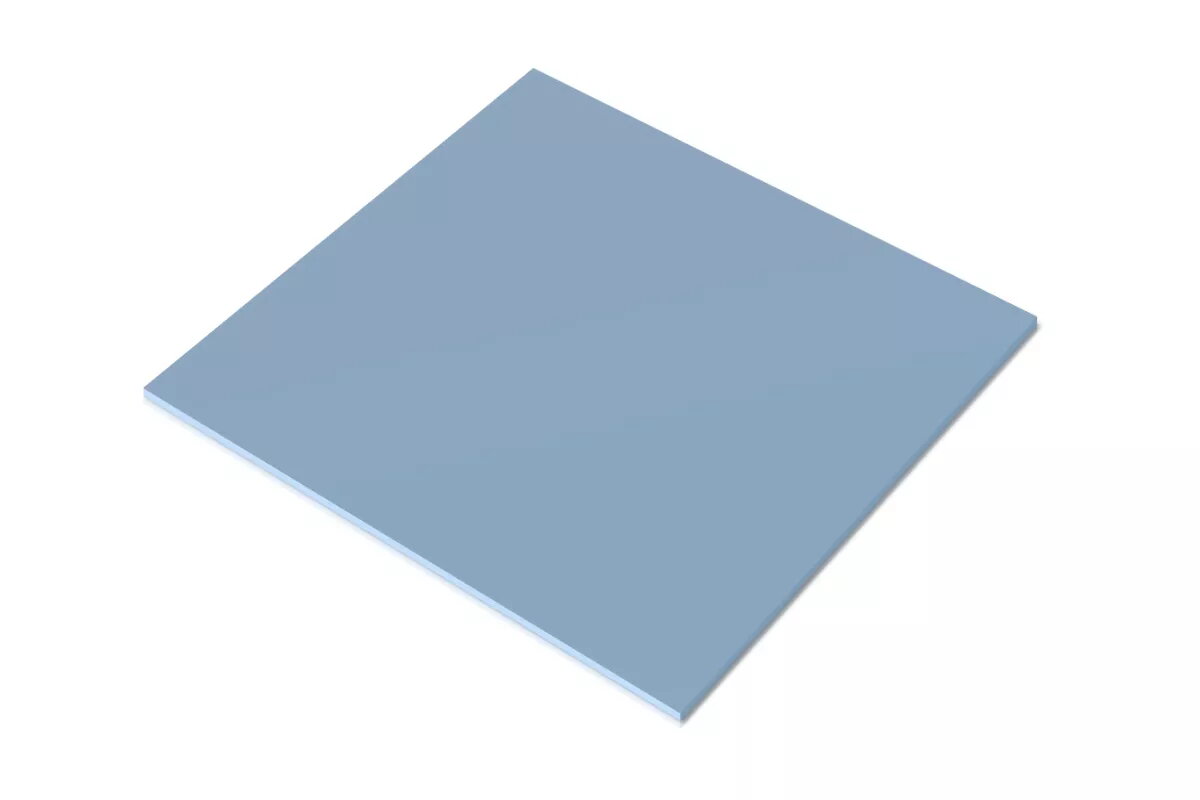

Thermal pad Alphacool Core 6.2 W/m·K 22 g 40x40x1.5 mm

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Alphacool Core thermal pad features a thermal conductivity of 6.2 W/m·K and a density of 3.1 g/cm³. Measuring 40 mm in width and depth with a height of 1.5 mm, it is designed for efficient heat transfer in electronic components. This thermal pad is ideal for enhancing cooling performance in various applications.

Available for order: 32 pcs.

Warranty: 2 Years

SKU: 10646391

Manufacturer: Alphacool

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

16.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

16.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Alphacool Core thermal pad provides effective heat dissipation for a wide range of electronic components. With a thermal conductivity of 6.2 W/m·K, a density of 3.1 g/cm³ and dimensions of 40×40×1.5 mm, this silicone-based pad is suitable for improving thermal transfer on components such as voltage converters, VRAM chips on graphics cards, and circuit parts inside game consoles, increasing operational stability and longevity.

Advantages

The soft, silicone-based construction offers low hardness and natural tackiness, allowing the pad to conform closely to uneven surfaces and fill gaps between components and heatsinks. This close contact improves heat transfer compared with typical standard thermal pads. The Core pad’s special material composition reduces the risk of silicone bleeding, which supports a longer service life without significant loss of thermal performance. The material is electrically insulating, enabling safe use near live circuits.

Suitable for

Voltage regulators and VRAM on graphics cards
Electronic components in PlayStation and Xbox consoles
Motherboards, memory modules and power supplies
Servers, telecom equipment and access points
Mobile devices and LCD TVs
Electric vehicle electronics and autopilot modules

Key specifications

Brand: Alphacool
Model / MPN: 13409
EAN: 4250197134095
Thermal conductivity: 6.2 W/m·K
Density: 3.1 g/cm³
Dimensions: 40 × 40 × 1.5 mm
Weight: 22 g
Material: Silicone-based, electrically non-conductive

How to use

Clean both contacting surfaces thoroughly and remove any old thermal material or debris. Cut the thermal pad to the required shape if necessary, then peel off protective liners and place the pad onto the component or heatsink so it covers the contact area. Apply even pressure when assembling the cooling solution to allow the pad to compress and conform to surface irregularities. Ensure components are aligned before final assembly.

Usage recommendations

Use the Alphacool Core thermal pad where reliable electrical insulation is required alongside improved heat transfer. Avoid using on very high-voltage exposed contacts without additional protection. Store the pad in a dry, dust-free environment and inspect periodically for compression or wear; replace if thermal performance degrades over time.

Specifications

Thermal conductivity:: 6.2 W/m·K
Weight:: 0.022 kg
Operating temperature (T-T):: -50 - 150
Product colour:: Blue

All features

Features

Type:: Thermal pad
Operating temperature (T-T):: -50 - 150
Product colour:: Blue
Thermal conductivity:: 6.2 W/m·K
Elongation:: 50 %
Constitutive ingredients:: Silicone
Non-conductive:: Yes
Density:: 3.1 g/cm³
Non-bleeding:: Yes

Technical details

Flammability class:: V-0
Hardness (Shore OO scale):: 50

Weight & dimensions

Weight:: 0.022 kg
Height:: 1.5 mm
Width:: 40 mm
Depth:: 40 mm

Packaging data

Quantity per pack:: 1 pc(s)
