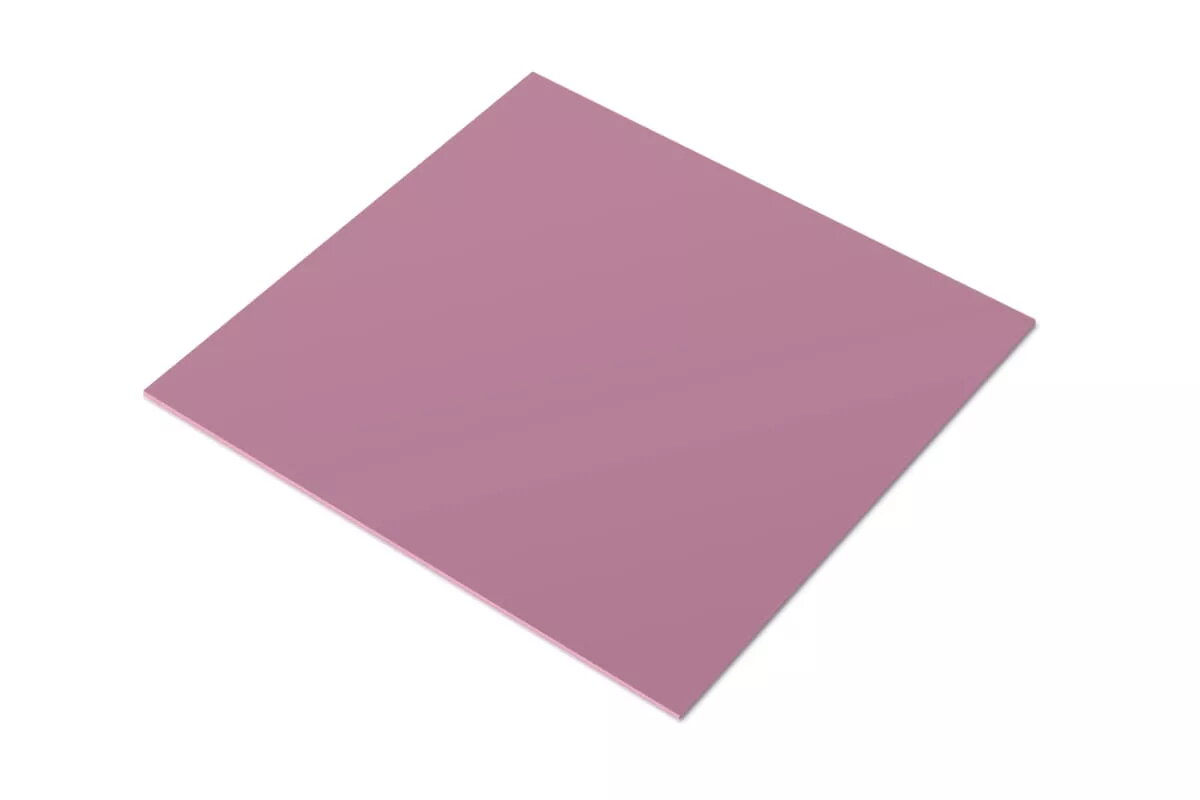

Thermal pad Alphacool Core 9 W/m·K 100x100x1 mm

The Alphacool Core thermal pad (9 W/m·K) is a silicone-based soft heat-conduction pad sized 100 x 100 x 1 mm, designed to improve heat transfer between electronic components and cooling solutions. With a density of 3.2 g/cm³ and good electrical insulation, it is intended for use where efficient dissipation of waste heat is required, including graphics card VRAM and voltage converters as well as game console electronics.

Advantages

The Core thermal pad offers high thermal conductivity (9 W/m·K) combined with low hardness and natural tackiness, allowing it to conform to uneven surfaces and fill gaps for better contact and heat flow. Its special material composition reduces the risk of silicone bleeding and provides a longer service life compared with many conventional thermal pads. The pad is electrically non-conductive, which makes it safe for use near live components.

Suitable for

• Cooling VRAM and voltage regulators on graphics cards
• Thermal management of Playstation and Xbox electronic components
• Motherboards, power supplies and memory modules
• Servers, telecommunication equipment and access points
• Electric vehicle electronics, autopilot systems and mobile devices

Key specifications

• Thermal conductivity: 9 W/m·K
• Dimensions: 100 x 100 x 1 mm
• Density: 3.2 g/cm³
• Material: silicone-based, electrically non-conductive
• Manufacturer: Alphacool, MPN 13416, EAN 4250197134163

How to use

Clean mating surfaces thoroughly to remove dust, grease and old thermal interface material. Cut the pad to the required shape and size if necessary, then peel off any protective liner and place the pad so it fully covers the component and contact area on the heatsink or cold plate. Apply even pressure to ensure the pad conforms to both surfaces and eliminate air gaps. Do not stretch the pad; use only light pressure when fitting sensitive components.

Usage recommendations

Store the thermal pad in a dry, dust-free environment away from direct sunlight. Replace the pad if it shows visible deformation, contamination or a decline in thermal performance. Avoid contact with sharp objects and solvents that may damage the silicone material.
