Thermal pad Alphacool Core

Name: Thermal pad Alphacool Core 9 13422
Brand: Alphacool
SKU: 10654624
Price: 20.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

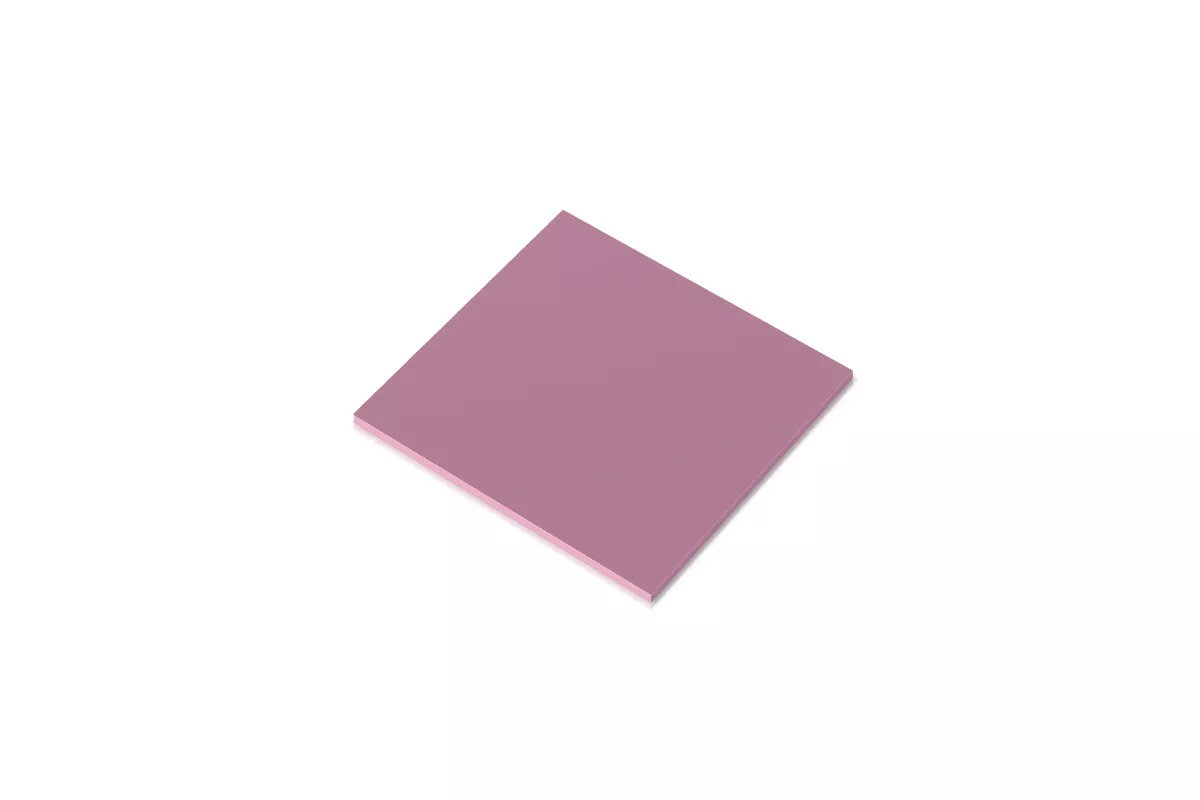

Thermal pad Alphacool Core 9 W/m·K 22 g 40x40x1.5 mm

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Alphacool Core thermal pad offers excellent thermal conductivity of 9 W/m·K, ensuring efficient heat transfer for electronic components. With a density of 3.2 g/cm³, it provides reliable performance in various applications. The pad measures 40 mm in width, 40 mm in depth, and 1.5 mm in height, making it suitable for a range of devices. Each pack contains one piece, ideal for both personal and professional use.

Available for order: 6 pcs.

Warranty: 2 Years

SKU: 10654624

Manufacturer: Alphacool

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

17.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Alphacool Core thermal pad offers a silicone-based heat conduction solution with a thermal conductivity of 9 W/m·K and dimensions of 40×40×1.5 mm. Designed to improve heat dissipation for a wide range of electronic components, the pad combines low hardness and natural tackiness to adapt to uneven surfaces and maintain effective thermal contact. Its formulated material reduces silicone bleeding and provides a longer service life compared with many standard thermal pads.

Advantages

The Core thermal pad features optimal compressibility and low hardness, allowing it to fill gaps and conform to component surfaces for improved heat transfer. It is electrically non-conductive, suitable for use where insulation is required, and its special material composition reduces the risk of silicone bleeding, resulting in extended usable life compared with conventional pads.

Suitable for

Voltage regulators and VRAM on graphics cards
Cooling electronic components in game consoles (PlayStation, Xbox)
Motherboards, memory modules and power supplies
Servers, telecommunication devices and access points
Mobile devices and notebooks
Electronic systems in electric vehicles and autopilot units
LCD TVs and other consumer electronics

Key specifications

Brand: Alphacool
Model / MPN: 13422
EAN: 4250197134224
Thermal conductivity: 9 W/m·K
Dimensions (W×D×H): 40 × 40 × 1.5 mm
Density: 3.2 g/cm³
Weight per pack: 22 g
Quantity: 1 piece
Electrical behaviour: electrically non-conductive

How to use

Clean both mating surfaces from dust, old thermal interface material and oils before applying the Alphacool Core thermal pad. Cut the pad to the required shape if necessary, remove protective films, and place it gently onto the component ensuring full contact. Reassemble the device and apply appropriate mounting pressure so the pad compresses and fills any unevenness between surfaces to establish effective thermal contact.

Usage recommendations

For best results, verify compatibility with component heights and maintain moderate mounting pressure; avoid stretching the pad during installation. Replace the thermal pad if it shows visible degradation. Do not use where direct electrical conductivity is needed.

Specifications

Thermal conductivity:: 9 W/m·K
Weight:: 0.022 kg
Operating temperature (T-T):: -50 - 180
Product colour:: Pink

All features

Features

Type:: Thermal pad
Operating temperature (T-T):: -50 - 180
Product colour:: Pink
Thermal conductivity:: 9 W/m·K
Elongation:: 40 %
Constitutive ingredients:: Silicone
Non-conductive:: Yes
Density:: 3.2 g/cm³
Non-bleeding:: Yes

Technical details

Flammability class:: V-0
Hardness (Shore OO scale):: 50

Weight & dimensions

Weight:: 0.022 kg
Height:: 1.5 mm
Width:: 40 mm
Depth:: 40 mm

Packaging data

Quantity per pack:: 1 pc(s)

Hide Show all

Description

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Thermal pad Alphacool Core cost, and is it available for purchase?

The price is 20.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 6 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 14.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Alphacool products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Alphacool service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: thermal conductivity, weight, operating temperature (t-t), product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
