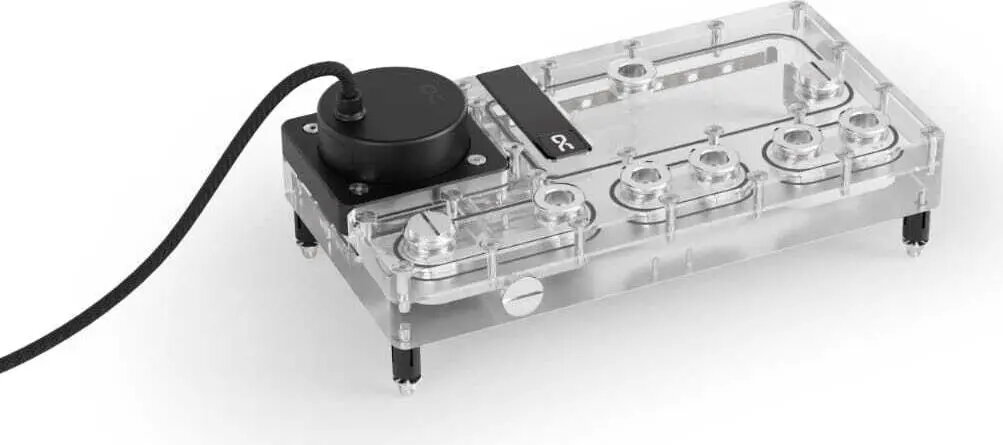

Alphacool Core Distro Plate 240 Rechts D5/DDC V.2 with D5 Apex Pump (13873) — distribution plate for 240 mm loops, right-side

Alphacool Core Distro Plate 240 Rechts D5/DDC V.2 with D5 Apex Pump is a distribution plate designed for custom PC water-cooling loops that use 240 mm radiators. The unit integrates a D5 Apex pump and provides dedicated inlet and outlet channels, with mounting orientation intended for right-side radiator placement. The distro plate organizes coolant flow, simplifies tubing runs and pump installation, and supports both D5 and DDC pump fittings for flexible system integration.

Advantages

The distribution plate combines pump and manifold functionality into a single component to reduce clutter inside the case and centralize the pump mounting. Integrated channels create defined flow paths for inlet and outlet lines, reducing the risk of routing errors and simplifying loop assembly. Compatibility with D5/DDC fittings and the included D5 Apex pump enable reliable continuous circulation and allow straightforward replacement or upgrade of pump hardware. The right-side radiator orientation is convenient for builds that route tubing and components along the case perimeter.

Suitable for

• Custom single-loop PC water-cooling with a 240 mm radiator
• Compact dual-loop configurations where a right-side distro/pump placement is preferred
• Systems requiring integrated pump mounting to save space and simplify tubing runs
• Builders seeking an organized, easy-to-maintain distribution solution

Key specifications

• Designed for 240 mm radiator loops
• Integrated D5 Apex pump included
• Supports D5 and DDC pump fittings
• Right-side mounting orientation for radiator placement
• Manifold-style inlet and outlet channels for neat tubing routing

How to use

Mount the distro plate in the designated right-side position in your case or on the radiator bracket, secure the unit using compatible screws, then attach your radiator and fan assembly according to case layout. Connect inlet and outlet tubing to the corresponding channels on the distro plate, ensuring tight connections with appropriate fittings and clamps. Power the integrated D5 Apex pump using the supplied power connector and verify pump rotation and flow before filling the loop. Perform a leak test at low power, then top up coolant and run the system under observation until stable.

Usage recommendations

Use corrosion-inhibiting and Biocide-safe coolant compatible with copper, brass and plastic components. Regularly check fittings and tubing for signs of wear, and perform scheduled maintenance including coolant replacement every 6–12 months depending on coolant type and operating conditions.
