Coldplate Alphacool 14574

Name: Coldplate Alphacool 14574 Acrylic Transparent 14574
Brand: Alphacool
SKU: 11248456
Price: 315.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Coldplate Alphacool 14574 Acrylic Transparent 145mm x 280mm x 42mm RGB 5V

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Alphacool 14574 coldplate is designed for efficient cooling solutions. Made from transparent acrylic, it measures 145mm in width, 280mm in depth, and 42mm in height. The RGB lighting operates at 5V, enhancing the aesthetics of your setup while providing effective thermal management.

Available for order: 66 pcs.

Warranty: 2 Years

SKU: 11248456

Manufacturer: Alphacool

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

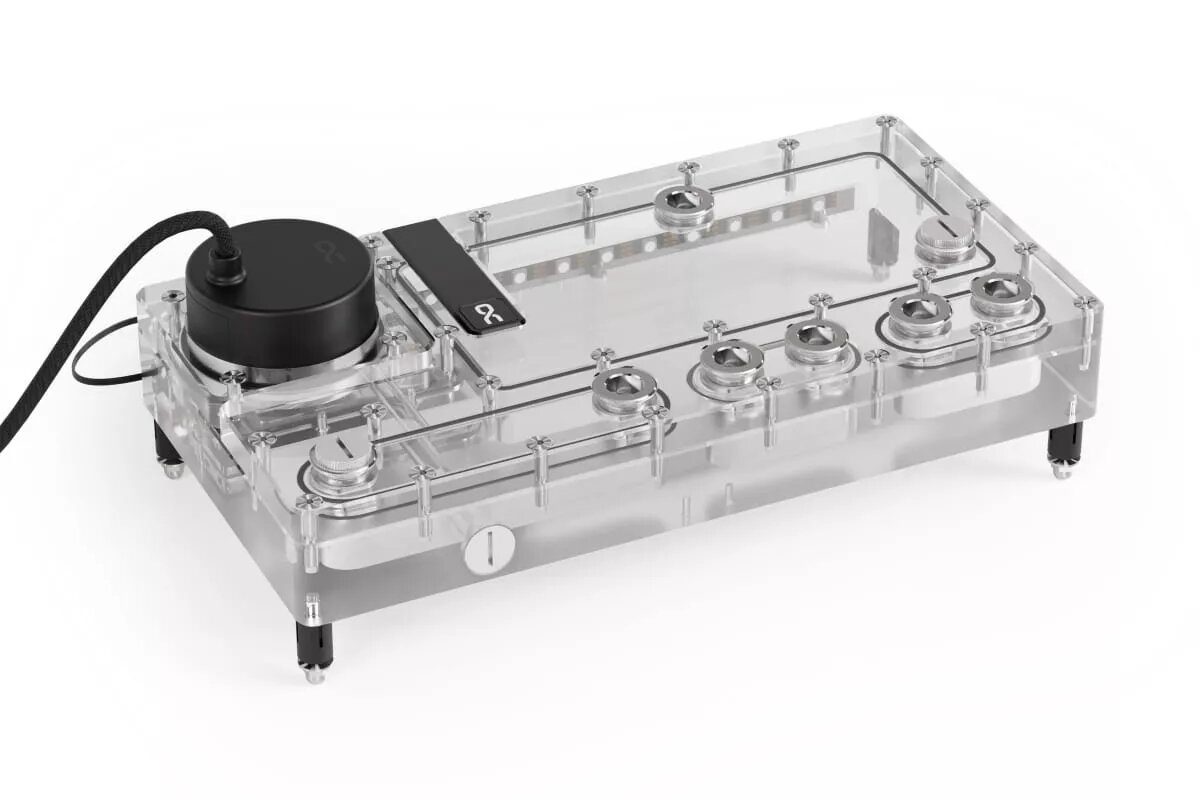

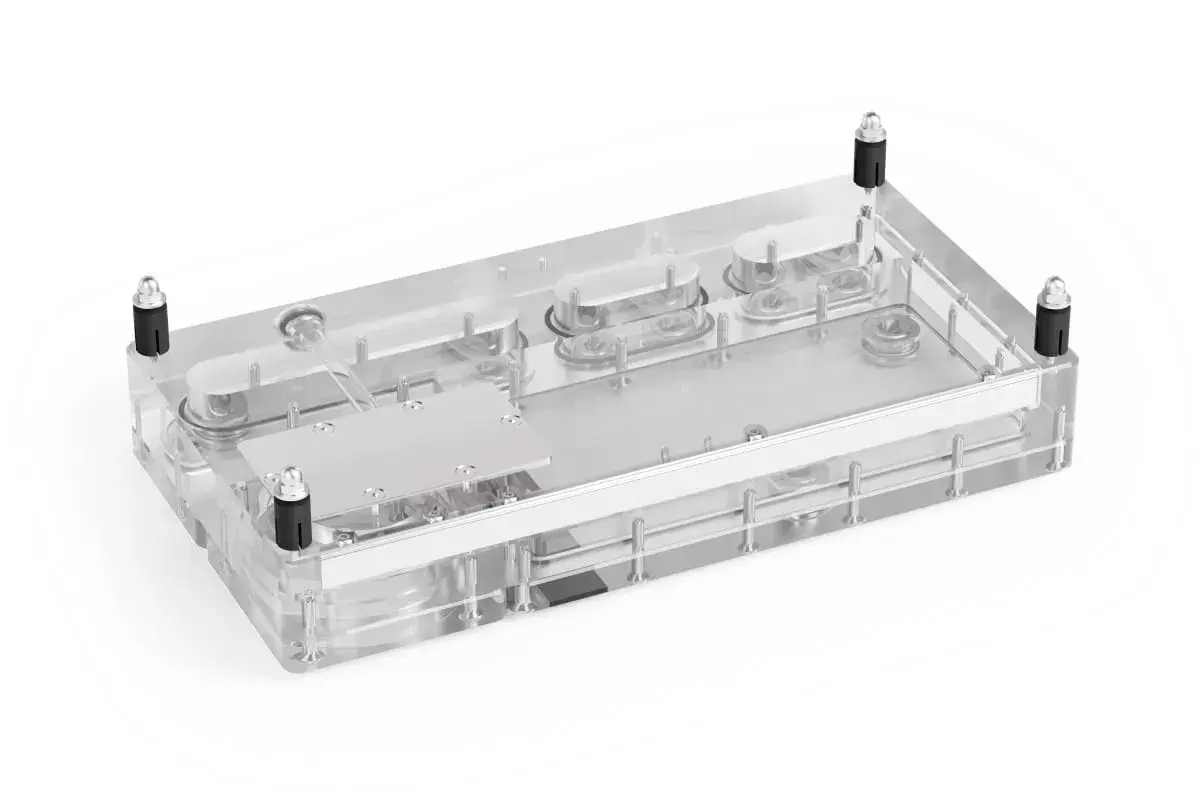

The Alphacool Core Distro Plate with integrated pump (model 14574) is a transparent acrylic coldplate measuring 145 mm x 280 mm x 42 mm that combines a distribution reservoir and pump mounting in a single unit. Fitted with chrome-plated G1/4" brass fittings and featuring integrated 5V aRGB lighting, the unit is intended for custom PC water-cooling loops and simplifies plumbing, mounting and cable management while adding a clear visual element to the system.

Advantages

The acrylic construction provides visual transparency for coolant flow while the recessed, two-part chrome-plated G1/4" brass connections with O-rings reduce the risk of cracks and leaks and improve stability. The integrated 5V aRGB lighting can be controlled via a motherboard digital aRGB header or the optional Alphacool Aurora Eiscontrol controller. The included Alphacool Core Push Mounting Kit enables quick, secure attachment to a radiator or case panel and allows easy removal for maintenance.

Suitable for (tasks / use cases)

Custom PC water-cooling loops requiring a combined reservoir and pump mount
Systems where visible coolant flow and aRGB lighting are desired
Builds needing simplified tube routing and stable G1/4" connections
Setups requiring easy installation and disassembly for maintenance or upgrades

Key specifications

Model: Alphacool Core Distro Plate (MPN 14574, EAN 4250197145749)
Dimensions: 145 mm x 280 mm x 42 mm
Material: Transparent acrylic
Fittings: Chrome-plated G1/4" brass, recessed two-part design with O-rings
Lighting: Integrated 5V aRGB (digital header or Alphacool Aurora Eiscontrol controller compatible)
Mounting: Includes Alphacool Core Push Mounting Kit

How to use

Mount the distro plate using the supplied Core Push Mounting Kit: attach the metal pins to a suitable radiator or case panel and fit the matching female sleeves to the distro plate, then push the plate onto the pins until it seats securely. Connect the G1/4" fittings to your tubing and ensure each O-ring is seated correctly. Wire the 5V aRGB cable to a compatible digital header on the motherboard or to the Alphacool Aurora Eiscontrol controller if used. Follow the enclosed instructions for detailed mounting and connection steps and for safe pump integration into your loop.

Usage recommendations

Check all connections for tight seating before filling the loop. Use compatible G1/4" threaded components and appropriate coolant. Test the loop for leaks outside the main system when possible and follow the manufacturer's instructions for electrical and fluid safety.

All features

Type:: Coldplate
Weight:: 2.275 kg
Material:: Acrylic
Height:: 42 mm
Width:: 145 mm
Depth:: 280 mm
RGB connector:: 3-Pin JST + 3-Pin
Product colour:: Transparent
Maximum operating temperature:: 60 °C
Maximum operating pressure:: 0.8 bar
Coolant capacity:: 0.36 L
Connecting thread:: 1/4
Power connector:: 3-pin
ARGB ports quantity:: 2
RGB voltage:: 5 V
