Coldplate Alphacool 14576

Name: Coldplate Alphacool 14576 Acrylic Transparent 14576
Brand: Alphacool
SKU: 11248457
Price: 388.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Coldplate Alphacool 14576 Acrylic Transparent 145mm Width 420mm Depth 42mm Height

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Alphacool 14576 coldplate is designed for efficient cooling in computer systems. Made from acrylic, it features a transparent design and dimensions of 145mm width, 420mm depth, and 42mm height. It operates at a RGB voltage of 5V, making it suitable for modern setups.

Available for order: 109 pcs.

Warranty: 2 Years

SKU: 11248457

Manufacturer: Alphacool

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

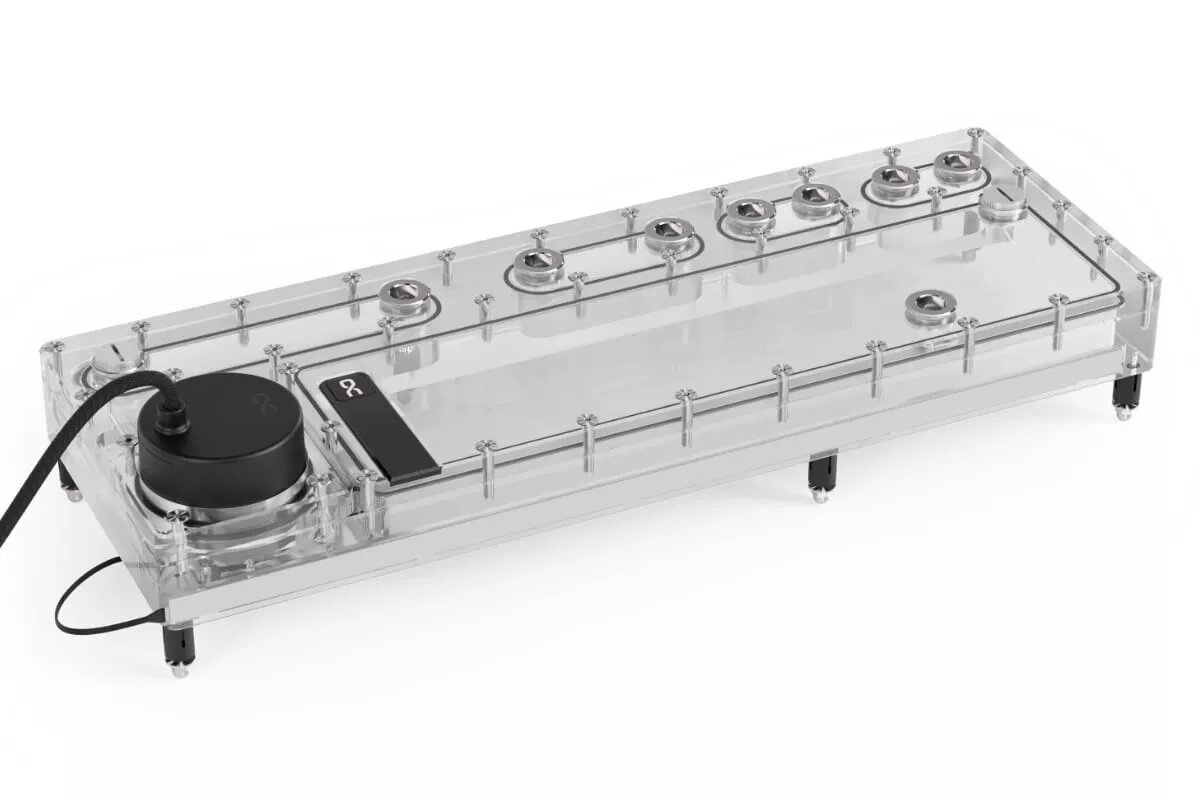

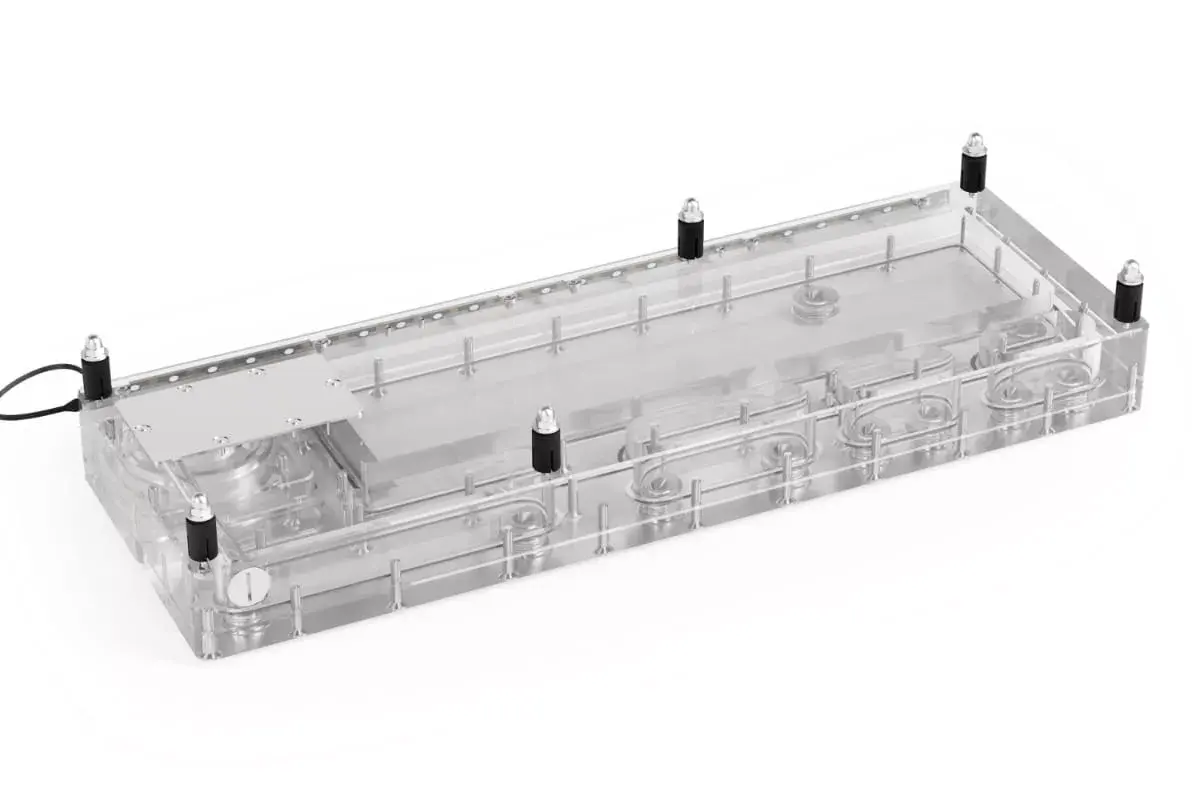

The Alphacool Core Distro Plate with integrated pump (model 14576) is a transparent acrylic coldplate measuring 145 mm width, 420 mm depth and 42 mm height designed for custom PC water-cooling systems. It combines a distribution plate and pump in a single assembly with chrome-plated G1/4" brass fittings recessed into the acrylic and a 5V aRGB lighting system compatible with motherboard digital aRGB headers or the Alphacool Aurora Eiscontrol controller (article no. 15360).

Advantages

The unit uses high-quality acrylic for a clear view of coolant flow and chrome-plated G1/4" brass connections constructed as two-part fittings with O-rings to reduce stress on the material and minimise the risk of cracks and leaks. Recessed, non-screwed fittings increase structural stability and maintain a clean appearance. Integrated aRGB lighting offers controllable visual effects, and the included Alphacool Core Push Mounting Kit provides straightforward push-fit installation for secure mounting and easy removal for maintenance.

Suitable for

Custom PC water-cooling loops where a combined pump and distro solution is needed
Builds requiring a transparent acrylic coldplate (145 × 420 × 42 mm) for visual coolant display
Systems using 5V aRGB lighting controlled by motherboard digital headers or external aRGB controllers

Key specifications

Model: Alphacool Core Distro Plate with integrated pump, MPN 14576
Material: transparent acrylic
Dimensions: 145 mm (W) × 420 mm (D) × 42 mm (H)
Connections: chrome-plated G1/4" brass, two-part fittings with O-rings
Lighting: 5V aRGB, compatible with digital aRGB motherboard headers or Alphacool Aurora Eiscontrol (15360)
Mounting: Alphacool Core Push Mounting Kit included
EAN: 4250197145763

How to use

Install the distro plate in the case where it fits the intended loop layout and secure it using the included Core Push Mounting Kit: attach the metal pins to the radiator or case panel and push the distro plate with its matching female sleeves onto the pins. Connect the coolant tubing to the recessed G1/4" fittings, ensuring O-rings are seated correctly, and connect the aRGB cable to a compatible 5V digital header or the optional Alphacool controller. Follow the enclosed instructions for pump power connections and leak testing before completing the build.

Recommendations for use

Perform a pressure or leak test after installation, use compatible G1/4" fittings and tubing, keep the acrylic surface clean to maintain visibility, and follow the manufacturer’s instructions for electrical connections and aRGB configuration.

All features

Type:: Coldplate
Weight:: 3.1 kg
Material:: Acrylic
Height:: 42 mm
Width:: 145 mm
Depth:: 420 mm
RGB connector:: 3-Pin JST + 3-Pin
Product colour:: Transparent
Maximum operating temperature:: 60 °C
Maximum operating pressure:: 0.8 bar
Coolant capacity:: 0.36 L
Connecting thread:: 1/4
Power connector:: 3-pin
ARGB ports quantity:: 2
RGB voltage:: 5 V
