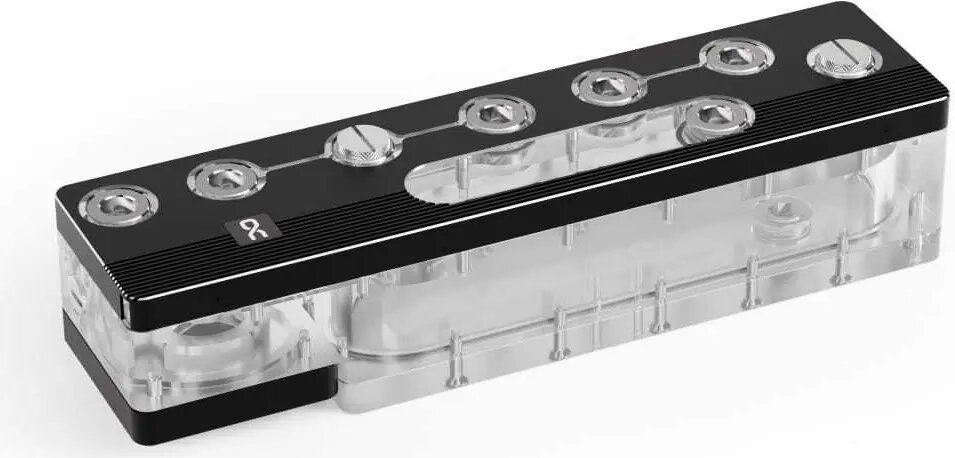

Alphacool Distro Plate Apex North XL for D5/DDC pumps — Black

Alphacool Distro Plate Apex North XL for D5/DDC pumps — Black is a distribution plate engineered to combine pump and reservoir mounting with tidy coolant routing for custom PC water-cooling loops. Designed to accept both D5 and DDC series pumps, the Apex North XL provides a compact, modular platform that positions the pump and connects inlet/outlet channels to simplify loop layout. The black finish offers a neutral appearance that integrates with a wide range of system builds while stabilizing the pump assembly and helping maintain consistent flow through the cooling circuit.

Advantages

The distro plate reduces the number of individual fittings and tubing runs by centralizing pump and reservoir connections, which simplifies installation and improves internal airflow compared with scattered components. By offering standardized port locations for inlet and outlet channels, it enables neater tube routing and easier maintenance access. The unit's robust construction supports secure pump mounting and minimizes vibration transfer to the chassis, contributing to quieter operation and reliable coolant circulation.

Suitable for

• Custom desktop PC water-cooling loops using D5 or DDC pumps
• Systems requiring combined pump and reservoir mounting to save space
• Builds where tidy tubing and cable routing is important for airflow or aesthetics
• Maintenance-focused setups that benefit from centralized coolant connections

Key specifications

• Compatibility: designed for D5 and DDC series pump form factors
• Finish: black surface treatment
• Mounting: integrated pump and reservoir mounting provisions for secure installation
• Ports: dedicated inlet and outlet channels for simplified tubing connections
• Form factor: XL distribution plate size for larger pump/reservoir assemblies

How to use

Install the distro plate in an appropriate location within the case, aligning the pump mounting points with the D5 or DDC pump body. Secure the pump according to the manufacturer’s mounting instructions and attach the reservoir if applicable. Connect the inlet and outlet tubing to the distro plate ports using compatible fittings; ensure all connections are tightened to prevent leaks. Fill the loop with coolant and perform leak testing before powering the system. Position tubing to avoid sharp bends and maintain clearances for other components to preserve flow and ease future maintenance.

Usage recommendations

Use compatible fittings and tubing sizes recommended for D5/DDC pump ports, follow standard leak-test procedures after filling, and verify pump orientation to ensure efficient flow. Periodically inspect seals and fittings for wear and re-tighten as needed during routine maintenance.
